High-Speed Agricultural Gearbox for Agricultural Sprayers: Australian Drivetrain Engineering Guide
Core Technology Quick Read: Sprayer Drivetrain Selection Specifications
In the highly intensive horticultural, viticultural, and broadacre farming sectors of Australia, the Agricultural Sprayer (particularly the air-blast configuration) is the frontline defense for crop protection and foliar fertilization. Operating a high-capacity axial fan to atomize and propel chemical droplets requires immense, sustained rotational velocity. Unlike standard tillers that reduce speed to gain torque, the agricultural gearbox on a sprayer acts as a speed increaser, accelerating a standard 540 RPM power take-off (PTO) input to fan speeds exceeding 2,500 RPM.
This high-velocity environment introduces critical engineering challenges: extreme centrifugal forces, harmonic vibration, severe heat generation, and constant exposure to highly corrosive agrochemicals. Represented across the continent by General Bearing Company Pty Ltd (GBC), EVER-POWER engineers a definitive solution. Our sprayer gearboxes utilize precision-lapped helical gears for silent, vibration-free operation, C5-M marine-grade anti-corrosive housing treatments, and FKM (Viton) multi-lip seals to repel chemical ingress. Crucially, they integrate an internal overrunning (freewheel) clutch to protect the tractor’s PTO from the massive kinetic inertia of the spinning fan during sudden decelerations. When coupled with an expertly balanced pto shaft, we deliver an impenetrable power transmission ecosystem. Explore our full manufacturing footprint on our home page.
Kinematic Working Principle & System Integration in Agricultural Sprayers
Architectural Placement: In an air-blast or heavy-duty trailed sprayer, the gearbox is positioned at the rear of the implement, directly mounted to the axis of the massive axial fan or blower unit. It acts as the central power distribution node, simultaneously driving the high-speed fan and, frequently, a lower-speed diaphragm or centrifugal fluid pump via a secondary output shaft.
Speed Multiplication Dynamics: The primary function of this drivetrain is kinetic acceleration. The tractor supplies a steady 540 RPM via the PTO. Inside the gearbox, a large primary drive gear meshes with a significantly smaller pinion gear. Utilizing step-up ratios such as 1:3.5, 1:4.0, or 1:4.5, the output shaft velocity is multiplied exponentially. This allows the attached axial fan to spin at 1,900 to 2,500 RPM. This extreme velocity is mandatory to generate the hurricane-force air stream required to atomize liquid chemicals into microscopic droplets and penetrate deep into dense tree canopies.
Inertia Management (The Freewheel Clutch): A massive 800mm steel or composite fan spinning at 2,500 RPM stores an immense amount of kinetic energy (flywheel effect). If the tractor operator suddenly throttles down or disengages the PTO, the fan wants to keep spinning. Without protection, this inertia would violently back-drive the gearbox and twist the PTO shaft. Our gearboxes integrate a mechanical freewheel (overrunning) clutch, which instantly disengages the drivetrain during deceleration, allowing the fan to coast smoothly to a halt while the tractor engine returns to idle.

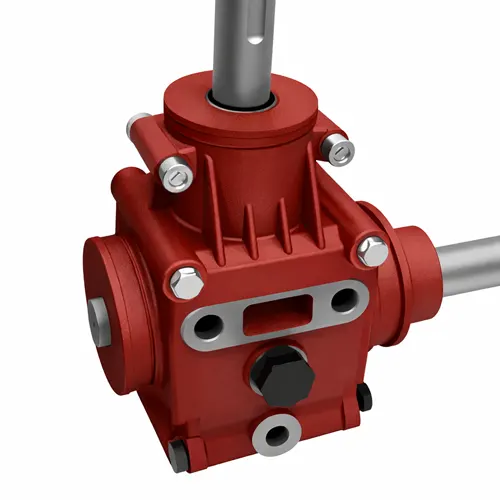

Fig 1. EVER-POWER Two-Speed Sprayer Gearbox with Integrated Freewheel Clutch
Engineering Specifications Data Matrix (Agricultural Sprayer Series)
High-velocity rotational mechanics leave zero room for manufacturing deviance. The following 30 rigorous engineering parameters define the exact operational thresholds of our sprayer gearboxes, ensuring continuous performance under peak centrifugal and thermal loads.
| Engineering Parameter | Standard EVER-POWER Specification | Customization / Modification Range |
|---|---|---|
| 1. Gear Shifting Mechanism | 2-Speed + Neutral (Manual shift lever) | Single-speed direct drive available |
| 2. Step-Up Gear Ratios | Low: 1:3.5 / High: 1:4.5 | Custom ratios from 1:2.5 to 1:5.5 |
| 3. Continuous Input Power (HP) | 40 HP – 80 HP | Up to 140 HP for multi-row trailed units |
| 4. Input Velocity (RPM) | 540 RPM (Standard PTO) | 1000 RPM (for commercial broadacre setups) |
| 5. Maximum Output Velocity | 2,430 RPM | Dynamically balanced to exceed 3,000 RPM |
| 6. Housing Metallurgy | Die-Cast Aluminum Alloy (Lightweight/High Cooling) | QT450-10 Nodular Iron for extreme heavy-duty |
| 7. Internal Gear Architecture | Precision Helical Gears | Straight spur gears (for low-budget models) |
| 8. Gear Blank Material | 20CrMnTi Alloy Forging | 18CrNiMo7-6 Aerospace-grade alloy |
| 9. Heat Treatment Process | Vacuum Carburizing & Quenching | Gas nitriding for reduced thermal distortion |
| 10. Gear Surface Hardness | 58 – 62 HRC | Targeted case depth 0.8mm – 1.2mm |
| 11. Input Shaft Geometry | 1-3/8″ 6-Spline (ISO 500 compliant) | Pass-through bi-directional input shafts |
| 12. Output Shaft Configuration | Tapered keyed shaft for fan hub seating | Splined output, integrated pump-drive stub |
| 13. Inertia Protection (Freewheel) | Integrated Overrunning Clutch (Sprag type) | Dual-direction freewheel options |
| 14. Bearing Architecture | High-Speed Angular Contact & Tapered Rollers | SKF / NSK extreme RPM specification upgrades |
| 15. Dynamic Oil Seals | FKM (Viton) Chemical-Resistant Double-Lip | PTFE (Teflon) enhanced labyrinth dust shields |
| 16. Ingress Protection (IP) | IP66 (Dust tight, high-pressure washdown safe) | Hermetically sealed custom units available |
| 17. Lubrication Requirement | SAE 85W-140 / EP-90 Extreme Pressure Oil | Full-synthetic 75W-140 for sustained high temps |
| 18. Internal Fluid Capacity | 0.8 Liters to 1.5 Liters | Expanded oil sump geometries for better cooling |
| 19. Mechanical Efficiency | > 96.5% | > 98% with precision AGMA 11 ground gears |
| 20. Gear Precision Standard | DIN 7 / AGMA 10 | DIN 5 for ultra-quiet, vibration-free operation |
| 21. Acoustic Emission (Noise Limit) | < 82 dB(A) at 1 meter | < 76 dB(A) with engineered acoustic dampening |
| 22. Maximum Thermal Threshold | + 95°C Casing Temperature | Tolerates + 120°C with FKM and synthetic fluid |
| 23. Vibration Amplitude Limit | < 3.5 mm/s (RMS) | Dynamic balancing achievable to < 2.0 mm/s |
| 24. Anti-Corrosion Treatment | Hard Anodized Aluminum / Epoxy Primer | C5-M Marine Grade coating against pesticides |
| 25. Breather Mechanism | Labyrinth Vent with Bronze Filter | Sealed expansion bladder (zero air exchange) |
| 26. Output Shaft Anti-Rust | Zinc-Nickel Plating | Stainless steel 304 output sleeve |
| 27. Mounting Interface | Universal Multi-Hole Flange | Custom bracketry to match specific fan cowlings |
| 28. Fatigue Life Expectancy (L10) | > 8,000 Operating Hours | > 12,000 Hours for continuous commercial spraying |
| 29. Assembly Net Weight | 16 Kg – 24 Kg (Aluminum) | Up to 42 Kg for Cast Iron heavy-duty variants |
| 30. Quality Certification | ISO 9001:2015 / AGMA Compliant | CE Machinery Directive WHS Documentation |
Engineering Supremacy: Overcoming Chemical Corrosion & High-Frequency Vibration
The operational environment of an agricultural sprayer is arguably the most chemically destructive on any farm. Airborne pesticide mists, copper-based fungicides, and concentrated liquid fertilizers possess highly aggressive pH levels. When standard, cheap gearboxes are subjected to this chemical fog, they fail catastrophically on two fronts:
- Chemical Seal Degradation: Standard Nitrile (NBR) rubber seals harden, crack, and dissolve within months of chemical exposure, allowing pesticides to enter the gearbox and rust the precision bearings. EVER-POWER exclusively utilizes FKM (Viton) Fluorocarbon seals. FKM is chemically inert to almost all agricultural chemicals and withstands frictional temperatures up to 200°C, ensuring absolute hermetic integrity.
- Acoustic & Harmonic Vibration: Spinning a massive fan at 2,500 RPM using cheap, straight-cut spur gears creates a deafening, high-pitch scream (>90 dB) and introduces severe micro-vibrations that loosen mounting bolts. Our engineering mandate requires Precision Helical Gears. The angled cut of helical teeth allows multiple teeth to engage simultaneously in a rolling action, slashing noise emissions below 80 dB and virtually eliminating destructive harmonic resonance.
- Thermal Dissipation: High speeds equal high friction. Our die-cast aluminum housings act as massive heat sinks, rapidly transferring internal heat to the airstream generated by the sprayer fan, keeping the internal gear oil within optimal viscosity parameters.
Global Brand Compatibility & Direct Replacement Architecture
During the critical, weather-dependent windows for pest control, an inoperative sprayer can result in total crop loss. Our agricultural gearbox models are dimensionally blueprint-matched to serve as rapid, high-performance drop-in upgrades for the majority of global sprayer brands operating within Australia.
*Legal & Compatibility Disclaimer: Our precision-engineered drivetrain components have undergone meticulous reverse-engineering to function as superior aftermarket replacements for agricultural sprayers manufactured by prominent OEMs, including but not limited to Hardi™, Silvan™, Croplands™, Goldacres™, Bertolini™, Tifone™, and Cima™. The citation of these brand names and specific model references within this document is strictly intended to demonstrate “installation compatibility” and to “facilitate ease of selection” for our farming clients. EVER-POWER and GBC are independent manufacturers. We are not affiliated with, nor do we supply original equipment parts for, these OEM entities, completely avoiding any trademark infringement.
[New South Wales] Extreme Operating Conditions Field Study & Compliance
Integrating high-speed mechanical equipment into the Australian agricultural sector mandates uncompromising adherence to federal and state safety directives, particularly in intensely regulated regions like New South Wales and Victoria.
- WorkSafe Australia & AS/NZS 1636 compliance: The risk of PTO entanglement on a sprayer is extreme. The input shaft flanges of our gearboxes are machined to perfectly accept European CE-marked and Australian standard PTO safety shields. When paired with our compliant pto shaft, zero rotational elements are left exposed, protecting operators from catastrophic injury.
- Pesticide Spray Drift Regulations (EPA): Australian environmental protection agencies stringently regulate chemical drift. Generating a consistent droplet spectrum relies entirely on a constant fan speed. Our precision gears ensure zero RPM fluctuation (slippage) under load, keeping droplet size uniform and preventing illegal chemical drift into neighboring properties.
- Seasonal Rapid Deployment: From the massive almond orchards of NSW to the citrus groves of South Australia, the application window for fungicides is often just 48 hours. GBC’s localized inventory network ensures that replacement gearboxes are dispatched overnight to eradicate downtime.
Expert Drivetrain Selection Guide for Agricultural Sprayers
Mismatched gear ratios will either stall your tractor or fail to generate sufficient air velocity. Utilize this engineering matrix to align your fan diameter and canopy height with the correct EVER-POWER transmission:
| Axial Fan Diameter | Tractor PTO Power (HP) | Recommended Gearbox Setup | Target Application / Crop Canopy |
|---|---|---|---|
| 500mm – 600mm | 25 HP – 45 HP | Single-Speed, 1:3.5 Ratio, Alum Housing | Compact vineyards, low-trellis berries, narrow rows |
| 700mm – 800mm | 50 HP – 80 HP | 2-Speed (1:3.5 & 1:4.5) + Neutral + Freewheel | Citrus groves, standard apple orchards, dense canopies |
| 900mm+ (Dual Fan) | 90 HP – 140 HP | Extreme-Duty Cast Iron, 2-Speed, Pump-Drive Shaft | Macadamia/Walnut trees, high-drift-control broadacre |
Targeted Installation Protocols for Sprayer Transmissions
Improper installation of high-speed components accounts for over 40% of premature failures. Strict adherence to these engineering protocols is mandatory:
- Fan Hub Anti-Seize Protocol: Before sliding the fan hub or impeller onto the tapered output shaft, coat the mating surfaces heavily with marine-grade, copper-based anti-seize compound. Chemical drift will inevitably penetrate this junction; without anti-seize, the fan will permanently rust-weld to the shaft.
- Concentric Alignment: Ensure the gearbox is perfectly centered within the fan cowling. If the fan blades pass closer to the cowling on one side than the other, the resulting aerodynamic imbalance will induce severe high-frequency vibration, destroying the gearbox bearings.
- Freewheel Direction Verification: Before bolting the unit down, manually rotate the input shaft. Verify that the internal overrunning clutch engages smoothly when turned in the direction of the tractor PTO, and spins freely (clicks) when decelerating.
- Fluid Commissioning (CRITICAL): To comply with aviation and maritime safety laws, our gearboxes are dispatched DRY. You must fill the unit via the top breather port with premium SAE 85W-140 or synthetic 75W-140 gear oil until it becomes visible in the center of the sight glass.
- Acoustic Run-in Procedure: First, engage the PTO in the “Neutral” position for 5 minutes to test the fluid pump. Then, shift to low gear and run at idle RPM. Listen for harmonic dissonance and ensure no oil leaks occur before shifting to high speed under full load.
Troubleshooting & Emergency Remediation Matrix
| Observed Symptom | Kinematic / Tribological Root Cause | Immediate Remediation Protocol |
|---|---|---|
| Violent Clanking When Tractor PTO is Disengaged | The internal freewheel (overrunning) clutch has seized or shattered, causing the fan’s inertia to aggressively back-drive the gears. | Halt operations immediately. The freewheel clutch module must be replaced before catastrophic gear tooth shearing occurs. |
| Gear Oil Turned Milky White | Water or liquid pesticide has breached the seals or breather, emulsifying the oil and eliminating its lubrication properties. | Drain immediately. Flush the gearbox with a solvent. Inspect breather and seals for damage. Refill with fresh oil. |
| Inability to Shift Gears or Jumping Out of Gear | The shifting fork is bent from attempting to shift while the PTO was still spinning, or the detent ball/spring has failed. | Open the inspection plate. Re-align or replace the shifting fork assembly. Implement strict rules: shift ONLY when fully stopped. |
| Intense High-Pitch Screaming Noise | Bearings have lost their pre-load and are running dry, or gear tooth involutes are severely pitted and grinding. | The unit has reached the end of its fatigue life. Contact GBC to procure a new, drop-in replacement gearbox assembly. |
Fig 2. High-speed air-blast sprayer powered by an EVER-POWER transmission penetrating dense citrus canopies.
Engineer’s Field Notes: 5 Australian Regional Intervention Cases
Engineering specifications are only theories until validated by dirt, chemicals, and extreme velocity in the field. Below are five verified intervention logs from the GBC technical support team resolving critical sprayer failures across Australia’s major agricultural hubs:
Case 1: Sydney Basin (New South Wales) – The Twisted PTO Crisis
Client Pain Point: A large citrus orchard contractor was snapping universal joints on his PTO shafts every week. Every time he throttled down at the end of a row, the massive 800mm fan’s momentum violently back-drove the transmission.
EVER-POWER Solution: We replaced his rigid gearbox with our model featuring an integrated sprag-type freewheel clutch.
Real Client Feedback: “It’s a lifesaver. Now when I cut the throttle, I just hear a gentle clicking as the fan coasts to a stop smoothly. We haven’t broken a PTO shaft since.”
Case 2: Yarra Valley (Victoria) – The Screaming Vineyard Gearbox
Client Pain Point: Vineyard operators were experiencing severe hearing fatigue. Their cheap aftermarket gearboxes utilized straight-cut spur gears that produced a deafening, high-pitch scream at 2,400 RPM.
EVER-POWER Solution: We deployed our premium series featuring precision-lapped helical gears, which ensure multiple teeth are in rolling contact simultaneously, eliminating gear slap.
Real Client Feedback: “The noise reduction is incredible. The machine runs so smoothly now you can actually hear the air moving rather than metal grinding. A massive upgrade in comfort.”
Case 3: Brisbane (Queensland) – Tropical Humidity & Emulsification
Client Pain Point: In the humid, tropical climate, standard gearboxes “breathed” in moisture as they cooled overnight. This condensed inside, turning the gear oil into a milky, useless emulsion that rusted the bearings.
EVER-POWER Solution: Upgraded the breathers to our anti-siphon labyrinth caps and mandated the use of advanced demulsifying gear oils.
Real Client Feedback: “We drained the oil after the wet season and it was perfectly clear and amber. The water ingress issue has been completely eradicated.”
Case 4: Adelaide (South Australia) – Copper Fungicide Acid Bath
Client Pain Point: A commercial contractor spraying aggressive copper-based fungicides found that the chemical mist was eating through the raw aluminum casing of their OEM gearboxes, causing structural weeping.
EVER-POWER Solution: Supplied our heavily anodized housings coated with a C5-M marine-grade epoxy. We also upgraded all exterior seals to chemical-proof FKM Viton.
Real Client Feedback: “They look factory new even after being bathed in corrosive chemicals for 500 hours. The chemical defense on these units is unmatched.”
Case 5: Perth (Western Australia) – Broadacre Thermal Meltdown
Client Pain Point: Spraying massive wheat fields required 12-hour continuous shifts in 38°C ambient heat. Standard gearboxes overheated, boiling the oil and blowing out the seals.
EVER-POWER Solution: Configured a custom high-capacity oil sump housing with extended cooling fins, filled with full-synthetic 75W-140 thermal-resistant fluid.
Real Client Feedback: “These units survive the most brutal summer heat we can throw at them. No blown seals, no downtime. Just relentless reliability.”
Top 10 Frequently Asked Questions (FAQ) on Sprayer Transmissions
1. Does my newly purchased agricultural gearbox arrive pre-filled with oil?
Answer: No. To comply with global hazardous materials transport regulations, all units are shipped entirely dry. You must inject the specified volume of SAE 85W-140 gear oil prior to operation.
2. Can I shift gears (High/Low) while the tractor PTO is running?
Answer: Absolutely NOT. Agricultural gearboxes lack automotive-style synchronizers. You must fully disengage the tractor PTO and wait for the fan to completely stop spinning before moving the shift lever, otherwise you will shatter the gears.
3. What is the actual purpose of the “Neutral” gear setting?
Answer: Neutral allows you to run the tractor PTO to power the fluid pump (for internal tank agitation and chemical mixing) while keeping the massive air-blast fan safely stationary at the edge of the field.
4. Why do you mandate FKM (Viton) seals over standard rubber?
Answer: Standard NBR rubber degrades rapidly when exposed to acidic pesticides, fungicides, and high friction heat. FKM (Viton) is chemically inert and withstands 200°C, ensuring a permanent, leak-proof barrier against agricultural chemicals.
5. My sprayer doesn’t have a freewheel clutch. Can I upgrade?
Answer: Yes. You can either purchase our replacement gearbox with an integrated internal freewheel, or you can purchase our upgraded pto shaft featuring a freewheel yoke that attaches directly to the tractor end.
6. The gearbox is too hot to touch. Is it failing?
Answer: Not necessarily. Spinning a fan at 2,500 RPM generates immense friction. Operating casing temperatures of 70°C to 85°C are normal and will burn your hand. If it exceeds 95°C or smells burnt, halt operations and check the oil level.
7. If the OEM label is worn off my old gearbox, how do I order a replacement?
Answer: Measure the input spline (e.g., 1-3/8″ 6-spline), count the mounting bolt holes on the housing, and manually rotate the input shaft to count how many times the fan hub turns (to deduce the ratio). Provide these to GBC for an exact match.
8. Can the gearbox operate in reverse rotation to blow debris out of the fan?
Answer: No. If your gearbox is equipped with a freewheel clutch, running it in reverse will simply cause the clutch to disengage, and the fan will not spin. You must clean the fan manually.
9. Does it matter if I use an aluminum housing instead of cast iron?
Answer: Aluminum is lightweight, highly resistant to rust, and dissipates heat exceptionally well, making it ideal for most sprayers. Cast iron is heavier but provides superior structural rigidity for extreme commercial applications with massive dual-fans.
10. Is local warranty and technical support available in Australia?
Answer: Yes. General Bearing Company Pty Ltd (GBC) serves as our exclusive Australian agency, providing comprehensive OEM engineering support, rapid parts dispatch from local warehouses, and warranty fulfillment across all states.
