Lawn Mower Gearbox Terrain & Crop-Specific Requirements

Core Technological Advantages & Drivetrain Selection Guidelines

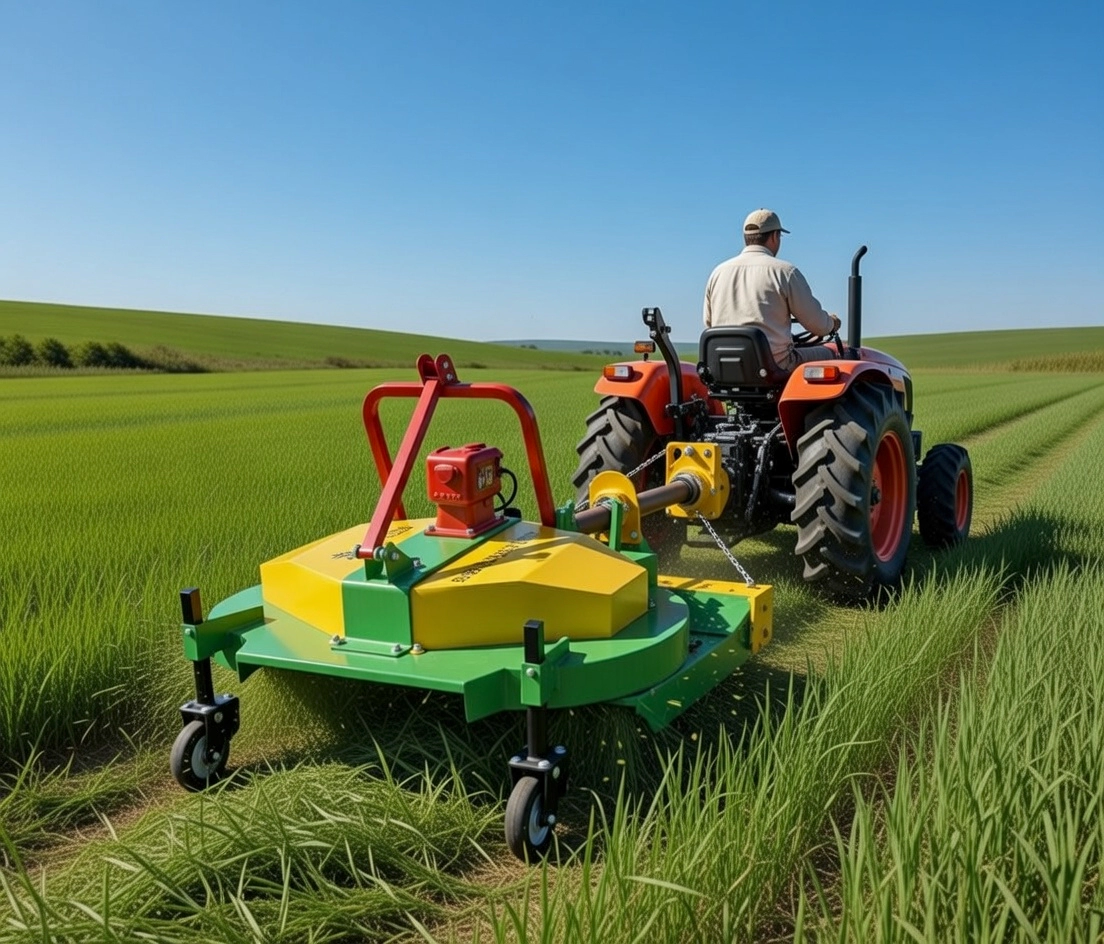

In the context of Australian agricultural mechanization, particularly for rotary slashers and flail mowers, the agricultural gearbox is far more than a simple speed reducer. It is a high-stress energy conversion hub. Positioned centrally on the mower deck, this component receives horizontal rotational energy from the tractor’s PTO via a pto shaft, typically operating at 540 RPM or 1000 RPM. Inside the heavy-duty cast-iron housing, precision-engineered bevel gears redirect this force 90 degrees downward to the vertical output shaft, amplifying torque to drive the massive blade carrier.

The core advantage of the ever-power mower gearbox lies in its thermodynamic resilience and kinetic shock absorption. When clearing overgrown paddocks in Victoria or tackling thick brush in Queensland, sudden blade impacts against hidden stumps generate violent torsional kickbacks. Our gearboxes utilize carburized 20CrMnTiH alloy gears with a specifically controlled case depth (0.8-1.2mm), ensuring the gear teeth possess a hardened exterior to resist wear, while maintaining a ductile core that absorbs catastrophic shock loads without shattering.

Comprehensive Technical Specifications (30 Parameters)

The following engineering parameters are derived from our heavy-duty slasher gearbox series, optimized for the Australian terrain.

National Standards & Certification Landscape for Drivetrain Components

Legal & Compatibility Statement: Brand Replacement

To minimize downtime, agricultural contractors require immediate, reliable replacement parts. ever-power has engineered its agricultural gearbox series to serve as a high-performance drop-in replacement for numerous OEM configurations.

Engineer’s Notebook

Customer Pain Points & Verified Field Solutions (Australian Case Studies)

The true measure of an agricultural gearbox is its survival rate in the field. Here are five real-world scenarios handled by the GBC team across major Australian agricultural hubs:

• Case 1: Sydney, New South Wales – The Highway Slasher

  Client Pain Point: “We hold the municipal contract for highway verge clearing. The debris—hidden tires, steel pickets, rocks—was shattering the output shafts on our Italian-branded gearboxes every few weeks, killing our margins.”

  GBC Solution: We supplied the heavy-duty EP-150 series equipped with a 20CrMnTiH core-toughened output shaft, paired with a meticulously calibrated slip-clutch pto shaft. The system now absorbs the shock without transferring the lethal shear force to the gears.

• Case 2: Melbourne, Victoria – The Dairy Farm Mud Bath

  Client Pain Point: “Winter rains turn our Gippsland dairy pastures into a swamp. Our mower gearboxes were sucking in mud water through the lower seals, emulsifying the gear oil within days.”

  GBC Solution: Implementation of our “Mud-Armor” configuration. By integrating a steel labyrinth shield beneath the double-lip Viton seal, we created a physical barrier against water ingress, achieving true IP67 status in field conditions.

• Case 3: Brisbane, Queensland – Tropical Heat Management

  Client Pain Point: “Continuous slashing in 38°C humidity was melting the NBR oil seals on our stock gearboxes, leading to catastrophic dry-running.”

  GBC Solution: Replaced the units with our +35% fin-area models, utilizing extreme-pressure 85W-140 synthetic gear oil. Temperature telemetry showed a 25% reduction in internal heat retention.

• Case 4: Adelaide, South Australia – Vineyard Precision

  Client Pain Point: “We need narrow mowers to fit between the vine rows, but the compact gearboxes lacked the torque to chop through thick dropped vine canes.”

  GBC Solution: Upgraded them to a high-density planetary-bevel hybrid gearbox. It maintained the compact footprint while delivering an 850 Nm torque output—crushing canes effortlessly without stalling the tractor.

• Case 5: Perth, Western Australia – The Dust Bowl

  Client Pain Point: “The ultra-fine red dust in the wheatbelt clogs standard breather plugs instantly. The internal pressure then blows out the input seals.”

  GBC Solution: Fitted specialized sintered bronze micron-breathers that allow pressure equalization while blocking particulate matter as small as 5 microns. Zero seal blowouts reported in the subsequent 18 months.

Signs Your Mower Gearbox Needs Immediate Replacement

10 Expert Troubleshooting Steps for Agricultural Gearboxes

Our interactive diagnostic guide assists mechanics in isolating and resolving common drivetrain issues quickly.

1. Gearbox Running Excessively Hot

Solution: Check for low oil levels or degraded oil. Drain and replace with the manufacturer-recommended EP90 or 85W-140 GL-5 oil. Ensure the breather plug is not clogged, which prevents heat escape.

2. Milky or Emulsified Gear Oil

Solution: Water has bypassed the seals. Drain immediately. Flush the gearbox with a light solvent or flushing oil, replace the lower output seals (likely damaged by wire or twine), and refill with fresh oil.

3. Violent Vibration During Operation

Solution: Typically an external balance issue. Inspect the mower blade carrier for missing or broken blades. Check the PTO shaft universal joints for wear. Tighten all gearbox mounting bolts to spec.

4. Oil Leaking from Input/Output Shafts

Solution: Clean the shaft area. If twine or grass is wrapped around the shaft, it has likely ruined the seal lip. Remove debris, polish the shaft lightly if grooved, and press in a new Viton double-lip seal.

5. Input Shaft Freespinning (No Output)

Solution: Catastrophic internal failure. Either the shear pin has broken, the slip clutch is completely burnt out, or the internal bevel gear teeth have sheared. Requires immediate teardown and part replacement.

6. Difficulty Connecting PTO to Input Spline

Solution: Splines are rusted, burred, or twisted from shock loads. Wire-brush the splines, apply high-pressure grease. If splines are physically twisted, the input shaft must be replaced.

7. Oil Blowing Out of the Breather Vent

Solution: The gearbox is overfilled. Thermal expansion causes the churning oil to foam and expel. Drain oil down to the exact level indicator plug on the side of the housing.

8. Clunking Noise When Engaging PTO

Solution: Excessive gear backlash or loose mounting bolts. Re-shim the gears to achieve the factory 0.15-0.25mm backlash tolerance. Ensure tractor PTO is engaged at low idle, not high RPM.

9. Output Shaft Moving Up and Down

Solution: The bearing preload has been lost, likely due to a collapsed lower bearing from upward stump impacts. The bottom bearing cone and cup must be replaced and preloaded correctly.

10. Paint Blistering on Gearbox Housing

Solution: A visual indicator of severe, localized overheating (exceeding 130°C). Stop immediately. This usually points to a completely dry bearing or metal-to-metal gear contact due to zero lubrication.

Frequently Asked Questions (FAQ)

System Compatibility: Your One-Stop Power Transmission Supplier

A gearbox is only as reliable as the components connected to it. GBC offers a complete, integrated power transmission ecosystem from ever-power, guaranteeing seamless compatibility, eliminating drivetrain vibrations, and drastically simplifying your procurement process.
