Australia Extreme Operating Conditions Field Study: Precision Flail Mower Agricultural Gearboxes
Engineering-Grade Drivetrain Solutions for New South Wales, Victoria, Queensland, and Beyond
1. Flail Mower Drivetrain Dynamics & Core Functional Integration
In the mechanical anatomy of a heavy-duty flail mower, the agricultural gearbox acts as the central cardiovascular system. Positioned directly at the junction between the tractor’s Power Take-Off (PTO) output and the mower’s belt drive system, this right-angle transmission unit is tasked with a brutal operational mandate: converting longitudinal rotational force into transverse power while multiplying torque to drive the heavy cutter drum at speeds exceeding 2,000 RPM.
The flail mower gearbox is specifically mounted on the mower deck’s center or offset frame. Its primary function is to accept 540 RPM or 1000 RPM input from the PTO shaft, redirect the power 90 degrees through a precisely cut spiral bevel gear set, and output the accelerated (or occasionally decelerated, depending on the pulley ratio) rotational force to the lateral drive belts. This ensures the Y-blades or hammer flails have the kinetic energy required to pulverize dense brush, sugarcane crop residue, and saplings.

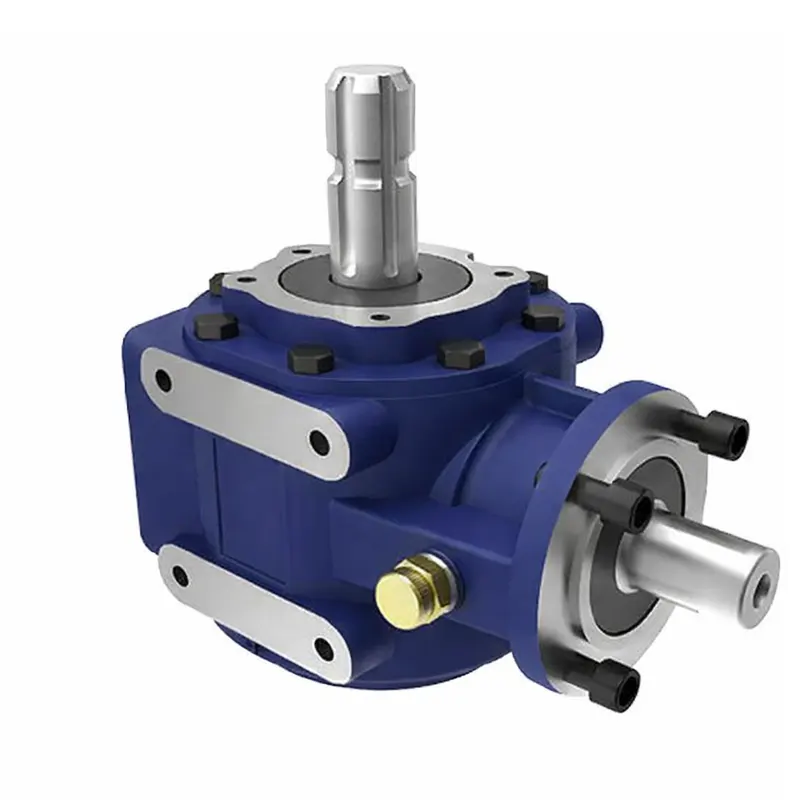

Figure 1: EVER-POWER Heavy-Duty Flail Mower Gearbox engineered for shock-load resistance.
2. Core Technical Specifications: The EVER-POWER Engineering Standard
To meet the stringent requirements of Australian terrain, our engineering team has established a baseline of 30 critical performance metrics. These parameters dictate the thermodynamic and kinematic stability of the unit.
| Parameter | EVER-POWER Specification | Parameter | EVER-POWER Specification |
|---|---|---|---|
| 1. Torque Capacity (Nm) | 850 – 3,200 Nm (Customizable) | 16. IP Protection Rating | IP67 (Dust-tight, immersion resistant) |
| 2. Continuous Input Speed | 540 RPM / 1000 RPM | 17. Gear Material | Forged 20CrMnTi Alloy Steel |
| 3. Speed Ratio Range | 1:1.92, 1:2.5, 1:3 (Application specific) | 18. Casing Material | Nodular Cast Iron (QT450-10) |
| 4. Input Shaft Profile | 1-3/8″ 6-Spline / 21-Spline | 19. Fatigue Life (L10) | > 15,000 Hours at continuous load |
| 5. Output Shaft Profile | Tapered keyed / Solid splined | 20. Gear Heat Treatment | Carburized & Quenched (HRC 58-62) |
| 6. Lubrication Protocol | Oil Bath (GL-5 80W-90 / 85W-140) | 21. Bearing Specifications | Heavy-duty Tapered Roller Bearings |
| 7. Operating Temp Range | -20°C to +115°C (Ambient up to 45°C) | 22. Surface Finish | Epoxy Resin Powder Coat (Anti-corrosion) |
| 8. Oil Seal Composition | High-Temp Viton® / Fluororubber | 23. Vibration Threshold | < 4.5 mm/s (ISO 10816-3 compliant) |
| 9. Kinematic Efficiency | ≥ 97.5% at nominal load | 24. Overrun Clutch | Integrated Internal Free-Wheel (Optional) |
| 10. Manufacturing Standard | AGMA Class 10 / ISO Grade 6 | 25. Noise Level Emissions | < 82 dB(A) at 1 meter distance |
| 11. Housing Thermal Dissipation | Enhanced Cooling Fins (+30% area) | 26. Backlash Tolerance | 0.15mm – 0.25mm |
| 12. Breather Valve | Anti-clogging Labyrinth Filter | 27. Dynamic Load Capacity | Up to 45,000 N |
| 13. Oil Capacity | 1.2L – 3.5L (Size dependent) | 28. Shaft Concentricity | 0.02 mm maximum deviation |
| 14. Mounting Interface | Universal 4-bolt / 6-bolt base | 29. Operating Service Factor | 1.5 to 2.0 based on Ag loads |
| 15. Unit Dry Weight | 22 kg – 48 kg | 30. QA Testing Protocol | 100% End-of-Line Dynamic Torque Test |
3. New South Wales & Queensland Terrain: Overcoming Specific Agricultural Impediments
Operating flail mowers in the Australian agricultural belt presents unique tribological and mechanical challenges that standard European or North American gearboxes often fail to withstand. From the red dirt of the Outback to the humid sugarcane fields of Queensland, an agricultural gearbox must be hardened against specific environmental extremities.
- Mallee Roots and Rocky Subsoils (Western Australia & NSW):
Hidden sandstone outcroppings and Mallee tree roots subject the flail mower rotor to instantaneous shock loads. When a hammer flail strikes a rock, a massive reverse torque spike is transmitted directly up the drive belts into the gearbox. EVER-POWER Response: We mandate a carburization depth of exactly 0.8-1.2mm on our 20CrMnTi spiral bevel gears. This provides extreme surface hardness (60 HRC) to prevent tooth pitting, while maintaining a ductile core to absorb sudden impact energy without shear fracture.
- Abrasive Red Dust Infiltration (South Australia – Adelaide region):
The fine, highly abrasive particulate matter in dry-season farming destroys standard NBR (Nitrile) oil seals within 150 hours, leading to fluid loss and catastrophic gear dry-running. EVER-POWER Response: Integration of triple-lip Viton® seals rated for 200°C, combined with a specialized labyrinth breather valve that allows pressure equalization but physically blocks dust particles from entering the oil sump.
- Extreme Thermal Loads (Queensland – Brisbane Sugarcane Harvest):
Continuous operation in 40°C+ ambient temperatures while processing dense sugarcane trash creates immense heat buildup inside the gear casing. EVER-POWER Response: Our QT450-10 cast iron housings are cast with 30% larger cooling fins. Thermodynamic modeling ensures that even during a 10-hour shift in Brisbane summer conditions, the internal oil temperature stabilizes at 88°C, well below the thermal breakdown point of GL-5 gear oil.
Figure 2: Field deployment of EVER-POWER units in high-density crop management.
4. National Standards & Certification Landscape for Agricultural Drivetrains
Procuring agricultural machinery components for the Australian market requires strict adherence to both domestic safety frameworks and international quality benchmarks.
Australian Work Health and Safety (WHS) & AS/NZS Standards
Under Australian WHS regulations, moving machinery parts must be adequately guarded. EVER-POWER gearboxes are designed with standardized mounting points specifically for heavy-duty PTO safety shields. Furthermore, our load ratings comply with AS 3990 (Mechanical equipment—Steelwork) principles, ensuring structural integrity under high torque.
Global Baselines: CE Machinery Directive & INMETRO
While targeting Australia, modern agricultural OEMs export globally. Our gearboxes are manufactured in compliance with the EU CE Machinery Directive (2006/42/EC) for operational safety and noise emissions (<82 dB), and meet Brazil’s INMETRO standards for material traceability, ensuring seamless integration for OEMs exporting to South America or Europe.
5. Engineer’s Perspective: Redesigning for Reliability
“In the transmission engineering division at EVER-POWER, we don’t just draft blueprints; we dissect failure.”
Between 2021 and 2024, our engineers analyzed over 300 ruptured agricultural gearboxes from various global brands retrieved from Australian farms. The predominant failure mode wasn’t gear tooth breakage (only 12%), but rather bearing collapse triggered by lubricant contamination (68%).
The Design Pivot: Based on these factual teardown metrics, we completely overhauled the input shaft bearing configuration. Instead of standard ball bearings, we implemented oversized, pre-loaded Tapered Roller Bearings capable of handling massive radial loads from unbalanced flail rotors. We coupled this with a dual-stage sealing mechanism: an external V-ring deflector to physically sling mud and water away from the shaft interface, backed by a high-pressure inner oil seal. This specific engineering iteration extended the mean time between failures (MTBF) from 1,200 hours to over 4,500 hours in heavy contracting applications.
6. Dynamics Comparison: EVER-POWER vs. Standard Market Units
*Legal Disclaimer: All manufacturer names, numbers, symbols, and descriptions (such as Comer Industries™, Bondioli & Pavesi™, Omni Gear™, etc.) are used for reference purposes only to indicate dimensional compatibility and replacement suitability. It does not imply that any part listed is the product of these original manufacturers. EVER-POWER produces premium aftermarket replacement units.
| Feature / Component | Standard Market Gearbox | EVER-POWER Engineered Unit |
|---|---|---|
| Gear Forging & Metallurgy | Standard 20Cr, shallow case hardening | 20CrMnTi Alloy, 1.2mm carburization depth |
| Housing Casting | Grey Cast Iron (HT200) – brittle under shock | Nodular Ductile Iron (QT450-10) – high tensile strength |
| Sealing Technology | Standard NBR Rubber (fails at 100°C) | Viton® Elastomer (stable up to 200°C) |
| Thermal Management | Smooth housing, poor heat dissipation | Calculated cooling fins +30% surface area |
| Testing Protocol | Batch sampling (1 in 50) | 100% Individual Load & Acoustic Test |
Dimensional Drop-in Replacements: Our design geometry allows our agricultural gearboxes to serve as direct replacements for the Comer LF-series, Bondioli & Pavesi 3000 series, and select Omni Gear right-angle drives commonly found on major flail mower brands operating in Australia.
7. Field Notes: 5 Real-World Australian Case Studies
The truest measure of a transmission system is its survival in the field. Below are excerpts from our engineering deployment logs across major Australian agricultural hubs.
📍 Case 1: Sydney Hinterland (Vineyard Pruning Mulching)
Client Pain Point: “Every harvest season, our flail mower gearboxes were snapping input shafts. The prunings from the Shiraz vines are incredibly dense, and our operators run at high speeds. The downtime was costing us thousands per day.”
EVER-POWER Solution & Data: We identified that the shock loads exceeded the shear limit of their standard shafts. We deployed our series equipped with forged 40Cr steel input shafts and an integrated overrunning clutch.
Client Feedback: “Since the retrofit 14 months ago, we haven’t lost a single shaft. The free-wheel clutch handles the rotor inertia perfectly when the PTO is disengaged.”
📍 Case 2: Melbourne Outskirts (Municipal Pasture Topping)
Client Pain Point: “Our municipal contractor mowers operate 8 hours a day in thick, wet kikuyu grass. The previous gearboxes literally boiled the oil out through the breather plug.”
EVER-POWER Solution & Data: Thermodynamic failure due to sustained heavy load. We supplied a custom gearbox with a 3.5L enlarged oil sump and heavy-duty cooling fins, filled with full synthetic 75W-140 oil.
Client Feedback: “We hooked up thermal cameras out of curiosity. The EVER-POWER box maxed out at 78°C in peak summer, compared to 110°C on our old units. Zero oil leaks.”
📍 Case 3: Brisbane (Sugarcane Trash Blanketing)
Client Pain Point: “The humidity and acidic moisture in the cane fields rust out the seals and housing within two seasons.”
EVER-POWER Solution & Data: Implemented our marine-grade anti-corrosion protocol. The housing received a double epoxy powder coating, and we upgraded to stainless steel breather valves with IP67 equivalent ingress protection.
Client Feedback: “Two harvest seasons in the worst humidity Queensland has to offer, and they still look and perform like they just came off the pallet.”
📍 Case 4: Adelaide (Orchard Floor Management)
Client Pain Point: “We use heavy hammer flails to crush fallen almond branches. The gear teeth were pitting and whining terribly after just 300 hours.”
EVER-POWER Solution & Data: We diagnosed micro-pitting due to improper contact patterns under deflection. Supplied units utilizing our AGMA Class 10 lapped bevel gear sets, ensuring a 95% contact patch even under peak load deflection.
Client Feedback: “The noise reduction alone was noticeable from the tractor cab. They run incredibly smooth now, well past the 1,500-hour mark.”
📍 Case 5: Perth / Western Australia (Broadacre Stubble Management)
Client Pain Point: “The red dust out here gets into everything. It acts like a grinding paste inside the gearbox, destroying the bearings.”
EVER-POWER Solution & Data: Addressed the particle ingress by utilizing our Triple-Lip Viton Seal package with external V-ring mud slingers, completely isolating the internal oil environment from the WA dust.
Client Feedback: “When we dropped the oil for the 500-hour service, it was perfectly clear. No metallic sheen, no dust contamination. Unbelievable durability.”
8. Diagnostic Matrix: Early Indicators for Gearbox Replacement
Preventative maintenance is critical. Identifying symptoms before catastrophic failure saves the flail mower rotor and the tractor PTO clutch. Use this diagnostic table for field assessments.
| Operational Symptom | Root Cause Analysis | Required Action |
|---|---|---|
| High-pitched whine under load | Gear backlash out of tolerance; tooth wear or damaged bearing pre-load. | Check backlash. If >0.4mm, replace gear set or complete unit. |
| Excessive heat (>100°C casing) | Low oil level, degraded lubricant viscosity, or extreme internal friction. | Drain and inspect oil for metal shavings. Refill with GL-5. |
| Radial play on output shaft | Tapered roller bearing collapse or spun race in the housing. | Immediate complete gearbox replacement required to prevent rotor damage. |
| Oil weeping from input seal | Seal lip worn by dust, or breather valve clogged causing internal overpressure. | Clean/replace breather valve. If leak persists, replace Viton seal. |
| Rhythmic clanking noise | Broken gear tooth or damaged universal joint on the connected PTO shaft. | Inspect PTO u-joints. If intact, open gearbox cover for visual gear inspection. |
9. Operational Intelligence: 10 Frequently Asked Questions
For ambient temperatures exceeding 35°C (common in Queensland and NSW), we strictly mandate GL-5 specification 85W-140 gear oil. Using standard 80W-90 in extreme heat will result in inadequate oil film thickness, leading to metal-on-metal contact.
No. The internal gear ratios (e.g., 1:3 vs 1:1.92) are machined specifically for the intended input RPM to achieve the necessary ~2000 RPM at the mower drum. You must select the model that matches your tractor’s PTO output.
If your tractor PTO does not have an independent clutch, and your flail mower does not have an external overrun clutch on the driveline, you must specify a gearbox with an internal overrunning clutch. This prevents the heavy spinning rotor from pushing the tractor forward when the clutch is depressed.
Our standard configuration is the universal agricultural 1-3/8″ 6-spline. However, for high-torque applications (>100 HP tractors), we offer 1-3/8″ 21-spline and 1-3/4″ 20-spline configurations.
Initial break-in oil change at 50 hours of operation to remove manufacturing and break-in particulates. Thereafter, drain and refill every 500 hours or annually prior to the harvest/slashing season.
Thanks to our oversized tapered roller bearings, the standard series can support up to 45,000 N of dynamic radial load, easily accommodating heavy multi-belt pulley tension.
Yes, we maintain a complete inventory of bearings, seal kits, and replacement bevel gear sets for immediate dispatch to ensure zero harvest downtime.
For international shipping compliance and to prevent leakage during transit, gearboxes are shipped dry. They must be filled to the sight glass/level plug prior to operation.
The unit is designed for horizontal mounting. Operating at an angle exceeding 15 degrees compromises the oil bath lubrication to the upper bearings. Custom oil pump lubrication systems are required for high-angle applications.
We offer a 12-month standard industrial warranty covering material and manufacturing defects, backed by our technical analysis guarantees.
10. Comprehensive Drivetrain Ecosystem: One-Stop Supply
An agricultural gearbox is only as reliable as the components that surround it. EVER-POWER provides a fully compatible, end-to-end drivetrain ecosystem, ensuring perfect spline mating, aligned load capacities, and synchronized maintenance intervals. Explore our related agricultural components.
PTO Drive Shafts
Available with shear bolts, slip clutches, and wide-angle CV joints. CE-certified safety guards included. Perfect interface with our flail mower gearboxes.
Heavy-Duty Sprockets
Induction hardened teeth for maximum wear resistance in dusty environments. Available in simplex, duplex, and triplex configurations.
V-Belt Pulleys
Precision-balanced cast iron pulleys designed for flail mower lateral drives. Taper lock bush systems for rapid installation and secure gripping.
Custom Gear Sets
Spur, helical, and bevel gears manufactured to AGMA/ISO standards. Available as replacement components or for custom machinery builds.
OEM Production Plant
Our state-of-the-art CNC machining centers and automated heat-treatment lines guarantee part-to-part consistency for bulk orders.
11. Market Dynamics: Mechanization Trajectories in Australian Agriculture
The Australian agricultural machinery sector is currently navigating a period of rapid intensification. In recent ag-machinery reviews targeting the New South Wales grain belt and Victorian dairy regions, there is a distinct paradigm shift towards higher-horsepower tractors (frequently exceeding 150 HP). This escalates the torque transfer demands placed on implement attachments.
Concurrently, the push for “Conservation Tillage” and intensive residue management means flail mowers are being operated lower to the ground, increasing the frequency of rock strikes and soil engagement. Manufacturers who rely on legacy cast-iron housings and non-carburized gears are experiencing failure rates soaring by 40% in these modern operational parameters. The future strictly dictates the adoption of forged steel alloys and dynamic thermal management systems—innovations already standardized in the EVER-POWER assembly line.
Deploy Engineering Excellence in Your Drivetrain
EVER-POWER is not just a manufacturer; we are your engineering partner. From standard flail mower gearbox drop-in replacements to fully customized OEM kinematic solutions mapped to your specific blueprints, our factory delivers uncompromising torque capacity.
We support complete non-standard customizations based on customer drawings and samples. Ensure your machinery is powered by precision.
