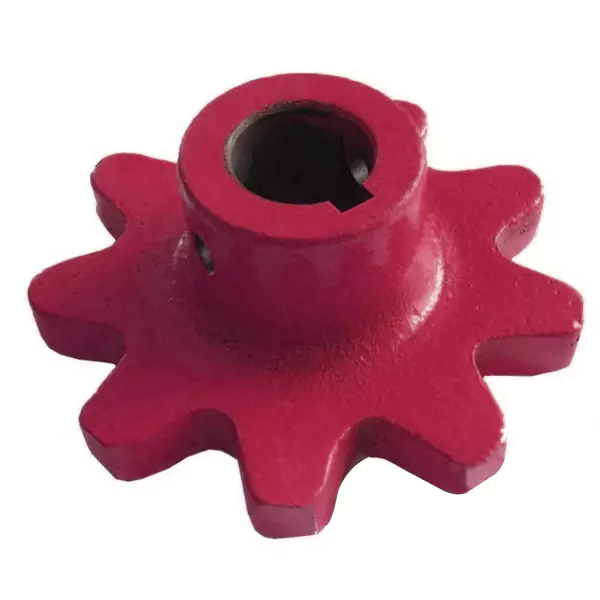

80417785 Agricultural Chain Sprocket Parameters
| Weight, W | kg | 1.44 |
|---|---|---|
| Inner diameter, d | mm | 30 |
| Outer diameter, D | mm | 104 |
| Number of teeth, Z | 9 | |
| Mounting holes diameter, Dm | mm | 7.5 |
| Height, H | mm | 75 |
| Outside diameter, D1 | mm | 129 |
| Key slot | mm | 8х75х4 |
Features of 80417785 Chain Sprocket for New Holland Combine Harvest
- High-quality construction for durability and longevity.
- Precision-engineered to ensure optimal performance in New Holland combines.
- Easy installation and compatibility with various models.
- Designed to withstand harsh farming conditions.
- Enhances the efficiency of the harvesting process.
Installation Steps for the 80417785 Chain Sprocket for New Holland Combine Harvest
To install the 80417785 chain sprocket on your New Holland combine harvester, follow these steps:
- Ensure the machine is powered off and safely secured before beginning the installation.
- Remove any existing chain and sprocket components from the drive assembly.
- Carefully place the new chain sprocket onto the shaft, ensuring it aligns properly with the drive chain.
- Secure the sprocket using the appropriate bolts and torque them to the manufacturer’s specifications.
- Reattach the drive chain, making sure it is properly tensioned and aligned.
- Test the installation by running the machine at low speed to ensure smooth operation.
Agricultural Maintenance Tips
Agricultural sprockets are important components in the transmission system of agricultural machinery, and their operating conditions directly affect the efficiency and service life of the equipment. To ensure the long-term stable operation of the sprocket, daily maintenance is of vital importance. The following are some practical maintenance tips for agricultural sprockets:
- First of all, regular cleaning of the sprocket is the foundation. The agricultural operation environment is often accompanied by soil, dust and plant residues, which are prone to adhere to the surface of the sprocket, leading to accelerated wear. Using a brush or high-pressure air gun can effectively remove impurities. If necessary, cleaning agents can be used to assist in cleaning.
- Secondly, regularly lubricate the contact surface between the sprocket and the chain to reduce friction and extend the service life. It is recommended to choose waterproof lubricating oil suitable for agricultural machinery to adapt to damp or dusty environments.
- Third, check the wear condition. After long-term use, the teeth of the sprocket may deform or wear out. It is necessary to regularly check whether the tooth profile is abnormal. Once a problem is found, it should be replaced in time.
- In addition, maintaining a moderate tension in the chain is also very crucial. Both being too tight and too loose will increase the burden on the sprocket and accelerate its damage.
Regular maintenance and timely inspection can significantly enhance the working efficiency and service life of agricultural sprockets, ensuring the stable operation of agricultural machinery and equipment.
Manufacturing Process of 80417785 Chain Sprocket for New Holland Combine Harvest
The manufacturing process of the 80417785 chain sprocket begins with material selection, typically high-strength steel for durability. Next, the raw material is cut into appropriate sizes. The pieces are then heated and forged to achieve the desired shape and strength. After forging, the sprocket undergoes machining to ensure precise dimensions and fit. Once machined, the sprocket is treated with a surface coating to enhance wear resistance. Finally, quality control checks are conducted to ensure each sprocket meets specifications before packaging and shipping.
Agricultural Chains and Sprockets Supplier
GBC is the Australian sales agent for Ever-power Group, and we are one of the top ten sprocket suppliers in Australia. We offer a wide range of agricultural sprockets, including the 80417785 Chain Sprocket for New Holland Combine Harvesters. Our sprockets are designed to fit various brands such as John Deere, New Holland, and Case-IH, and are suitable for combine harvesters, header attachments, corn headers, and grain augers. We pride ourselves on providing high-quality products and exceptional service to meet the needs of our customers.
Agricultural Chains for Sale
We offer a wide range of high-quality agricultural parts, including the 80417785 chain sprocket for New Holland combine harvesters. In addition to these sprockets, we also provide top-notch agricultural chains for sale. If you have any purchasing intentions or are interested in our products, please feel free to contact us for further information.
