Technical Specification of DJ, DJII High Angle Edge Conveyor
Model: DJ, DJII
Applicable materials: Bulk materials with a density of 500-2500kg/m³
Operating temperature: -25°C to 40°C
Conveying capacity: Large capacity (For specific parameters, please consult)
Energy consumption: Low
Structure: Simple and easy to maintain
Conveyor belt: Long service life
Specifications: 500, 650, 800, 1000, 1200, 1400, 1600
Speed: 0.8, 1.0, 1.25, 1.6, 2.0, 2.5, 3.15
| Belt width (mm) |
Edge height (mm) |
Max Conveying capacity (m³/h) |
Tilt angle (9) | Speed (m/s) |
Belt width (mm) |
Edge height (mm) |
Max Conveying capacity (m³/h) |
Tilt angle() | Speed (m/s) |
| 400 | 60 | 28 | 30°~90° | 0.8-2.0 | 1000 | 200 | 518 | 30°~90° | 1.0-2.5 |
| 80 | 54 | 240 | 708 | ||||||
| 120 | 94 | 1200 | 160 | 702 | 1.0-3.15 | ||||
| 500 | 80 | 78 | 0.8-2.0 | 200 | 788 | ||||
| 120 | 104 | 240 | 1077 | ||||||
| 160 | 130 | 1400 | 200 | 942 | 1.0-3.15 | ||||
| 650 | 80 | 118 | 0.8-2.0 | 240 | 1329 | ||||
| 120 | 156 | 300 | 1613 | ||||||
| 160 | 210 | 400 | 2457 | ||||||
| 800 | 120 | 248 | 0.8-2.5 | 1600 | 200 | 1118 | 1.0-3.15 | ||
| 160 | 340 | 240 | 1578 | ||||||
| 200 | 370 | 300 | 1934 | ||||||
| 1000 | 160 | 465 | 1.0-2.5 | 400 | 2961 |
Note: The conveying capacity in the table is calculated based on a tilt angle of 30°. This specification allows for the maximum belt speed and the minimum spacing between partitions. with an inclination angle of 30°.
Overview

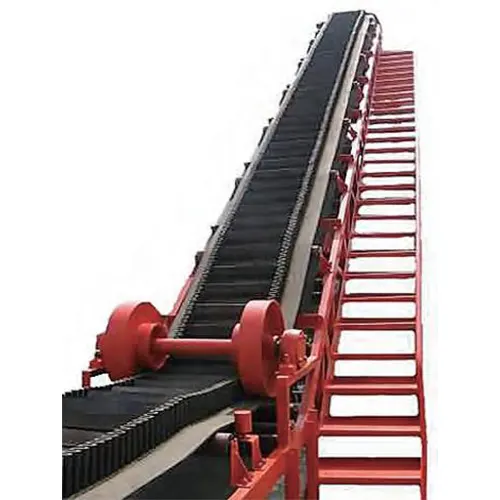

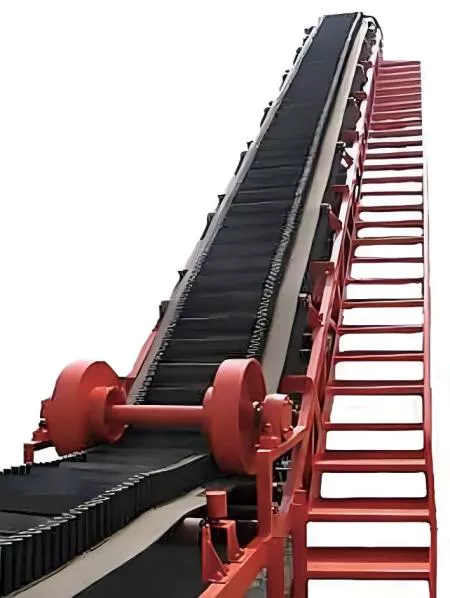

The DJ, DJII high-angle edge conveyor is an advanced conveying system specially designed for conveying bulk materials at large angles. This system can efficiently transport various bulk materials with densities ranging from 500 to 2500kg/m³ within a wide temperature range of -25°C to 40°C, and is applicable to multiple industries such as mining, construction, and agriculture. Its unique design makes it an ideal choice for high efficiency, energy conservation, and easy maintenance, especially suitable for scenarios where materials need to be conveyed at steep angles, such as vertical lifting in mines or high-rise material transportation at construction sites.
DJ, DJII High Angle Edge Conveyor Key Features
- High throughput, low energy consumption: The optimized structural design enables DJ steep angle sidewall belt conveyor to achieve high throughput while maintaining low energy consumption.
- Simple structure and convenient maintenance: The overall structure of the machine is streamlined, and the components have strong universality, which is convenient for later maintenance and replacement.
- Long service life: High-strength belts are selected, combined with a scientific tensioning and guiding system, which extends the operating life of the belts.
- Multiple specifications are available: Bandwidth options include 500, 650, 800, 1000, 1200, 1400, and 1600mm. The belt speeds are 0.8, 1.0, 1.25, 1.6, 2.0, 2.5 and 3.15 m/s.
- Strong environmental adaptability: The standard operating temperature range is -25°C to 40° C. If it needs to be used in special environments, explosion-proof, anti-corrosion and other protective measures can be customized.
DJ, DJII High Angle Edge Conveyor Application Field
DJ, DJII high-angle edge conveyors are widely used in the following industries:
| Mine:
It is used for transporting bulk materials such as coal and ores, and can efficiently lift ores from the bottom of the pit to the surface, reducing the cost and time of traditional transportation methods. |
Construction:
Conveying construction materials such as sand, gravel and cement, especially suitable for vertical material lifting in high-rise buildings. |
| Agriculture:
Transporting agricultural products such as grains and fertilizers to enhance the efficiency of farm operations. |
Other heavy industries:
Suitable for various scenarios that require large-angle transportation, such as ports, power stations, etc. |
Choose DJ/DJII High Angle Edge Conveyor for Your Business
Whether vertical lifting or steep slope transportation is required, the DJ/DJII series large inclination belt conveyor can provide efficient and energy-saving solutions. GBC is the sales agent of Ever-power Group in Australia. The products we offer are of superior quality and favorable prices. Currently, they are sold in New South Wales, Victoria, Queensland and other states, covering cities such as Sydney, Melbourne, Brisbane, Adelaide and Perth.
We have many years of manufacturing experience in the field of conveying equipment and offer one-stop services from design, selection to after-sales. All DJ conveyor for loose material products are certified for quality to ensure a stable and reliable performance experience for customers. Contact us immediately to get customized design and quotations!
High Angle Edge Conveyor Review
Tomasz Nowak, Technical Director
The DJII High Angle Edge Conveyor was selected for our clinker loading system due to its compact footprint and vertical transport capability. The machine has been running steadily with minimal supervision. What stands out is the belt’s durability—it hasn’t required replacement or major servicing since installation. We also received strong technical support during commissioning. This model has helped us reduce both space usage and maintenance costs.
