Gear Yoke for PTO Shaft – Involute Spline High-Torque Driveline Connector
Gear-tooth profile yoke | Series 2G–50G | 23.8–50 mm bore | involute spline
The Ever-power Gear Yoke utilises an involute gear-tooth bore profile that interlocks with matching gear-form PTO tubes to achieve the highest torque density of any yoke type. The gear-tooth engagement distributes load across dozens of contact points, virtually eliminating backlash. Forged from 20CrMnTi alloy steel, gear-hobbed on CNC machines, and carburised to 58–62 HRC.

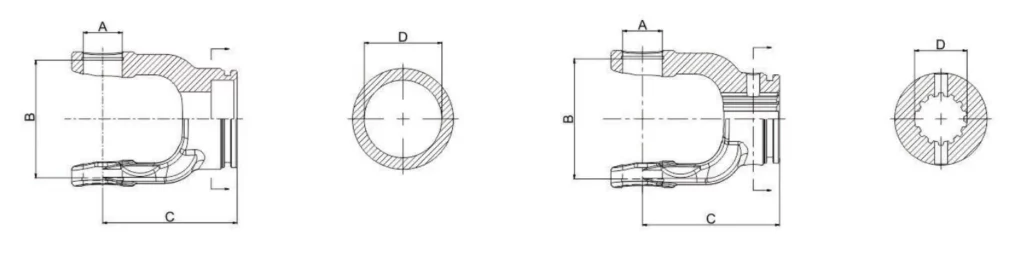

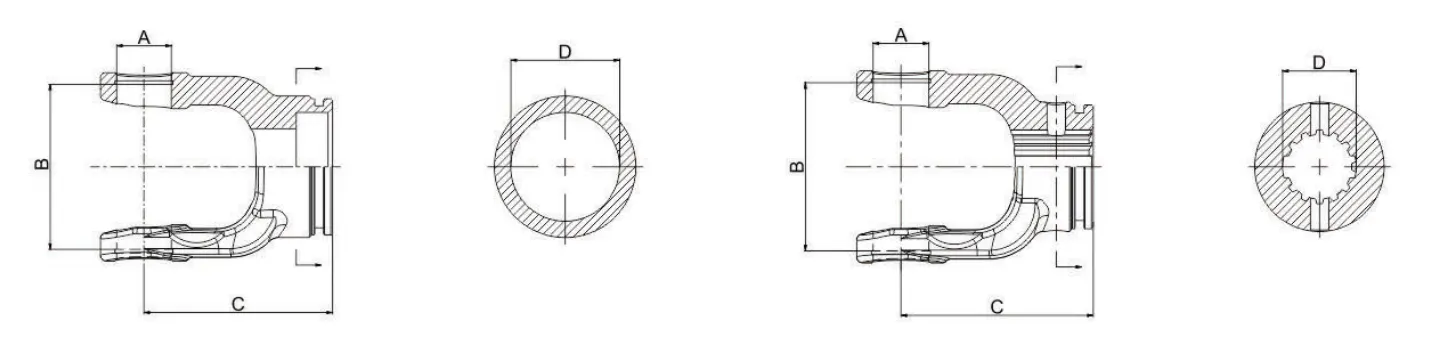

🔧 Technical Specifications
| Series | A (mm) | B (mm) | C (mm) | D (mm) |
|---|---|---|---|---|
| 2.06G | 23.8 | 61.3 | 82 | 50 |
| 2.07G | 23.8 | 61.3 | 82 | 35 |
| 4.06G | 27 | 74.6 | 90 | 50 |
| 4.07G | 27 | 74.6 | 90 | 35 |
| 5.06G | 30.2 | 80 | 98 | 60 |
| … Additional series available — contact us for the complete specification sheet … | ||||
| 38.07G | 38 | 105.6 | 121 | 45 |
| 42.06G | 42 | 104.5 | 130 | 75 |
| 42.07G | 42 | 104.5 | 130 | 55 |
| 50.06G | 50 | 118 | 133 | 75 |
| 50.07G | 50 | 118 | 133 | 55 |
⭐ Key Features & Benefits
⚙️
Involute Gear-Tooth Bore
Gear-hobbed profile distributes torque across many teeth simultaneously.
💪
20CrMnTi Alloy Steel
Carburising-grade alloy with hard surface (58–62 HRC) and ductile core.
🔄
Zero Backlash
Precision gear mesh eliminates angular play for consistent rotational timing.
🔧
Wide Torque Range
From Series 2G (light) to 50G (industrial), scaling to any torque requirement.
💧
Oil-Bath Compatible
Surface finish supports oil-bath or grease-packed driveline housings.
🔄 Compatibility Information
Designed for gear-form (involute spline) PTO tubes. Compatible with Bondioli & Pavesi, Walterscheid, Comer, and OEM drivelines using gear-tooth profiles. Suitable for round balers, forage harvesters, large slashers, generators, and pump drives.
📚 Selection Guide
Step 1: Count teeth and measure pitch diameter to identify series.
Step 2: Cross-reference bore (A), width (B), length (D) in the table.
Step 3: Select .06G (standard) or .07G (compact).
Step 4: Verify tooth module and pressure angle compatibility.
🌾 Typical Application Scenarios
🌾 Forage Harvesters
Manages extreme torque loads in harvesting operations.
💾 Industrial Pump Drives
Smooth, backlash-free power to hydraulic and water pumps.
🌳 Heavy-Duty Chippers
Handles shock loads from feeding logs into large chippers.
⚡ Generator Drives
Consistent rotational input for PTO-driven generators.
🛠️ Installation & Usage Guide
Verify gear tooth count and module of both yoke and PTO tube.
Clean all gear teeth with solvent; inspect for burrs.
Lightly oil gear teeth with ISO 220 gear oil before meshing.
Align and slide together — teeth should engage smoothly.
Install cross kit ensuring bearing caps seat fully.
Apply grease, run at idle speed, and check for vibration.
❓ Frequently Asked Questions
▶ Why choose gear over triangular?
▶ Tooth specification?
▶ Can gear yokes work with lemon tubes?
▶ Carburising depth?
▶ Series 50G in stock?
▶ Industries served?
⭐ Customer Reviews
★★★★★
These gear yokes are leagues ahead of profile yokes. Zero backlash means smoother baler operation in Victoria.
Mark P. — 🇦🇺 Australia
★★★★★
Gear teeth meshed perfectly with our Bondioli tubes — no adjustment needed.
Franz W. — 🇩🇪 Germany
★★★★☆
Good product, well-packaged. Evenly hardened carburised surface.
Alessandro V. — 🇮🇹 Italy
★★★★★
PTO-driven generator ran 2,000 hours with no measurable wear.
Sarah L. — 🇺🇸 United States
★★★★★
Precision is remarkable for the price. Consistent batch to batch.
Hiroshi T. — 🇯🇵 Japan
📈 Our Product vs. Low-Quality Alternatives
| Feature | Ever-power Yoke | Low-Quality Alternative |
|---|---|---|
| Material | ✔ 20CrMnTi carburising alloy steel | ✘ Low-carbon mild steel |
| Teeth | ✔ CNC gear-hobbed involute profile | ✘ Rough-broached with visible marks |
| Hardness | ✔ Carburised 58–62 HRC surface | ✘ Unhardened <30 HRC |
| Backlash | ✔ Virtually zero | ✘ Noticeable angular play |
| Fatigue Rating | ✔ Rated for 10⁶ cycles | ✘ Fails within 10⁴ cycles |
| Quality System | ✔ ISO 9001:2015 + gear inspection | ✘ No certifications |
🔗 Related Products & Accessories
Gear-Form Profile Tubes
Involute spline tubes to pair with gear yokes
Cross & Bearing Kits
Heavy-rated U-joint kits
PTO Safety Shields
Enclosed guards for high-speed drivelines
Overrunning Clutches
Prevent implement back-driving the PTO
Complete PTO Shafts
Pre-assembled gear-profile packages
🏆 Certifications & Standards
🏆
ISO 9001:2015
Quality management system certified by accredited body
🛡️
Material Test Reports
EN 10204 3.1 mill certificates for every steel batch
✅
CE Compliance
Meets European machinery safety directives
🔎
100% Inspection
Every yoke dimensionally verified before shipment
🏭 Why Choose Ever-power?
We are Ever-power, and gear-form driveline components are our core competence. With dedicated CNC gear-hobbing machines, carburising furnaces, and CMM equipment, we produce involute spline yokes that rival any European manufacturer at a fraction of the cost. Our 20+ years of experience, ISO 9001:2015 certification, and exports to 50+ countries make us a trusted partner.
📞 Ready to Order? Let’s Talk!
Whether you need a single replacement yoke or a container-load OEM order, our team is here to assist. Contact us for competitive pricing, rapid delivery, and expert technical support.
