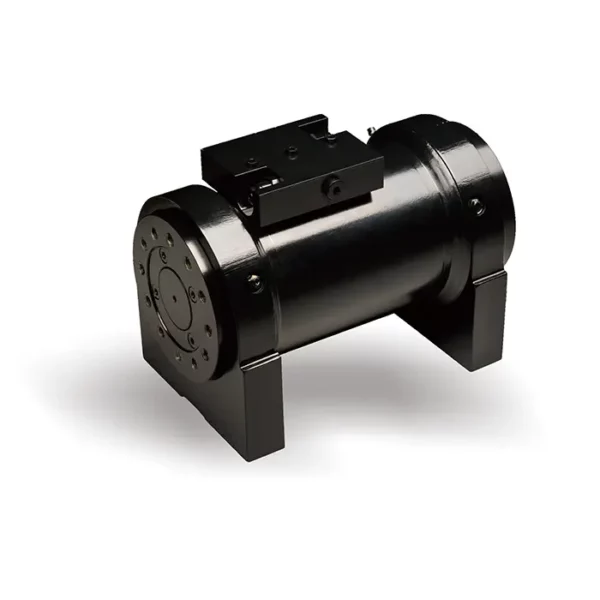

Hydraulic Direction Cylinder
Discover the high-performance Hydraulic Direction Cylinder, designed for precise directional control in industrial applications. Rated torque: 2800 N.m, rated pressure: 21 MPa, and a 180° rotation angle. Ideal for heavy-duty use. Contact us now!
Hydraulic Direction Cylinder Technical Parameters
| Technical Parameter | Value/Description |
|---|---|
| Rated Torque | 2800 N.m |
| Rated Pressure | 21 MPa |
| Rotation Angle | 180° |
| Displacement | 688 cc |
| Starting Pressure | Max 3.1 MPa |
| Maximum Bending Torque (Cross-Over Installation) | 16900 N.m |
| Maximum Bending Torque (Cantilever Installation) | 7100 N.m |
| Load in Diameter Direction | 2300 kg |
| Load in Length Direction | 1800 kg |
Diagram of the Relationship Between Working Pressure and Output Torque
The Hydraulic Direction Cylinder is a robust and reliable component designed for efficient motion control in various industrial applications. Engineered to deliver precise directional movement, this hydraulic cylinder ensures optimal performance under high-pressure conditions. With a rated torque of 2800 N.m and a rated pressure of 21 MPa, it is built to withstand demanding environments while providing smooth and consistent operation.
Key Features and Technical Specifications of Hydraulic Direction Cylinders
Superior Torque and Pressure Handling
Designed to operate under high stress, the Hydraulic Direction Cylinder offers a maximum rated torque of 2800 N.m, ensuring reliable performance in heavy-duty applications. Its 21 MPa rated pressure enables effective force transmission for various hydraulic systems.
Extended Rotation Angle for Versatile Applications
With a 180° rotation angle, this hydraulic cylinder allows for extensive directional control, making it suitable for precision-based industrial and mechanical applications. The 688 cc displacement ensures stable and efficient fluid movement within the system.
Low Starting Pressure for Efficient Activation
The Hydraulic Direction Cylinder operates with a maximum starting pressure of 3.1 MPa, allowing for quick and efficient actuation. This feature enhances energy efficiency and reduces the load on hydraulic power systems.
Exceptional Load-Bearing Capacity
Built for durability, this hydraulic cylinder can withstand high external forces. It supports a diameter direction load of 2300 kg and a length direction load of 1800 kg, making it ideal for demanding industrial tasks.
High Bending Torque for Structural Stability
- Cross-over installation: Maximum bending torque of 16900 N.m, ensuring structural integrity under dynamic loads.
- Cantilever installation: Maximum bending torque of 7100 N.m, providing stability in applications requiring extended reach and support.
Applications of Hydraulic Direction Cylinder
The Hydraulic Direction Cylinder is widely used in industrial machinery, construction equipment, and automated systems where precise directional movement is required. Its robust design and high load capacity make it an essential component in:
- Heavy-duty hydraulic systems
- Automated industrial processes
- Construction and lifting equipment
- Marine and offshore applications
Why Choose GBC Hydraulic Direction Cylinder?
Our Hydraulic Direction Cylinder is engineered for durability, precision, and efficiency. It delivers optimal performance in demanding conditions, ensuring long service life and minimal maintenance. Whether for industrial automation or heavy machinery, this hydraulic cylinder guarantees superior directional control and enhanced operational efficiency.
Get in Touch
Looking for a Hydraulic Direction Cylinder tailored to your needs? Contact us today to discuss your requirements and explore our range of high-quality hydraulic solutions.
Additional information
| Edited by | Sylvia |
|---|
Discover the high-performance Hydraulic Direction Cylinder, designed for precise directional control in industrial applications. Rated torque: 2800 N.m, rated pressure: 21 MPa, and a 180° rotation angle. Ideal for heavy-duty use. Contact us now!
Hydraulic Direction Cylinder Review
Mark Thompson, Senior Mechanical Engineer
We have been using the hydraulic direction cylinder in our automated industrial assembly lines for the past six months. The 180° rotation angle and high load capacity make it a great fit for our precision machinery. One of the standout features is its low starting pressure (3.1 mpa), which allows for quick activation without excessive power consumption. The build quality is solid, and after months of continuous operation, we haven’t experienced any leakage or performance degradation. If you’re looking for a reliable and durable hydraulic cylinder for industrial applications, this is a great choice.
