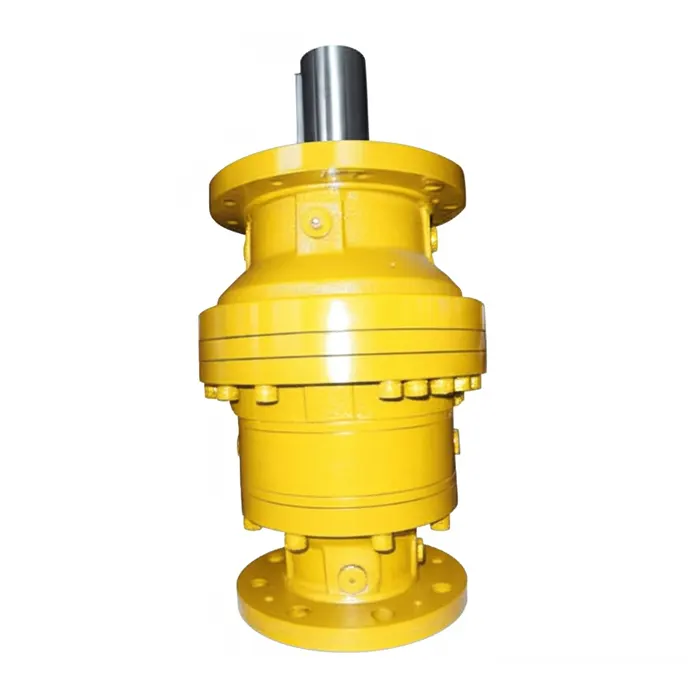

Inline Planetary Gearbox
The EP300L series inline planetary gear reducers are the best solution for applications requiring high torque and compact size, suitable for industrial equipment and heavy self-drive machinery. Optimized in terms of space and weight compared to ordinary gearboxes, it combines high performance, low cost, high reliability, easy installation, and low maintenance and offers a variety of size options to ensure long life and quiet operation.
Inline Planetary Gearbox Features
| Torque range | 1000-450.000 Nm |
| Transferable mechanical power | up to 540 kW |
| Transmission ratio | 3.4-9.000 |
| Gear unit version | consistent |
| Output configuration | 1) Base and flange installation 2) Output shaft: solid with key, spline, spline hollow 3) Hollow with shrink disc 6. Input configuration: 1) Flange axial piston hydraulic motor 2) Hydraulic rail motor 3) IEC and Nema motor adapters 4) Solid input shaft |
| Hydraulic brake | hydraulically released parking brake |
| Electric brake | DC and AC |
EP300L Series Inline Planetary Gear Reducers Models
| Type | Torque (Nm) | |
| EP300L | EP300L1, EP300L2, EP300L3, EP300L4 | 1000 |
| EP301L | EP301L1, EP301L2, EP301L3, EP301L4 | 1750 |
| EP303L | EP303L1, EP303L2, EP303L3, EP303L4 | 2500 |
| EP305L | EP305L1, EP305L2, EP305L3, EP305L4 | 5000 |
| EP306L | EP306L1, EP306L2, EP306L3, EP306L4 | 8500 |
| EP307L | EP307 | |
