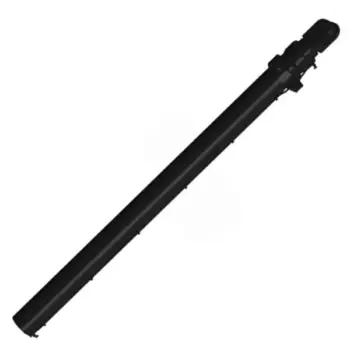

Inverted Pile Cylinder for Cutter-Suction Dredger
Cutter suction dredger is a combination of mechanical dredger and hydraulic dredger, and the hydraulic cylinder of inverted pile is one of the key components of cutter suction dredger, which is mainly used for the positioning, transverse movement and longitudinal forward movement of the hull in dredging operations. The lifting device of rigid pile and steel pile installed at the stern relies on the hydraulic cylinder of inverted pile to work. During the operation of cutter suction dredger, the cutter cage is driven by hydraulic motor to rotate, because of the reaction force on the cutter blade, the whole hull rotates around a positioning pile rod in the water. The cylinder of the positioning pile is designed as a single oil feed mode, its ascent process is precisely controlled by the hydraulic cylinder, and when it comes down, it uses its own gravity to naturally drop and easily nail into the sand. Through the precise adjustment of the speed control valve, the hull can achieve a certain Angle of swing, further enhancing the flexibility of the operation.
Specifications of Inverted Pile Cylinder for Cutter-Suction Dredger
| Inverted Pile Cylinder | |
| Application | Provide push and pull force for the retracting and unfolding of the steel pile |
| Bore diameter | up to 620mm |
| Rod diameter | up to 360mm |
| Stroke | up to 5200mm |
| Pressure | up to 32MPa |
| Thrust force | Maximum 7500KN |
| Pulling force | Maximum 5000KN |
Cutter-Suction Dredger Inverted Pile Cylinder Introduction
The inverted pile cylinder is a hydraulic cylinder that provides push and pull force for the retracting and unfolding of the steel pile on a cutter-suction dredger. It plays a vital role in the dredging process, allowing the dredger to function effectively across various water depths and conditions.
Typically positioned on the cutter ladder, which is the extended structure that supports the cutterhead and other dredging equipment, the cylinder connects to the steel pile through a series of brackets and pins.
During operation, the inverted pile cylinder retracts and unfolds the steel pile. This action enables the dredger to traverse the dredging area effectively, adjusting the steel pile to the necessary depth and angle.
This powerful and reliable equipment is crucial for the optimal performance of a cutter-suction dredger, and its low-maintenance nature makes it a cost-effective choice for dredging contractors.
Features of Cutter-Suction Dredger Inverted Pile Cylinders
- Provides powerful and reliable push and pull force for the retracting and unfolding of the steel pile.
- Allows the dredger to operate in a variety of water depths and conditions.
- Is a critical component of the dredging process, enabling the dredger to move forward and backward and position the steel pile accurately.
- Is a relatively low-maintenance component, offering a cost-effective solution for dredging contractors.
Advantages of Using an Inverted Pile Cylinder for a Cutter-Suction Dredger
The inverted pile cylinder significantly enhances any cutter-suction dredger, improving the efficiency, safety, and reliability of the dredging operation.
- Increased efficiency: The cylinder facilitates quick retraction and unfolding of the steel piles, saving time and enhancing operational efficiency.
- Enhanced safety: It ensures safe connections between the dredger and steel piles, bolstering operational safety.
- Reduced maintenance costs: This durable and reliable component requires minimal maintenance, reducing overall costs.
Why Choose GBC Dredger Tank Hydraulic Cylinders?
For hydraulic cylinders for dredger tanks, GBC offers an unmatched combination of production capabilities and product quality. Our hydraulic cylinders are designed to excel in both performance and durability.
With advanced manufacturing facilities and a skilled team of engineers and technicians, we ensure that every hydraulic cylinder we produce meets the highest industry standards. Our commitment to quality is unwavering, with rigorous quality control measures implemented throughout the production process to ensure reliability.
Choosing GBC's dredger tank hydraulic cylinders means investing in quality and excellence. Experience the difference with our durable and high-performing hydraulic cylinders. Contact us now!
Additional information
| Edited by | Sylvia |
|---|
Cutter suction dredger is a combination of mechanical dredger and hydraulic dredger, and the hydraulic cylinder of inverted pile is one of the key components of cutter suction dredger, which is mainly used for the positioning, transverse movement and longitudinal forward movement of the hull in dredging operations. The lifting device of rigid pile and steel pile installed at the stern relies on the hydraulic cylinder of inverted pile to work. During the operation of cutter suction dredger, the cutter cage is driven by hydraulic motor to rotate, because of the reaction force on the cutter blade, the whole hull rotates around a positioning pile rod in the water. The cylinder of the positioning pile is designed as a single oil feed mode, its ascent process is precisely controlled by the hydraulic cylinder, and when it comes down, it uses its own gravity to naturally drop and easily nail into the sand. Through the precise adjustment of the speed control valve, the hull can achieve a certain Angle of swing, further enhancing the flexibility of the operation.
