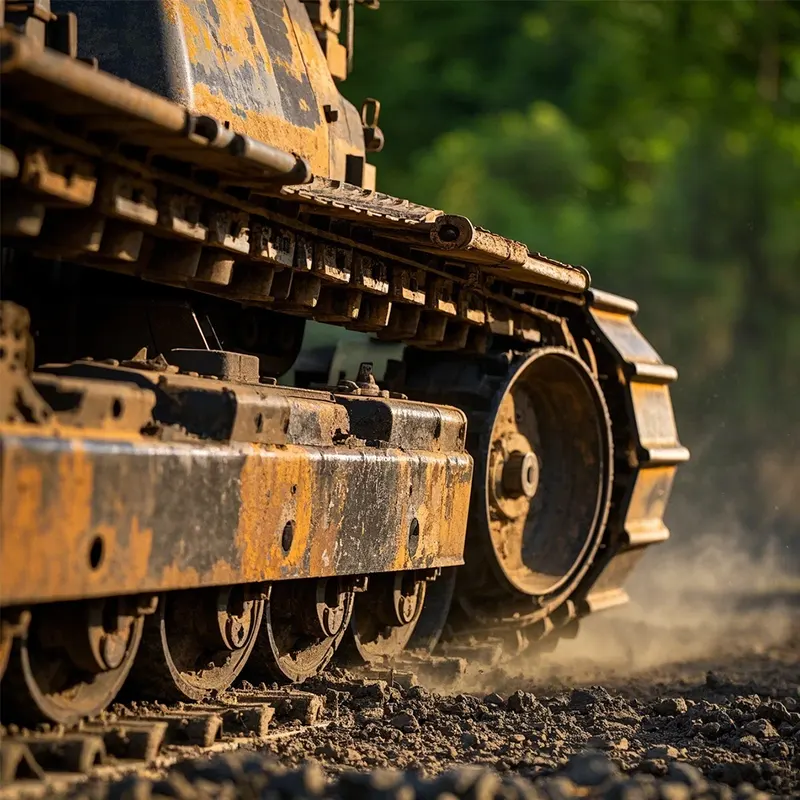

Track Drive for Tunnel Boring Machines
The Track Drive Planetary Gearbox is an essential component in Tunnel Boring Machines (TBMs), providing robust torque and precise control for the movement of the machine. This gearbox enables the TBM to navigate through various geological conditions efficiently, ensuring reliable traction and stability during tunnel excavation processes.
Track Drive Planetary Gearbox for Tunnel Boring Machines
The Track Drive Planetary Gearbox is engineered for high efficiency and reliability, making it ideal for the demanding conditions of tunnel boring operations.
| Feature | Description |
|---|---|
| Output Torque Range | 1000-450000 N¡¤m |
| Gear Ratios | i = 5.3 - 500 |
| Support | The gearbox has rotating housing flanges to fit tracks |
| Applicable Motors | Axial piston hydraulic motors, hydraulic orbit motors, or others |
| Hydraulic Motor Options | Pressure relief valve, overcenter valve |
| Bearing | Robust bearing system absorbing the forces exerted by the ring gear |
| Brake | Hydraulic released parking brake |
| High Torque and Load Capacities | Designed to carry equipment over the roughest and steepest terrain |
| Motor Mounting | Designed to allow mounting of plug-in motors |
| Compact Design | Integral multi-disc parking brakes, while still keeping the drive compact |
| Material | Steel structure |
| Easy Maintenance | Filling and draining openings are reasonably located for easy reach |
| Front Mechanical Seal | Designed specifically for earth-moving machines |
| Compatibility | Technical data and installation dimensions of EP400T Series gearbox are the same as those of Rexroth GFT¡T Series and Bonfiglioli 700C Series, allowing interchangeability |
| Type | Max. torque N.m | Range of ratios (i) | Max. Input speed (rpm) | Braking torque (N.m.) |
| EP400T1 | 1300 | 6.09 | 1000 | 130 |
| EP401T1 | 2000 | 6.2 | 1000 | 270 |
| EP402T2 | 5000 | 12.4-37.1 | 3500 | - |
| EP403T2 | 7000 | 15.4-40 | 3500 | 270 |
| EP405T | 10000 | 20-80 | 3500 | 270 |
| EP405.4T | 11000 | 26-57 | 3500 | 280 |
| EP406AT | 17000 | 23-220 | 3500 | 430 |
| EP406T | 18000 | 28-140 | 3500 | 430 |
| EP406BT3 | 24000 | 63-136 | 3500 | 430 |
| EP407AT | 26000 | 38-136 | 3500 | 430-530 |
| EP407T3 | 36000 | 63-136 | 3500 | 530 |
| EP410T3 | 50000 | 62-177 | 3500 | 530 |
| EP413T3 | 60000 | 86-172 | 3500 | 610 |
| EP414T3 | 80000 | 76-186 | 3500 | 1200 |
| EP415T3 | 110000 | 81-215 | 3000 | 1200 |
| EP416T3 | 160000 | 87-255 | 3000 | 2000 |
| EP417T3 | 220000 | 12 |
