Two Stage Telescopic Hydraulic Cylinder

2 Stage Telescopic Hydraulic Cylinder Specifications

2 Stages Telescopic Hydraulic Cylinder - Trunnion Mounting

2 Stages Telescopic Hydraulic Cylinder - Side Lugs Mounting

2 Stages Telescopic Hydraulic Cylinder - Fixed Eye Mounting

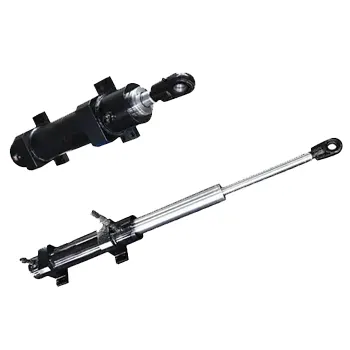

2 Stage Telescopic Hydraulic Cylinder

A two-stage telescopic hydraulic cylinder is a highly efficient hydraulic actuator commonly utilized in various industrial fields. This type of cylinder features two nested cylindrical sections that extend and retract independently, allowing for greater flexibility and precise control over force and stroke length. Leveraging hydraulic pressure, these cylinders provide outstanding lifting and pushing capabilities, making them suitable for heavy machinery, construction equipment, and material handling systems. Their compact design optimizes space while ensuring reliable performance, making them essential components in hydraulic systems where controlled and synchronized motion is crucial for effective operation.

Two-Stage Telescopic Hydraulic Cylinders Features

Our Two Stage Double Acting Telescopic Hydraulic Cylinders are designed to ensure precise and efficient linear motion across a variety of industrial and mobile equipment applications. Key features that differentiate our cylinders include:

1. Telescopic Design: The innovative two-stage design allows for greater reach and stroke length without occupying excessive space, making it ideal for applications with spatial limitations.
2. High Load Capacity: Our hydraulic cylinders are engineered to effortlessly manage heavy loads, crafted from high-strength materials and precision-engineered to ensure dependable performance under pressure.
3. Smooth Operation: The hydraulic engineering of our telescopic cylinders ensures smooth and precise movement, essential for tasks requiring controlled and stable motion.
4. Durability: Designed for demanding industrial environments, our cylinders are corrosion-resistant and built for long-lasting performance, minimizing maintenance costs over time.
5. Customization Options: Understanding that each application has distinct requirements, we offer various customization options, including bore size, stroke length, mounting configurations, and seal materials, to meet your specific needs.

Applications of Dual Stage Hydraulic Cylinder

Our Dual Stage Hydraulic Cylinder is applicable in a wide array of industries and equipment, including but not limited to:

1. Material Handling: Used in forklifts, cranes, and other material handling devices to lift and accurately position heavy loads.
2. Construction Equipment: These cylinders play an integral role in construction machinery like backhoes, loaders, and excavators, assisting with tasks such as digging, lifting, and grading.
3. Agricultural Machinery: Employed in tractors and agricultural implements for lifting and lowering tasks, steering, and managing hydraulically powered systems.
4. Dump Trucks: Commonly utilized in dump trucks to facilitate lifting and tilting of the cargo bed for streamlined unloading.
5. Utility Vehicles: Found in utility vehicles like bucket trucks, extending and positioning the working platform for maintenance and repair activities.
6. Material Processing: Industries focusing on material processing, such as recycling facilities and conveyor systems, utilize telescopic cylinders for tasks like conveying, sorting, and compacting materials.
7. Marine and Offshore: In marine and offshore contexts, telescopic cylinders are utilized in various hydraulic systems for stabilizing structures and lifting heavy loads on vessels.

How to Choose the Right Telescopic Hydraulic Cylinder?

Selecting the correct telescopic hydraulic cylinder for your application is vital to ensure optimal performance and durability. When making your choice, consider the following factors:

1. Load Capacity: Assess the maximum load your cylinder needs to lift or push, ensuring the selected cylinder's capacity exceeds this load.
2. Stroke Length: Determine the necessary stroke length (the distance the cylinder must extend and retract) to fulfill your application's requirements.
3. Mounting Style: Evaluate the mounting configuration of the cylinder to confirm compatibility with your equipment. Options include single-acting, double-acting, and custom mounts.
4. Operating Environment: Consider the conditions the cylinder will encounter, factoring in temperature, chemical exposure, and dust to choose suitable materials and seals.
5. Speed and Precision: Assess the required speed and precision of the cylinder's movements, as some applications necessitate quicker actions while others require more careful control.
6. Customization: Utilize customization options to adjust the cylinder to your specific needs. Consult with our experts at GBC for tailored solutions.

Why Choose GBC?

At GBC, we are committed to providing high-quality hydraulic solutions tailored to your industrial needs. When you choose us, you gain:

1. Expertise: Our knowledgeable team of engineers and technicians offers expert guidance and support to help you select the ideal telescopic hydraulic cylinder for your application.
2. Customization: We provide a broad range of customization options to ensure that our products seamlessly integrate into your equipment and meet your precise specifications.
3. Reliability: Our dedication to quality guarantees that our hydraulic cylinders are durable and dependable, reducing downtime and maintenance expenses.
4. Customer Support: We deliver exceptional customer service, assisting with product selection, installation, and any inquiries or concerns post-purchase.
5. Competitive Pricing: We provide competitive pricing without compromising quality, ensuring you receive excellent value for your investment.

Invest in the excellence of GBC's Two Stage Telescopic Hydraulic Cylinders and experience enhanced performance, reliability, and efficiency for your industrial applications. Contact us today to discuss your requirements and let our hydraulic experts assist you in finding the optimal solution.
