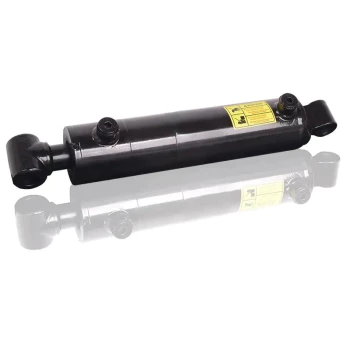

Welded Cross Tube Hydraulic Cylinders
Welded cross tube hydraulic cylinder is a hydraulic cylinder with a special structure, which is characterized by the cylinder part of the cross tube design and welded to other components. This design makes the welded transverse pipe hydraulic cylinder have greater rigidity and stability, and can withstand large side forces or bending moments. Therefore, it is usually used in the need to withstand complex loads and harsh conditions, such as construction machinery, construction machinery and other fields.
Agricultural Welded Tube Hydraulic Cylinder Technical Parameters
| Bore Diameter | 1.5"-5" |
| Rod Diameter | 1"-2.5" |
| Working Pressure | 2500-3000PSI |
| Port Size | 1/4NPT, 3/8NPT, 1/2NPT |
| Retra Pin Dia. | 1" |
| Mounting type | Both ends welded with cross tube |
| Seals | Hallite Brand |
Agricultural Welded Cross Tube Hydraulic Cylinder
An agricultural cross-tube welded cylinder is a hydraulic cylinder designed for use in agricultural equipment. These cylinders are commonly used in various agricultural applications, such as loaders, backhoes, skid steers, and other machinery used on farms. Here are some key points about agricultural cross-tube welded cylinders:
- They come in various bore sizes, typically ranging from 2 inches to 3 inches or more.
- The working pressure for these cylinders can vary, typically between 2,500 psi and 3,500 psi.
- They are constructed with a cross-tube design, which means that two tubes are welded across the barrel of the cylinder, providing stability and strength.
- These cylinders often have ports for hydraulic fluid connections, typically SAE standard ports such as -06 (3/8") or -08 (1/2").
- The cylinders have rods with clevises and clevis pins for attachment to other components in the hydraulic system.
- They are used for various tasks in agriculture, including lifting, lowering, and moving equipment and attachments.
Agricultural Welded Cross Tube Hydraulic Cylinder Features
The Agricultural Welded Cross Tube Hydraulic Cylinder offers the following key features:
- Intended Use:
- Designed for double-acting applications, ensuring versatile functionality.
- Tube:
- Crafted from high-quality steel, honed or skived to enhance seal longevity, ensuring extended service life.
- Rod:
- Equipped with a ground and polished hard chromed plated rod, guaranteeing smooth and reliable operation.
- Piston & Gland:
- Composed of ductile iron, providing strength and durability in demanding agricultural applications.
- Seal Brand:
- Utilizes high-performance Hallite seals to prevent leaks and maintain hydraulic efficiency.
- Port Size:
- Offers flexibility with port size options, including NPT and ORBF, allowing for easy integration into various hydraulic systems.
Buy Welded Cross Tube Hydraulic Cylinders from GBC
Choosing GBC's Agricultural Welded Cross Tube Hydraulic Cylinder – your trusted partner for superior performance in the field. Our company is committed to delivering top-quality hydraulic cylinders that excel in both durability and functionality, setting new standards in the agricultural industry.
At GBC, we take pride in offering products that not only meet but exceed your expectations. Our hydraulic cylinders are built with precision and expertise, ensuring they withstand the rigors of agricultural operations, from plowing to harvesting.
What sets us apart is our unwavering dedication to providing cost-effective solutions without compromising on quality. We understand the importance of reliability in your equipment, and our cylinders are designed to deliver just that, mile after mile.
But it's not just about the product; it's about the experience. With GBC, you can count on exceptional service from our professional team. We're here to assist you every step of the way, from selecting the right cylinder for your needs to providing unparalleled after-sales support.
Choose GBC for agricultural welded cross tube hydraulic cylinders that redefine performance, value, and service excellence. Join our growing community of satisfied customers and experience the GBC difference today.
