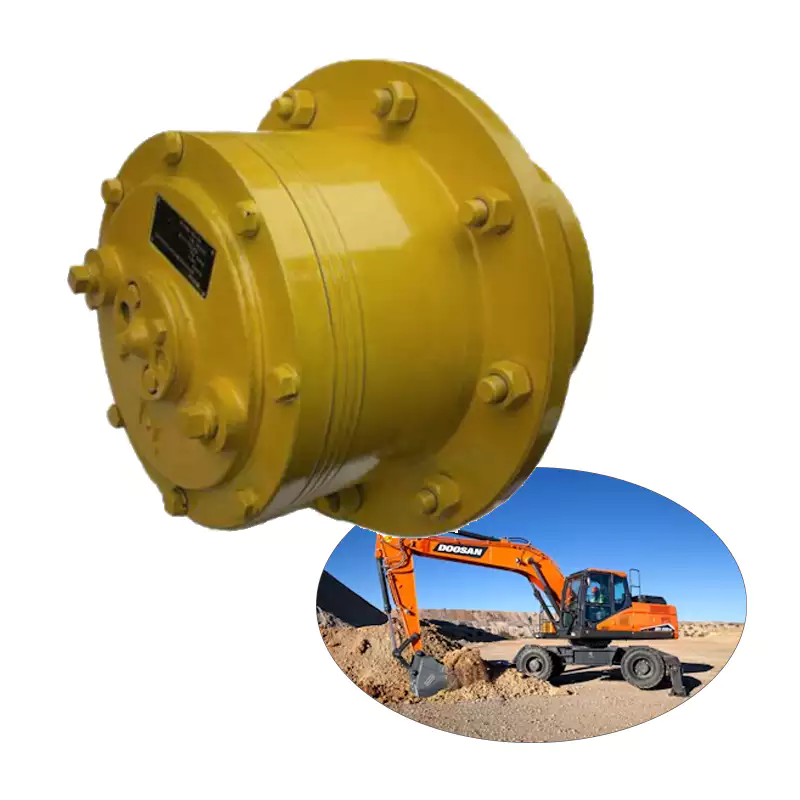

Wheel Drive Planetary Gearbox Reducer for Excavators
The Wheel Drive Planetary Gearbox Reducer for Excavators is a precision-engineered component designed to optimize torque and speed for excavating machinery. By efficiently reducing the speed of the drive motor while increasing torque, it enhances the performance and reliability of excavators, ensuring they operate effectively in demanding construction environments.
Wheel Drive Planetary Gearbox Reducer for Excavators
The Wheel Drive Planetary Gearbox Reducer for Excavators is designed to enhance torque and efficiency, making it an essential component for heavy machinery. Its robust construction ensures durability and reliable performance even in the most demanding environments.
Specifications
| Specification | Details |
|---|---|
| Output torque range | 1000-60000 N.m |
| Gear ratios | i=5.3-142 |
| Support | The gearbox has rotating housing flanges to fit wheel |
| Applicable motors | Axial piston hydraulic motors, hydraulic orbit motors or others |
| Hydraulic motor options | Pressure relief valve, overcenter valve |
| Bearing | Robust bearing system absorbing the forces exerted by the ring gear |
| Brake | Hydraulically released parking brake |
| Others | EP600L Series wheel drives with manual disconnect application |
| Load capacity | Large radial and axial load capacity due to the use of strong tapered roller bearings |
| Oil seal protection | Reliable oil seal protection, designed according to our field experience |
| Mounting flanges | Universal and SAE input direct mounting flanges |
| Direct mounting | The units are designed for their direct mounting into the wheel rims |
| Interchangeability | Technical data and installation dimension of EP600L Series gearbox are same as those of Rexroth GFT…W Series and Bonfiglioli 600 Series, so these three can be used interchangeably |
| Track drives Type | Max. torque N.m | Range of ratios (i) | Max. Input speed (rpm) | Braking torque (N.m) |
| EP601 L1A | 1750 | 5.77 | 1000 | 450-600 |
| EP603 L2A | 4000 | 19-23-32-40 | 3000 | 210 |
| EP603 L2B | 4000 | 19-23-32-40 | 3000 | 210 |
| EP602 L2 | 5000 | 12.4-25.8 | 3000 | - |
| EP605 L2 | 7000 | 22-27-30-42-53 | 3000 | 220-310 |
| EP606 L2, L3 | 12000 | 30-35-43-68-79 | 3000 | 300-800 |
| EP607 L2, L3 | 17000 | 33-75-108 | 3000 | 300-600 |
| EP609 L2, L3 | 23000 | 33-142 | 3000 | 300-600 |
| EP610 L2, L3 | 30000 | 20-111 | 3000 | 300-800 |
| EP611 L2, L3 | 36000 | 41-47 | 3000 | 300-800 |
| EP613 L3 | 45000 | 108 | 3000 | 300-800 |
| EP615 L3 | 60000 | 108 | 3000 | 300-1000 |
Features and Advantages of Wheel Drive Planetary Gearbox Reducer for Excavators
High Gear Reduction Ratio: Achieves low-speed, high-torque output, making it suitable for heavy-duty applications.
Compact Integrated Design: Saves space by allowing direct installation on the wheel hub, reducing the complexity of the drivetrain.
Load Distribution: Multi-planet gear design distributes stress, enhancing durability.
Efficient Transmission: Minimizes energy loss, improving overall system efficiency.
Modular and Customizable: Gear ratios and sizes can be adjusted according to load and speed requirements.
Advantages:
Reliability: Designed for harsh environments, making it ideal for outdoor machinery.
Easy Maintenance: Compact structure allows for straightforward disassembly.
Low Noise and Smooth Operation: Multi-tooth engagement reduces vibrations, ensuring quiet performance.
Selection Guide for Wheel Drive Planetary Gearbox Reducer for Excavators
When selecting a Wheel Drive Planetary Gearbox Reducer for excavators, consider several crucial factors. First, assess the load type—static or dynamic—as this influences the gearbox's durability and performance. Next, evaluate the working environment, including temperature, humidity, and dust levels, which can affect lubrication and mechanical integrity. Lastly, choose the appropriate installation method, whether flange connection or shaft output, to ensure compatibility with your equipment and operational efficiency. Making informed decisions in these areas will optimize gearbox functionality and lifespan.
Why Choose Our Wheel Drive Planetary Gearbox Reducer for Excavators
Choosing our Wheel Drive Planetary Gearbox Reducer for Excavators means opting for tailored solutions that meet your specific needs. We offer customized services, designing gear ratios and mounting configurations according to your requirements. Our high-quality manufacturing process ensures precision machining, resulting in low tolerances and extended lifespan. Additionally, we provide comprehensive technical support, including selection guidance and after-sales services. Our gearbox reduces the complexity of the transmission system, while enhancing the overall performance and reliability of your equipment, ensuring that you achieve optimal results in your operations.
Maintenance Tips for Wheel Drive Planetary Gearbox Reducer for Excavators
To ensure optimal performance of your Wheel Drive Planetary Gearbox Reducer, follow these maintenance tips:
- Regularly check and change the lubricant to prevent overheating and wear.
- Inspect seals and gaskets for leaks and replace them if necessary.
- Monitor the temperature during operation to detect potential issues early.
- Keep the gearbox clean and free from debris to avoid contamination.
- Perform routine inspections of the mounting and alignment to ensure stability.
Wheel Drive Planetary Gearbox Supplier
GBC is the Australian sales agent for Ever-power Group, providing high-quality gearbox solutions tailored to the needs of our clients. Our Wheel Drive Planetary Gearbox Reducer for Excavators is designed to enhance the performance and efficiency of your machinery. With robust construction and advanced engineering, our gearboxes ensure reliability and longevity, making them ideal for demanding applications.
We pride ourselves on our ability to customize products to meet specific requirements, ensuring that our customers receive the best possible solution for their needs. We invite all potential clients to explore our offerings and consider customizing their gearboxes with us, ensuring optimal performance and satisfaction.
