#80-3 1″ Pitch QD Sprocket

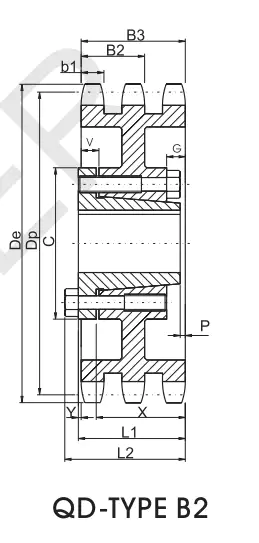

#80-3 1" Pitch QD Sprocket Specifications

The QD Sprocket No.80-3 Triple Type is a type of sprocket used in transmission systems. It is designed to provide efficient power transfer and reliable performance. QD sprockets are widely used in various industries for their durability and versatility.

Definition and Basic Structure of QD Sprocket

A QD sprocket is a type of sprocket that features a quick detachable bushing, allowing easy installation and removal. It consists of a toothed wheel with specially designed teeth that engage with a chain, enabling smooth and efficient power transmission.

Characteristics and Functions of QD Bushing

• Easy Installation: The QD bushing can be quickly and easily mounted onto the shaft, reducing downtime during installation.
• High Load Capacity: QD bushings are designed to withstand high loads and provide reliable performance in demanding applications.
• Standardized Design: QD bushings follow industry-standard dimensions, ensuring compatibility with a wide range of sprockets and shafts.
• Compact Design: The compact size of QD bushings allows for space-saving installation, making them suitable for applications with limited space.
• Low Maintenance Cost: QD bushings require minimal maintenance, reducing overall maintenance costs for the transmission system.

Installation and Removal Process of QD Bushing

1. Prepare Tools and Materials: Gather the necessary tools and ensure the availability of the QD bushing and sprocket.
2. Clean Shaft and Sprocket Surfaces: Remove any dirt or debris from the shaft and sprocket surfaces to ensure proper installation.
3. Position the Sprocket: Slide the QD bushing onto the shaft and align it with the desired position for the sprocket.
4. Install QD Bushing: Tighten the screws on the QD bushing to secure it in place on the shaft.
5. Fix the Sprocket: Attach the sprocket to the QD bushing, ensuring a tight and secure fit.
6. Check: Verify the proper installation of the QD bushing and sprocket, ensuring they are aligned correctly and securely attached.

Manufacturing Process of QD Sprocket

1. Raw Material Preparation: Select high-quality materials suitable for the desired strength and durability of the sprocket.
2. Cutting: Cut the raw material into the desired shape and size, preparing it for further processing.
3. Forging or Casting: Form the QD sprocket using either forging or casting methods, depending on the desired properties and manufacturing capabilities.
4. Machining: Use precision machining techniques to refine the sprocket's dimensions and ensure proper tooth profiles.
5. Tooth Rolling: Roll the teeth on the sprocket to enhance their strength and improve their engagement with the chain.
6. Heat Treatment: Apply heat treatment processes to optimize the sprocket's hardness and strength.
7. Surface Treatment: Apply surface treatments, such as coating or plating, to enhance the sprocket's corrosion resistance and overall appearance.
8. Quality Inspection: Conduct rigorous quality inspections to ensure the sprocket meets all required specifications and standards.

Sprockets Supplier in Australia

GBC is the Australian sales agent for Ever-power Group, specializing in high-quality sprockets and related products. Our featured product, the QD Sprocket No.80-3 Triple Type, is designed for excellent power transmission in various industrial applications. This sprocket delivers efficient performance, ensuring durability and reliability. We pride ourselves on offering not only standard sprockets but also customized solutions tailored to our clients' specific needs. Our team is equipped to handle special requests, providing bespoke designs based on customer drawings or samples. We welcome all customers to reach out for customized sprocket solutions.
