TD75 Universal Belt Conveyor

Technical Specifications of TD75 Universal Belt Conveyor

Note: The conveying capacity in the table is calculated under the conditions of material bulk density r=1.0t/m3, conveyor inclination angle of 0°~7°, and material dynamic stacking angle of 30°.

Overview of TD75 Universal Belt Conveyor

TD75 universal belt conveyor is an industrial-grade, highly versatile belt conveyor. This universal belt conveyor is a typical industrial conveyor device, which is simple in structure, easy to maintain and cost-effective, and has the advantage of large capacity. It can provide professional solutions for various bulk material handling requirements and is often used in industrial fields such as mining, metallurgy, coal, ports, hydropower, and chemical engineering for the transportation and loading and unloading of bulk materials. The TD75 series conveyor system can be either fixed or mobile, adapted to the layout requirements of different production lines, and can meet the efficient material handling requirements of various industrial conveyor scenarios.

TD75 Universal Belt Conveyor Features

Large conveying capacity: supporting multiple specifications (bandwidth of 500, 650, 800, 1000, 1200, 1400mm) to meet production needs of different scales.
Simple structure: simple structure design, convenient installation, and reduced initial investment cost.
Easy to maintain: Modular design, conveyor maintenance is simple and reduces downtime.
Low-cost conveyor: low-cost conveyor, high efficiency and energy saving, more economical for long-term use.
Multiple speed options: Offers multiple running speeds from 0.8 to 4.0m/s, flexibly adapted to various scenarios in belt conveyor for industrial use.

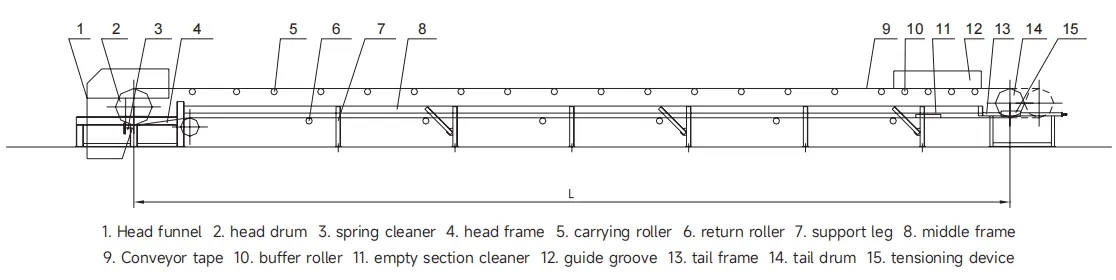

TD75 Universal Belt Conveyor Parts

Click to download the TD75 belt conveyor parts PDF

Belt Conveyor Drive Pulley	Belt Conveyor Bend Pulley
Belt Conveyor Roller	Belt Conveyor Idler

The Application and Scope of TD75 Universal Belt Conveyor

TD75 universal belt conveyor is widely used in mining, metallurgy, chemical, building materials and other industries. It is suitable for conveying bulk materials or finished goods with a density of less than 2.5t/m³. Its design enables stable operation within the ambient temperature range of -15°C to 40°C. If appropriate protective measures such as explosion-proof conveyor or waterproof conveyor are taken, it can also meet special working conditions such as explosion-proof and water-proof, ensuring production safety and efficiency.

• Mining & Quarries: Transporting ores, aggregates, and minerals.
• Construction Sites: Moving cement, sand, and gravel efficiently.
• Logistics Centers: Streamlining warehouse and distribution workflows.
• Special Environments: Deployable in explosion-proof zones or wet conditions with tailored protections.

Why Choose TD75 Universal Belt Conveyor?

The TD75 universal belt conveyor, with its excellent versatility and reliability, meets a wide range of needs from small plants to large industrial facilities. Whether it's conventional material handling or harsh conveyor for harsh environments, the TD75 provides efficient solutions. Our products have been rigorously tested to ensure stable operation in all kinds of complex environments while maintaining the economic advantage of low cost conveyor.

Contact Us for a Quote on a TD75 Universal Belt Conveyor

GBC is the Australian sales agent of Ever-power Group, a leading global manufacturer of mechanical drives and conveyors, specializing in the development and production of high-quality belt conveyors. With strong technical strength and strict quality management, Ever-power Group's products have passed ISO, CE and other certifications, and provide reliable after-sales service and technical support. Choosing a GBC TD75 universal belt conveyor means you will receive a professional equipment solution and ongoing operational security, helping to improve the productivity and safety of Australia's manufacturing and material handling systems. We provide products with superior quality and favorable price, currently sold in New South Wales, Victoria, Queensland and other states, covering cities such as Sydney, Melbourne, Brisbane, Adelaide, Perth and so on.

Visit our official website or contact our team of professionals for more details about TD75 conveyor price, customization options and belt conveyor for industrial use. We are committed to providing you with the best material-handling solutions!
