Universal Joint Cardan Shafts
As the exclusive Australian partner for Ever-power, GBC delivers superior universal joint cardan shaft assemblies, engineered for maximum durability and performance in most demanding industrial environments.
GBC Universal Joint Cardan Shaft Series – Quick Selection Guide
To accelerate your engineering and procurement process, use this guide to identify the ideal GBC series for your application. Each series is defined by the design of its universal joint and overall construction, ensuring a perfect match for your operational demands.
| Series | Key Universal Joint Feature | Typical Nominal Torque (Tn) Range | Primary Applications |
|---|---|---|---|

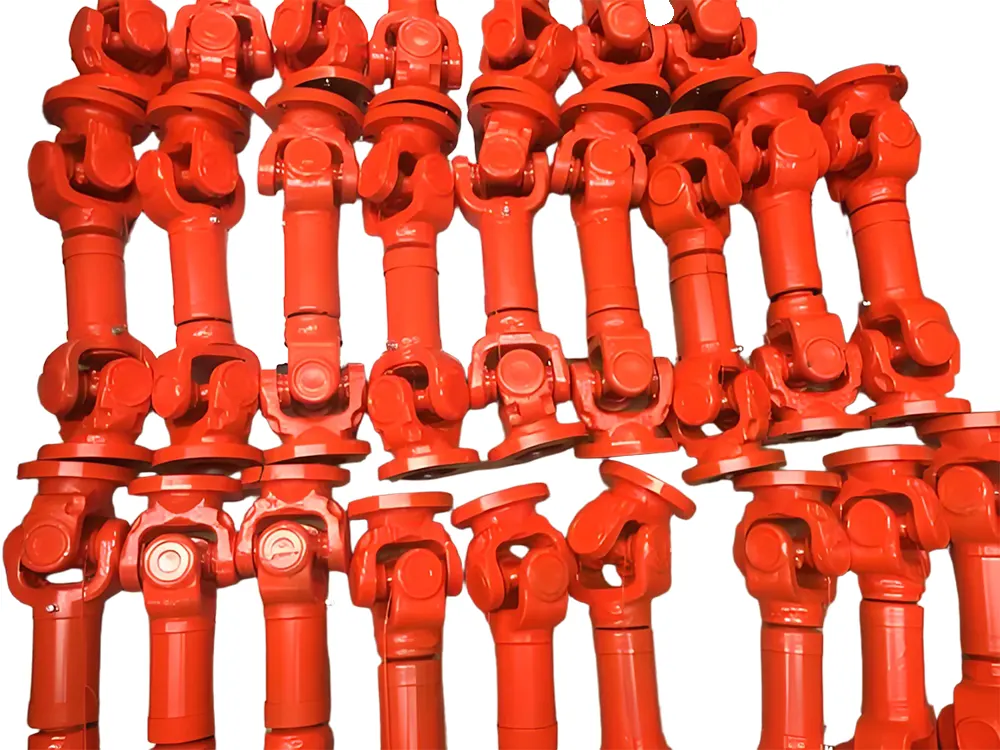

| GBC SWC | Integral Whole-Fork Yoke: Maximum strength, eliminates bearing cap bolts. | 0.15 – 1000 kN·m | Extreme heavy-duty: Rolling mills, mining conveyors, cranes. |
| GBC SWP | Split Axletree Yoke: Allows for U-joint bearing service without removing the shaft. | 16 – 1250 kN·m | Applications where minimal downtime is critical: Steel mills, paper processing. |
| GBC WS/WSD | Compact Cross Axle Joint: For high angles (up to 45°) in confined spaces. | 11.2 – 1120 N·m | General machinery, automotive, light industrial, steering linkages. |
| GBC WSS | Small Telescopic Joint: High-speed capability with length compensation. | 22.4 – 1120 N·m | Precision machinery, control systems, agricultural PTO shafts. |

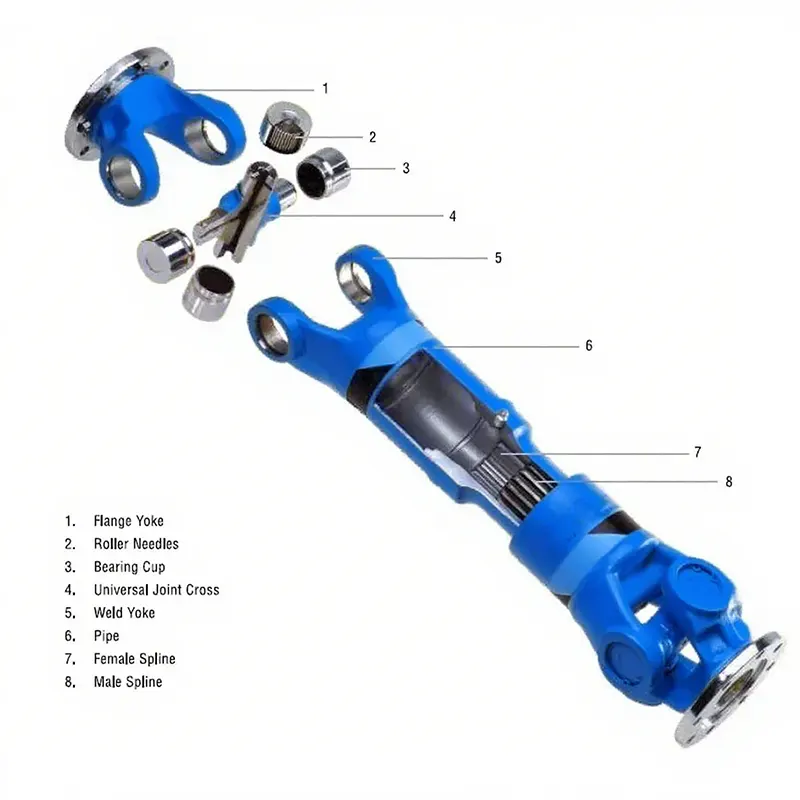

Components
A universal cardan shaft is an assembly of several precision-engineered parts working in unison:
- Universal Joints (U-Joints): Consisting of a cross-shaped journal and four needle roller bearings, these are the pivots that allow the shaft to operate at an angle.
- Shaft Tubing: The main body of the shaft, typically made from high-strength steel tubing, designed to transmit torque over a distance.
- Slip Yoke / Spline: A telescopic mechanism that allows the shaft to change length, accommodating movement in the driveline suspension or thermal expansion.
- Flange Yoke: The component that bolts the cardan shaft to the driving and driven machinery.
- Seals: High-quality seals protect the needle bearings from contaminants like dust and moisture, which is critical in Australian industrial and mining environments.
Our Commitment to Quality: The Foundation of Every Universal Joint
Quality is built into every component of a GBC cardan shaft.
- Material Integrity: We use high-grade forged steel for all yokes and universal joint crosses, providing superior strength and fatigue resistance over cast alternatives.

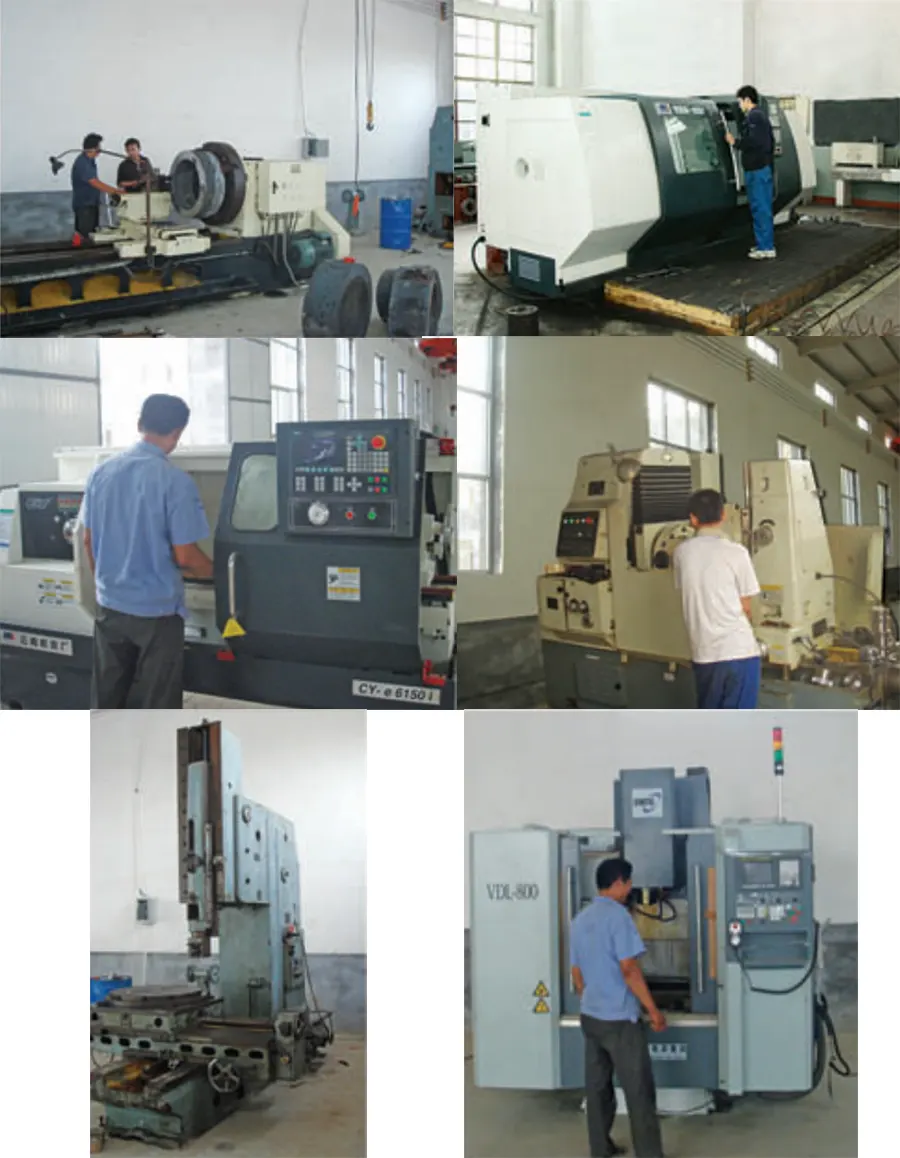

- Precision Manufacturing: All components are machined to exact tolerances using advanced CNC technology, guaranteeing perfect fit and smooth operation.
- Advanced Heat Treatment: Universal joint crosses and bearings undergo specialized heat treatment to enhance hardness and durability, ensuring they can withstand severe shock loads.
- Dynamic Balancing: Every GBC cardan shaft is dynamically balanced to G 16 specification (DIN ISO 1940) or better. This critical step eliminates vibration, protecting connected machinery and ensuring a long, reliable service life.
Built for Toughest Industries
Our universal joint cardan shafts are engineered to thrive in the unique and challenging environments, delivering reliability where it matters most.
Mining & Resources
SWC and SWP series shafts withstand extreme torque, abrasive dust, and constant shock in conveyors, crushers, and heavy machinery.
Agriculture
Robust PTO driveshafts, including the WSS series, are designed for the high-torque, high-angle demands of tractors and harvesters on uneven terrain.
Transport & Logistics
Precision-balanced shafts eliminate driveline vibration in heavy-duty trucks, improving safety, efficiency, and component life.
Marine Propulsion
Engineered for corrosion resistance and the unique stresses of marine drivelines, ensuring reliable performance for commercial and recreational vessels.
Technical Resource Center
Empower your team with in-depth knowledge. Explore our guides on selection, installation, and maintenance to maximize the performance and lifespan of your driveline components.
How to Select the Suitable Cardan Shaft?
Choosing the correct cardan shaft is crucial for driveline longevity and operational safety. Follow this systematic approach:
- Calculate Torque Requirements: Use the formula: Calculated Torque (Tc) = Service Factor (K) × Theoretical Torque (T). Your Tc must be ≤ the shaft’s rated Nominal Torque (Tn) or Fatigue Torque (Tf).
- Determine Operating Speed and Angle (β): The product of speed (n) and angle (β) should not exceed the maximum value for the shaft. For most industrial applications, keep n × β below 18000.
- Measure for Correct Length: For fixed shafts, measure flange-to-flange distance. For telescopic shafts, measure minimum and maximum working lengths.
- Consider the Environment: For corrosive environments, contact our team to discuss custom materials and coatings.
Installation Best Practices
- Safety First: Always lock out and de-energize machinery before work.
- Pre-Installation Checks: Clean mating flanges and verify pilot fit. Ensure alignment arrows on splines are matched for correct phasing.
- Lifting and Handling: Use nylon slings around robust yoke sections. Never lift by the spline cover.
- Bolt Torquing: Use only specified high-strength bolts (Grade 10.9) and tighten to the specified torque value with a calibrated wrench.
- Guarding: Ensure all safety guards are in place and properly maintained after installation.
Maintenance and Lubrication Guide
A consistent preventative maintenance program is key to maximizing service life.
Lubrication Schedule:
- General Use: Every 250 operating hours or 2 months.
- Heavy/Wet Environments: Every 125 hours or monthly.
Recommended Lubricant:
Use a high-quality, lithium-based grease with extreme pressure (EP) additives, NLGI Grade 2. Do NOT use lubricants with Molybdenum Disulfide (MoS2).
Procedure:
Clean grease nipples. Apply grease slowly until fresh grease purges from all four bearing seals of the U-joint. For slip splines, apply only 2-3 strokes.
Troubleshooting Common Problems
| Symptom | Potential Cause | Recommended Action |
|---|---|---|
| Intense Vibration | Worn U-joints, imbalanced shaft, worn carrier bearing. | Inspect U-joints for play. Check for missing balance weights. Replace worn components and re-balance. |
| Loud “Clunking” Noise | Excessive play in U-joints or spline due to wear. | Immediate inspection and replacement are required to prevent driveline failure. |
| Squeaking at Low Speeds | A dry or failing U-joint that has lost its lubrication. | Lubricate immediately. If noise persists, the U-joint bearings are damaged and must be replaced. |
Customer Testimonials
“We were replacing U-joints on our main ore conveyor every six months… After we switched to GBC’s SWC series shafts two years ago, we haven’t had a single failure. It’s reduced our conveyor downtime by at least 30%.”
“The SWP shaft’s split-bearing design is a game-changer for our maintenance team. What used to be a four-hour job to pull a whole shaft is now a bearing swap in under an hour. The reduction in downtime has been phenomenal.”
“We had a persistent vibration issue in one of our prime movers… The team at GBC supplied a perfectly balanced replacement driveshaft. The vibration is completely gone. The driver’s happier, and we’re seeing better tyre wear.”
FAQs
Can GBC supply custom-length cardan shafts?
Yes. Most of our telescopic and fixed-length shafts can be manufactured to your specific length requirements. Please provide the correct measurement (e.g., flange-to-flange) when requesting a quote.
Can you replace a shaft from another brand?
Absolutely. Our shafts are designed to industry-standard dimensions. We can cross-reference your existing part number or use your measurements to provide a direct GBC replacement, often with superior design features and at a competitive price.
GBC: Your Single Source for Complete Power Transmission Systems
Beyond cardan shafts, GBC is your trusted source for a wide range of high-quality power transmission components from Ever-power. We can help you engineer a complete, integrated driveline solution from a single, reliable supplier.

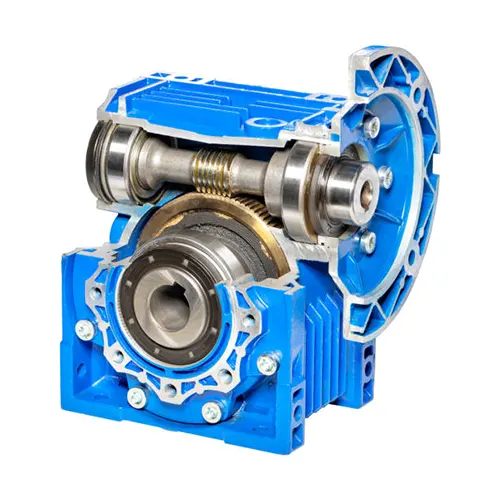

Industrial Worm Gear Reducers
Versatile and efficient speed reducers for conveyors, mixers, and general industrial use.
Agricultural Gearboxes
Robust and reliable gearboxes for PTO applications, harvesters, and other farm machinery.
Sprockets and Roller Chains
A full range of standard and custom sprockets and high-strength roller chains for all your drive needs.
Gears and Racks
Precision-cut spur, helical, and bevel gears, as well as gear racks for linear motion applications.
Ready to Enhance Your Driveline?
Contact our engineering team today for a detailed quote, technical assistance, or to discuss your unique application. We’re here to provide the optimal power transmission solution for your machinery.
