The Silver Series is a range of light-duty housed bearing units designed for low-load, low-to-medium speed conveying applications. The housing is produced from zinc alloy, giving a high level of corrosion resistance in a compact and lightweight unit at a lower cost than equivalent cast iron housings. Two housing formats are available: pillow block (KP, UP) and 2-bolt oval flange (KFL, UFL). End covers can be fitted on both ends to increase contamination resistance.
Two insert types are available within the Silver Series: the K series with setscrew locking (bidirectional, standard speed) and the U series with eccentric locking collar (self-tightening under unidirectional rotation). Both inserts have a spherical outer diameter, a wider inner ring, and are pre-lubricated from the factory with no grease groove or grease holes — they are not re-lubricated in service. Contact our team to confirm the correct series for your duty cycle.
Silver Series Products
Zinc-Alloy · Light DutyThree product groups cover inserts only (K / U) for use in Silver Series housings, and complete pillow block and flange units (KP / UP / KFL / UFL). The KP005 is a single-size light-duty zinc-alloy pillow block for 25 mm bore positions. All units accept end covers on both sides.

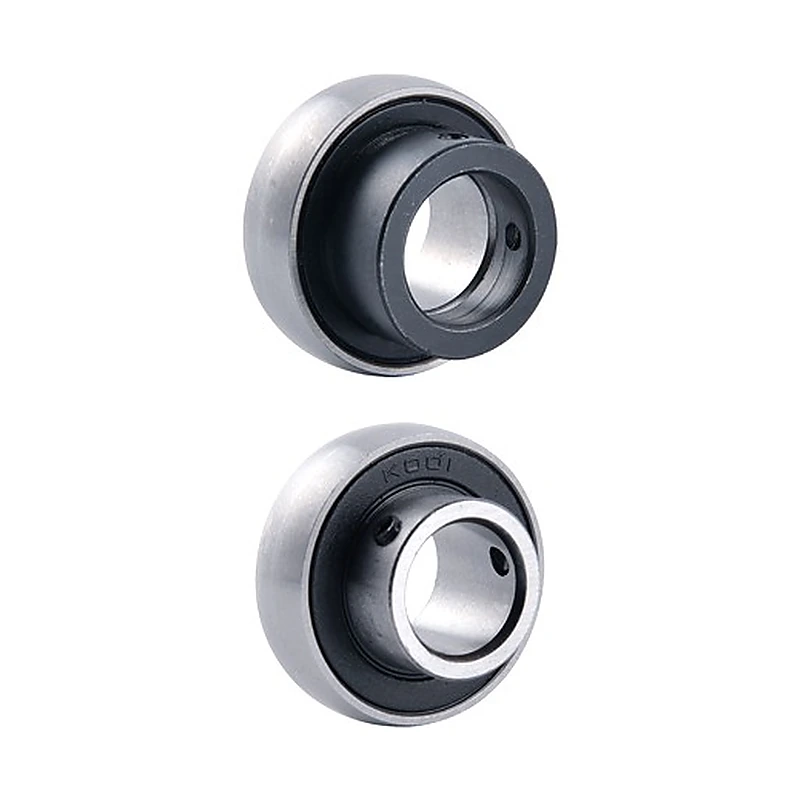

K / U Silver Series Bearing Inserts
Deep groove ball bearing inserts with spherical O.D. and wider inner ring. Factory pre-lubricated — no grease groove or grease holes. K = dual setscrew at 120° for bidirectional use. U = eccentric locking collar for unidirectional drives. For use in UP, UFL, KP, KFL Silver Series housings.
View Series

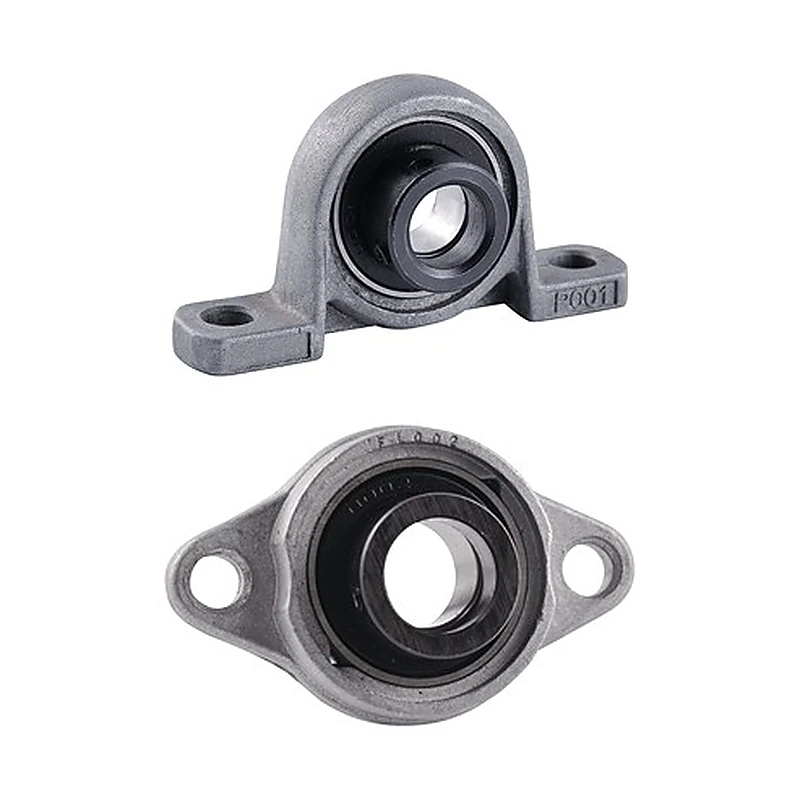

UP / UFL Silver Series Bearing Units
Zinc-alloy housings with U series eccentric locking collar insert. UP = light-duty pillow block. UFL = light-duty 2-bolt oval flange. Both accept end covers on both sides. Unidirectional drives only.
View Series

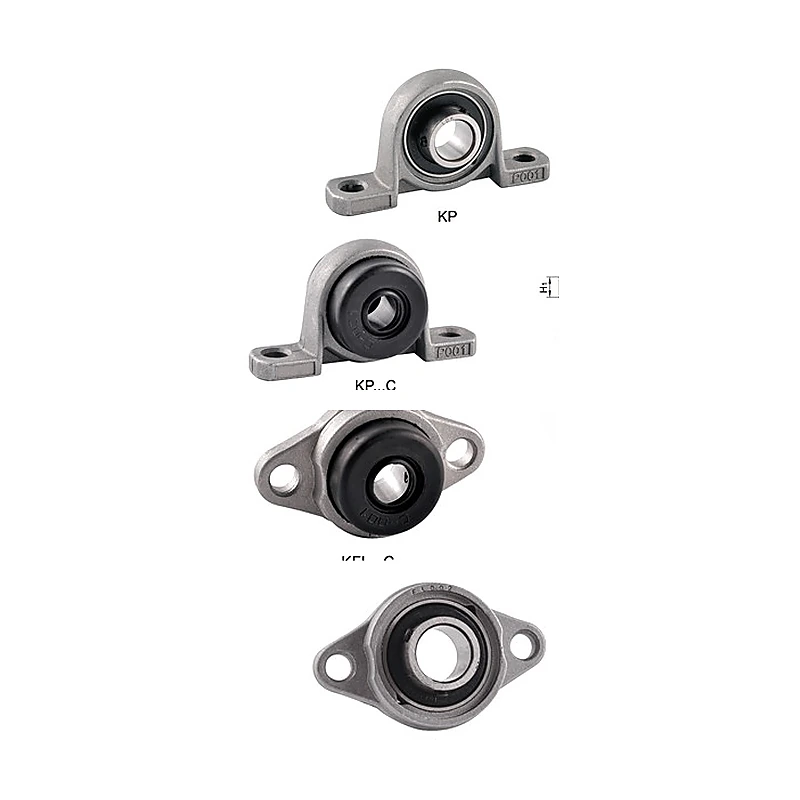

KP005 Zinc Alloy Pillow Block & KFL Flange Units
Zinc-alloy housings with K series setscrew insert. KP = light-duty pillow block. KFL = light-duty 2-bolt oval flange. KP005 covers 25 mm bore. KFL available in C and C/D end-cover configurations. Bidirectional.
View Series| Property | K Series (Setscrew) | U Series (Eccentric Collar) |
|---|---|---|
| Locking mechanism | Dual setscrew at 120° | Eccentric locking collar |
| Rotation direction | Bidirectional | Unidirectional only |
| Self-tightening under load | No | Yes — collar tightens under shaft rotation |
| Reversing drives | Suitable | Not suitable — collar releases under reversal |
| Re-lubrication | No — factory pre-lubricated for life | No — factory pre-lubricated for life |
| Grease grooves/holes | None | None |
| Compatible housings | KP, KFL pillow block & oval flange | UP, UFL pillow block & oval flange |
| Typical application | Light conveying, bidirectional or reversing drives | Light conveying, single-direction drives with vibration |
| Series | Format | Insert | End Cover | Select When |
|---|---|---|---|---|
| KP / KP005 | Pillow block | K setscrew | Both ends | Horizontal shaft on flat base surface · Bidirectional |
| UP | Pillow block | U eccentric collar | Both ends | Horizontal shaft · Unidirectional · Vibration-prone |
| KFL / KFL+C/D | 2-bolt oval flange | K setscrew | C or C/D config. | Wall or vertical face mounting · Bidirectional |
| UFL | 2-bolt oval flange | U eccentric collar | Both ends | Wall or vertical face · Unidirectional |
Zinc-Alloy Housing
Zinc alloy provides significantly better corrosion resistance than cast iron without the cost premium of stainless steel. Suitable for light washdown and moderately corrosive environments where cast iron would rust.
Spherical O.D. Insert
Both K and U series inserts have a spherical outside diameter that self-aligns in the housing seat, accommodating minor angular misalignment between shaft and housing without generating edge loads.
End Cover Compatible
All Silver Series housings accept pressed steel end covers on both ends. Fitting end covers on both sides reduces contamination ingress from the shaft ends — important for dusty or wet light conveying environments.
Factory Pre-Lubricated
Both K and U inserts are pre-greased from the factory with no grease groove or grease holes. Maintenance-free for rated service life under normal light duty operating conditions — no re-lubrication is possible or required.
Wide Inner Ring
The wider inner ring of the K and U series inserts provides a larger shaft contact surface for the locking mechanism and allows the housing to be positioned along the shaft more flexibly than a standard narrow inner ring bearing.
Two Locking Styles
K setscrew inserts suit bidirectional and reversing light conveying drives. U eccentric collar inserts suit unidirectional drives where the self-tightening collar provides more reliable retention under vibration than setscrew at the same light duty load level.
Light Conveyor Shaft Supports
Tail and idler shaft bearing positions on light belt conveyors in packaging, postal, and materials handling equipment where shaft diameters are small, loads are modest, and corrosion resistance is preferred over maximum load capacity.
Agricultural Equipment Auxiliary Drives
Light auxiliary drive shaft positions on seeders, planters, and small implements where zinc-alloy corrosion resistance suits outdoor field use and loads do not justify the cost of cast iron or stainless bearing units.
Textile and Garment Machinery
Light shaft supports on fabric tensioning rollers, winding reels, and guide roller drives in textile and garment machinery where zinc-alloy housings avoid iron staining of fabric and provide acceptable service life at light loads.
Food Conveying — Non-Washdown Zones
Light conveyor shaft bearing positions in food handling areas where the conveyor is not subject to direct washdown and zinc-alloy corrosion resistance is adequate — as a lower-cost alternative to all-stainless steel units for non-critical zones.
Printing and Paper Handling
Roller and guide shaft bearing positions on printing machines, paper feeders, and document handling equipment where light loads, low to medium speeds, and corrosion resistance from paper dust and inks are the key requirements.
Retail and Point-of-Sale Equipment
Checkout conveyor belt shaft bearing positions, self-service kiosk mechanisms, and retail display moving parts where light loads, small shaft sizes, and clean environment suit the Silver Series capacity and corrosion resistance.
Ready to Order Silver Series Bearing Units?
Provide shaft diameter, housing format (pillow block or 2-bolt oval flange), locking style (K setscrew or U eccentric collar), rotation direction, and quantity. End cover requirements (C or C/D) should be specified at order stage. New-client samples available. Multi-model orders from USD 1,500 accepted.
