Hanger Bearing Units

A pillow block (UCP200) mounts with its base on a horizontal surface below the shaft, supporting the shaft from underneath. A hanger bearing unit (UCHA200) mounts with its face on the underside of an overhead beam or frame above the shaft, supporting the shaft from above. The shaft centreline is below the mounting face rather than above the base. This inverted orientation is required when the supporting machine structure is above the shaft — such as overhead conveyors, cross-transfer systems, ceiling-mounted fan drives, and material handling equipment where a base-mounted pillow block cannot reach the shaft from below.

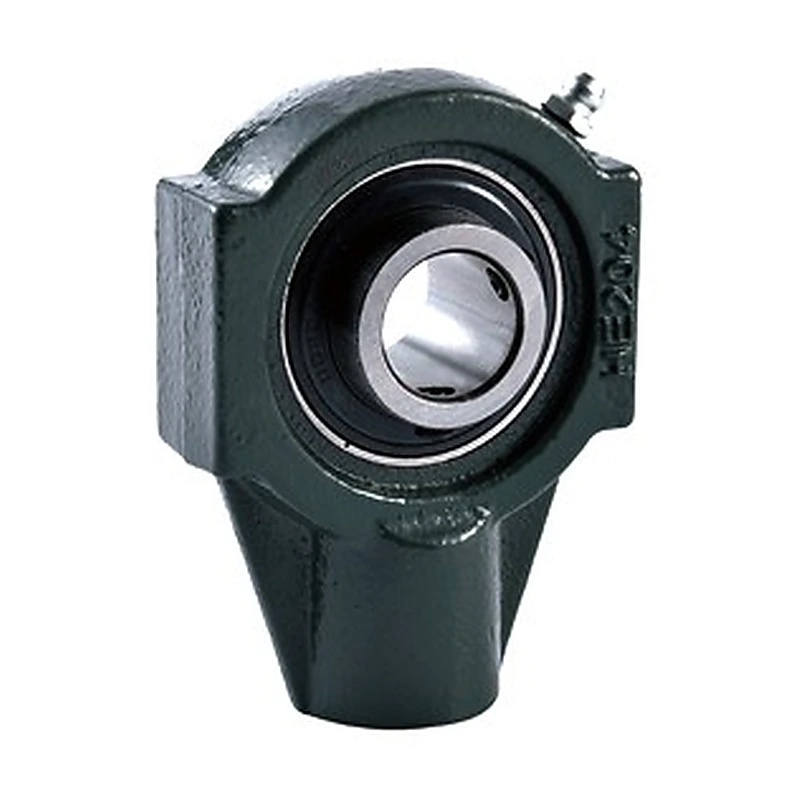

Yes. UCHA200 uses the same UC series wide inner ring insert as UCP200 pillow blocks for equivalent bore sizes. UEHA200 uses the same UE concentric collar insert as UEP200. This means the same insert spare part covers both hanger and pillow block positions for the same bore size on the same machine, simplifying spare parts inventory. UCHE200 uses the UCH extended inner ring insert, which is specific to the UCHE housing format.

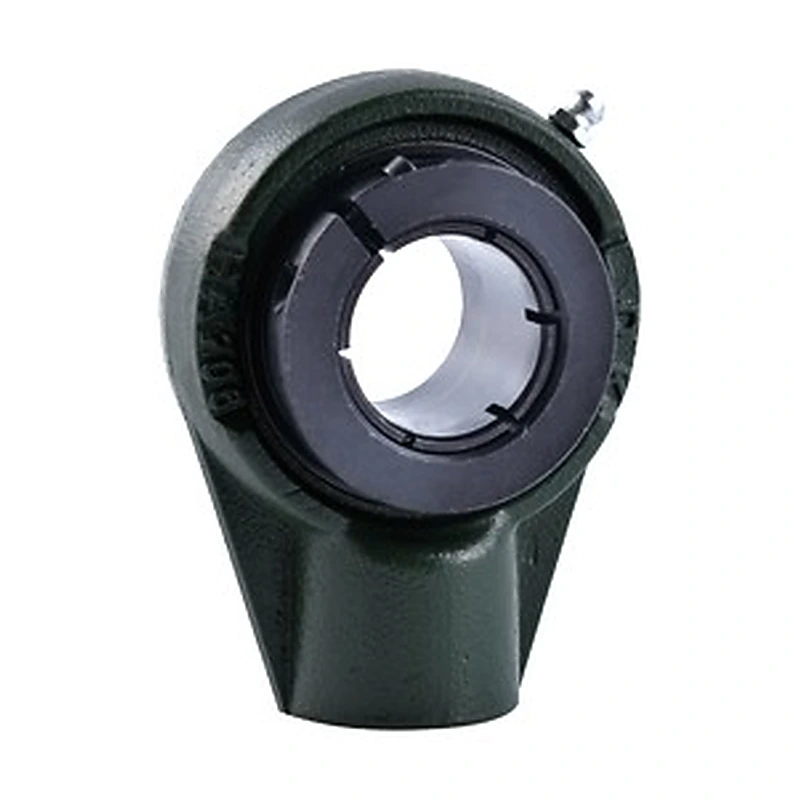

Use UEHA200 when the shaft speed is high enough that setscrew retention in UCHA200 is marginal, or when the overhead drive reverses direction during operation or maintenance. The concentric collar of the UE insert applies 360° uniform clamping pressure with no eccentric mass, producing no imbalance force at any operating speed. It releases symmetrically in both directions, making it suitable for reversing overhead drives where an eccentric collar would release under reversal. For standard-speed unidirectional overhead drives, UCHA200 setscrew is the standard and simpler choice.

The UCH extended inner ring insert has a wider inner ring than the standard UC insert at the same bore size. This wider inner ring provides a longer shaft contact surface for the setscrew, which can improve retention under vibration and gives more axial flexibility in shaft positioning relative to the housing. It is particularly useful in overhead positions where the shaft may have a small amount of axial float and the wider inner ring provides more tolerance to axial shaft movement without the shaft moving out of the setscrew engagement zone.

Yes. Hanger bearing units can be mounted in any orientation where the mounting face is on the upper or side surface of the housing rather than the base: inverted (overhead beam), wall-mounted with shaft running vertically, or at intermediate angles on inclined frame structures. The insert bearing self-aligns to compensate for minor angular misalignment between shaft and housing regardless of mounting orientation. For any mounting orientation, verify that the grease fitting is accessible for re-lubrication and that the grease does not migrate away from the bearing under gravity in the installed position.
