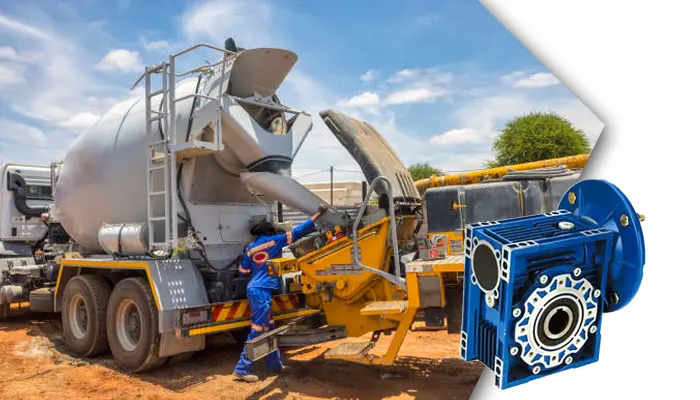

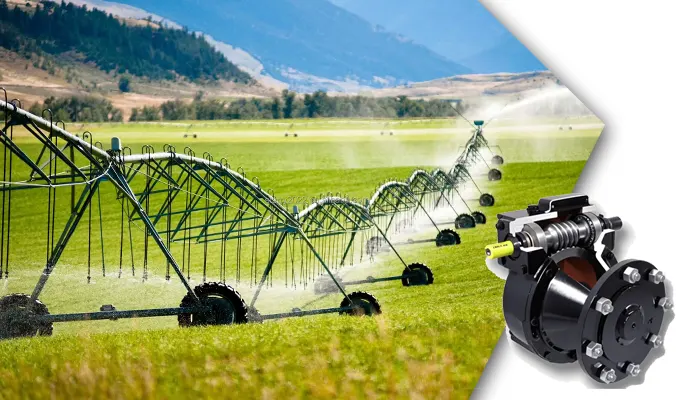

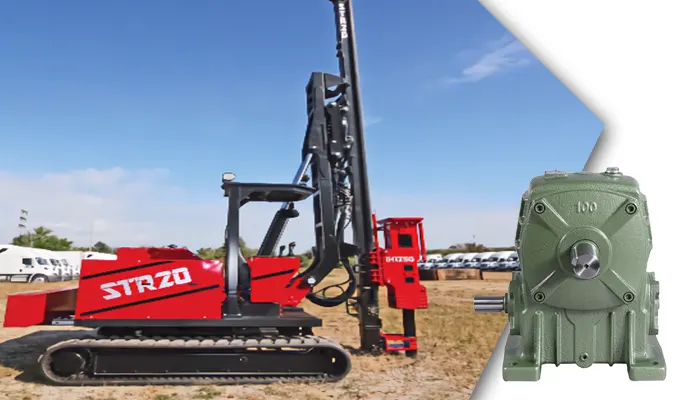

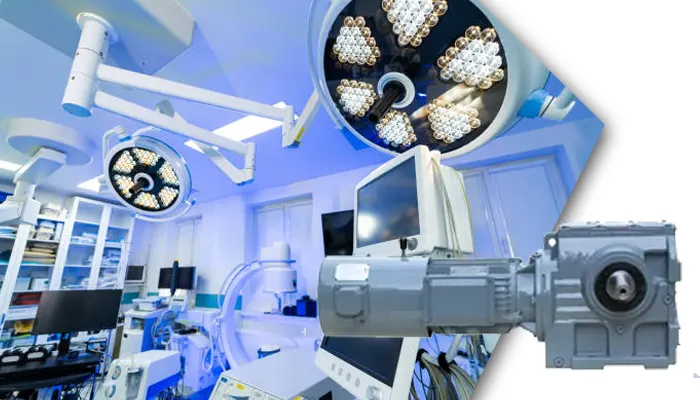

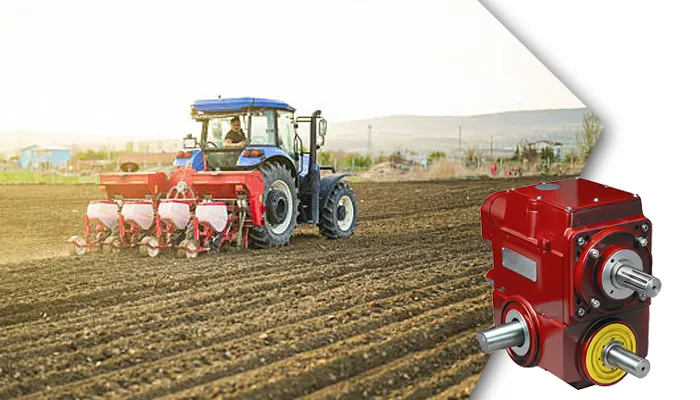

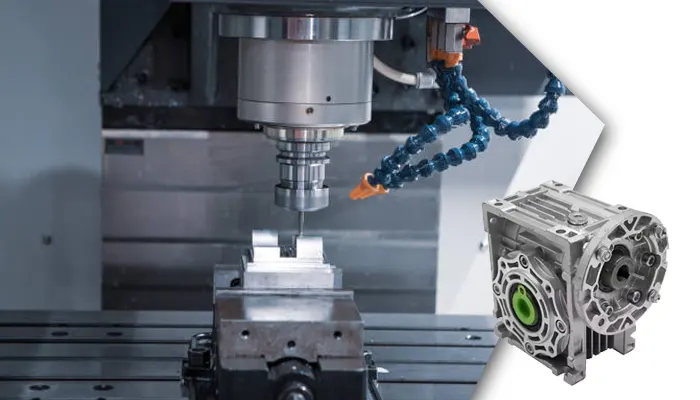

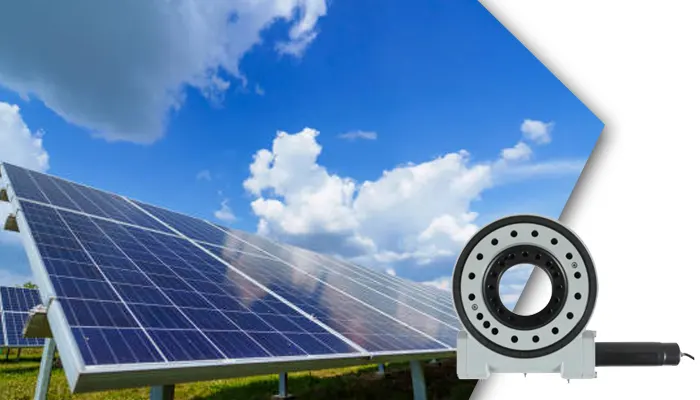

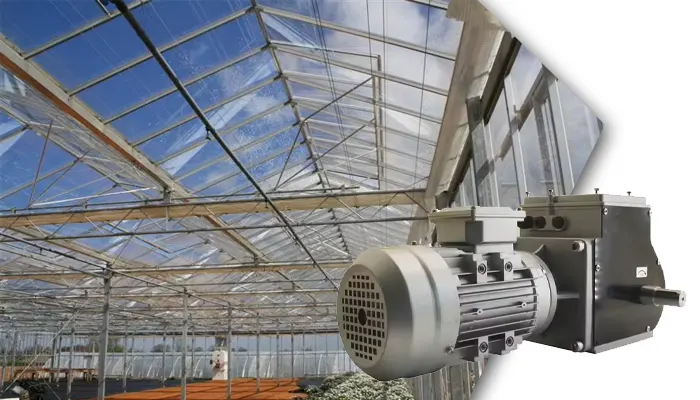

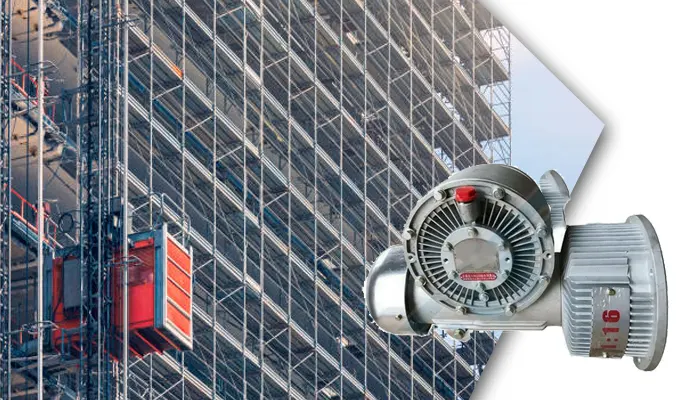

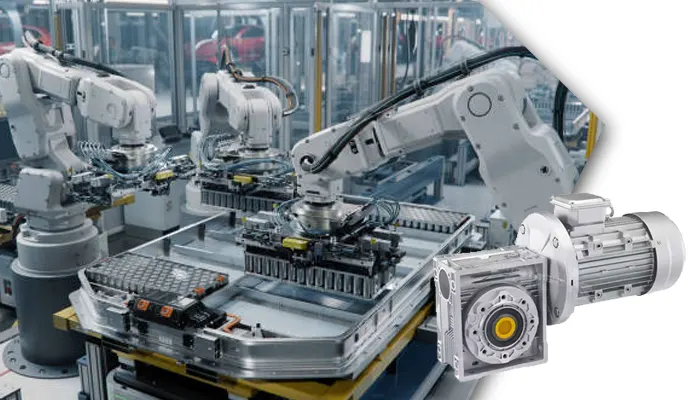

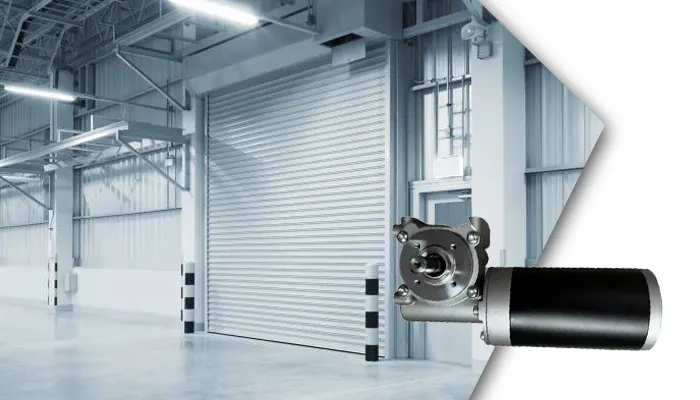

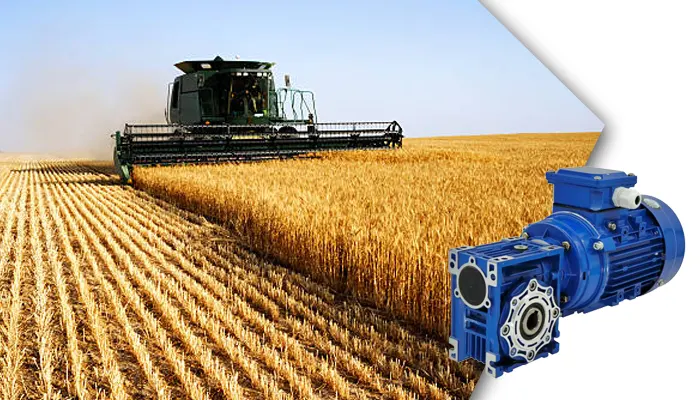

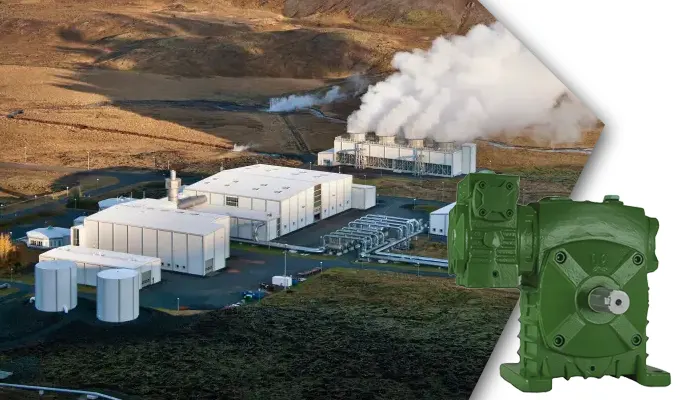

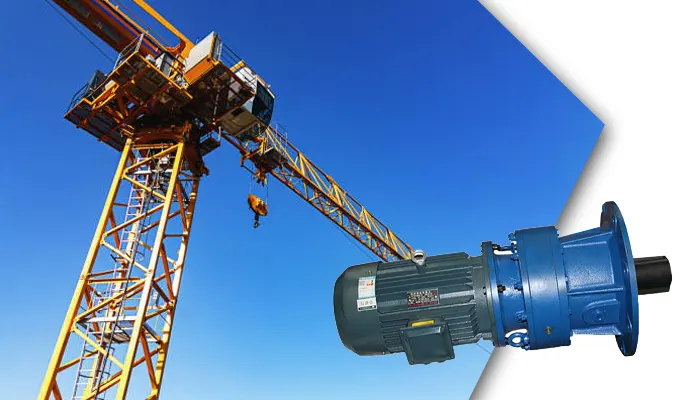

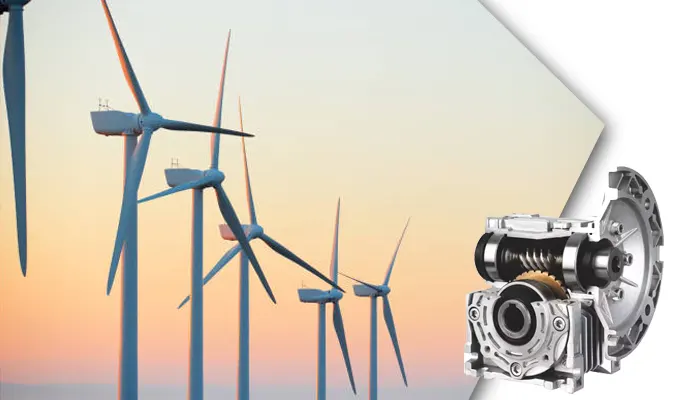

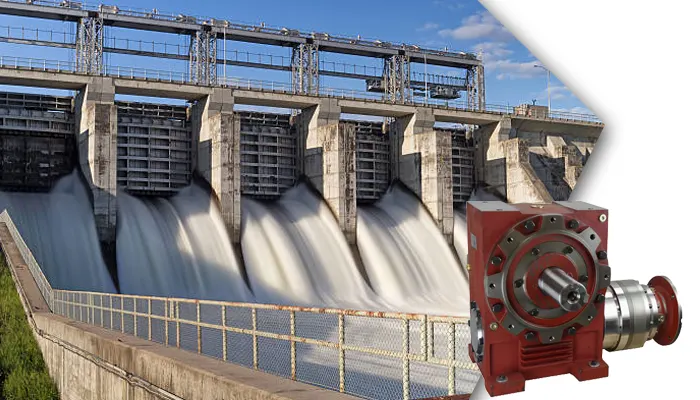

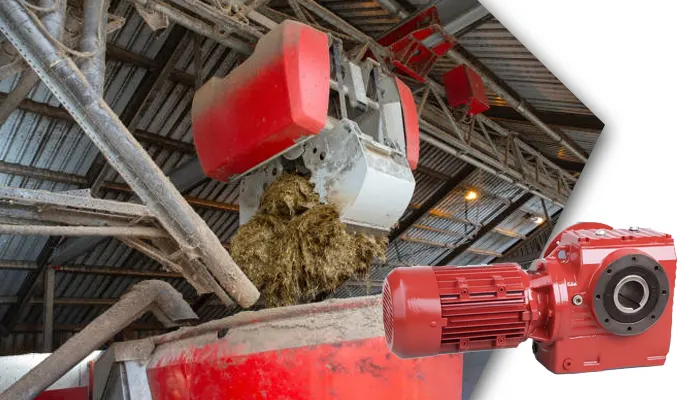

Worm Gearbox Solutions for All Industries

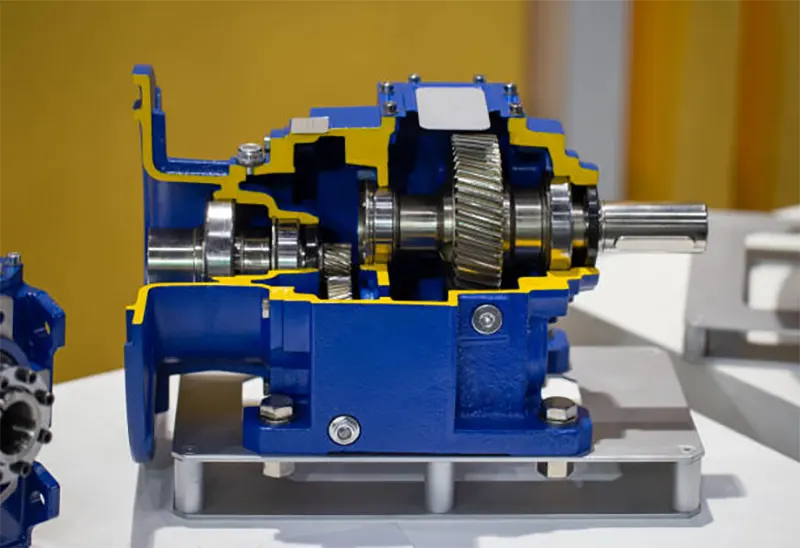

Worm Gearmotor Features and Advantages

• Worm gearboxes can be obtained with large transmission ratios and are more compact than staggered helical gear mechanisms.
• There is line contact between the tooth surfaces of the two wheels, and its bearing capacity is much higher than that of the staggered helical gear mechanism.
• Worm transmission is equivalent to spiral transmission, multi-tooth meshing transmission, so the transmission is smooth and the noise is very small.
• Worm gear reducer has self-locking property. When the lead Angle of the worm is less than the equivalent friction Angle between the meshing gear teeth, the mechanism has self-locking and can realize reverse self-locking, that is, the worm can only drive the worm wheel, but not the worm wheel. Such as the self-locking worm mechanism used in its heavy machinery, its reverse self-locking can play a safety protection role.

Analysis of Self-locking Characteristics

One of the most remarkable features of worm gearboxes is their self-locking capability. Self-locking refers to the ability of the output shaft to resist external forces without relative sliding under the action of a load. This characteristic stems from the unique geometric shape and mechanical properties of worm gear and worm transmission. Specifically, when the lead angle of the worm is less than the equivalent friction angle between the teeth of the meshing gear, the mechanism has self-locking properties. This means that under the action of a load, the worm gear cannot drive the worm in the opposite direction, thus achieving reverse self-locking.

Self-locking characteristics are extremely useful in mechanical applications, especially in situations where reverse rotation needs to be prevented or safety ensured. For instance, in fields such as lifting machinery, winches, and conveying equipment, the self-locking feature of worm drive gearboxes can ensure that when the equipment is powered off or loses power, the load will not accidentally slide down due to gravity, thereby safeguarding the safety of operators and the normal operation of the equipment.

However, it is worth noting that not all worm gearboxes have an ideal self-locking function. The realization of self-locking capability requires meeting certain conditions, such as the lead angle of the worm, the material of the worm wheel and worm, the manufacturing process, lubrication conditions, etc. In addition, the self-locking property may fail under extreme conditions, such as dry oil, insufficient lubrication or overheating. Therefore, in practical applications, these factors need to be comprehensively considered to ensure the stability and reliability of the self-locking function.

Transmission Efficiency Analysis

Although worm gearboxes have the significant advantage of self-locking, their relatively low transmission efficiency is also a drawback that cannot be ignored. This is mainly due to the fact that there is a large amount of sliding friction in the worm gear and worm transmission process, resulting in significant energy loss. Generally speaking, the transmission efficiency of worm gear reducers ranges from 70% to 95%, and the specific value depends on factors such as the design structure, material, manufacturing process, and lubrication conditions of the reducer.

To improve the transmission efficiency, a series of measures can be taken. For instance, high-quality metal materials are selected to manufacture worm gears and worms, and the processing technology and mating surface accuracy are optimized to reduce sliding friction and energy loss. Meanwhile, good lubrication is also the key to improving transmission efficiency. By regularly injecting lubricating oil, the friction and wear between the worm gear and worm can be reduced, thereby extending the service life of the reducer and improving the transmission efficiency.

In addition, the reduction ratio and input/output speed will also have an impact on the transmission efficiency. Generally speaking, when the reduction ratio is larger and the output speed is lower, the transmission efficiency is relatively higher. This is because as the reduction ratio increases, the slip friction loss is relatively small, thereby improving the transmission efficiency.

3. Install the shaft

After the worm gear has been assembled, you can begin to install the shaft. When installing the shaft, it is necessary to install bearings at both ends of the shaft, and then load the shaft into the worm gear and worm.

4. Install the cover plate and sealing ring

When installing the cover plate to the worm gearbox, be careful to keep it flat and properly connected. After installing the cover plate, you can install the seal ring. The installation of the sealing ring should be determined according to the actual situation.

Worm Reducer Gearbox Selection Guide

• Input power and torque
  Input power and torque are determined according to the rated power and speed of the driving equipment (such as motors, engines, etc.)

• Output speed and torque
  According to the actual operating speed and required torque of the working equipment, the output of the gear box is accurately determined by speed and torque. For example, a production equipment requires the output of 400N · m torque at a speed of 60r/min, then it is necessary to achieve a reasonable match between the input speed and the output speed through the gearbox transmission ratio, so as to meet the requirements of the output torque.

• Speed range
• Working Conditions on Selection
  Working temperature and humidity
  Dust and pollution
  Vibration and shock
