Worm Gearbox for Cement Batching Plant: A Complete Guide for Australian Operators
Australia’s booming construction sector — from highway megaprojects in NSW to the Sydney Metro to every suburban subdivision — runs on concrete. Every cubic metre starts life in a cement batching plant, where aggregates, cement, water and admixtures are metered and mixed in strict proportions. The worm reducer on every aggregate feeder belt, cement screw feeder and mixer arm is the driving force of the batching operation. If a feeder stops, the batch stops; if a batch stops, the concrete truck waits, and the pour suffers.
Our heavy-duty speed reducers for cement batching are engineered to shrug off the signature hazard of the industry: abrasive cement and aggregate dust. Heavy cast iron housings, dust-tight heavy-load sealing, and overbuilt bearings combine to give concrete batching plants the drives they need to run batch after batch. Our worm gear reducer Australia range supports some of the largest batching plants in the country with multi-decade service records.
Reliability on a cement batching plant is not luck — it is the cumulative outcome of correct sizing, appropriate materials, sealing suited to the climate, and lubrication matched to duty.

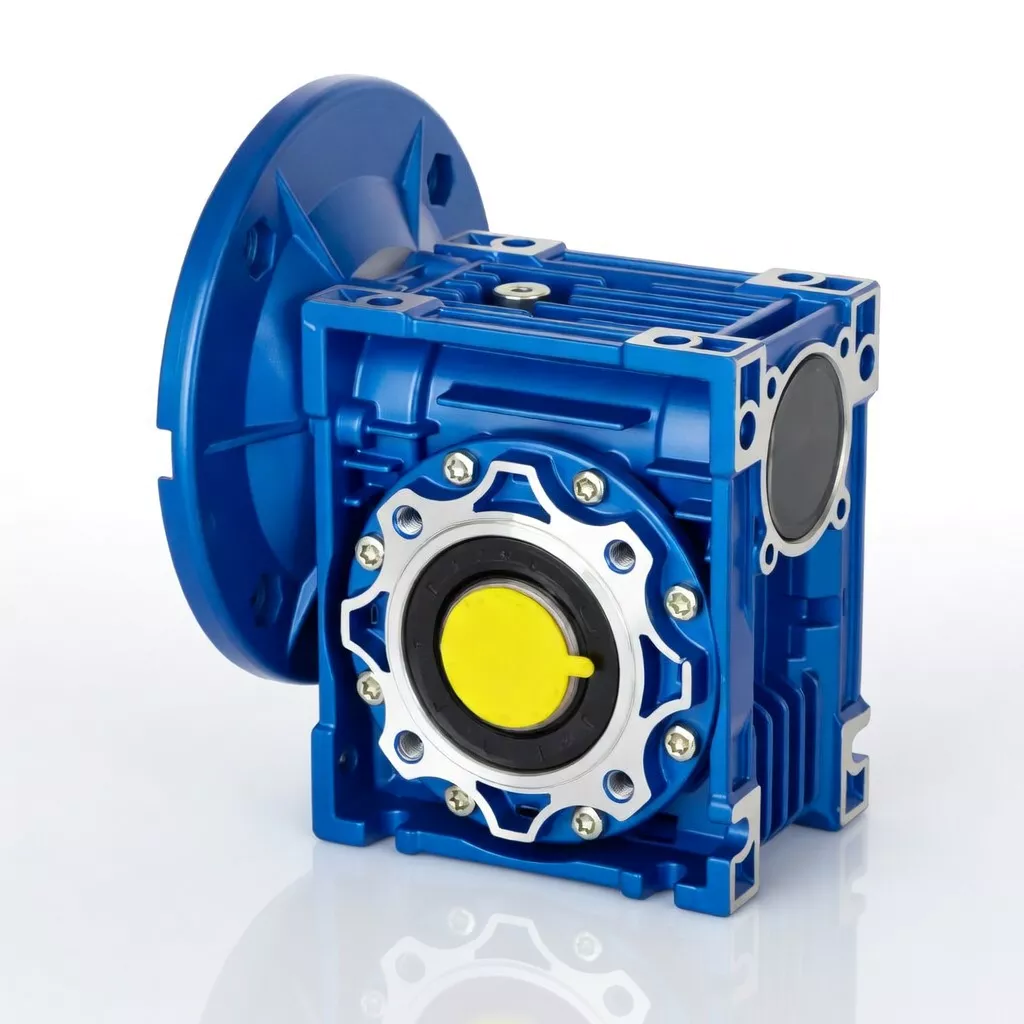

Typical worm gearbox configuration for cement batching plant duty
Understanding the Role of the Worm Reducer in Your Cement Batching Plant
A batching plant has multiple gearboxes in use simultaneously: aggregate feeder belts (worm reducers, 7.5–22 kW), cement screw feeders (worm reducers with dust-tight sealing), the twin-shaft or pan mixer (large heavy-duty drive, sometimes worm pre-stage to a planetary), and the discharge belt. Each drive has a distinct duty cycle — short, heavy, cyclic for aggregate feed; continuous for mixer; intermittent for cement.
Housings are specified in high-strength cast iron with deep ribs for both mechanical rigidity and heat dissipation. Sealing is the critical difference from a general-purpose worm reducer: a labyrinth pre-seal, a grease chamber, and an FKM lip seal combine to present a positive pressure barrier to cement dust, which would otherwise abrade standard shaft seals within months. Output shafts are oversized for the shock loading of a batch start. Bearings are heavy taper roller, preloaded at the factory.
| Key construction: heavy-duty high-strength cast iron housing with dust-tight heavy-load sealing system. |
Keyword focus: heavy duty worm gearbox for cement batching plant Australia.
Proven Performance — Australian Case Studies
These are real Australian deployments where our worm gear reducers solved documented site problems. Names and exact locations are withheld for commercial confidentiality.
Asset: Aggregate feeder, 11 kW drive × 4. Problem: Cement dust destroyed OEM seals within 10 months. Action: Upgraded to units with labyrinth pre-seal and grease purge chambers. Result: Seal life extended to 4+ years; no unscheduled downtime.
Asset: Twin-shaft mixer drive, 110 kW total (2× 55 kW). Problem: Mixer stalls on overload destroyed previous gearboxes. Action: Specified worm pre-stage with SF 2.5 and shear coupling on input. Result: Mixer re-started cleanly from overload; drives unaffected.
Asset: Cement screw feeder, 7.5 kW drive. Problem: Powdered cement accumulation shortened bearing life. Action: Fitted dust hood over shaft entry with pressurised grease purge. Result: Bearing life extended from 12 months to beyond 4 years.
Asset: Aggregate belt feeder, 15 kW drive. Problem: Remote site made replacement logistics costly. Action: Supplied drop-in replacement units matched to OEM mounting pattern. Result: Replacement time reduced to 2 hours; site kept local spare inventory.
Asset: Mix cart transfer drive, 5.5 kW. Problem: Cold morning starts tripped thermal overload. Action: Switched to PAO synthetic oil rated for low-temp start. Result: Winter morning start-ups reliable across the season.
Technical Specifications & Selection Guide
These are the working envelopes our standard range covers. Non-standard bores, specialised flanges, and custom torque-arm geometries are available as an OEM option — just get in touch.
| Parameter | Specification / Range |
|---|---|
| Ratio Range | 10:1 to 60:1 |
| Output Torque | 500 Nm to 12,000 Nm |
| Input Power | 2.2 kW to 75 kW |
| Output Shaft | Hollow Ø60–Ø130 mm with shrink disc |
| Housing Material | Cast iron EN-GJL-300 with anti-abrasion coating |
| Sealing | Labyrinth + grease + FKM lip |
| Bearings | Heavy taper roller, preloaded |
| Protection | IP66 |
Standards & Certifications
Compliance is non-negotiable on Australian industrial sites. Our units carry the certifications and ingress ratings that site engineers and insurers expect.
You can learn more about us, browse our full range of worm gear motors, or jump straight to the detailed worm reducer page for technical downloads.
What Makes Us the Right Partner
Our Australian customers choose us for a pragmatic set of reasons — here are the six that come up most often.
Four generations of worm gear production know-how, with a dedicated engineering team serving mining, agriculture, food, water and construction clients across Australia.
Australia-timezone engineering support via phone, email and video call, with selection calculators, drawing packs and installation guides available on request.
Non-standard shaft geometries, flange drillings, housing paint systems, and torque-arm designs are routine — our engineers will match your exact mechanical interface.
Direct-from-factory pricing with logistics to any Australian capital and major regional centre, competitive against premium European brands while meeting the same specifications.
Regular sea-freight consolidation to Sydney, Melbourne, Brisbane, Perth and Adelaide, with in-country distribution partners for same-week delivery on stocked sizes.
Every unit is bench-tested for noise, vibration, running temperature and oil seal integrity before it leaves the factory, with a test certificate shipped in the documentation pack.
Answers to Common Questions
Six detailed answers to the questions we are asked most often about this application.
Q: How is cement dust kept out of the gearbox?
A: A three-part sealing system: labyrinth pre-seal to deflect bulk dust, grease-packed chamber to trap fines, and an FKM lip seal as final barrier. The grease is refreshed via an external nipple every 6 months; this single maintenance action is the difference between a 1-year and a 10-year gearbox.
Q: Can the gearbox handle surge loading from a batch start?
A: Yes. We specify service factors of 2.0–2.5 for batch plant duty, giving 2× headroom on the start-up torque spike. For the mixer drive itself, we also recommend a shear coupling on the input to protect against true mechanical jams.
Q: What is the expected service life of a batching plant gearbox?
A: A correctly specified and sealed unit, with 6-monthly grease purges and annual oil changes, will deliver 8–12 years of service in Australian batching plants — matching the service life of the plant itself in most cases.
Q: Can you match the gearbox to an existing OEM plant?
A: Yes. We frequently supply drop-in replacements matched to common plant OEMs, identifying mounting patterns, shaft heights and output torques from site drawings or photos. Send your drawings to our technical team.
Q: Does the gearbox need special paint for outdoor batching plants?
A: For outdoor installations, a C5-I or C5-M paint system is recommended, particularly in coastal or high-humidity locations. A dusty environment also benefits from a UV-stable top coat to prevent binder degradation.
Q: How do I handle the mixer stall torque?
A: A stalled mixer can deliver 3–4× nominal torque momentarily. Our units are rated for 2.5× nominal peak torque, so an additional protection device (shear pin or torque-limiter coupling) is recommended on the mixer drive input.
Get the Right Gearbox — First Time
Our team will review your specification, cross-check your service factor, and propose the optimum model — typically within one business day.
