SSGM Stainless Steel Worm Gearbox
Six-sided fully machined 304 stainless steel worm gearboxes with show-quality finish. Six frame sizes from SSGM-030 through SSGM-090, ratios 7.5:1 to 100:1, engineered for hygienic, marine, chemical, and washdown duty.
Precision-Machined Stainless Drive Family
The GBC SSGM Stainless Steel Worm Gearbox Series is distinguished by its six-sided fully machined 304 stainless steel body — every external face precision machined for flatness, smoothness, and hygienic finish. Six frame sizes cover laboratory micro-drives through heavy-duty petrochemical installations. Browse the complete worm reducer gearbox category for all drive technology options GBC offers across Australia.
Six-Sided Machined Body
Every external face is precision machined — eliminating cast-surface porosity, improving washdown efficiency, and delivering show-quality aesthetics that suit breweries, dairies, and pharmaceutical demonstration lines.
Six Frame Sizes
From the ultra-compact SSGM-030 for laboratory micro-drives to the flagship SSGM-090 for heavy petrochemical duty — the widest SSGM range covers every stainless worm gearbox application.
Hygienic & Corrosion-Proof
Solid 304 stainless construction resists saltwater pitting, chemical attack, and daily high-pressure washdowns while meeting HACCP, FDA, and GMP surface-finish expectations.
Browse the SSGM Range
Six frame sizes, one consistent machined stainless construction standard. Click any model below to view complete specifications, dimensional drawings, and application guidance.
Ultra-Compact Micro-Drive
Shaft 14 mm | IEC 56B – 71B14
The smallest SSGM unit — a compact stainless micro-drive for laboratory mixers, boutique food producers, cosmetic blending stations, and pharmaceutical R&D equipment.
View SSGM-030

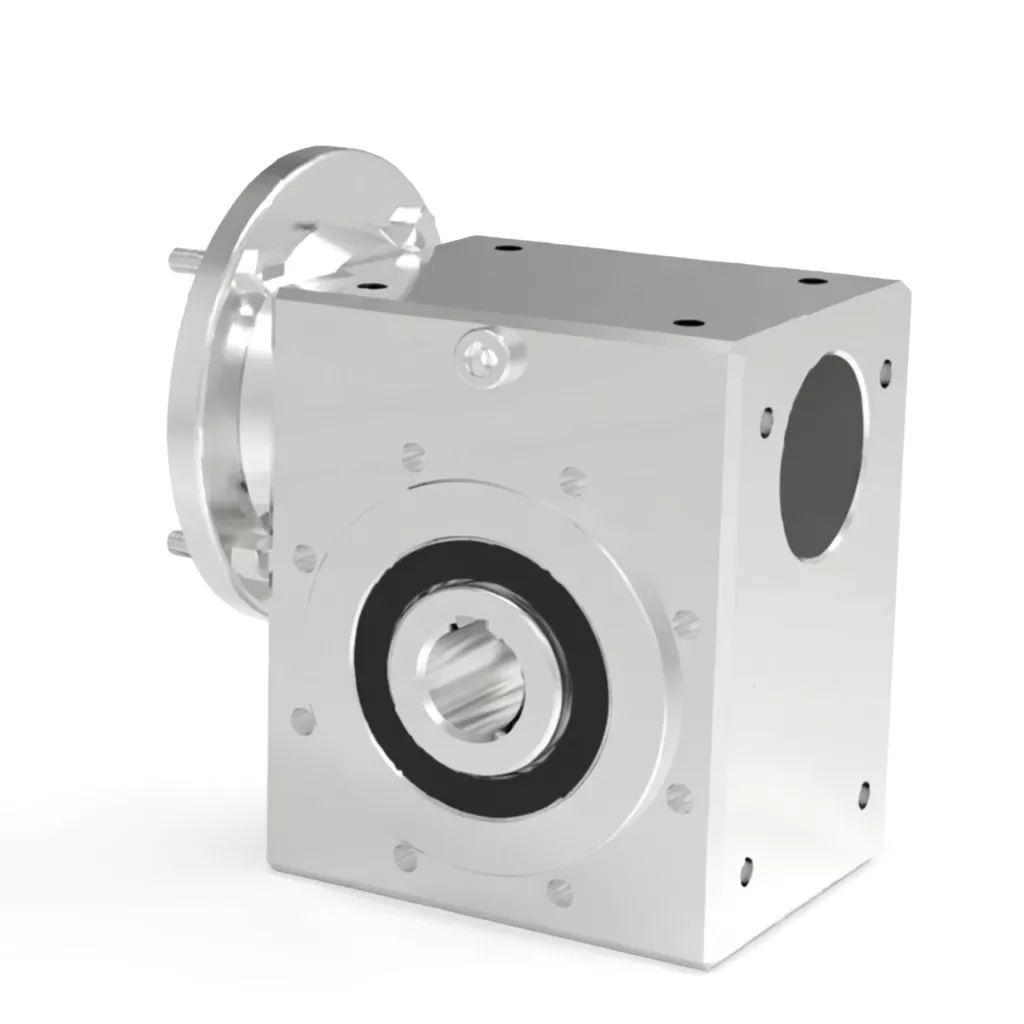

Compact Hygienic Drive
Shaft 18 mm | IEC 56B – 71B
Compact six-sided machined body for food processing, aquaculture conveyors, small-scale dairy equipment, and sanitary packaging line drives.
View SSGM-040
Brewery & Dairy Specialist
Shaft 25 mm | IEC 63B – 90B
Show-quality machined finish for craft breweries, cheese production, pasta extrusion, and mid-scale bottling lines where equipment aesthetics matter.
View SSGM-050
Marine & Chemical Workhorse
Shaft 25 mm | IEC 71B – 90B
Mid-range workhorse for marine aquaculture, chemical dosing systems, wastewater treatment, and coastal processing where corrosion destroys standard gearboxes.
View SSGM-063
Heavy-Duty Washdown Champion
Shaft 28 mm | IEC 80B – 100/112B
Heavy-duty frame built for wastewater treatment, offshore platforms, large-scale chemical plants, and commercial vehicle wash facilities.
View SSGM-075
Flagship Maximum Torque
Shaft 35 mm | IEC 80B – 100/112B
The flagship SSGM unit delivering maximum torque for petrochemical reactor drives, mining washdown conveyors, and heavy marine installations.
View SSGM-090Why Choose the SSGM Machined Stainless Series
The SSGM series differentiates itself from conventional cast-body stainless worm gearboxes through six key engineering choices. These define the premium positioning of the SSGM line for specifiers who demand both performance and appearance.
Six-Sided Fully Machined Body
Every external face of the SSGM housing is precision machined, not cast. The resulting surface quality is superior to cast-body stainless gearboxes — eliminating cast porosity, providing flat reference surfaces for bracket mounting, and delivering a premium show-quality aesthetic.
Solid 304 Stainless Throughout
Housing, wheel core, and output shaft are all manufactured from 304 stainless steel. No painted surfaces to chip, no aluminum to corrode, no hidden carbon steel components that could create galvanic corrosion initiation points.
12-2 Tin Bronze Worm Gear
The bronze worm gear paired with a hardened steel worm shaft delivers quiet operation, low friction, excellent wear resistance, and natural corrosion compatibility with the stainless housing — extending service life across continuous-duty cycles.
Fully Synthetic Worm Gear Oil
Factory-filled synthetic lubricant provides superior thermal stability, reduced internal friction, improved cold-start performance, and extended oil-change intervals compared to mineral oils — lowering total maintenance cost.
Widest SSGM Range: SSGM-030 to SSGM-090
Six frame sizes cover from laboratory micro-drives to flagship petrochemical service — the widest stainless worm gearbox range in the market, all built to the same machined-body engineering standard.
Multi-Directional Mounting
Every SSGM size supports foot, flange, and torque-arm mounting orientations. The machined square body actually simplifies bracket fabrication compared to rounded cast housings — a frequent preference of system integrators.
Full Technical Comparison
All critical specifications and dimensions across the six SSGM frame sizes. Use this reference to match shaft diameter, motor flange compatibility, and center distance to your drive requirements.
| Parameter | SSGM-030 | SSGM-040 | SSGM-050 | SSGM-063 | SSGM-075 | SSGM-090 |
|---|---|---|---|---|---|---|
| Output Shaft Diameter | 14 mm | 18 mm | 25 mm | 25 mm | 28 mm | 35 mm |
| Output Shaft Length (B) | 30 mm | 40 mm | 50 mm | 50 mm | 60 mm | 80 mm |
| Overall Length (L) | 105 mm | 128 mm | 153 mm | 173 mm | 192 mm | 234 mm |
| Total Length w/ Input (L1) | 135 mm | 164 mm | 199 mm | 219 mm | 247 mm | 309 mm |
| Center Distance | 30 mm | 40 mm | 50 mm | 63 mm | 75 mm | 90 mm |
| Mounting Bolt | M5 x 12 | M6 x 17 | M10 x 27 | M10 x 27 | M10 x 27 | M12 x 34 |
| Torque Arm K1 | 80 mm | 100 mm | 100 mm | 150 mm | 200 mm | 200 mm |
| IEC Motor Flanges | 56B – 71B14 | 56B – 71B | 63B – 90B | 71B – 90B | 80B – 100/112B | 80B – 100/112B |
| Gear Ratio Range | 7.5:1 to 100:1 (7.5, 10, 15, 20, 25, 30, 40, 50, 60, 80, 100) | |||||
| Housing Material | 304 Stainless Steel, Six-Sided Fully Machined Body | |||||
| Worm Gear | 12-2 Tin Bronze (CuSn12) | |||||
| Lubrication | Fully Synthetic Worm Gear Oil (Factory-Filled) | |||||
| Operating Temperature | -10 to +80 degrees C (Standard) | |||||
| IP Protection | IP65 Standard, IP69K Configuration Available | |||||
Industries Served
From laboratory benchtops to massive petrochemical reactors, the SSGM series delivers corrosion-resistant performance with show-quality finish across every industry where washdown, saltwater, and chemical exposure defeat conventional worm gearboxes.
Laboratory & R&D
Benchtop mixers, pilot reactors, university research stations, and pharmaceutical R&D equipment where SSGM-030 compact drives excel.
Food & Beverage
Packaging conveyors, sugar processing, meat handling lines meeting HACCP and FDA surface standards for daily washdown.
Brewery & Distillery
Mash tun stirrers, wort transfer drives, kegging conveyors where show-quality machined aesthetics meet production reliability.
Dairy & Cheese
Cream separators, cheese vat agitators, butter churns surviving daily CIP cycles with caustic soda and nitric acid.
Pharmaceutical
Coating pans, granulator feeds, bulk powder handling, validated API production in GMP-regulated facilities.
Marine & Aquaculture
Oyster farms, mussel processing, offshore platform auxiliary drives exposed to continuous salt spray.
Chemical Processing
Chemical dosing systems, reactor agitators, scrubber drives withstanding acid vapor and solvent exposure.
Wastewater Treatment
Clarifiers, sludge mixers, dewatering presses operating in hydrogen sulfide and chlorinated effluent atmospheres.
Petrochemical & Mining
Reactor agitators, slurry mixer drives, copper and gold concentrator drives in aggressive acidic atmospheres.
Technical Reference Drawings
Standardized technical geometry shared across the entire SSGM series. Use these reference drawings alongside the model-specific dimension drawings on each individual product page.
304 Stainless Output Shafts
Output shaft diameters from 14 mm (SSGM-030) up to 35 mm (SSGM-090) with standardized keyway profiles.
Six-Sided Machined Body
All six external faces are precision machined — the defining construction feature of the SSGM series.
Torque Arm Assembly
304 stainless torque arm option for shaft-mounted installations on conveyor drums and agitator shafts.
Frequently Asked Questions
Common questions engineers and procurement professionals ask when specifying SSGM stainless steel worm gearboxes for hygienic and corrosion-resistant applications.
What makes the SSGM series different from other stainless worm gearboxes?
The SSGM series is distinguished by its six-sided fully machined 304 stainless steel body — every external face is precision machined rather than cast. This produces superior surface smoothness for washdown efficiency, flat reference surfaces for bracket integration, and show-quality aesthetics suitable for visible production areas like breweries, dairies, and pharmaceutical demonstration lines. Cast-body alternatives cannot match this surface-finish quality.
How many frame sizes does the SSGM series include?
The SSGM range comprises six frame sizes: SSGM-030, SSGM-040, SSGM-050, SSGM-063, SSGM-075, and SSGM-090. This is the widest frame-size range in our stainless worm gearbox catalogue, covering laboratory micro-drives through flagship heavy-duty petrochemical service. Every size shares the same machined-body engineering standard, 304 stainless construction, and 12-2 tin bronze worm gear specification.
How do I choose between the SSGM-050 and SSGM-063?
The SSGM-050 and SSGM-063 both feature a 25 mm output shaft but differ in center distance (50 mm vs 63 mm) and motor flange compatibility. The SSGM-050 accepts IEC 63B through 90B flanges — ideal for brewing, dairy, and mid-scale bottling. The SSGM-063 accepts 71B through 90B and offers higher torque capacity for marine, chemical dosing, and wastewater applications where corrosion resistance must meet mid-range power requirements.
Why choose machined 304 stainless over painted cast iron or aluminum?
Aluminum suffers galvanic corrosion in chloride and alkaline environments. Painted cast iron relies on a coating that chips and fails, exposing the iron to rapid oxidation. The machined 304 stainless steel used in the SSGM series provides inherent corrosion resistance throughout the housing and a superior surface finish from machining rather than casting. Over a 10-year horizon, lifecycle cost is significantly lower than repeated painting, rust remediation, or early replacement of aluminum alternatives.
What gear ratios are available across the SSGM range?
All six SSGM models support ratios from 7.5:1 to 100:1 with standard ratios of 7.5, 10, 15, 20, 25, 30, 40, 50, 60, 80, and 100. Specific ratio availability may vary with the selected IEC motor flange configuration. For applications requiring non-standard ratios or higher reduction, consult GBC engineering about double-reduction configurations combining SSGM with our SSVF reduction series.
Does GBC provide CAD files and technical drawings?
Yes. 2D dimensional drawings and 3D CAD files are available free of charge for every SSGM model. Common formats include DWG, STEP, IGES, and PDF. Contact the GBC engineering team with your model selection and preferred file format, and the documentation will be delivered directly via email to support mechanical design, layout planning, and OEM integration activities.
Are OEM, volume discounts, and distribution programs available?
Yes. GBC offers OEM branding, volume discount pricing for project quantities, and authorized distribution agreements globally. Machine builders integrating SSGM units as components in branded equipment can access private-labeling options. Qualified distributors receive regional territory protection, technical training, and dedicated sales support. Contact the GBC commercial team to discuss partnership opportunities in your market.
Does GBC ship internationally?
Yes. GBC ships SSGM series gearboxes worldwide with established logistics partnerships across Australia, Southeast Asia, Europe, North America, South America, the Middle East, and Africa. Standard shipping, expedited delivery, and consolidated container loading for project quantities are all available. Delivery timing depends on configuration and destination — contact us for specific logistics details.
