SSGM-063 Stainless Steel Worm Gearbox — Marine & Chemical-Grade Workhorse
Engineered as the mid-range workhorse of the SSGM series, the SSGM-063 stainless steel worm gearbox tackles the most aggressive corrosion environments — from oyster farm conveyor drives to inland sodium hypochlorite dosing stations. The precision-machined six-sided 304 stainless steel housing resists saltwater pitting, chloride crevice corrosion, and chemical vapor attack that degrade painted or aluminum alternatives within months. With a 25 mm output shaft, 63 mm center distance, compatibility with IEC motor flanges from 71B through 90B, and the full 7.5:1 to 100:1 gear ratio range, the SSGM-063 bridges compact sanitary reducers and heavy-duty industrial units. Marine engineers, chemical plant designers, and desalination specialists consistently specify this corrosion-resistant worm drive because the fully machined stainless construction delivers both the performance and appearance demanded by modern production standards — while remaining fully compatible with standard NMRV-style mounting practices.
Technical Specifications — SSGM-063
| Parameter | Specification |
|---|---|
| Model | SSGM-063 |
| Housing Material | 304 Stainless Steel (Six-Sided Machined Body) |
| Wheel Core Material | 304 Stainless Steel |
| Worm Gear Material | 12-2 Tin Bronze (CuSn12) |
| Surface Finish | Fully Machined (all six external faces) |
| Center Distance | 63 mm |
| Gear Ratio Range | 7.5:1 to 100:1 |
| Available Ratios | 7.5, 10, 15, 20, 25, 30, 40, 50, 60, 80, 100 |
| Output Shaft Diameter | 25 mm (304 Stainless Steel) |
| Output Shaft Length (B) | 50 mm |
| Overall Length (L) | 173 mm |
| Total Length with Input (L1) | 219 mm |
| Mounting Bolt | M10 x 27 |
| Compatible IEC Motor Flanges | 71B5, 71B14, 80B5, 80B14, 90B5, 90B14 |
| Lubricant | Fully Synthetic Worm Gear Oil (Factory-Filled) |
| Torque Arm Length (K1) | 150 mm |
| Mounting Options | Foot, Flange, Torque Arm (Multi-Directional) |
| IP Protection Rating | IP65 Standard, IP69K Configuration Available |
| Operating Temperature | -10 to +80 degrees C (Standard) |

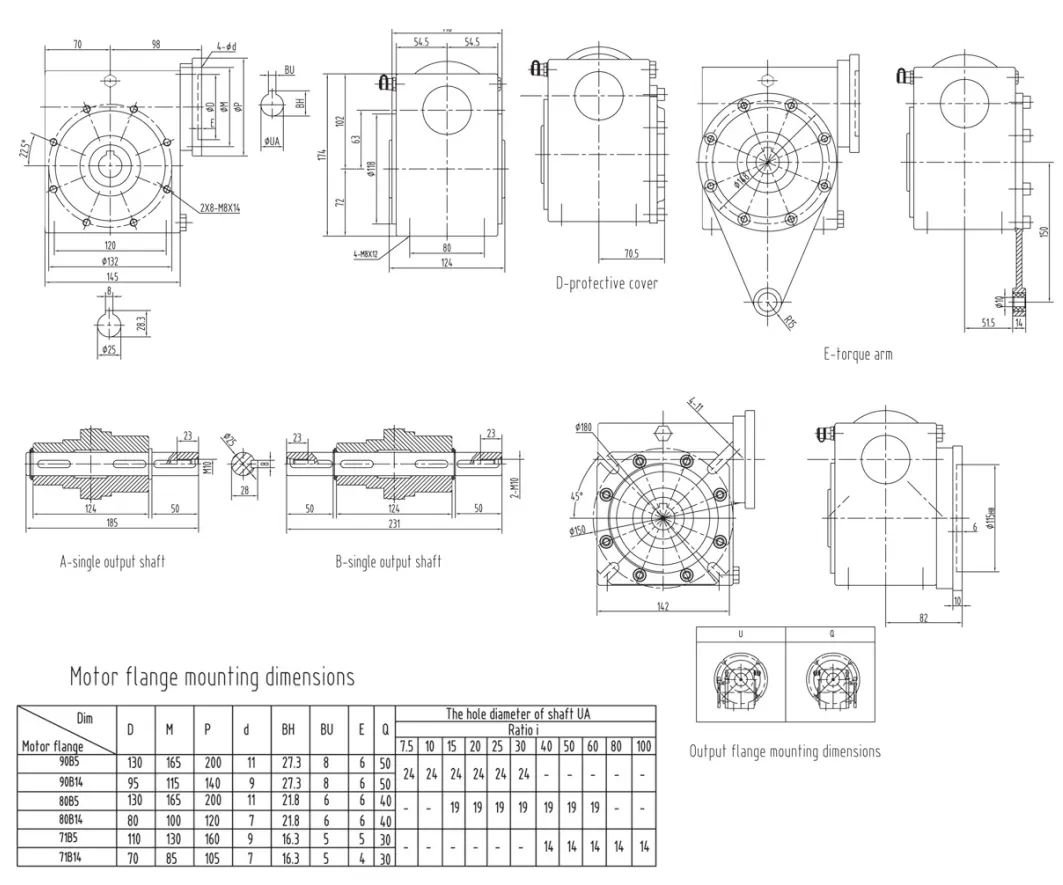

Technical Reference Drawings
Standardized technical geometry shared across the entire SSGM series. The reference drawings below show the 304 stainless output shaft profiles and torque arm assembly dimensions applicable to the full range of SSGM sizes.
304 Stainless Output Shafts
Output shaft geometry reference for the SSGM-063. Shaft diameter: 25 mm with standardized keyway profile.
Torque Arm Assembly
304 stainless torque arm dimensions for shaft-mounted installation. K1 length: 150 mm.
Key Features & Benefits — SSGM-063
⚓ Marine-Grade Corrosion Resistance
The precision-machined 304 stainless steel body resists saltwater pitting, chloride crevice corrosion, and chemical vapor attack — providing years of maintenance-free service in coastal, aquaculture, and offshore installations.
✅ Fully Machined Six-Sided Body
Unlike cast-body stainless gearboxes, every external face of the SSGM-063 is precision machined — eliminating cast surface porosity, delivering superior smoothness, and providing flat surfaces for custom bracket integration.
🛠 Chemical-Resistant Machined Surfaces
The smooth machined finish of the SSGM-063 actively resists chemical pooling and localized attack that initiates corrosion on rougher cast surfaces — a meaningful advantage in aggressive chemical dosing and transfer environments.
💪 Mid-Range Industrial Torque Platform
The 63 mm center-distance and 25 mm output shaft deliver the torque capacity needed for wastewater treatment clarifier drives, marine conveyor systems, and chemical plant agitator drives in a single standardized frame size.
⚙ 12-2 Tin Bronze Worm Gear System
The bronze worm gear delivers inherent lubricity, excellent wear resistance, and quiet operation — essential properties for continuous 24/7 marine and chemical plant operations where downtime costs escalate rapidly.
🔄 Flexible Multi-Axis Mounting Support
Horizontal, vertical, and inverted mounting configurations accommodate diverse equipment geometries typical of marine vessels, offshore platforms, and chemical processing skids.
🏆 IEC Motor Flanges 71B to 90B
Covers the medium-power motor range most common in marine, chemical, and water treatment drive applications — enabling optimal motor-to-gearbox matching for typical service requirements.
🛡 NMRV063-Compatible Footprint
Standard 63 mm center-distance geometry allows dimensional replacement of NMRV063 cast iron or aluminum units — enabling direct upgrade of corroding existing equipment to stainless construction.
Industries & Applications for the SSGM-063
⚓ Marine & Offshore Environments
The SSGM-063 is the preferred stainless steel worm gearbox for coastal aquaculture, offshore platform auxiliary drives, and shipboard equipment. Its machined 304 stainless body resists saltwater pitting and crevice corrosion that cause rapid failure in painted or aluminum gearboxes — delivering years of maintenance-free marine service.
⚠️ Chemical & Petrochemical Plants
Chemical processing environments expose drive components to caustic soda, dilute acids, and solvent vapors. The SSGM-063 corrosion-resistant worm drive provides reliable torque transmission for chemical dosing systems, reactor agitator drives, and transfer pump mechanisms without housing degradation over multi-year service.
💧 Wastewater & Water Treatment
Wastewater treatment plants require gearboxes that resist hydrogen sulfide gas, chlorinated water, and persistent humidity. The SSGM-063 food-grade worm reducer drives clarifier mechanisms, belt filter press rollers, and aeration blower linkages with zero corrosion concerns over multi-year service.
🍴 Commercial Food Processing
The SSGM-063 handles medium-duty food processing drives including poultry eviscerating line conveyors, vegetable washing drum rotators, and sauce mixing impellers. Its mid-range torque capacity bridges lighter sanitary reducers and heavy industrial units for demanding hygienic mid-scale production.
💊 Pharmaceutical Production
Pharmaceutical intermediate production involves corrosive solvents and aggressive cleaning agents. The SSGM-063 IP69K worm gearbox drives reactor scrapers, centrifuge feed mechanisms, and powder transfer conveyors in API manufacturing areas where equipment cleanliness directly impacts batch compliance.
🍲 Mid-Scale Dairy Operations
Mid-scale dairy producers specify the SSGM-063 stainless steel speed reducer for cheese vat agitators, butter churning drives, and whey processing conveyors. The machined-body construction survives years of daily exposure to lactic acid, hot water, and alkaline cleaning agents.
How to Choose the Right Stainless Steel Worm Gearbox
Selecting the optimal stainless steel worm gearbox for your application requires evaluating several critical parameters beyond simple torque matching. The guidance below addresses key considerations for specifying the SSGM-063 or any stainless worm reducer for corrosive-environment installations. For the broader category of drive technologies beyond worm gearboxes, explore our complete worm reducer gearbox category where the SSGM series sits alongside alternative configurations.
Torque & Load Profile
Calculate your required output torque based on the driven load including safety factors for shock loading, starting torque, and duty cycle. The SSGM-063 with its 25 mm output shaft and 63 mm center distance is engineered for applications matching standard 63-size worm reducer torque ranges. Always verify peak torque demand falls within the gearbox rating at your selected gear ratio.
Speed Ratio Selection
The SSGM-063 supports ratios from 7.5:1 to 100:1. Lower ratios (7.5:1 to 20:1) deliver highest mechanical efficiency — ideal for conveyor drives and pump applications. Mid-range ratios (25:1 to 50:1) balance speed reduction with efficiency for general processing equipment. Higher ratios (60:1 to 100:1) provide maximum speed reduction for slow-speed mixers and precision positioning systems, though with slightly reduced efficiency inherent to all worm designs.
Material Grade: 304 vs 316L Stainless Steel
The SSGM series uses 304 stainless steel which provides excellent corrosion resistance for the vast majority of applications including food processing, pharmaceutical manufacturing, freshwater environments, and mild chemical exposure. For installations with direct chloride contact such as seawater submersion or salt brine processing, or continuous strong acid exposure, consult GBC engineering about 316L options. In most washdown and processing environments, 304 SS provides the optimal cost-to-performance balance.
Why Choose a Machined Body over Cast?
The SSGM series features all six external faces fully machined, which delivers three practical advantages over cast-body stainless gearboxes. First, the machined surfaces eliminate cast-surface porosity where contaminants can lodge. Second, flat reference surfaces simplify bracket and baseplate integration on custom equipment. Third, the polished aesthetic suits show-through facilities like craft breweries, cheese-making visitor areas, and pharmaceutical demonstration lines where equipment appearance matters.
Mounting Configuration
The SSGM-063 supports foot mounting, flange mounting, and torque arm mounting (K1 = 150 mm). Foot mounting suits base-mounted equipment. Flange mounting is ideal for direct motor-to-gearbox-to-machine connections. Torque arm mounting enables direct shaft coupling without a separate support base — common on conveyor head shafts and agitator installations. The machined six-sided body simplifies bracket fabrication compared to rounded housings.
IP Protection Rating
The SSGM-063 is designed for washdown environments and offers protection suitable for high-pressure water jet cleaning. For specific IP69K certification requirements, consult GBC to confirm the seal and shaft configuration meets your protection standard. Standard configurations support daily washdown cycles at pressures up to 80 bar.
Stainless Steel vs. Painted Cast Iron Worm Gearbox
| Comparison Factor | SSGM-063 (304 Machined) | Painted Cast Iron |
|---|---|---|
| Corrosion Resistance | Inherent throughout entire housing | Coating-dependent, fails on chip |
| Surface Finish Quality | Machined on all 6 faces — very smooth | Painted over rough cast surface |
| Washdown Durability | Unlimited high-pressure cycles | Paint degrades with repeated exposure |
| Hygienic Compliance | HACCP, FDA, GMP surface standards | Paint flaking creates contamination risk |
| Service Life (Corrosive) | 10-20+ years typical | 6-24 months before coating failure |
| Installation Flexibility | Flat faces ease bracket integration | Rounded body needs custom brackets |
| Lifecycle Cost | Lower over 10-year horizon | Recurring paint and replacement costs |
| Visual Appearance | Show-quality machined stainless | Painted utility appearance |
| Environmental Suitability | Marine, chemical, food, pharma, outdoor | Dry indoor environments only |
