The Straight Tetragon Chromium Molybdenum Alloy Steel Hardened Teeth-Ground Guideway Rack is crafted from high-quality alloy steel, ensuring exceptional durability and strength. This type of rack is designed for precise linear motion and is commonly used in machinery and automation systems. GBC offers superior performance with enhanced wear resistance and stability, making our guideway racks a reliable choice for various industrial applications.

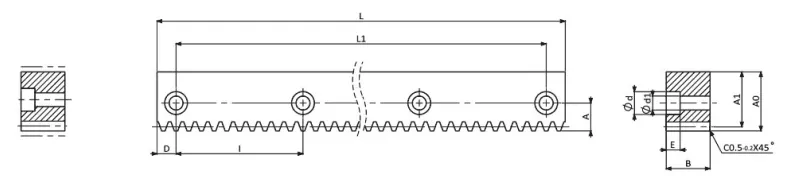

Product Parameters
| 型号 Code |
序号 No |
Q | 周节 CP |
L | L1 | 模数 Module |
B | A0 | A1 | D | I | A | ød | ød1 | E | KG |
| MSTGH-CP05010 | 1 | -Q6 | 5 | 1030 | 1000 | 1.5915 | 14.5 | 24.5 | 22.91 | 15 | 100 | 11.5 | 11 | 7 | 7 | 2.2 |
| MSTGH-CP05010 | 2 | -Q6 | 5 | 1030 | 1000 | 1.5915 | 19.5 | 29.5 | 27.91 | 15 | 100 | 14.0 | 15 | 9 | 9 | 3.8 |
| MSTGH-CP07512 | 1 | -Q6 | 7.5 | 1230 | 1200 | 2.3873 | 24.7 | 33.0 | 30.61 | 15 | 100 | 14.5 | 15 | 9 | 9 | 6.3 |
| MSTGH-CP10012 | 1 | -Q6 | 10 | 1230 | 1200 | 3.1831 | 34.6 | 46.6 | 43.42 | 15 | 100 | 18 | 18 | 11 | 11 | 12.5 |
Product Features

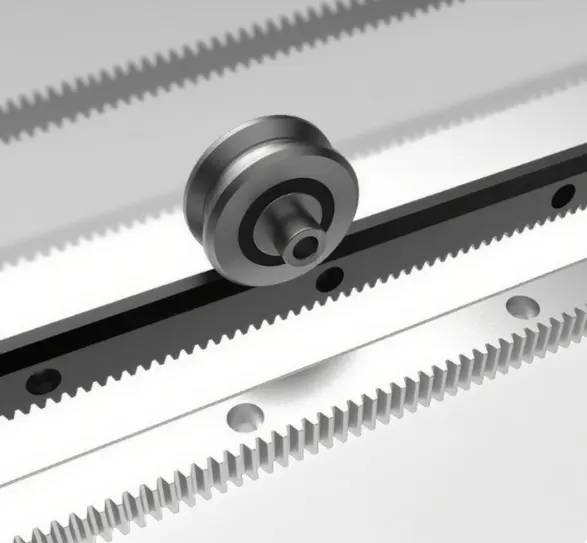

The Straight Tetragon Chromium Molybdenum Alloy Steel Hardened Teeth-Ground Guideway Rack, identified as Series MSTGH-CP-Q6, is meticulously crafted from SCM440 material, known for its exceptional durability and strength. With a hardness level ranging between HRC 53° and 58°, this guideway rack is designed to endure heavy usage. Its four sides are ground to perfection, and the teeth are ground after the hardening process, ensuring precision and reliability in operation.
Applications
The Straight Tetragon Chromium Molybdenum Alloy Steel Hardened Teeth-Ground Guideway Rack is designed for precision and durability in various applications:
- Ideal for automated machinery, providing smooth and reliable operation.
- Used in robotics for accurate positioning and movement control.
- Essential in CNC machines for high-speed processing and production.
- Applicable in material handling systems to enhance efficiency.
Diverse Types of Racks
The Straight Tetragon Chromium Molybdenum Alloy Steel Hardened Teeth-Ground Guideway Rack offers a range of features that distinguish it from other types of racks. Understanding the differences in rack types can help you select the right product for your application.
One primary distinction is the tooth profile, which can be either Straight or Helical. Straight teeth provide direct engagement, ideal for applications requiring precise linear movement. In contrast, helical teeth facilitate smoother operation and quieter performance, making them suitable for high-speed applications.
Another key factor is the shape of the rack, which can be V type or Tetragon. V type racks are commonly used in machinery to support linear motion and are known for their stability. Tetragon racks, on the other hand, offer increased surface area and strength, which makes them ideal for heavy loads and demanding environments.
Lastly, the surface treatment of the teeth plays a crucial role in performance. The Ground treatment ensures a high-precision finish, reducing friction and wear, while Teeth Ground indicates a more refined tooth surface for enhanced durability and efficiency in operation.
Why Choose GBC Gear Racks
GBC is the Australian sales agent for Ever-power, offering high-quality drive components at competitive prices. Our products are currently available in New South Wales, Victoria, Queensland, and cities such as Sydney, Melbourne, Brisbane, Adelaide, and Perth.
Ever-power has nearly 20 years of experience in the industry. Our gear racks meet the precision level of German DIN3962 standard grade 5, with a maximum single rack length of 3200mm. We manufacture various specifications of straight bevel racks from 1 to 22 module sizes based on customer requirements.
One of our standout products is the Straight Tetragon Chromium Molybdenum Alloy Steel Hardened Teeth-Ground Guideway Rack, designed for durability and efficiency in various applications.
Our company is committed to providing exceptional service, ensuring that our customers receive the support they need throughout their purchasing experience.
