Introduction
The Straight V Type Hexgan Chromium Molybdenum Alloy Steel Hardened Teeth-Ground Guideway Rack is crafted from high-strength chromium molybdenum alloy steel, ensuring durability and resistance to wear. This type of rack is essential for precision linear motion systems in various industrial applications. GBC’s products offer superior performance due to meticulous engineering, high-quality materials, and advanced manufacturing processes, guaranteeing reliability and efficiency in demanding environments.

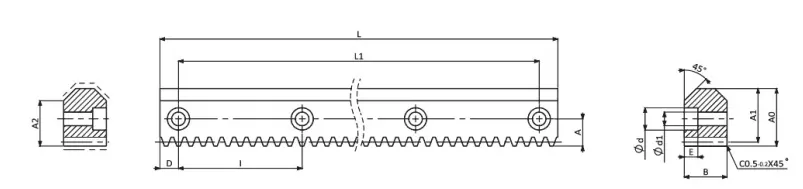

Product Parameters
| 型号 Code |
序号 No |
Q | 周节 CP |
L | L1 | 模数 Module |
B | A0 | A1 | D | 1 | A | ød | ød1 | E | A2 | KG | |
| MSVGH-CP05010 | 1 | -Q6 | 5 | 1030 | 1000 | 1.5915 | 14.5 | 24.5 | 22.91 | 15 | 100 | 11.5 | 11 | 7 | 7 | 20.0 | 2.2 | |
| MSVGH-CP05010 | 2 | -Q6 | 5 | 1030 | 1000 | 1.5915 | 19.5 | 29.5 | 27.91 | 15 | 100 | 14.0 | 15 | 9 | 9 | 23.5 | 3.5 | |
| MSVGH-CP07512 | 1 | -Q6 | 7.5 | 1230 | 1200 | 2.3873 | 24.7 | 33.0 | 30.61 | 15 | 100 | 14.5 | 15 | 9 | 9 | 25.2 | 5.8 | |
| MSVGH-CP10012 | 1 | -Q6 | 10 | 1230 | 1200 | 3.1831 | 34.6 | 46.6 | 43.42 | 15 | 100 | 18 | 18 | 11 | 11 | 36.7 | 11.7 | |

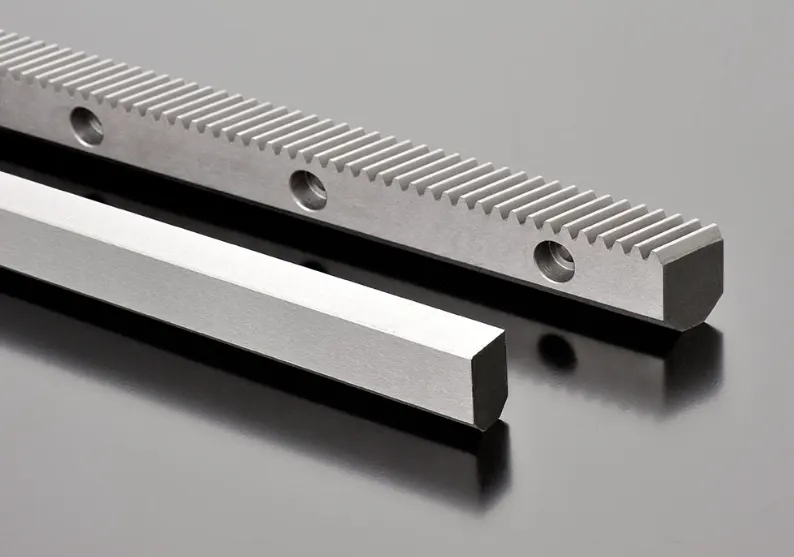

Product Features
The Straight V Type Hexgan Chromium Molybdenum Alloy Steel Hardened Teeth-Ground Guideway Rack, Series MSVGH-CP-Q6, showcases exceptional durability and precision. Crafted from SCM440 Chromium Molybdenum Alloy Steel, it boasts a hardness range of HRC53° to HRC58°. This guideway rack is meticulously ground on six sides and features teeth grinding post-hardening, ensuring optimal performance and longevity in demanding applications. Its robust construction and precision engineering make it an ideal choice for various industrial uses.
Applications of Straight V Type Hexgan Chromium Molybdenum Alloy Steel Hardened Teeth-Ground Guideway Rack
The Straight V Type Hexgan Chromium Molybdenum Alloy Steel Hardened Teeth-Ground Guideway Rack is essential in various industries due to its durability and precision. Key applications include:
- Robotic automation systems for accurate movement.
- Conveyor systems enhancing material handling efficiency.
- CNC machinery providing reliable guidance for cutting tools.
- Linear motion systems ensuring smooth operation in manufacturing.

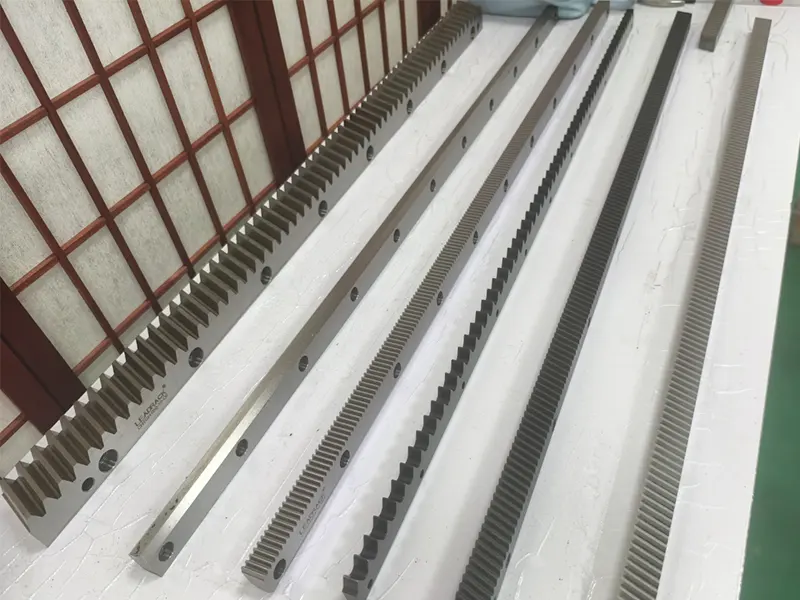

Varieties of Gear Racks
When it comes to gear racks, there are various types available that cater to different applications and performance needs. The Straight V Type Hexgan Chromium Molybdenum Alloy Steel Hardened Teeth-Ground Guideway Rack exemplifies some of these differences, including tooth shapes, rod types, and tooth surface treatments.
- Tooth Shape: Gear racks can have either straight or helical teeth. Straight teeth provide a straightforward engagement that is suitable for low-speed applications, while helical teeth offer smoother operation and are better for high-speed or load-bearing applications.
- Rod Type: The rod type can be varied as well, with options such as V type and tetragon. V type racks are designed to optimize engagement and are ideal for specific mounting situations, whereas tetragon racks can offer greater stability and alignment in certain machinery setups.
- Tooth Surface Treatment: Surface treatment is another crucial differentiation. Ground teeth provide superior accuracy and a smoother finish, which minimizes friction and wear, while teeth ground racks ensure a higher degree of surface precision for demanding applications.
Why Choose GBC Gear Racks
GBC is the Australian sales agent for Ever-power, providing high-quality drive components at competitive prices. Our products are currently sold in New South Wales, Victoria, and Queensland, covering cities such as Sydney, Melbourne, Brisbane, Adelaide, and Perth.
With nearly 20 years of experience, Ever-power has established a strong reputation in the industry. Our gear racks achieve a precision level of up to German DIN3962 standard grade 5, with a maximum single rack length of 3200mm. We can manufacture straight bevel racks of various specifications ranging from 1 to 22 modulus according to customer requirements.
One of our featured products is the Straight V Type Hexgan Chromium Molybdenum Alloy Steel Hardened Teeth-Ground Guideway Rack, known for its durability and precision in various applications.
We pride ourselves on offering exceptional service to our clients, ensuring timely delivery and support tailored to your needs.
