Introduction
The Tetragon Chromium Molybdenum Alloy Steel Hardened Ground Guideway Rack is engineered for durability and precision. Made from high-strength chromium molybdenum alloy steel, it offers excellent wear resistance and hardness. This type of rack is ideal for applications requiring high load capacities and smooth motion, such as industrial machinery and automated systems. GBC’s products stand out due to their superior manufacturing processes, ensuring consistent quality and enhanced performance for demanding operational environments.

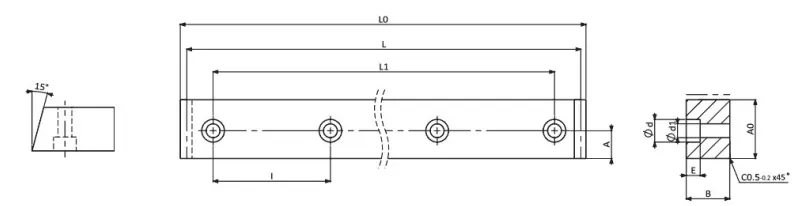

Product Specifications
| 型号 Code |
序号 No |
Q | LO | L | L1 | B | A0 | D | I | ød | ød1 | E | KG | ||
| MNTGH-00 | 1 | -Q6 | 1033.89 | 1030 | 1000 | 14.5 | 24.5 | 15 | 100 | 11 | 7 | 7 | 2.5 | ||
| MNTGH-00 | 2 | -Q6 | 1035.23 | 1030 | 1000 | 19.5 | 29.5 | 15 | 100 | 15 | 9 | 9 | 4.0 | ||
| MNTGH-00 | 3 | -Q6 | 1236.62 | 1230 | 1200 | 24.7 | 33.0 | 15 | 100 | 15 | 9 | 9 | 6.8 | ||
| MNTGH-00 | 4 | -Q6 | 1239.27 | 1230 | 1200 | 34.6 | 46.6 | 15 | 100 | 18 | 11 | 11 | 13.4 | ||
Product Features
The Tetragon Chromium Molybdenum Alloy Steel Hardened Ground Guideway Rack, specifically the Series MNTGH-00-Q6, is engineered for exceptional durability and precision. Crafted from SCM440 alloy steel, it boasts a hardness rating of HRC 53°~58°, ensuring resistance to wear and tear. The guideway rack undergoes meticulous grinding on all four sides post-hardening, resulting in a smooth finish that enhances operational efficiency. This robust construction makes it ideal for high-performance applications in demanding environments.
Applications
The Tetragon Chromium Molybdenum Alloy Steel Hardened Ground Guideway Rack is designed for various industrial applications, including:
- Precision machinery for enhanced durability and reliability.
- Automated systems requiring high-load capacity and performance.
- Robotics and conveyor systems, ensuring smooth linear movement.
- Heavy-duty equipment where strength and resistance to wear are essential.

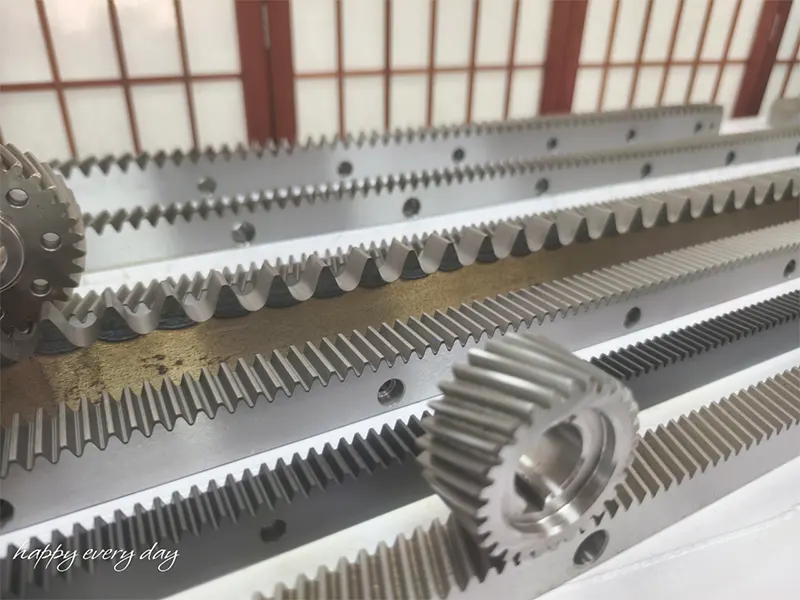

Types of Gear Racks
When it comes to gear racks, there are various types that cater to different applications and functionalities. One of the standout products in this category is the Tetragon Chromium Molybdenum Alloy Steel Hardened Ground Guideway Rack. This product exemplifies the quality and diversity that gear racks can offer. Below, we explore the differences in gear tooth profiles, bar shapes, and tooth surface treatments.
Tooth Profiles
Gear racks can feature different tooth profiles such as Straight and Helical. Straight tooth racks provide straightforward linear motion and are easier to manufacture, while helical racks offer smoother operation and are generally quieter due to their angled teeth that engage gradually.
Bar Shapes

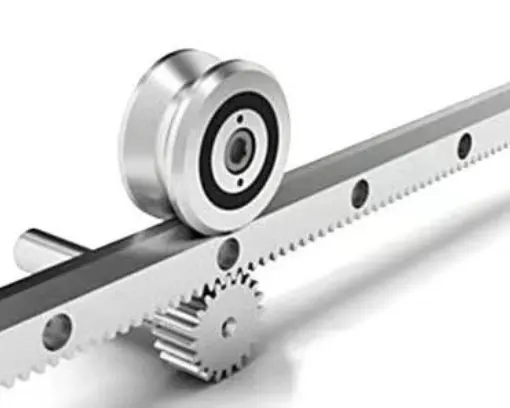

In terms of bar shapes, you can find options like V type and Tetragon. V type racks are designed for tight spaces and provide excellent engagement, whereas Tetragon-shaped racks, including the Tetragon Chromium Molybdenum Alloy Steel version, offer enhanced strength and durability, making them suitable for heavy-duty applications.
Tooth Surface Treatments
The treatment of the tooth surface is also a significant factor, with options like Ground and Teeth Ground. Ground racks have a high degree of precision and are often used in applications that require tight tolerances, while Teeth Ground racks undergo additional processing for improved surface finish and wear resistance.
Why Choose GBC Gear Racks
GBC is the Australian sales agent for Ever-power, providing high-quality transmission components at competitive prices. Our products are currently available in New South Wales, Victoria, and Queensland, covering major cities such as Sydney, Melbourne, Brisbane, Adelaide, and Perth.
Ever-power has nearly 20 years of accumulated experience in the industry. Our manufactured gear racks achieve a precision level of up to German DIN3962 standard grade 5, with a maximum single rack length of 3200mm. We can produce straight and helical gear racks in various specifications ranging from 1 to 22 modules, according to customer needs.
One of our standout products is the Tetragon Chromium Molybdenum Alloy Steel Hardened Ground Guideway Rack, known for its durability and precision.
Our company prides itself on providing excellent service to our customers, ensuring that we meet their needs efficiently and effectively.
