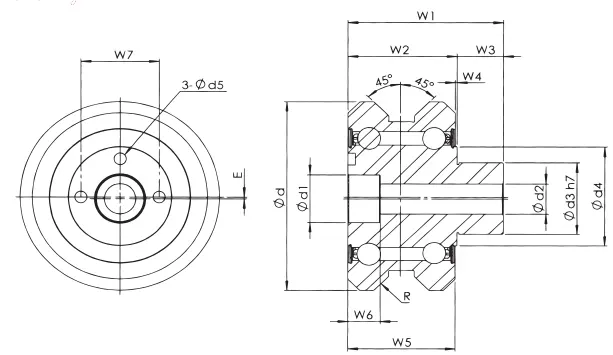

Product Models and Details
| 型号 Code |
心轴外径 Shaft Dia |
偏心量 Excenter |
xd | ød1 | W1 | W2 | W3 | W4 | W5 | W6 | W7 | R | ød2 | ød3 | ød4 | ød5 | 动额定 Cr(KN) |
静额定 Cor(KN) |
KG |
| UR15Y | 15 | 1 mm | 47 | 13.5 | 35 | 23 | 12 | 1 | 22 | 9 | 18.5 | R500 | 8.4 | 15 | 23 | 2.36×4 | 14.40 | 8.47 | 0.2 |
| UR20Y | 20 | 1 mm | 72 | 16.5 | 46 | 31 | 15 | 1 | 30 | 17.5 | 22.5 | R500 | 10.5 | 20 | 26.7 | 2.2×3 | 15.76 | 10.18 | 0.6 |
| UR25Y | 25 | 1 mm | 85 | 20 | 60 | 40 | 20 | 1 | 39 | 17.5 | 27.5 | R500 | 13 | 25 | 35.4 | 4×4 | 26.46 | 18.10 | 1.0 |
| UR35Y | 35 | 1 mm | 100 | 26.5 | 84 | 59 | 25 | 1 | 58 | 17.5 | 42 | R500 | 16.8 | 40 | 55.55 | 6.5×4 | 45.15 | 35.15 | 2.7 |
Product Features
-
High Load Capacity: Designed to handle significant dynamic (Cr) and static (Cor) loads, with ratings up to 45.15 kN (dynamic) and 35.15 kN (static) for the UR35Y model, ensuring reliable performance under heavy-duty conditions.
-
Eccentric Design: Features a 1 mm excenter across all models (UR15Y, UR20Y, UR25Y, UR35Y), allowing precise adjustments for optimal alignment in guideway systems.
-
Versatile Sizing: Available in multiple shaft diameters (15 mm, 20 mm, 25 mm, 35 mm), catering to a range of application requirements and system dimensions.
-
Precision Engineering: Incorporates consistent curvature radius (R500) and multiple mounting hole configurations (e.g., 2.36×4, 2.2×3, 4×4, 6.5×4), ensuring compatibility and ease of integration with various guideway racks.
-
Lightweight yet Robust: Weight ranges from 0.2 kg (UR15Y) to 2.7 kg (UR35Y), balancing durability with ease of handling and installation.
-
Optimized Dimensions: Carefully designed measurements for outer diameter (ød1 to ød5), width (W1 to W7), and other parameters to ensure smooth operation and minimal friction in guideway applications.
