Product Models & Parameters
| 型号 Code |
心轴外径
Shaft Dia |
偏心量
Excenter |

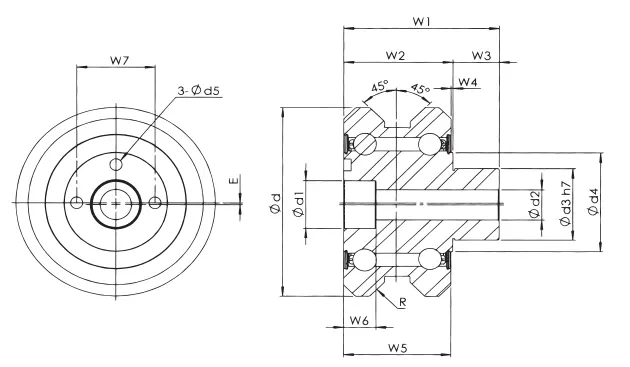

ød | ød1 | W1 | W2 | W3 | W4 | W5 | W6 | W7 | R | ød2 | ød3 | ød4 | ød5 | 动额定 Cr(KN) |
静额定Cor(KN) | KG |
| UV15Y | 15 | 1 mm | 53 | 13.5 | 35 | 23 | 12 | 1 | 22 | 9 | 18.5 | R250 | 8.4 | 15 | 23 | 2.4×3 | 14.40 | 8.47 | 0.2 |
| UV15N | 15 | 0mm | 53 | 13.5 | 35 | 23 | 12 | 1 | 22 | 9 | 18.5 | R250 | 8.4 | 15 | 23 | 2.4×3 | 14.40 | 8.47 | 0.2 |
| UV20Y | 20 | 1 mm | 63 | 16.5 | 46 | 31 | 15 | 1 | 30 | 11 | 22.5 | R300 | 10.5 | 20 | 26.7 | 2.4×3 | 15.76 | 10.18 | 0.5 |
| UV20N | 20 | 0 mm | 63 | 16.5 | 46 | 31 | 15 | 1 | 30 | 11 | 22.5 | R300 | 10.5 | 20 | 26.7 | 2.4×3 | 15.76 | 10.18 | 0.5 |
| UV25Y | 25 | 1 mm | 77 | 20.5 | 60 | 40 | 20 | 1 | 39 | 13 | 27.5 | R360 | 13.0 | 25 | 35.4 | 4.1×3 | 26.46 | 18.10 | 1.0 |
| UV25N | 25 | 0mm | 77 | 20.5 | 60 | 40 | 20 | 1 | 39 | 13 | 27.5 | R360 | 13.0 | 25 | 35.4 | 4.1×3 | 26.46 | 18.10 | 1.0 |
| UV35Y | 35 | 1 mm | 107 | 28.5 | 84 | 59 | 25 | 1 | 58 | 17.5 | 42 | R500 | 16.8 | 40 | 55.55 | 4.1×3 | 45.15 | 35.15 | 2.5 |
| UV35N | 35 | 0mm | 107 | 28.5 | 84 | 59 | 25 | 1 | 58 | 17.5 | 42 | R500 | 16.8 | 40 | 55.55 | 4.1×3 | 45.15 | 35.15 | 2.5 |
Product Features

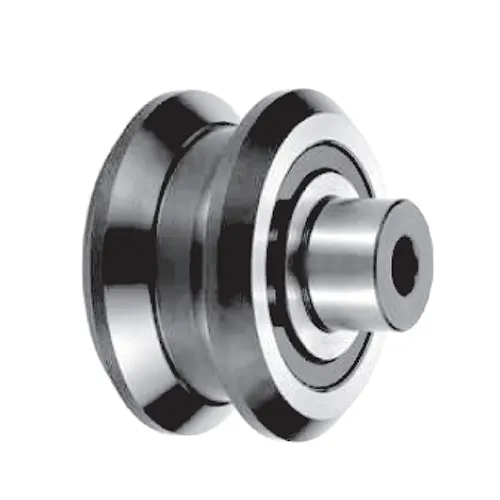

The UV Series V Type Rollers for Guideway Racks are designed for precision and durability in linear motion systems. Available in models UV15, UV20, UV25, and UV35, with or without 1mm eccentricity, these rollers offer shaft diameters from 15mm to 35mm. They provide high dynamic (up to 45.15 kN) and static (up to 35.15 kN) load ratings, ensuring robust performance. With compact designs, weights range from 0.2kg to 2.5kg, and precise dimensions (e.g., ød2 8.4–16.8mm) ensure compatibility with various guideway racks, delivering reliable, smooth operation.
Professional Gears and Rollers Supplier
GBC, the Australian sales agent for Ever-power, offers premium transmission components with competitive pricing. We serve New South Wales, Victoria, Queensland, and cities like Sydney, Melbourne, Brisbane, Adelaide, and Perth. Ever-power, with nearly 20 years of expertise, produces gear racks meeting DIN3962 Grade 5 standards, with lengths up to 3200mm and modules from 1 to 22, including straight and helical racks tailored to customer needs. Contact us for quotes on gear racks and UV Series V Type Rollers.
