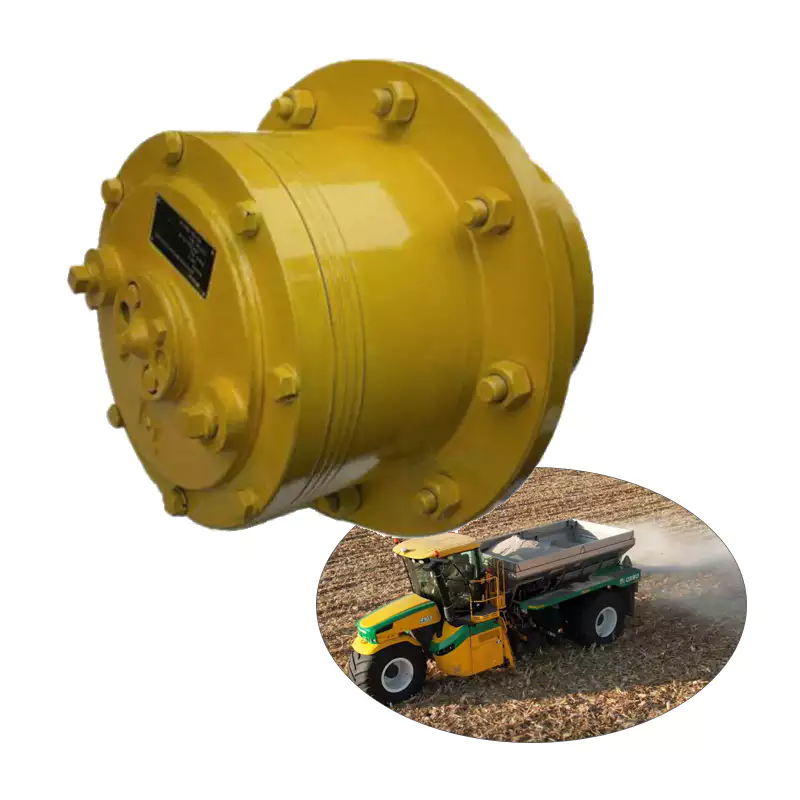

Wheel Drive Planetary Gearbox Reducer for Fertilizer Spreaders
The Wheel Drive Planetary Gearbox Reducer for Fertilizer Spreaders is designed to enhance the efficiency of spreading fertilizers. By providing a reliable reduction in speed while increasing torque, this gearbox enables precise control and uniform distribution of fertilizers, ensuring optimal crop growth and maximizing agricultural productivity.
Wheel Drive Planetary Gearbox Reducer for Fertilizer Spreaders
The Wheel Drive Planetary Gearbox Reducer is designed to enhance the efficiency of fertilizer spreaders by providing exceptional torque and speed control. Its robust construction ensures durability and reliability, making it an ideal choice for agricultural applications.
Specifications
- Input Power: Varies based on model
- Reduction Ratio: Customizable options available
- Output Torque: High torque capacity for optimal performance
- Material: High-strength alloy steel
- Operating Temperature: -20°C to +50°C
- Weight: Lightweight design for easy installation
| Specification | Details |
|---|---|
| Output torque range | 1000-60000 N.m |
| Gear ratios | i=5.3-142 |
| Support | The gearbox has rotating housing flanges to fit wheel |
| Applicable motors | Axial piston hydraulic motors, hydraulic orbit motors or others |
| Hydraulic motor options | Pressure relief valve, overcenter valve |
| Bearing | Robust bearing system absorbing the forces exerted by the ring gear |
| Brake | Hydraulically released parking brake |
| Others | EP600L Series wheel drives with manual disconnect application |
| Load capacity | Large radial and axial load capacity due to the use of strong tapered roller bearings |
| Oil seal protection | Reliable oil seal protection, designed according to our field experience |
| Mounting flanges | Universal and SAE input direct mounting flanges |
| Direct mounting | The units are designed for their direct mounting into the wheel rims |
| Interchangeability | Technical data and installation dimension of EP600L Series gearbox are same as those of Rexroth GFT…W Series and Bonfiglioli 600 Series, so these three can be used interchangeably |
| Track drives Type | Max. torque N.m | Range of ratios (i) | Max. Input speed (rpm) | Braking torque (N.m) |
| EP601 L1A | 1750 | 5.77 | 1000 | 450-600 |
| EP603 L2A | 4000 | 19-23-32-40 | 3000 | 210 |
| EP603 L2B | 4000 | 19-23-32-40 | 3000 | 210 |
| EP602 L2 | 5000 | 12.4-25.8 | 3000 | - |
| EP605 L2 | 7000 | 22-27-30-42-53 | 3000 | 220-310 |
| EP606 L2, L3 | 12000 | 30-35-43-68-79 | 3000 | 300-800 |
| EP607 L2, L3 | 17000 | 33-75-108 | 3000 | 300-600 |
| EP609 L2, L3 | 23000 | 33-142 | 3000 | 300-600 |
| EP610 L2, L3 | 30000 | 20-111 | 3000 | 300-800 |
| EP611 L2, L3 | 36000 | 41-47 | 3000 | 300-800 |
| EP613 L3 | 45000 | 108 | 3000 | 300-800 |
| EP615 L3 | 60000 | 108 | 3000 | 300-1000 |
Features and Advantages of Wheel Drive Planetary Gearbox Reducer for Fertilizer Spreaders
High Reduction Ratio: Achieves low-speed, high-torque output, making it suitable for heavy-load applications.
Compact Integrated Design: Saves space and can be directly mounted onto the wheel hub, reducing the complexity of the drive chain.
Load Distribution: Multi-planetary gear design shares stress, enhancing durability.
Efficient Transmission: Minimizes energy loss, improving overall system efficiency.
Modularity and Customization: Gear ratios and sizes can be adjusted based on load and speed requirements.
Advantages:
Reliability: Designed for harsh environments, such as outdoor machinery.
Easy Maintenance: Compact structure allows for easy disassembly.
Low Noise and Stability: Multi-tooth engagement reduces vibration.
Selection of Wheel Drive Planetary Gearbox Reducer for Fertilizer Spreaders
When selecting a Wheel Drive Planetary Gearbox Reducer for fertilizer spreaders, it's crucial to consider several factors. First, assess the load type, ensuring the gearbox can handle either static or dynamic loads effectively. Next, evaluate the working environment; extreme temperatures, humidity levels, and dust can impact performance and durability. Lastly, consider the installation method, whether flanged connection or shaft output, as this will dictate compatibility with your equipment and ease of installation. Each of these elements plays a vital role in ensuring optimal functionality and longevity.
Why Choose Our Wheel Drive Planetary Gearbox Reducer for Fertilizer Spreaders
Choosing our Wheel Drive Planetary Gearbox Reducer means opting for customized solutions tailored to your specific needs, allowing for optimized gear ratios and installation methods. Our high-quality manufacturing process ensures precision machining, resulting in low tolerances and extended lifespan. We provide comprehensive technical support, including selection guidance and reliable after-sales service. Our gearbox reduces the complexity of the drive system while enhancing the overall performance and reliability of your equipment, making it an excellent choice for fertilizer spreaders.
Maintenance Tips for Wheel Drive Planetary Gearbox Reducer
To ensure optimal performance of your Wheel Drive Planetary Gearbox Reducer for fertilizer spreaders, follow these maintenance tips:
- Regularly check and change the lubrication oil to prevent wear and tear.
- Inspect the seals and gaskets for leaks to maintain efficiency.
- Clean the gearbox housing to avoid debris buildup that can cause overheating.
- Monitor the alignment and tension of the drive components to prevent excessive strain.
- Schedule periodic professional inspections to catch potential issues early.
Wheel Drive Planetary Gearbox Supplier
GBC is the sales agent for Ever-power Group in Australia, specializing in high-quality gearbox solutions. Our Wheel Drive Planetary Gearbox Reducer for Fertilizer Spreaders is designed to enhance efficiency and reliability in agricultural applications. With advanced engineering and robust construction, our gearboxes provide superior performance, ensuring that your fertilizer spreaders operate at optimal levels.
We pride ourselves on our commitment to customer satisfaction, offering customizable solutions to meet your specific needs. Whether you require standard products or tailored designs, GBC is here to assist you. Don't miss out on the opportunity to improve your operations. Contact us today to customize and purchase your ideal gearbox!
