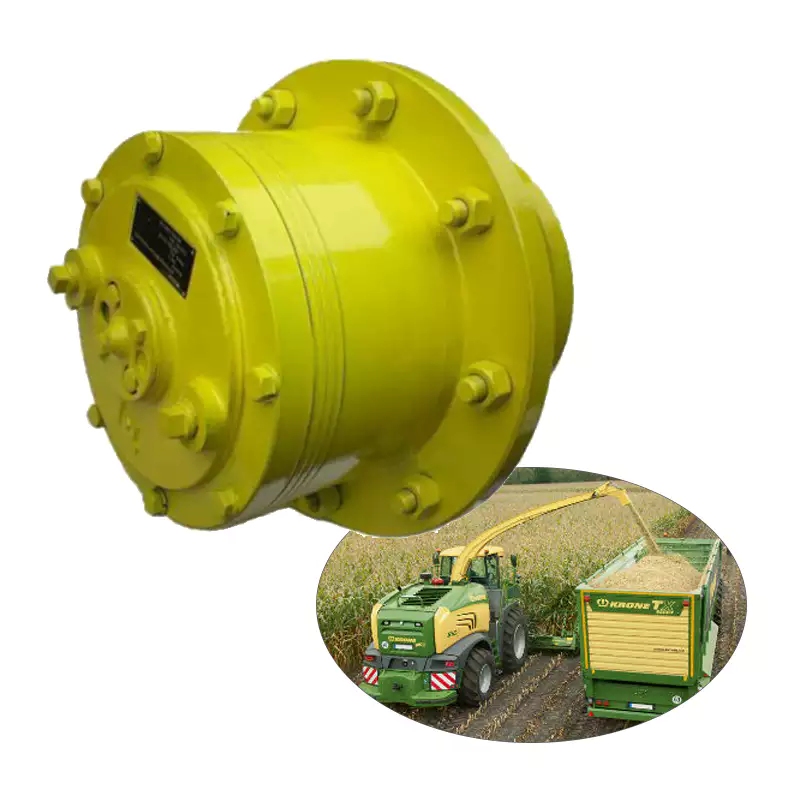

Wheel Drive Planetary Gearbox Reducer for Forage Harvester
The Wheel Drive Planetary Gearbox Reducer is designed specifically for forage harvesters, enhancing their efficiency and performance. This gearbox reduces the speed of the drive while increasing torque, ensuring smooth operation and optimal power transfer. It is essential for maximizing the productivity of harvesting operations in agricultural settings.
Wheel Drive Planetary Gearbox Reducer for Forage Harvester
The Wheel Drive Planetary Gearbox Reducer is engineered to deliver high torque and efficiency, making it ideal for forage harvesting applications. Its compact design and robust construction ensure durability and optimal performance in demanding agricultural environments.
Specifications
- Input Power: [Specify power rating]
- Output Torque: [Specify torque rating]
- Gear Ratio: [Specify gear ratio]
- Mounting Type: [Specify mounting type]
- Weight: [Specify weight]
- Material: [Specify material]
| Specification | Details |
|---|---|
| Output torque range | 1000-60000 N.m |
| Gear ratios | i=5.3-142 |
| Support | The gearbox has rotating housing flanges to fit wheel |
| Applicable motors | Axial piston hydraulic motors, hydraulic orbit motors or others |
| Hydraulic motor options | Pressure relief valve, overcenter valve |
| Bearing | Robust bearing system absorbing the forces exerted by the ring gear |
| Brake | Hydraulically released parking brake |
| Others | EP600L Series wheel drives with manual disconnect application |
| Load capacity | Large radial and axial load capacity due to the use of strong tapered roller bearings |
| Oil seal protection | Reliable oil seal protection, designed according to our field experience |
| Mounting flanges | Universal and SAE input direct mounting flanges |
| Direct mounting | The units are designed for their direct mounting into the wheel rims |
| Interchangeability | Technical data and installation dimension of EP600L Series gearbox are same as those of Rexroth GFT…W Series and Bonfiglioli 600 Series, so these three can be used interchangeably |
| Track drives Type | Max. torque N.m | Range of ratios (i) | Max. Input speed (rpm) | Braking torque (N.m) |
| EP601 L1A | 1750 | 5.77 | 1000 | 450-600 |
| EP603 L2A | 4000 | 19-23-32-40 | 3000 | 210 |
| EP603 L2B | 4000 | 19-23-32-40 | 3000 | 210 |
| EP602 L2 | 5000 | 12.4-25.8 | 3000 | - |
| EP605 L2 | 7000 | 22-27-30-42-53 | 3000 | 220-310 |
| EP606 L2, L3 | 12000 | 30-35-43-68-79 | 3000 | 300-800 |
| EP607 L2, L3 | 17000 | 33-75-108 | 3000 | 300-600 |
| EP609 L2, L3 | 23000 | 33-142 | 3000 | 300-600 |
| EP610 L2, L3 | 30000 | 20-111 | 3000 | 300-800 |
| EP611 L2, L3 | 36000 | 41-47 | 3000 | 300-800 |
| EP613 L3 | 45000 | 108 | 3000 | 300-800 |
| EP615 L3 | 60000 | 108 | 3000 | 300-1000 |
Features and Advantages of Wheel Drive Planetary Gearbox Reducer for Forage Harvester
High Reduction Ratio: Achieves low-speed, high-torque output, making it suitable for heavy-duty applications.
Compact Integrated Design: Space-saving and can be directly mounted on the wheel hub, reducing transmission complexity.
Load Distribution: Multi-planet gear design distributes stress evenly, enhancing durability.
Efficient Transmission: Minimizes energy loss, improving overall system efficiency.
Modularity and Customizability: Gear ratios and sizes can be adjusted according to load and speed requirements.
Advantages:
Reliability: Designed to withstand harsh environments, ideal for outdoor machinery.
Easy Maintenance: Compact structure allows for straightforward disassembly.
Low Noise and Stability: Multi-tooth engagement reduces vibrations, ensuring smooth operation.
Selection of Wheel Drive Planetary Gearbox Reducer for Forage Harvester
When selecting a Wheel Drive Planetary Gearbox Reducer for a forage harvester, it is crucial to consider the type of load it will be subjected to, whether static or dynamic. Additionally, the working environment plays a significant role; factors such as temperature, humidity, and dust levels can affect performance and longevity. Lastly, the installation method, whether flange-mounted or shaft output, should align with the harvester's design and operational needs to ensure optimal functionality and reliability.
Why Choose Our Wheel Drive Planetary Gearbox Reducer for Forage Harvester
Our Wheel Drive Planetary Gearbox Reducer is the ideal choice for your forage harvester needs due to its tailored services, high-quality manufacturing, and exceptional technical support. We offer customized designs based on your specific requirements, including gear ratios and installation methods. Our precision engineering ensures low tolerances and extended product lifespan. Additionally, we provide comprehensive selection guidance and after-sales service to ensure optimal performance. By reducing the complexity of the transmission system, our gearbox enhances the overall efficiency and reliability of your equipment, making it a smart investment for agricultural operations.
Maintenance Tips for Wheel Drive Planetary Gearbox Reducer
To ensure optimal performance of your Wheel Drive Planetary Gearbox Reducer for Forage Harvester, follow these maintenance tips:
- Regularly check and change the lubricant to prevent wear.
- Inspect seals and gaskets for leaks and replace them as necessary.
- Monitor operating temperatures to avoid overheating.
- Clean dirt and debris from the gearbox housing to prevent contamination.
- Conduct periodic visual inspections of the gearbox for any signs of damage.
Wheel Drive Planetary Gearbox Supplier
GBC is the sales agent for Ever-power Group in Australia, specializing in high-quality gearbox solutions. Our Wheel Drive Planetary Gearbox Reducer for Forage Harvesters is designed with precision engineering to enhance the efficiency and performance of agricultural machinery. It provides reliable torque transmission and improved durability, ensuring that your forage harvesting operations run smoothly.
We take pride in offering customized solutions to meet the unique needs of our clients. Our expert team is ready to assist you in selecting the right gearbox for your applications. Don't hesitate to reach out for custom orders and purchases to elevate your equipment's performance.
Additional information
| Edited by | Sylvia |
|---|
The Wheel Drive Planetary Gearbox Reducer is designed specifically for forage harvesters, enhancing their efficiency and performance. This gearbox reduces the speed of the drive while increasing torque, ensuring smooth operation and optimal power transfer. It is essential for maximizing the productivity of harvesting operations in agricultural settings.
