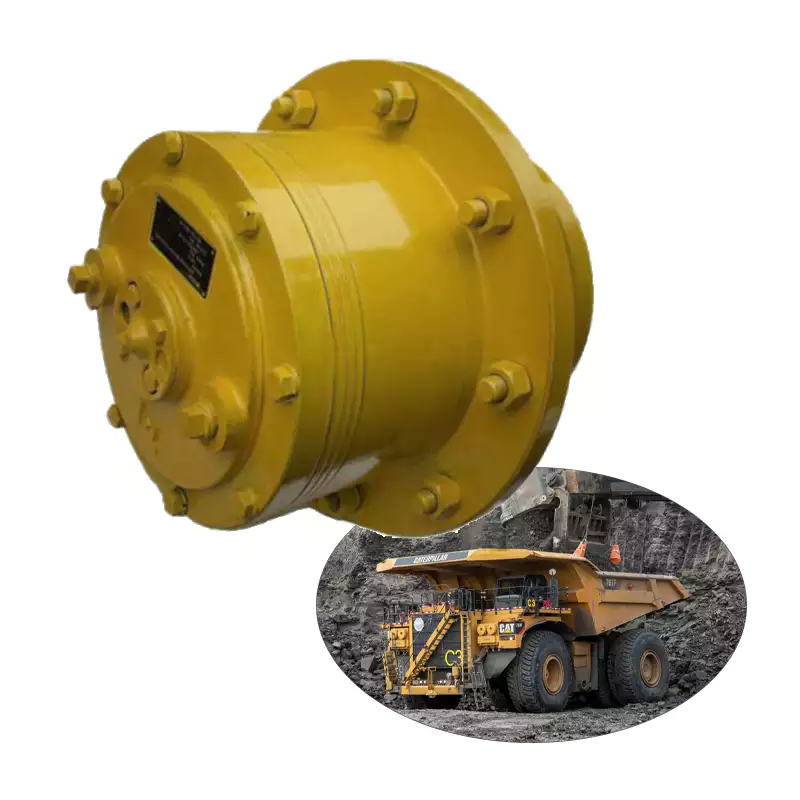

Wheel Drive Planetary Gearbox Reducer for Mining Dump Trucks
The Wheel Drive Planetary Gearbox Reducer is designed specifically for mining dump trucks to enhance their performance and efficiency. This gearbox reduces the speed of the engine while increasing torque, allowing dump trucks to navigate harsh terrains with ease and deliver heavy loads efficiently, ensuring optimal productivity in mining operations.
Wheel Drive Planetary Gearbox Reducer for Mining Dump Trucks
The Wheel Drive Planetary Gearbox Reducer is designed specifically for mining dump trucks, offering exceptional torque and efficiency. Its robust construction ensures durability in harsh environments, while the compact design enhances overall vehicle performance.
Specifications
- Gear Ratio: Customizable options available
- Input Power: Up to 500 kW
- Output Torque: High torque capability
- Operating Temperature: -40°C to +60°C
- Weight: Lightweight design for better handling
- Mounting Type: Flange and foot mounting options
| Specification | Details |
|---|---|
| Output torque range | 1000-60000 N.m |
| Gear ratios | i=5.3-142 |
| Support | The gearbox has rotating housing flanges to fit wheel |
| Applicable motors | Axial piston hydraulic motors, hydraulic orbit motors or others |
| Hydraulic motor options | Pressure relief valve, overcenter valve |
| Bearing | Robust bearing system absorbing the forces exerted by the ring gear |
| Brake | Hydraulically released parking brake |
| Others | EP600L Series wheel drives with manual disconnect application |
| Load capacity | Large radial and axial load capacity due to the use of strong tapered roller bearings |
| Oil seal protection | Reliable oil seal protection, designed according to our field experience |
| Mounting flanges | Universal and SAE input direct mounting flanges |
| Direct mounting | The units are designed for their direct mounting into the wheel rims |
| Interchangeability | Technical data and installation dimension of EP600L Series gearbox are same as those of Rexroth GFT…W Series and Bonfiglioli 600 Series, so these three can be used interchangeably |
| Track drives Type | Max. torque N.m | Range of ratios (i) | Max. Input speed (rpm) | Braking torque (N.m) |
| EP601 L1A | 1750 | 5.77 | 1000 | 450-600 |
| EP603 L2A | 4000 | 19-23-32-40 | 3000 | 210 |
| EP603 L2B | 4000 | 19-23-32-40 | 3000 | 210 |
| EP602 L2 | 5000 | 12.4-25.8 | 3000 | - |
| EP605 L2 | 7000 | 22-27-30-42-53 | 3000 | 220-310 |
| EP606 L2, L3 | 12000 | 30-35-43-68-79 | 3000 | 300-800 |
| EP607 L2, L3 | 17000 | 33-75-108 | 3000 | 300-600 |
| EP609 L2, L3 | 23000 | 33-142 | 3000 | 300-600 |
| EP610 L2, L3 | 30000 | 20-111 | 3000 | 300-800 |
| EP611 L2, L3 | 36000 | 41-47 | 3000 | 300-800 |
| EP613 L3 | 45000 | 108 | 3000 | 300-800 |
| EP615 L3 | 60000 | 108 | 3000 | 300-1000 |
Features and Advantages of Wheel Drive Planetary Gearbox Reducer for Mining Dump Trucks
High Reduction Ratio: Achieves low-speed, high-torque output, making it suitable for heavy-duty applications.
Compact Integrated Design: Saves space by allowing direct installation in the hub, reducing the complexity of the transmission chain.
Load Distribution: Multi-planet gear design distributes stress effectively, enhancing durability.
Efficient Transmission: Minimizes energy loss, improving overall system efficiency.
Modularity and Customization: Gear ratios and sizes can be adjusted according to load and speed requirements.
Advantages:
Reliability: Designed to perform well in harsh environments, such as outdoor machinery.
Easy Maintenance: The compact structure allows for easy disassembly.
Low Noise and Smooth Operation: Multi-tooth engagement reduces vibrations, leading to quieter performance.
Selection of Wheel Drive Planetary Gearbox Reducer for Mining Dump Trucks
When selecting a Wheel Drive Planetary Gearbox Reducer for mining dump trucks, several key factors must be considered. First, identify the load type—static or dynamic—as this affects the gearbox’s capacity and durability. Next, evaluate the working environment; extreme temperatures, humidity, and dust can significantly impact performance and longevity. Lastly, consider the installation method, whether flange connection or shaft output, to ensure compatibility with your truck’s design. These considerations are crucial for optimal performance and reliability in demanding conditions.
Why Choose Our Wheel Drive Planetary Gearbox Reducer for Mining Dump Trucks
Choosing our Wheel Drive Planetary Gearbox Reducer means investing in a tailored solution designed specifically for your needs. We offer customized services that include designing gear ratios and installation methods based on client specifications. Our high-quality manufacturing process involves precision machining, ensuring low tolerances and an extended lifespan. We also provide comprehensive technical support, offering selection guidance and after-sales service. By simplifying the drivetrain complexity, our gearbox enhances overall equipment performance and reliability, making it the ideal choice for mining dump trucks.
Maintenance Tips for Wheel Drive Planetary Gearbox Reducer for Mining Dump Trucks
To ensure optimal performance of your wheel drive planetary gearbox reducer, consider the following maintenance tips:
- Regularly check and change the lubrication oil to prevent overheating and wear.
- Inspect seals and gaskets for leaks and replace them if necessary.
- Monitor temperature and vibration levels to identify potential issues early.
- Clean the external surfaces to prevent dirt accumulation that can cause corrosion.
- Schedule periodic professional inspections to ensure all components are functioning properly.
Wheel Drive Planetary Gearbox Supplier
GBC is the Australian sales agent for Ever-power Group, specializing in high-quality gear solutions. Our Wheel Drive Planetary Gearbox Reducer for Mining Dump Trucks is designed to provide superior performance and reliability in the toughest working conditions. Engineered with precision, our gearboxes ensure efficient power transmission, reducing downtime and increasing productivity for your mining operations.
We offer customized solutions to meet the specific needs of our clients, ensuring that you get the perfect fit for your machinery. Our dedicated team is committed to providing excellent service and support throughout your purchasing experience.
We invite all customers to explore our products and consider custom orders to suit your unique requirements. Invest in quality and performance by choosing our Wheel Drive Planetary Gearbox today!
