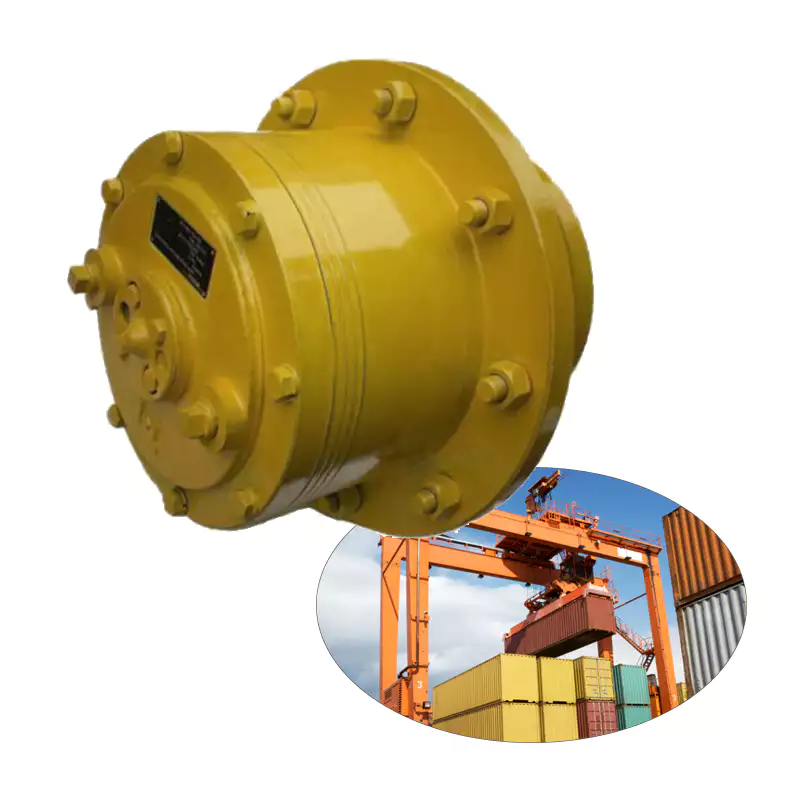

Wheel Drive Planetary Gearbox Reducer for Rubber-Tired Gantry Crane, Rtg
The Wheel Drive Planetary Gearbox Reducer is designed specifically for Rubber-Tired Gantry Cranes (RTGs). This essential component enhances the crane’s mobility and efficiency by providing high torque and precision, allowing for smooth movement and control during loading and unloading operations in ports and shipping yards.
Wheel Drive Planetary Gearbox Reducer for Rubber-Tired Gantry Crane, Rtg
The Wheel Drive Planetary Gearbox Reducer is designed for optimal performance in rubber-tired gantry cranes, providing high torque and efficiency. Its compact design and robust construction ensure durability, making it ideal for heavy-duty lifting operations.
| Specification | Details |
|---|---|
| Output torque range | 1000-60000 N.m |
| Gear ratios | i=5.3-142 |
| Support | The gearbox has rotating housing flanges to fit wheel |
| Applicable motors | Axial piston hydraulic motors, hydraulic orbit motors or others |
| Hydraulic motor options | Pressure relief valve, overcenter valve |
| Bearing | Robust bearing system absorbing the forces exerted by the ring gear |
| Brake | Hydraulically released parking brake |
| Others | EP600L Series wheel drives with manual disconnect application |
| Load capacity | Large radial and axial load capacity due to the use of strong tapered roller bearings |
| Oil seal protection | Reliable oil seal protection, designed according to our field experience |
| Mounting flanges | Universal and SAE input direct mounting flanges |
| Direct mounting | The units are designed for their direct mounting into the wheel rims |
| Interchangeability | Technical data and installation dimension of EP600L Series gearbox are same as those of Rexroth GFT…W Series and Bonfiglioli 600 Series, so these three can be used interchangeably |
| Track drives Type | Max. torque N.m | Range of ratios (i) | Max. Input speed (rpm) | Braking torque (N.m) |
| EP601 L1A | 1750 | 5.77 | 1000 | 450-600 |
| EP603 L2A | 4000 | 19-23-32-40 | 3000 | 210 |
| EP603 L2B | 4000 | 19-23-32-40 | 3000 | 210 |
| EP602 L2 | 5000 | 12.4-25.8 | 3000 | - |
| EP605 L2 | 7000 | 22-27-30-42-53 | 3000 | 220-310 |
| EP606 L2, L3 | 12000 | 30-35-43-68-79 | 3000 | 300-800 |
| EP607 L2, L3 | 17000 | 33-75-108 | 3000 | 300-600 |
| EP609 L2, L3 | 23000 | 33-142 | 3000 | 300-600 |
| EP610 L2, L3 | 30000 | 20-111 | 3000 | 300-800 |
| EP611 L2, L3 | 36000 | 41-47 | 3000 | 300-800 |
| EP613 L3 | 45000 | 108 | 3000 | 300-800 |
| EP615 L3 | 60000 | 108 | 3000 | 300-1000 |
Features and Advantages of Wheel Drive Planetary Gearbox Reducer for Rubber-Tired Gantry Crane
High Reduction Ratio: Achieves low-speed, high-torque output, making it suitable for heavy-load applications.
Compact Integrated Design: Space-saving design that can be directly installed onto the wheel hub, reducing the complexity of the transmission chain.
Load Distribution: Multi-planet gear design that distributes stress evenly, enhancing durability.
Efficient Transmission: Minimizes energy loss, improving the overall system efficiency.
Modularity and Customization: Gear ratios and sizes can be adjusted based on load and speed requirements.
Advantages:
- Reliability: Suitable for harsh environments, such as outdoor machinery.
- Easy Maintenance: Compact structure that allows for convenient disassembly.
- Low Noise and Stability: Multiple tooth engagement reduces vibration.
Selection of Wheel Drive Planetary Gearbox Reducer for Rubber-Tired Gantry Crane
When selecting a Wheel Drive Planetary Gearbox Reducer for Rubber-Tired Gantry Cranes, it is crucial to consider several factors. First, evaluate the load type—whether static or dynamic—as this directly impacts the gearbox's performance and durability. Additionally, assess the working environment, including temperature, humidity, and dust levels, to ensure optimal functionality. Finally, consider the installation method, such as flange connection or shaft output, to ensure compatibility with your crane design and operational requirements.
Why Choose Our Wheel Drive Planetary Gearbox Reducer for Rubber-Tired Gantry Crane
Choosing our Wheel Drive Planetary Gearbox Reducer means opting for tailored solutions that cater to your specific needs. We offer customized design for gear ratios and installation methods, ensuring a perfect fit for your application. Our manufacturing process emphasizes high-quality production with precision machining, resulting in low tolerances and an extended lifespan. With dedicated technical support, we provide selection guidance and reliable after-sales service. Our gearbox reduces the complexity of the drive system while enhancing the overall performance and reliability of your equipment, making it an ideal choice for your gantry crane operations.
Maintenance Tips for Wheel Drive Planetary Gearbox Reducer
To ensure optimal performance of the Wheel Drive Planetary Gearbox Reducer for Rubber-Tired Gantry Cranes, follow these maintenance tips:
- Regularly check and change the lubricant to avoid overheating and wear.
- Inspect seals and gaskets for leaks and replace them as needed.
- Monitor the alignment of the gearbox to prevent excessive vibration.
- Conduct routine inspections for wear and tear on components.
- Keep the gearbox clean from debris and contaminants to enhance longevity.
Wheel Drive Planetary Gearbox Supplier
GBC is the Australian sales agent for Ever-power Group, specializing in high-quality industrial gear solutions. Our focus is on providing top-notch Wheel Drive Planetary Gearbox Reducers specifically designed for Rubber-Tired Gantry Cranes (RTG). These gearboxes are engineered to deliver exceptional performance, reliability, and efficiency, ensuring your operations run smoothly and effectively.
We pride ourselves on offering customized solutions tailored to meet the unique needs of our clients. Whether you require a specific configuration or additional features, our team is ready to assist you. Don't hesitate to reach out to us for your gearbox needs; we invite all customers to customize and purchase our high-performance products to enhance their operations.
