Winch Drive for Construction Elevators
The Winch Drive Planetary Gearbox for Construction Elevators is a vital component designed to enhance the efficiency of lifting mechanisms. This gearbox provides high torque and smooth operation, ensuring reliable performance in construction environments. It plays a crucial role in the winch system, facilitating controlled lifting and lowering of heavy loads.

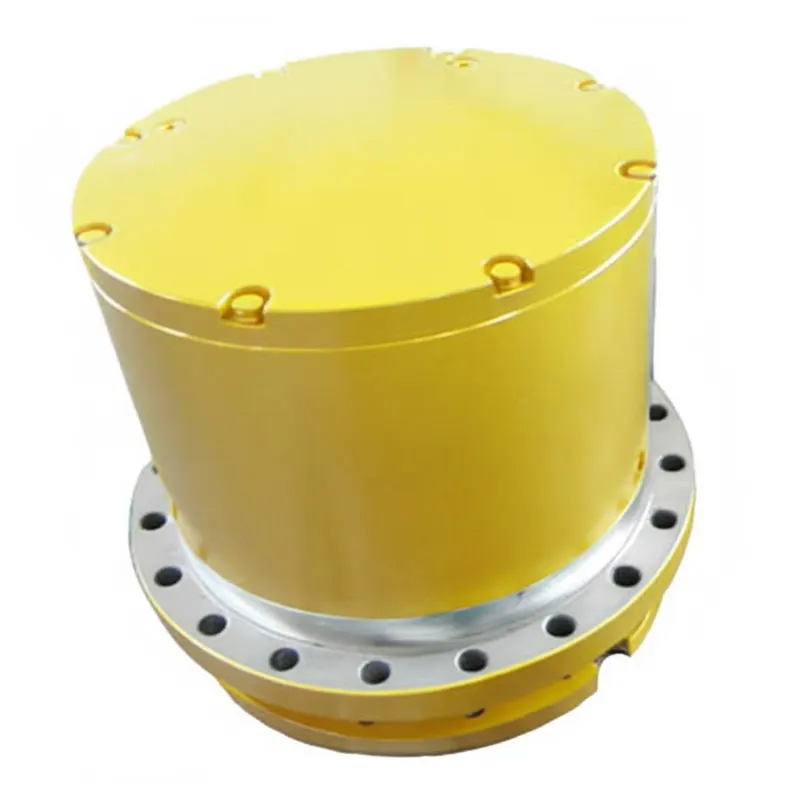

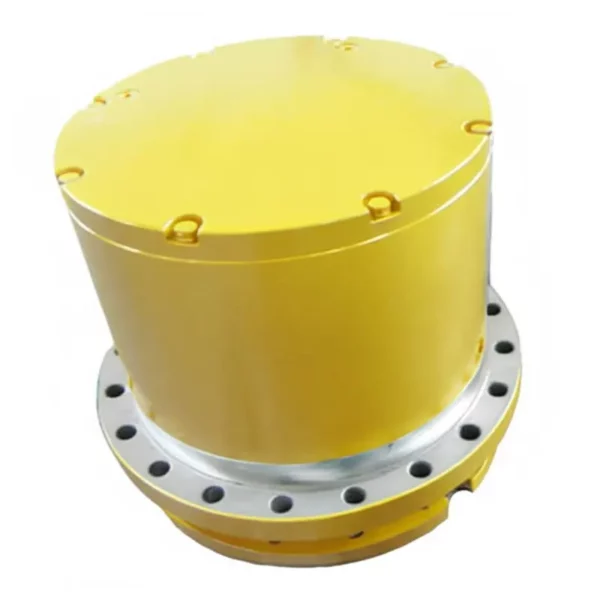

Winch Drive Planetary Gearbox for Construction Elevators
The Winch Drive Planetary Gearbox is designed for high efficiency and reliability, ensuring smooth operation in construction elevators. Its compact design and robust construction provide excellent torque output and durability, making it ideal for heavy-duty applications.
| Specification | Details |
|---|---|
| Output torque range | 1000-280000 N.m |
| Gear ratios | i=5.3-400 |
| Support | The gearbox has rotating housing flanges to fit winch |
| Applicable motors | Axial piston hydraulic motors, hydraulic orbit motors or others |
| Hydraulic motor options | Pressure relief valve, overcenter valve on request |
| Bearing | Robust bearing system absorbing the forces exerted by the ring gear |
| Brake | Hydraulic released parking brake on request |
| Performance figures | Refer to FEM standards, class M5 (T5-L2) for output max. speeds of 25 rpm |
| Compatibility | Technical data and installation dimensions of the EP400W Series gearbox are same as those of Rexroth GFT…W Series and Bonfiglioli 800 Series, so these three can be used interchangeably |
| Type | Max. torque N.m | Range of ratios (i) | Max. Input speed (rpm) | Braking torque (N.m) |
| EP400W1 | 870 | 6.09 | 1000 | 130 |
| EP401W1 | 1300 | 6.2 | 1000 | 270 |
| EP402W2 | 4000 | 12.4-37.1 | 3500 | - |
| EP403W2 | 4000 | 15.4-40 | 3500 | 270 |
| EP405W | 7000 | 20-80 | 3500 | 270 |
| EP405.4W | 5500 | 26-57 | 3500 | 280 |
| EP406AW | 12500 | 23-220 | 3500 | 430 |
| EP406W | 13000 | 28-140 | 3500 | 430 |
| EP406BW3 | 17500 | 63-136 | 3500 | 430 |
| EP407AW | 18000 | 38-136 | 3500 | 430-530 |
| EP407W3 | 26000 | 63-136 | 3500 | 530 |
| EP410W3 | 37500 | 62-177 | 3500 | 530 |
| EP413W3 | 42500 | 86-172 | 3500 | 610 |
| EP414W3 | 67000 | 76-186 | 3500 | 1200 |
| EP415W3 | 100000 | 81-215 | 3000 | 1200 |
| EP416W3 | 140000 | 87-255 | 3000 | 2000 |
| EP417W3 | 200000 | 123-365 | 3000 | 2000 |
| EP419W3 | 275000 | 161-306 | 2500 | 3000 |
How does the Winch Drive Planetary Gearbox for Construction Elevators Work?
The Winch Drive Planetary Gearbox operates by utilizing a set of gears arranged in a planetary configuration, which allows for high torque and efficient power transmission. The basic structure includes a sun gear, planet gears, and a ring gear. As the motor drives the sun gear, the planet gears rotate around it, transferring motion to the ring gear. This setup not only reduces the speed of the motor’s output but also increases the torque, making it ideal for heavy lifting applications in construction elevators.
