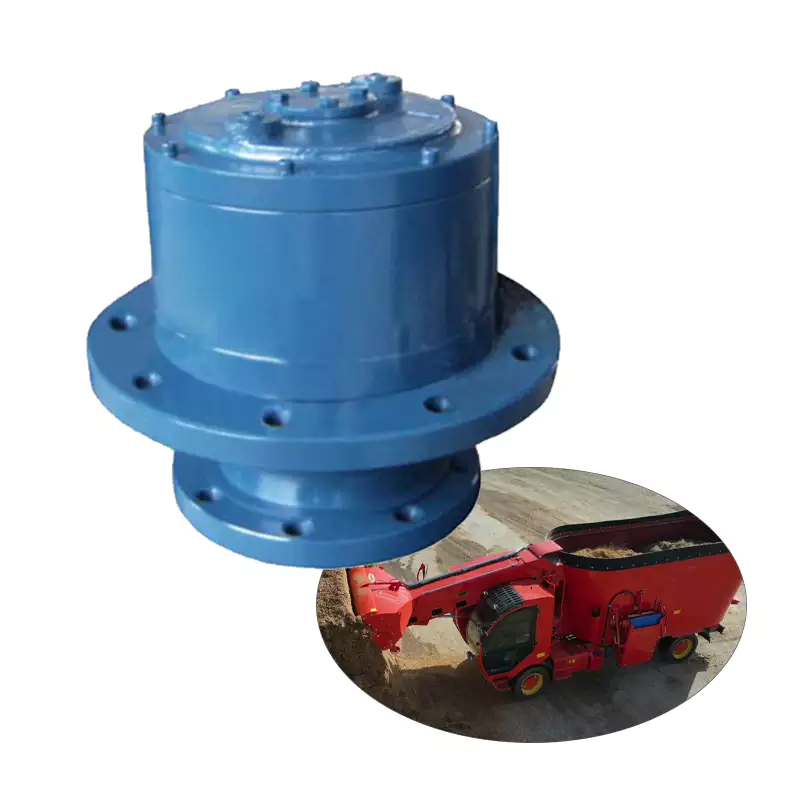

Wheel Drive for Feed Mixer
The Wheel Drive for Feed Mixer is an essential component designed to optimize the mixing process in agricultural settings. It ensures efficient and uniform blending of feed ingredients, enhancing the overall quality and consistency of animal feed. This reliable drive system improves productivity and reduces operational downtime in feed manufacturing.
Wheel Drive for Feed Mixer
The Wheel Drive for Feed Mixer offers enhanced mobility and efficient mixing capabilities, ensuring that feed is evenly blended for optimal nutrition. Its robust design and high torque output make it ideal for both large and small-scale operations, delivering reliability and performance in every mix.
| Specification | Details |
|---|---|
| Output torque range | 1000-60000 N.m |
| Gear ratios | i=5.3-142 |
| Support | The gearbox has rotating housing flanges to fit wheel |
| Applicable motors | Axial piston hydraulic motors, hydraulic orbit motors or others |
| Hydraulic motor options | Pressure relief valve, overcenter valve |
| Bearing | Robust bearing system absorbing the forces exerted by the ring gear |
| Brake | Hydraulically released parking brake |
| Others | EP600L Series wheel drives with manual disconnect application |
| Load capacity | Large radial and axial load capacity due to the use of strong tapered roller bearings |
| Oil seal protection | Reliable oil seal protection, designed according to our field experience |
| Mounting flanges | Universal and SAE input direct mounting flanges |
| Direct mounting | The units are designed for their direct mounting into the wheel rims |
| Interchangeability | Technical data and installation dimension of EP600L Series gearbox are same as those of Rexroth GFT…W Series and Bonfiglioli 600 Series, so these three can be used interchangeably |
| Track drives Type | Max. torque N.m | Range of ratios (i) | Max. Input speed (rpm) | Braking torque (N.m) |
| EP601 L1A | 1750 | 5.77 | 1000 | 450-600 |
| EP603 L2A | 4000 | 19-23-32-40 | 3000 | 210 |
| EP603 L2B | 4000 | 19-23-32-40 | 3000 | 210 |
| EP602 L2 | 5000 | 12.4-25.8 | 3000 | - |
| EP605 L2 | 7000 | 22-27-30-42-53 | 3000 | 220-310 |
| EP606 L2, L3 | 12000 | 30-35-43-68-79 | 3000 | 300-800 |
| EP607 L2, L3 | 17000 | 33-75-108 | 3000 | 300-600 |
| EP609 L2, L3 | 23000 | 33-142 | 3000 | 300-600 |
| EP610 L2, L3 | 30000 | 20-111 | 3000 | 300-800 |
| EP611 L2, L3 | 36000 | 41-47 | 3000 | 300-800 |
| EP613 L3 | 45000 | 108 | 3000 | 300-800 |
| EP615 L3 | 60000 | 108 | 3000 | 300-1000 |
Features and Advantages of Wheel Drive for Feed Mixer
High Reduction Ratio: This feature allows for low-speed, high-torque output, making it suitable for heavy-load applications.
Compact Integrated Design: The compact design saves space by allowing direct installation onto the wheel hub, which simplifies the complexity of the drive system.
Load Distribution: The multi-planetary gear design helps distribute stress effectively, enhancing the durability of the system.
Efficient Transmission: The wheel drive minimizes energy loss, leading to improved overall system efficiency.
Modularity and Customizability: Gear ratios and sizes can be adjusted according to specific load and speed requirements.
Reliability: Designed to withstand harsh environments, making it ideal for outdoor machinery.
Easy Maintenance: Despite its compact structure, the design allows for convenient disassembly for maintenance.
Low Noise and Smooth Operation: The multi-tooth engagement reduces vibration, resulting in quieter and smoother performance.
Selection Considerations for Wheel Drive for Feed Mixer
When selecting a Wheel Drive for your Feed Mixer, several key factors must be considered. Firstly, evaluate the load type: whether it will be static or dynamic, as this directly impacts the drive's performance. Next, consider the working environment, including temperature, humidity, and dust levels, which can affect durability and efficiency. Lastly, think about the installation method, such as flange connection or shaft output, to ensure compatibility with existing systems and ease of maintenance.
Why Choose Our Wheel Drive for Feed Mixer
Choosing our Wheel Drive for Feed Mixer means opting for customized solutions tailored to your specific needs, including gear ratio design and installation methods. Our high-quality manufacturing process utilizes precision machining to ensure low tolerances and extended lifespan, providing you with a reliable product. We also offer comprehensive technical support, including selection guidance and after-sales service, to assist you throughout the process. By reducing the complexity of the drive system, our solution enhances the overall performance and reliability of your equipment, making it a smart investment for your operations.
Maintenance Tips for Wheel Drive for Feed Mixer
Proper maintenance of the wheel drive system is essential for optimal performance. Here are some tips:
- Regularly check and tighten all bolts and fasteners to prevent loosening.
- Inspect the drive belts for wear and replace them if they show signs of damage.
- Lubricate moving parts according to the manufacturer's guidelines to reduce friction.
- Keep the wheel drive clean and free from debris to ensure smooth operation.
- Schedule periodic professional inspections to identify potential issues early.
Wheel Drive Planetary Gearbox Supplier
GBC is the Australian sales agent for Ever-power Group, specializing in high-quality planetary gearboxes. Our Wheel Drive solutions are designed specifically for feed mixers, offering exceptional efficiency and reliability. We understand the unique demands of agricultural machinery, and our products are engineered to deliver optimal performance under various conditions.
At GBC, we pride ourselves on providing customized solutions tailored to meet the specific needs of our clients. Our experienced team is committed to ensuring that our customers receive the best products and services available in the market.
We encourage all potential customers to reach out for customized solutions and make a purchase that will enhance their operational efficiency today!
