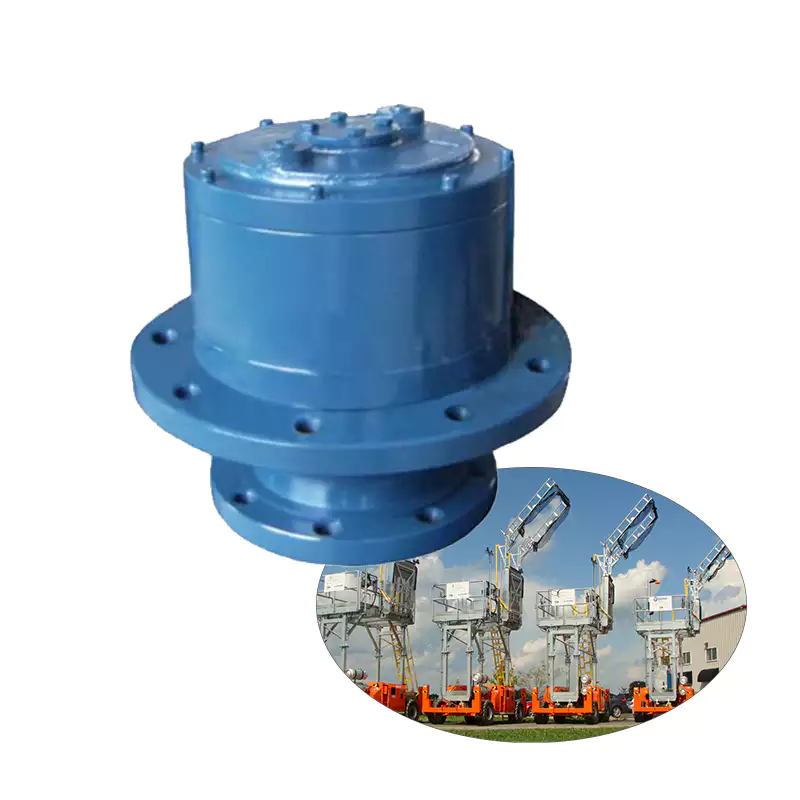

Wheel Drive Planetary Gearbox Reducer for Access Plateform
The Wheel Drive Planetary Gearbox Reducer for Access Platform is a high-performance transmission system designed to enhance the efficiency and torque of access platforms. It enables smooth operation and precise control, making it ideal for elevating heavy loads while ensuring stability and reliability in construction or maintenance tasks.
Wheel Drive Planetary Gearbox Reducer for Access Platform
The Wheel Drive Planetary Gearbox Reducer is designed to enhance the efficiency and performance of access platforms. Its compact design and high torque output ensure reliable operation even in demanding environments.
| Specification | Details |
|---|---|
| Output torque range | 1000-60000 N.m |
| Gear ratios | i=5.3-142 |
| Support | The gearbox has rotating housing flanges to fit wheel |
| Applicable motors | Axial piston hydraulic motors, hydraulic orbit motors or others |
| Hydraulic motor options | Pressure relief valve, overcenter valve |
| Bearing | Robust bearing system absorbing the forces exerted by the ring gear |
| Brake | Hydraulically released parking brake |
| Others | EP600L Series wheel drives with manual disconnect application |
| Load capacity | Large radial and axial load capacity due to the use of strong tapered roller bearings |
| Oil seal protection | Reliable oil seal protection, designed according to our field experience |
| Mounting flanges | Universal and SAE input direct mounting flanges |
| Direct mounting | The units are designed for their direct mounting into the wheel rims |
| Interchangeability | Technical data and installation dimension of EP600L Series gearbox are same as those of Rexroth GFT…W Series and Bonfiglioli 600 Series, so these three can be used interchangeably |
| Track drives Type | Max. torque N.m | Range of ratios (i) | Max. Input speed (rpm) | Braking torque (N.m) |
| EP601 L1A | 1750 | 5.77 | 1000 | 450-600 |
| EP603 L2A | 4000 | 19-23-32-40 | 3000 | 210 |
| EP603 L2B | 4000 | 19-23-32-40 | 3000 | 210 |
| EP602 L2 | 5000 | 12.4-25.8 | 3000 | - |
| EP605 L2 | 7000 | 22-27-30-42-53 | 3000 | 220-310 |
| EP606 L2, L3 | 12000 | 30-35-43-68-79 | 3000 | 300-800 |
| EP607 L2, L3 | 17000 | 33-75-108 | 3000 | 300-600 |
| EP609 L2, L3 | 23000 | 33-142 | 3000 | 300-600 |
| EP610 L2, L3 | 30000 | 20-111 | 3000 | 300-800 |
| EP611 L2, L3 | 36000 | 41-47 | 3000 | 300-800 |
| EP613 L3 | 45000 | 108 | 3000 | 300-800 |
| EP615 L3 | 60000 | 108 | 3000 | 300-1000 |
Features and Advantages of Wheel Drive Planetary Gearbox Reducer for Access Platform
High Reduction Ratio: This feature allows for low-speed, high-torque output, making it ideal for heavy-duty applications.
Compact Integrated Design: The design saves space by allowing direct installation onto the wheel hub, thereby reducing the complexity of the transmission chain.
Load Distribution: The multi-planetary gear design helps to share stress across components, enhancing durability and longevity.
Efficient Transmission: It minimizes energy loss, thus improving overall system efficiency.
Modularity and Customizability: The gearbox can be tailored to specific load and speed requirements by adjusting the gear ratio and size.
Advantages:
Reliability: Designed for harsh environments, such as outdoor machinery, ensuring consistent performance.
Easy Maintenance: The compact structure allows for straightforward disassembly, facilitating quick maintenance.
Low Noise and Stability: The multi-tooth engagement design minimizes vibrations, resulting in quieter operation and smoother performance.
Selection of Wheel Drive Planetary Gearbox Reducer for Access Platform
When selecting a Wheel Drive Planetary Gearbox Reducer for your access platform, consider the type of load it will handle—whether static or dynamic—as this influences the gearbox's durability and performance. Additionally, assess the working environment, focusing on temperature, humidity, and potential dust exposure, as these factors can affect the gearbox's efficiency and lifespan. Finally, choose an appropriate installation method, such as flange connection or shaft output, to ensure optimal compatibility and functionality with your equipment.
Why Choose Our Wheel Drive Planetary Gearbox Reducer for Access Platform
Choosing our Wheel Drive Planetary Gearbox Reducer means opting for tailored solutions designed to meet your specific needs. We offer customized gear ratios and installation methods based on client requirements. Our high-quality manufacturing processes ensure precision machining, resulting in low tolerances and extended lifespan. Additionally, we provide comprehensive technical support, including selection guidance and after-sales service. By simplifying the drive system's complexity, our gearbox enhances overall equipment performance and reliability, making it the ideal choice for your access platform applications.
Maintenance Tips for Wheel Drive Planetary Gearbox Reducer
To ensure optimal performance of your Wheel Drive Planetary Gearbox Reducer, follow these maintenance tips:
- Regularly check and replace lubrication oil to prevent wear and tear.
- Inspect for any signs of leakage or damage in seals and gaskets.
- Maintain clean and debris-free surroundings to avoid contamination.
- Monitor temperature and load conditions to avoid overheating.
- Schedule periodic professional inspections to identify potential issues early.
Wheel Drive Planetary Gearbox Supplier
GBC is the Australian sales agent for Ever-power Group, a leading manufacturer in the field of planetary gearboxes. Our Wheel Drive Planetary Gearbox Reducer for Access Platforms is designed to provide high efficiency and reliability, making it ideal for various industrial applications. These gearboxes offer smooth operation, compact design, and excellent torque transmission, ensuring optimal performance in challenging environments.
We pride ourselves on delivering top-notch products and services tailored to meet the specific needs of our clients. Our team of experts is dedicated to providing customized solutions to enhance your operations. We encourage all customers to reach out for personalized quotes and explore our wide range of products available for purchase.
