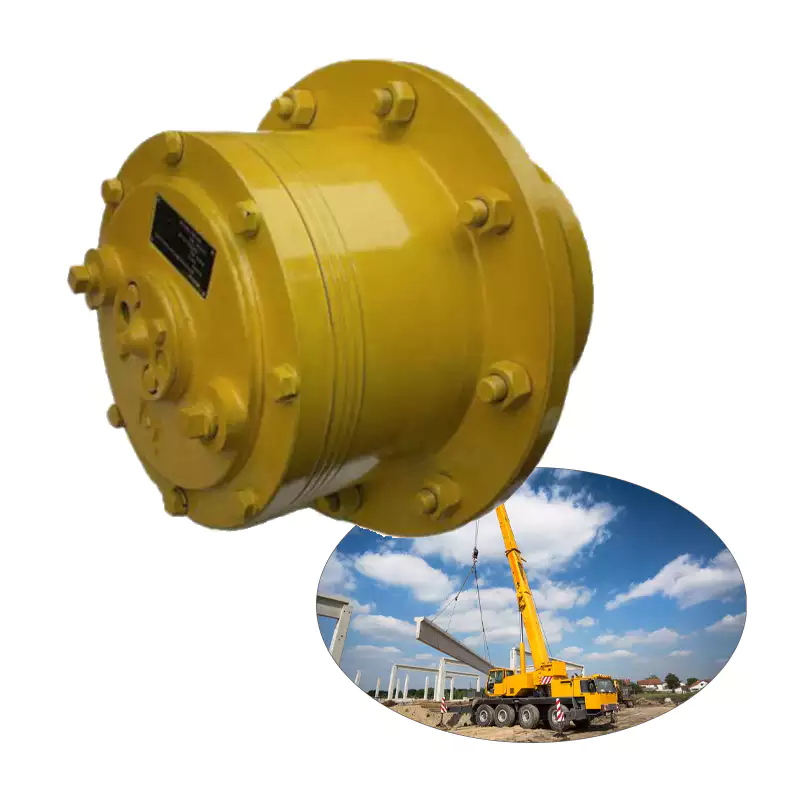

Wheel Drive Planetary Gearbox Reducer for Cranes
The Wheel Drive Planetary Gearbox Reducer for Cranes is designed to enhance torque and reduce speed in crane operations. This innovative gearbox ensures efficient power transmission, allowing cranes to lift heavy loads with precision and stability. Ideal for heavy-duty applications, it significantly improves operational efficiency and reliability in construction and industrial settings.
Wheel Drive Planetary Gearbox Reducer for Cranes
The Wheel Drive Planetary Gearbox Reducer for Cranes offers exceptional torque and efficiency, making it ideal for heavy lifting applications. Its robust design ensures durability and reliability, even under demanding conditions.
Specifications
- Gear Ratio: Customizable
- Input Power: Up to 200 kW
- Output Torque: Up to 100,000 Nm
- Mounting Type: Flange or Foot
- Weight: Varies by model
- Operating Temperature: -20°C to 100°C
| Specification | Details |
|---|---|
| Output torque range | 1000-60000 N.m |
| Gear ratios | i=5.3-142 |
| Support | The gearbox has rotating housing flanges to fit wheel |
| Applicable motors | Axial piston hydraulic motors, hydraulic orbit motors or others |
| Hydraulic motor options | Pressure relief valve, overcenter valve |
| Bearing | Robust bearing system absorbing the forces exerted by the ring gear |
| Brake | Hydraulically released parking brake |
| Others | EP600L Series wheel drives with manual disconnect application |
| Load capacity | Large radial and axial load capacity due to the use of strong tapered roller bearings |
| Oil seal protection | Reliable oil seal protection, designed according to our field experience |
| Mounting flanges | Universal and SAE input direct mounting flanges |
| Direct mounting | The units are designed for their direct mounting into the wheel rims |
| Interchangeability | Technical data and installation dimension of EP600L Series gearbox are same as those of Rexroth GFT…W Series and Bonfiglioli 600 Series, so these three can be used interchangeably |
| Track drives Type | Max. torque N.m | Range of ratios (i) | Max. Input speed (rpm) | Braking torque (N.m) |
| EP601 L1A | 1750 | 5.77 | 1000 | 450-600 |
| EP603 L2A | 4000 | 19-23-32-40 | 3000 | 210 |
| EP603 L2B | 4000 | 19-23-32-40 | 3000 | 210 |
| EP602 L2 | 5000 | 12.4-25.8 | 3000 | - |
| EP605 L2 | 7000 | 22-27-30-42-53 | 3000 | 220-310 |
| EP606 L2, L3 | 12000 | 30-35-43-68-79 | 3000 | 300-800 |
| EP607 L2, L3 | 17000 | 33-75-108 | 3000 | 300-600 |
| EP609 L2, L3 | 23000 | 33-142 | 3000 | 300-600 |
| EP610 L2, L3 | 30000 | 20-111 | 3000 | 300-800 |
| EP611 L2, L3 | 36000 | 41-47 | 3000 | 300-800 |
| EP613 L3 | 45000 | 108 | 3000 | 300-800 |
| EP615 L3 | 60000 | 108 | 3000 | 300-1000 |
Features and Advantages of Wheel Drive Planetary Gearbox Reducer for Cranes
High Reduction Ratio: The gearbox provides low-speed, high-torque output, making it ideal for heavy-load applications.
Compact Integrated Design: This design saves space by allowing direct installation in the wheel hub, simplifying the drive chain.
Load Distribution: The multi-planet gear design distributes stress evenly, enhancing durability and longevity.
Efficient Transmission: It minimizes energy loss, thereby improving overall system efficiency.
Modularity and Customization: The gearbox can be tailored to specific load and speed requirements by adjusting the gear ratio and size.
Reliability: It is suitable for harsh environments, including outdoor machinery.
Easy Maintenance: The compact structure allows for straightforward disassembly and maintenance.
Low Noise and Stability: The multi-tooth engagement reduces vibration, ensuring quieter operation.
Selection
When selecting a Wheel Drive Planetary Gearbox Reducer for cranes, it’s crucial to consider several factors. First, assess the load type: whether it is static or dynamic, as this influences the gearbox's performance and durability. Additionally, evaluate the working environment, including temperature, humidity, and dust levels, which can affect the gearbox's efficiency and lifespan. Lastly, determine the installation method, such as flange connection or shaft output, to ensure compatibility with your crane's design and operational needs.
Why Choose Our Wheel Drive Planetary Gearbox Reducer for Cranes
Choosing our Wheel Drive Planetary Gearbox Reducer for cranes ensures a tailored solution that meets your specific needs. We offer customized services, designing gear ratios and installation methods according to customer requirements. Our high-quality manufacturing process involves precision machining, guaranteeing low tolerances and an extended lifespan. With our technical support, we provide selection guidance and comprehensive after-sales service. Our gearbox reducers effectively simplify the transmission system, enhancing the overall performance and reliability of your equipment, making them an ideal choice for your crane applications.
Maintenance Tips for Wheel Drive Planetary Gearbox Reducer for Cranes
To ensure the longevity and efficient performance of your Wheel Drive Planetary Gearbox Reducer, follow these maintenance tips:
- Regularly check lubricant levels and replace fluids as needed.
- Inspect for wear and tear on gears and bearings frequently.
- Keep the gearbox clean and free from debris to prevent overheating.
- Monitor operating temperatures and listen for unusual noises during operation.
- Schedule periodic professional inspections to catch potential issues early.
Wheel Drive Planetary Gearbox Supplier
GBC is the Australian sales agent for Ever-power Group, specializing in high-quality drive solutions. Our product line includes the Wheel Drive Planetary Gearbox Reducer, designed specifically for cranes and other heavy machinery. These gearboxes offer exceptional efficiency, reliability, and performance under extreme conditions, making them ideal for various industrial applications.
Our commitment to innovation and quality ensures that we provide superior products and services tailored to our clients' needs. We encourage customers to customize their gearbox solutions to meet specific operational requirements, enhancing productivity and reducing downtime. Explore our offerings today and experience the difference that GBC and Ever-power Group can make for your business.
