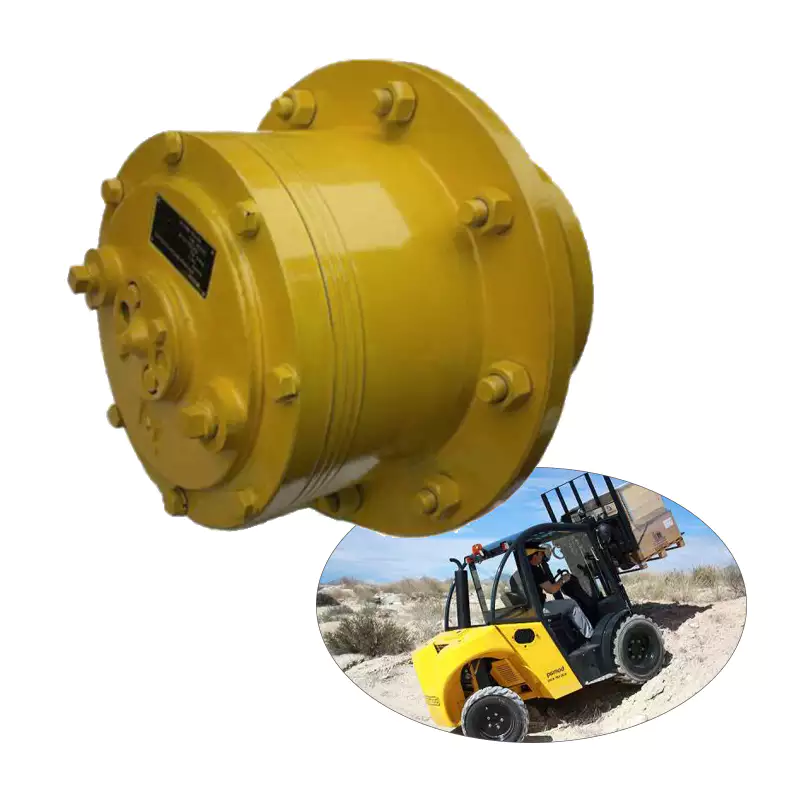

Wheel Drive Planetary Gearbox Reducer for Forklifts
The Wheel Drive Planetary Gearbox Reducer for Forklifts is a high-performance device designed to enhance torque and speed control in forklift applications. This gearbox ensures efficient power transmission, allowing forklifts to operate smoothly and effectively, even under heavy loads, contributing to improved productivity and operational efficiency in warehouses and industrial settings.
Wheel Drive Planetary Gearbox Reducer for Forklifts
The Wheel Drive Planetary Gearbox Reducer for Forklifts is designed to enhance torque and improve operational efficiency, making it ideal for heavy-duty applications. With its robust construction and precision engineering, this gearbox ensures reliable performance and longevity in challenging environments.
| Specification | Details |
|---|---|
| Output torque range | 1000-60000 N.m |
| Gear ratios | i=5.3-142 |
| Support | The gearbox has rotating housing flanges to fit wheel |
| Applicable motors | Axial piston hydraulic motors, hydraulic orbit motors or others |
| Hydraulic motor options | Pressure relief valve, overcenter valve |
| Bearing | Robust bearing system absorbing the forces exerted by the ring gear |
| Brake | Hydraulically released parking brake |
| Others | EP600L Series wheel drives with manual disconnect application |
| Load capacity | Large radial and axial load capacity due to the use of strong tapered roller bearings |
| Oil seal protection | Reliable oil seal protection, designed according to our field experience |
| Mounting flanges | Universal and SAE input direct mounting flanges |
| Direct mounting | The units are designed for their direct mounting into the wheel rims |
| Interchangeability | Technical data and installation dimension of EP600L Series gearbox are same as those of Rexroth GFT…W Series and Bonfiglioli 600 Series, so these three can be used interchangeably |
| Track drives Type | Max. torque N.m | Range of ratios (i) | Max. Input speed (rpm) | Braking torque (N.m) |
| EP601 L1A | 1750 | 5.77 | 1000 | 450-600 |
| EP603 L2A | 4000 | 19-23-32-40 | 3000 | 210 |
| EP603 L2B | 4000 | 19-23-32-40 | 3000 | 210 |
| EP602 L2 | 5000 | 12.4-25.8 | 3000 | - |
| EP605 L2 | 7000 | 22-27-30-42-53 | 3000 | 220-310 |
| EP606 L2, L3 | 12000 | 30-35-43-68-79 | 3000 | 300-800 |
| EP607 L2, L3 | 17000 | 33-75-108 | 3000 | 300-600 |
| EP609 L2, L3 | 23000 | 33-142 | 3000 | 300-600 |
| EP610 L2, L3 | 30000 | 20-111 | 3000 | 300-800 |
| EP611 L2, L3 | 36000 | 41-47 | 3000 | 300-800 |
| EP613 L3 | 45000 | 108 | 3000 | 300-800 |
| EP615 L3 | 60000 | 108 | 3000 | 300-1000 |
Features and Advantages of Wheel Drive Planetary Gearbox Reducer for Forklifts
High Reduction Ratio: Achieves low-speed, high-torque output, making it suitable for heavy-load applications.
Compact Integrated Design: Saves space by directly mounting to the hub, reducing the complexity of the drive chain.
Load Distribution: Multi-planet gear design distributes stress, enhancing durability.
Efficient Transmission: Minimizes energy loss, improving overall system efficiency.
Modularity and Customization: Gear ratios and sizes can be adjusted according to load and speed requirements.
Reliability: Suitable for harsh environments, such as outdoor machinery.
Easy Maintenance: Compact structure allows for easy disassembly.
Low Noise and Smoothness: Multi-tooth engagement reduces vibrations, providing a quieter operation.
Selection of Wheel Drive Planetary Gearbox Reducer for Forklifts
When selecting a Wheel Drive Planetary Gearbox Reducer for forklifts, it is crucial to consider several factors. First, identify the load type, whether static or dynamic, as this will influence the gearbox's performance and lifespan. Next, evaluate the working environment, including temperature, humidity, and dust levels, to ensure the gearbox can operate under those conditions. Additionally, the installation method, such as flange connection or shaft output, should align with your forklift's design for optimal functionality.
Why Choose Our Wheel Drive Planetary Gearbox Reducer for Forklifts
Our Wheel Drive Planetary Gearbox Reducer is the ideal choice for your forklift needs due to our commitment to customization, high-quality manufacturing, and exceptional technical support. We design gear ratios and installation methods tailored to your specific requirements, ensuring optimal performance. Our precision-engineered components guarantee low tolerances and extended lifespan, reducing the complexity of your drive system. With our solutions, you can enhance the overall performance and reliability of your equipment, giving you peace of mind and efficiency in your operations.
Maintenance Tips for Wheel Drive Planetary Gearbox Reducer for Forklifts
Proper maintenance of the wheel drive planetary gearbox reducer is essential for optimal performance and longevity. Here are some tips:
- Regularly check and change the lubricant to ensure smooth operation.
- Inspect for any signs of wear or damage, particularly on gears and seals.
- Keep the gearbox clean and free from debris to prevent overheating.
- Monitor operating temperatures and address any unusual fluctuations immediately.
- Schedule periodic professional inspections to identify potential issues early.
Wheel Drive Planetary Gearbox Supplier
GBC is the Australian sales agent for Ever-power Group, specializing in providing high-quality wheel drive planetary gearboxes. Our products are engineered to meet the demands of various applications, including forklifts, where reliability and efficiency are paramount. The Wheel Drive Planetary Gearbox Reducer for Forklifts is designed to enhance performance, offering superior torque and smooth operation in challenging environments.
We pride ourselves on delivering customized solutions tailored to our customers' specific needs. Our dedicated team is ready to assist you in selecting and designing the ideal gearbox for your operation. We invite all customers to reach out for tailored solutions and to purchase our top-tier products designed for optimal performance.
