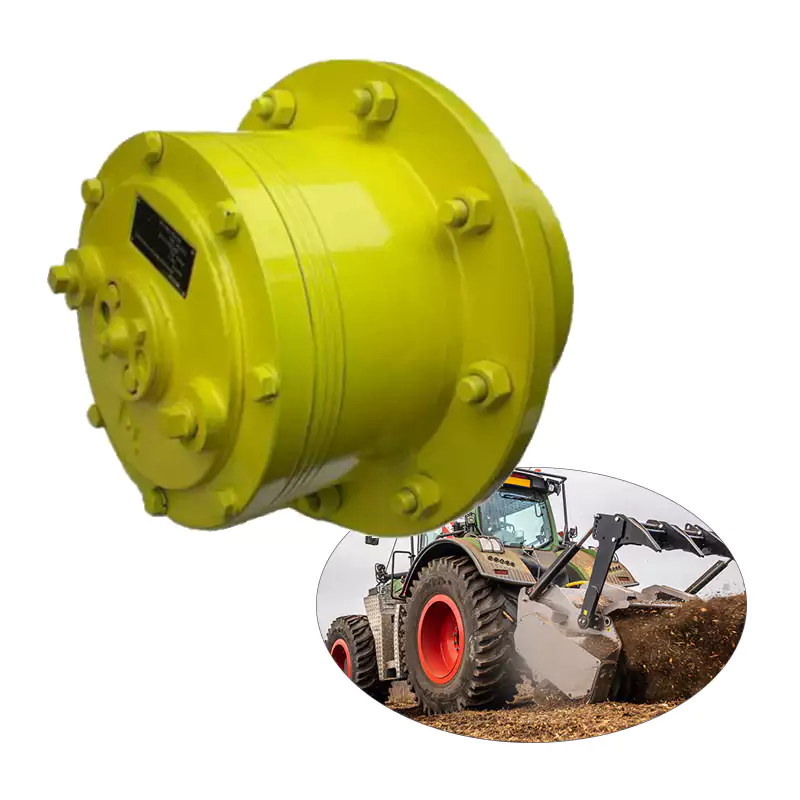

Wheel Drive Planetary Gearbox Reducer for Land Clearing Stone Crusher
The Wheel Drive Planetary Gearbox Reducer is a vital component designed for land clearing stone crushers. It efficiently transfers power and reduces speed, enabling the machinery to handle heavy boulders with ease. This gearbox enhances operational efficiency, ensuring robust performance in tough environments during land clearing tasks.
Wheel Drive Planetary Gearbox Reducer for Land Clearing Stone Crusher
The Wheel Drive Planetary Gearbox Reducer is specifically designed to enhance the efficiency of land clearing stone crushers, offering robust performance and reliability. Its compact design and high torque output ensure optimal power transmission, making it an ideal choice for heavy-duty applications.
Specifications
- Output Torque: Up to 500 Nm
- Gear Ratio: 10:1 to 100:1
- Input Speed: 1500 RPM
- Mounting Type: Flange-mounted
- Operating Temperature: -20°C to +60°C
| Specification | Details |
|---|---|
| Output torque range | 1000-60000 N.m |
| Gear ratios | i=5.3-142 |
| Support | The gearbox has rotating housing flanges to fit wheel |
| Applicable motors | Axial piston hydraulic motors, hydraulic orbit motors or others |
| Hydraulic motor options | Pressure relief valve, overcenter valve |
| Bearing | Robust bearing system absorbing the forces exerted by the ring gear |
| Brake | Hydraulically released parking brake |
| Others | EP600L Series wheel drives with manual disconnect application |
| Load capacity | Large radial and axial load capacity due to the use of strong tapered roller bearings |
| Oil seal protection | Reliable oil seal protection, designed according to our field experience |
| Mounting flanges | Universal and SAE input direct mounting flanges |
| Direct mounting | The units are designed for their direct mounting into the wheel rims |
| Interchangeability | Technical data and installation dimension of EP600L Series gearbox are same as those of Rexroth GFT…W Series and Bonfiglioli 600 Series, so these three can be used interchangeably |
| Track drives Type | Max. torque N.m | Range of ratios (i) | Max. Input speed (rpm) | Braking torque (N.m) |
| EP601 L1A | 1750 | 5.77 | 1000 | 450-600 |
| EP603 L2A | 4000 | 19-23-32-40 | 3000 | 210 |
| EP603 L2B | 4000 | 19-23-32-40 | 3000 | 210 |
| EP602 L2 | 5000 | 12.4-25.8 | 3000 | - |
| EP605 L2 | 7000 | 22-27-30-42-53 | 3000 | 220-310 |
| EP606 L2, L3 | 12000 | 30-35-43-68-79 | 3000 | 300-800 |
| EP607 L2, L3 | 17000 | 33-75-108 | 3000 | 300-600 |
| EP609 |
