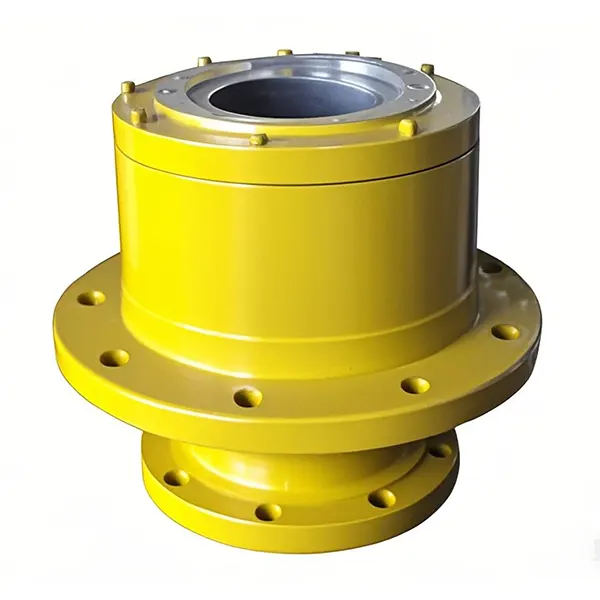

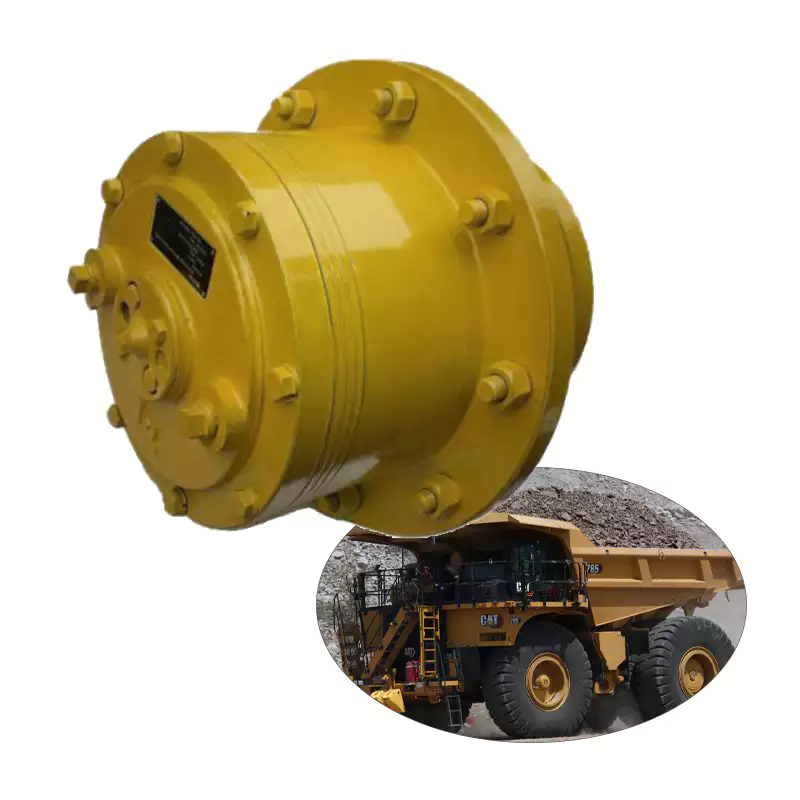

Wheel Drive Planetary Gearbox Reducer for Mining Haul Trucks
The Wheel Drive Planetary Gearbox Reducer for Mining Haul Trucks is a robust mechanical component designed to enhance the torque and efficiency of haul truck operations. It optimally converts motor speed into powerful, controlled movement, making it essential for heavy-load transportation in mining environments, ensuring reliability and performance under extreme conditions.
Wheel Drive Planetary Gearbox Reducer for Mining Haul Trucks
The Wheel Drive Planetary Gearbox Reducer is designed specifically for mining haul trucks, offering enhanced torque and efficiency in demanding environments. Its robust construction ensures durability and reliability, providing optimal performance even under heavy loads.
Specifications
- Gear Ratio: Customizable to meet specific application needs
- Input Power: Up to 500 kW
- Output Torque: Up to 100,000 Nm
- Weight: Varies based on configuration
- Operating Temperature: -40°C to +60°C
| Specification | Details |
|---|---|
| Output torque range | 1000-60000 N.m |
| Gear ratios | i=5.3-142 |
| Support | The gearbox has rotating housing flanges to fit wheel |
| Applicable motors | Axial piston hydraulic motors, hydraulic orbit motors or others |
| Hydraulic motor options | Pressure relief valve, overcenter valve |
| Bearing | Robust bearing system absorbing the forces exerted by the ring gear |
| Brake | Hydraulically released parking brake |
| Others | EP600L Series wheel drives with manual disconnect application |
| Load capacity | Large radial and axial load capacity due to the use of strong tapered roller bearings |
| Oil seal protection | Reliable oil seal protection, designed according to our field experience |
| Mounting flanges | Universal and SAE input direct mounting flanges |
| Direct mounting | The units are designed for their direct mounting into the wheel rims |
| Interchangeability | Technical data and installation dimension of EP600L Series gearbox are same as those of Rexroth GFT…W Series and Bonfiglioli 600 Series, so these three can be used interchangeably |
| Track drives Type | Max. torque N.m | Range of ratios (i) | Max. Input speed (rpm) | Braking torque (N.m) |
| EP601 L1A | 1750 | 5.77 | 1000 | 450-600 |
| EP603 L2A | 4000 | 19-23-32-40 | 3000 | 210 |
| EP603 L2B | 4000 | 19-23-32-40 | 3000 | 210 |
| EP602 L2 | 5000 | 12.4-25.8 | 3000 | - |
| EP605 L2 | 7000 | 22-27-30-42-53 | 3000 | 220-310 |
| EP606 L2, L3 | 12000 | 30-35-43-68-79 | 3000 | 300-800 |
| EP607 L2, L3 | 17000 | 33-75-108 | 3000 | 300-600 |
| EP609 L2, L3 | 23000 | 33-142 | 3000 | 300-600 |
| EP610 L2, L3 | 30000 | 20-111 | 3000 | 300-800 |
| EP611 L2, L3 | 36000 | 41-47 | 3000 | 300-800 |
| EP613 L3 | 45000 | 108 | 3000 | 300-800 |
| EP615 L3 | 60000 | 108 | 3000 | 300-1000 |
Features and Advantages of Wheel Drive Planetary Gearbox Reducer for Mining Haul Trucks
High Reduction Ratio: This gearbox achieves low-speed, high-torque output, making it ideal for heavy-duty applications.
Compact Integrated Design: Designed to save space, it can be directly installed in the wheel hub, reducing the complexity of the transmission chain.
Load Distribution: The multi-planet gear design distributes stress evenly, enhancing durability and performance.
Efficient Transmission: It minimizes energy losses, boosting the overall efficiency of the system.
Modularity and Customization: The gearbox can be tailored to meet specific load and speed requirements by adjusting gear ratios and sizes.
Advantages:
Reliability: Built to withstand harsh environments, making it suitable for outdoor machinery.
Ease of Maintenance: The compact structure allows for quick disassembly and maintenance.
Low Noise and Stability: Multi-tooth engagement reduces vibrations, resulting in quieter operation.
Selection of Wheel Drive Planetary Gearbox Reducer for Mining Haul Trucks
When selecting a Wheel Drive Planetary Gearbox Reducer for Mining Haul Trucks, it is crucial to consider several factors. First, assess the load type, differentiating between static and dynamic loads, as this impacts the gearbox's durability and performance. Additionally, the working environment must be evaluated, including temperature, humidity, and dust levels, which can affect lubrication and component longevity. Finally, installation methods such as flange connections or shaft outputs should align with the specific requirements of your truck design to ensure optimal integration and functionality.
Why Choose Our Wheel Drive Planetary Gearbox Reducer for Mining Haul Trucks
Choosing our Wheel Drive Planetary Gearbox Reducer means opting for tailored solutions that meet specific customer requirements in gear ratio and installation methods. Our high-quality manufacturing ensures precision machining, resulting in low tolerances and extended lifespan. We also offer comprehensive technical support, including selection guidance and after-sales service, to ensure optimal performance. By simplifying the drive system's complexity, our gearbox enhances the overall performance and reliability of your equipment, making it an ideal choice for demanding mining applications.
Maintenance Tips for Wheel Drive Planetary Gearbox Reducer for Mining Haul Trucks
Proper maintenance of the wheel drive system is crucial for optimal performance. Here are key tips:
- Regularly check and change the gearbox oil to ensure smooth operation.
- Inspect seals and gaskets for wear and tear to prevent leaks.
- Keep the system clean and free from debris to avoid overheating.
- Monitor for unusual noises or vibrations, addressing issues promptly.
- Perform routine lubrication of moving parts to enhance longevity.
Wheel Drive Planetary Gearbox Supplier
GBC is the Australian sales agent for Ever-power Group, a leading manufacturer in the field of planetary gearboxes. Our Wheel Drive Planetary Gearbox Reducer is specifically designed for mining haul trucks, providing exceptional durability and performance under the most demanding conditions. These gearboxes are engineered to maximize efficiency and minimize downtime, ensuring that your operations run smoothly.
We pride ourselves on our commitment to quality and customer satisfaction, offering tailored solutions to meet the unique needs of each client. Whether you require standard models or custom designs, our expert team is ready to assist you in selecting the ideal gearbox for your application.
We invite customers to explore our products and services, and to consider custom solutions that will enhance their operational efficiency. Don't hesitate to reach out for inquiries or to place an order!
