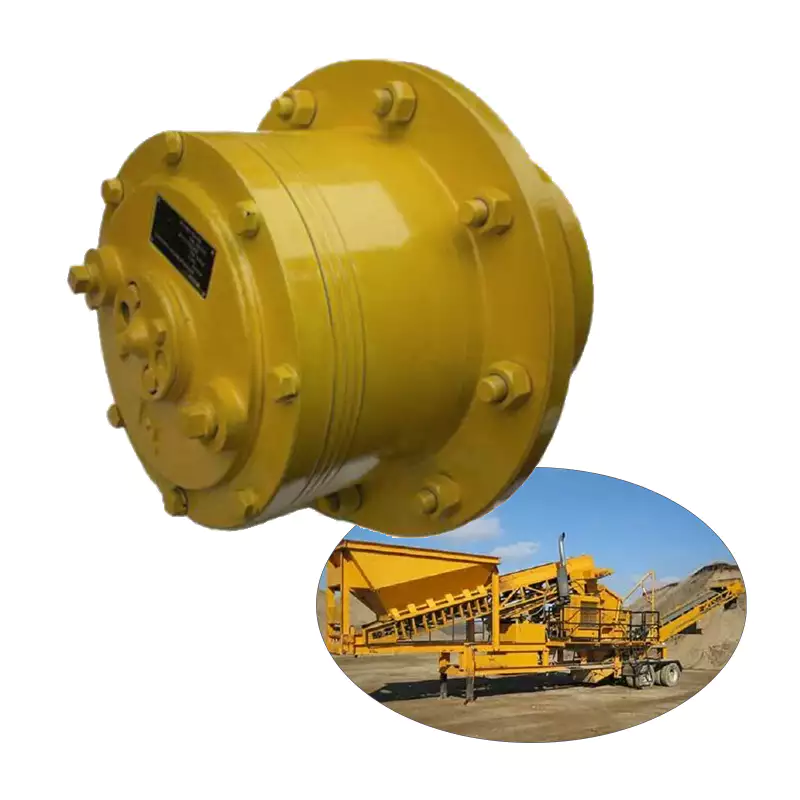

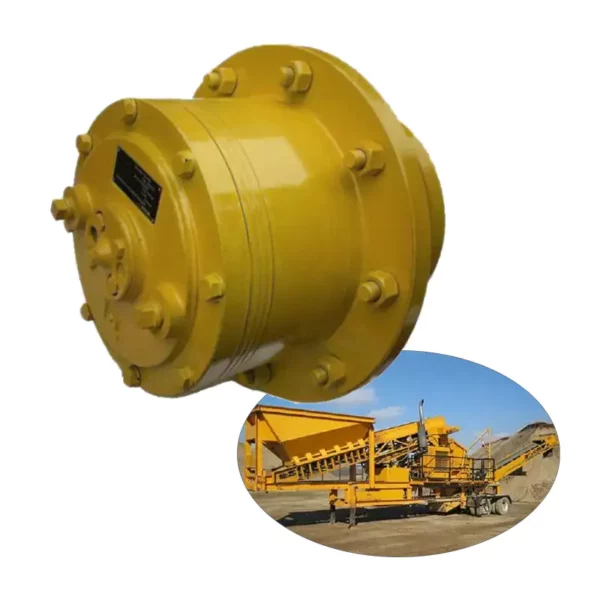

Wheel Drive Planetary Gearbox Reducer for Mobile Crushing and Screening Plants
The Wheel Drive Planetary Gearbox Reducer is designed for mobile crushing and screening plants, offering efficient torque transmission and enhanced performance. Its robust construction ensures durability under demanding conditions, enabling reliable operation of crushers and screens in various terrains, ultimately improving the overall productivity of the plant.
Wheel Drive Planetary Gearbox Reducer for Mobile Crushing and Screening Plants
The Wheel Drive Planetary Gearbox Reducer is designed to provide high torque and efficiency, making it ideal for mobile crushing and screening applications. Its robust construction ensures durability and reliability in demanding environments, enhancing overall operational performance.
Specifications
- Input Power: Up to 100 kW
- Reduction Ratio: 5:1 to 100:1
- Output Torque: Up to 20,000 Nm
- Operating Temperature: -20°C to +60°C
- Weight: Varies based on configuration
| Specification | Details |
|---|---|
| Output torque range | 1000-60000 N.m |
| Gear ratios | i=5.3-142 |
| Support | The gearbox has rotating housing flanges to fit wheel |
| Applicable motors | Axial piston hydraulic motors, hydraulic orbit motors or others |
| Hydraulic motor options | Pressure relief valve, overcenter valve |
| Bearing | Robust bearing system absorbing the forces exerted by the ring gear |
| Brake | Hydraulically released parking brake |
| Others | EP600L Series wheel drives with manual disconnect application |
| Load capacity | Large radial and axial load capacity due to the use of strong tapered roller bearings |
| Oil seal protection | Reliable oil seal protection, designed according to our field experience |
| Mounting flanges | Universal and SAE input direct mounting flanges |
| Direct mounting | The units are designed for their direct mounting into the wheel rims |
| Interchangeability | Technical data and installation dimension of EP600L Series gearbox are same as those of Rexroth GFT…W Series and Bonfiglioli 600 Series, so these three can be used interchangeably |
| Track drives Type | Max. torque N.m | Range of ratios (i) | Max. Input speed (rpm) | Braking torque (N.m) |
| EP601 L1A | 1750 | 5.77 | 1000 | 450-600 |
| EP603 L2A | 4000 | 19-23-32-40 | 3000 | 210 |
| EP603 L2B | 4000 | 19-23-32-40 | 3000 | 210 |
| EP602 L2 | 5000 | 12.4-25.8 | 3000 | - |
| EP605 L2 | 7000 | 22-27-30-42-53 | 3000 | 220-310 |
| EP606 L2, L3 | 12000 | 30-35-43-68-79 | 3000 | 300-800 |
| EP607 L2, L3 | 17000 | 33-75-108 | 3000 | 300-600 |
| EP609 L2, L3 | 23000 | 33-142 | 3000 | 300-600 |
| EP610 L2, L3 | 30000 | 20-111 | 3000 | 300-800 |
| EP611 L2, L3 | 36000 | 41-47 | 3000 | 300-800 |
