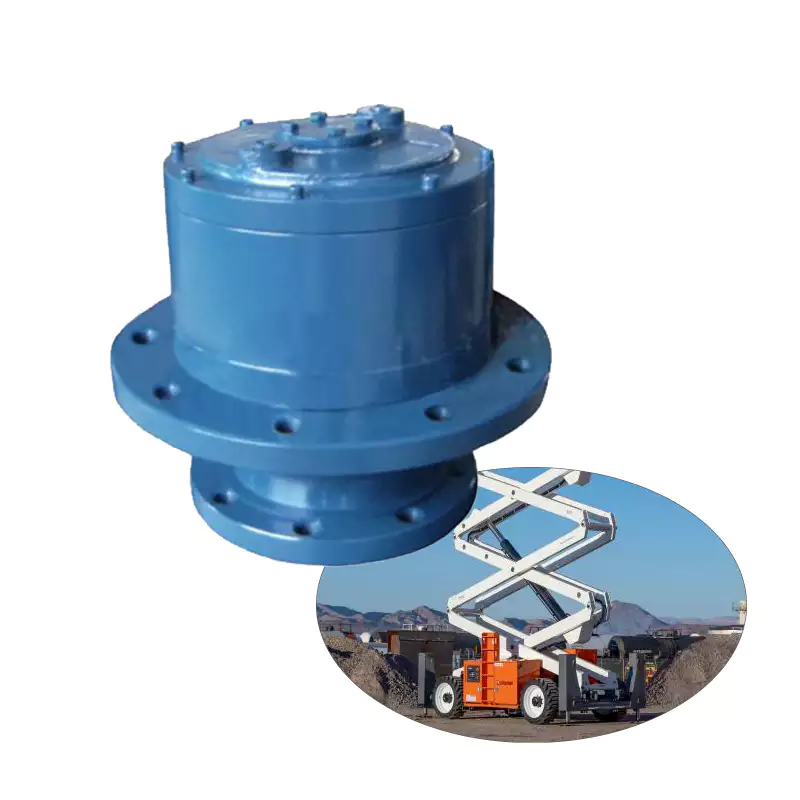

Wheel Drive Planetary Gearbox Reducer for Rough Terrain Scissor Lift
The Wheel Drive Planetary Gearbox Reducer is designed for rough terrain scissor lifts, providing reliable torque and speed reduction. This robust gearbox ensures optimal power transfer and greater stability on uneven surfaces, enhancing lift performance and safety in challenging environments, making it ideal for construction and industrial applications.
Wheel Drive Planetary Gearbox Reducer for Rough Terrain Scissor Lift
The Wheel Drive Planetary Gearbox Reducer is specifically designed to enhance the performance of rough terrain scissor lifts, providing superior torque and efficiency. Its robust construction ensures reliability and durability in challenging environments, making it an ideal choice for heavy-duty applications.
Specifications
| Specification | Details |
|---|---|
| Output torque range | 1000-60000 N.m |
| Gear ratios | i=5.3-142 |
| Support | The gearbox has rotating housing flanges to fit wheel |
| Applicable motors | Axial piston hydraulic motors, hydraulic orbit motors or others |
| Hydraulic motor options | Pressure relief valve, overcenter valve |
| Bearing | Robust bearing system absorbing the forces exerted by the ring gear |
| Brake | Hydraulically released parking brake |
| Others | EP600L Series wheel drives with manual disconnect application |
| Load capacity | Large radial and axial load capacity due to the use of strong tapered roller bearings |
| Oil seal protection | Reliable oil seal protection, designed according to our field experience |
| Mounting flanges | Universal and SAE input direct mounting flanges |
| Direct mounting | The units are designed for their direct mounting into the wheel rims |
| Interchangeability | Technical data and installation dimension of EP600L Series gearbox are same as those of Rexroth GFT…W Series and Bonfiglioli 600 Series, so these three can be used interchangeably |
| Track drives Type | Max. torque N.m | Range of ratios (i) | Max. Input speed (rpm) | Braking torque (N.m) |
| EP601 L1A | 1750 | 5.77 | 1000 | 450-600 |
| EP603 L2A | 4000 | 19-23-32-40 | 3000 | 210 |
| EP603 L2B | 4000 | 19-23-32-40 | 3000 | 210 |
| EP602 L2 | 5000 | 12.4-25.8 | 3000 | - |
| EP605 L2 | 7000 | 22-27-30-42-53 | 3000 | 220-310 |
| EP606 L2, L3 | 12000 | 30-35-43-68-79 | 3000 | 300-800 |
| EP607 L2, L3 | 17000 | 33-75-108 | 3000 | 300-600 |
| EP609 L2, L3 | 23000 | 33-142 | 3000 | 300-600 |
| EP610 L2, L3 | 30000 | 20-111 | 3000 | 300-800 |
| EP611 L2, L3 | 36000 | 41-47 | 3000 | 300-800 |
| EP613 L3 | 45000 | 108 | 3000 | 300-800 |
| EP615 L3 | 60000 | 108 | 3000 | 300-1000 |
Features and Advantages of Wheel Drive Planetary Gearbox Reducer for Rough Terrain Scissor Lift
High Reduction Ratio: Achieves low-speed, high-torque output, making it suitable for heavy load applications.
Compact Integrated Design: Saves space by allowing direct installation on the wheel hub, reducing the complexity of the drive chain.
Load Distribution: Multi-planet gear design distributes stress, enhancing durability and reliability.
Efficient Transmission: Minimizes energy losses, improving the overall system efficiency.
Modularity and Customization: Gear ratios and sizes can be adjusted according to load and speed requirements.
Advantages:
- Reliability: Designed for harsh environments, such as outdoor machinery.
- Easy Maintenance: Compact structure allows for easy disassembly.
- Low Noise and Stability: Multi-tooth engagement reduces vibrations for smoother operation.
Selection of Wheel Drive Planetary Gearbox Reducer for Rough Terrain Scissor Lift
When selecting a Wheel Drive Planetary Gearbox Reducer for a rough terrain scissor lift, it's essential to consider various factors that impact performance and durability. First, assess the load type; whether static or dynamic loads will be applied can influence gearbox specifications. Next, evaluate the working environment, including temperature, humidity, and dust levels, as these conditions can affect the gearbox's lifespan and efficiency. Additionally, determine the installation method, such as flange connection or shaft output, to ensure compatibility with your lift design.
Why Choose Our Wheel Drive Planetary Gearbox Reducer for Rough Terrain Scissor Lift?
Choosing our Wheel Drive Planetary Gearbox Reducer means opting for tailored solutions that meet your specific needs. We offer customized services, designing gear ratios and installation methods that align with your requirements. Our high-quality manufacturing processes ensure precision machining, resulting in low tolerances and extended product lifespan. We provide comprehensive technical support, including selection guidance and after-sales service. By reducing drivetrain complexity, our gearbox enhances the overall performance and reliability of your equipment, making it an ideal choice for rough terrain applications.
Maintenance Tips for Wheel Drive Planetary Gearbox Reducer
To ensure optimal performance of your Wheel Drive Planetary Gearbox Reducer, follow these maintenance tips:
- Regularly inspect the gearbox for any signs of wear or damage.
- Check and replace the lubricant as per the manufacturer's guidelines to prevent overheating.
- Ensure all connections and seals are secure to avoid leakage.
- Clean the exterior to prevent dirt accumulation that can lead to overheating.
- Schedule periodic professional inspections to detect potential issues early.
Wheel Drive Planetary Gearbox Supplier
GBC is the Australian sales agent for Ever-power Group, specializing in high-quality wheel drive planetary gearboxes. Our products are designed for various applications, including the Wheel Drive Planetary Gearbox Reducer for Rough Terrain Scissor Lifts, which ensures enhanced performance and durability in challenging environments. These gearboxes offer efficient power transmission, compact design, and robust construction, making them ideal for heavy-duty machinery.
We pride ourselves on providing exceptional customer service and tailored solutions to meet your specific needs. We encourage customers to customize and purchase our products to enhance the efficiency and reliability of their equipment.
