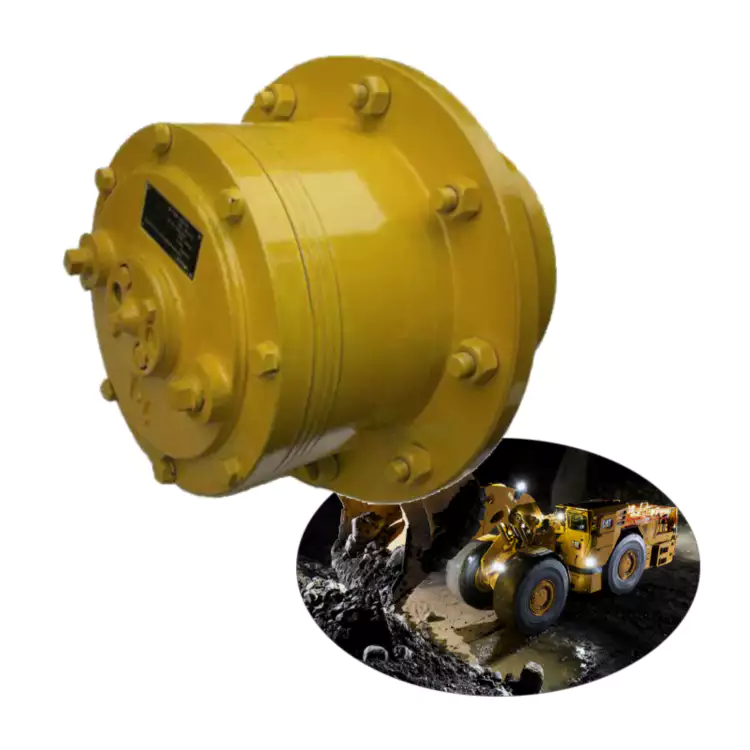

Wheel Drive Planetary Gearbox Reducer for Underground Loaders / Lhds, Load-Haul-Dump Machines
The Wheel Drive Planetary Gearbox Reducer is designed specifically for underground loaders and Load-Haul-Dump (LHD) machines. This high-performance gearbox enhances torque transmission, allowing for efficient operation in confined spaces. Its robust design ensures durability and reliability, making it essential for optimizing the performance of heavy machinery in underground mining operations.
Wheel Drive Planetary Gearbox Reducer for Underground Loaders / Lhds, Load-Haul-Dump Machines
This Wheel Drive Planetary Gearbox Reducer is designed specifically for underground loaders and LHDs, providing exceptional torque and efficiency. Its robust construction ensures reliability in harsh mining environments, enhancing the performance of Load-Haul-Dump machines.
| Specification | Details |
|---|---|
| Output torque range | 1000-60000 N.m |
| Gear ratios | i=5.3-142 |
| Support | The gearbox has rotating housing flanges to fit wheel |
| Applicable motors | Axial piston hydraulic motors, hydraulic orbit motors or others |
| Hydraulic motor options | Pressure relief valve, overcenter valve |
| Bearing | Robust bearing system absorbing the forces exerted by the ring gear |
| Brake | Hydraulically released parking brake |
| Others | EP600L Series wheel drives with manual disconnect application |
| Load capacity | Large radial and axial load capacity due to the use of strong tapered roller bearings |
| Oil seal protection | Reliable oil seal protection, designed according to our field experience |
| Mounting flanges | Universal and SAE input direct mounting flanges |
| Direct mounting | The units are designed for their direct mounting into the wheel rims |
| Interchangeability | Technical data and installation dimension of EP600L Series gearbox are same as those of Rexroth GFT…W Series and Bonfiglioli 600 Series, so these three can be used interchangeably |
| Track drives Type | Max. torque N.m | Range of ratios (i) | Max. Input speed (rpm) | Braking torque (N.m) |
| EP601 L1A | 1750 | 5.77 | 1000 | 450-600 |
| EP603 L2A | 4000 | 19-23-32-40 | 3000 | 210 |
| EP603 L2B | 4000 | 19-23-32-40 | 3000 | 210 |
| EP602 L2 | 5000 | 12.4-25.8 | 3000 | - |
| EP605 L2 | 7000 | 22-27-30-42-53 | 3000 | 220-310 |
| EP606 L2, L3 | 12000 | 30-35-43-68-79 | 3000 | 300-800 |
| EP607 L2, L3 | 17000 | 33-75-108 | 3000 | 300-600 |
| EP609 L2, L3 | 23000 | 33-142 | 3000 | 300-600 |
| EP610 L2, L3 | 30000 | 20-111 | 3000 | 300-800 |
| EP611 L2, L3 | 36000 | 41-47 | 3000 | 300-800 |
| EP613 L3 | 45000 | 108 | 3000 | 300-800 |
| EP615 L3 | 60000 | 108 | 3000 | 300-1000 |
Features and Advantages of Wheel Drive Planetary Gearbox Reducer for Underground Loaders / LHDs, Load-Haul-Dump Machines
High Reduction Ratio: Achieves low-speed, high-torque output, making it suitable for heavy-load applications.
Compact Integrated Design: Saves space by being directly mounted on the wheel hub, reducing the complexity of the drive chain.
Load Distribution: Multi-planet gear design helps to distribute stress, enhancing durability.
Efficient Transmission: Minimizes energy loss, improving the overall system efficiency.
Modular and Customizable: Gear ratios and sizes can be adjusted based on load and speed requirements.
Advantages:
Reliability: Designed to withstand harsh environments, ideal for outdoor machinery.
Easy Maintenance: Compact structure allows for easy disassembly.
Low Noise and Smoothness: Multi-tooth engagement reduces vibration, ensuring quiet operation.
Selection
When selecting a Wheel Drive Planetary Gearbox Reducer for underground loaders and LHDs, it's crucial to consider several factors. First, evaluate the load type: static or dynamic, as this influences the gearbox's durability and performance. Next, assess the working environment, including temperature, humidity, and dust levels, to ensure the gearbox can withstand harsh conditions. Lastly, consider the installation method, whether flange connection or shaft output, to facilitate proper integration with your machine. Each of these factors plays a vital role in ensuring optimal functionality and longevity of the gearbox.
Why Choose Our Wheel Drive Planetary Gearbox Reducer?
Choosing our Wheel Drive Planetary Gearbox Reducer for Underground Loaders / LHDs ensures you receive a product tailored to your specific needs. We offer customized services, designing gear ratios and installation methods based on your requirements. Our high-quality manufacturing processes include precision machining, guaranteeing low tolerances and extended lifespan. With our expert technical support, you will benefit from selection guidance and reliable after-sales service. Our gearbox reducers simplify the drive system complexity, enhancing your equipment's overall performance and reliability, making them the ideal choice for Load-Haul-Dump machines.
Maintenance Tips for Wheel Drive Planetary Gearbox Reducer
To ensure optimal performance of your Wheel Drive Planetary Gearbox Reducer, follow these maintenance tips:
- Regularly check and change the lubricant according to the manufacturer's specifications to prevent wear.
- Inspect seals and gaskets for any leaks and replace them as necessary.
- Monitor operating temperatures; excessive heat can indicate issues.
- Ensure that all mounting bolts are tightened to the recommended torque.
- Conduct routine inspections for wear on gears and bearings, replacing parts as needed.
Wheel Drive Planetary Gearbox Supplier
GBC is the Australian sales agent for Ever-power Group, specializing in high-quality wheel drive planetary gearboxes. Our products are particularly designed for underground loaders and Load-Haul-Dump (LHD) machines, ensuring optimal performance and reliability in challenging environments. The Wheel Drive Planetary Gearbox Reducer we offer is engineered to handle heavy loads and provide exceptional torque, making it an ideal solution for the mining and construction industries.
We pride ourselves on delivering customized solutions to meet the unique needs of our clients. Whether you require specific modifications or a standard gearbox, our team is ready to assist you in finding the perfect fit for your machinery. We invite all potential customers to reach out for bespoke designs and to explore our extensive range of products.
