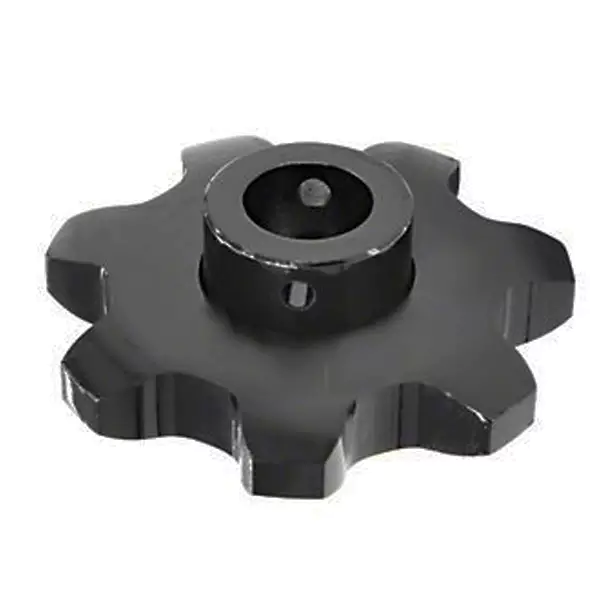

1317192C1 Sprocket for Case-IH Combine Grain Handling Parts
The 1317192C1 sprocket serves as a replacement chain drive compatible with Case IH Combine models. It is designed for both the upper and lower clean grain augers in combines such as the 1640, 1644, 1660, 1666, 1670, 1680, 1688, 2144, 2166, 2344, and 2366. Additionally, it fits the lower clean grain auger of the 1682 model and the upper clean grain auger of the 2188 and 2388 models. This sprocket is also applicable to the Case-IH Forage Harvester 2144, making it a versatile part for efficient grain handling.
Specifications of 1317192C1 Sprocket
| Weight, W | kg | 1.5 |
|---|---|---|
| Inner diameter, d | mm | 35 |
| Outer diameter, D | mm | 132 |
| Number of teeth, Z | 9 | |
| Pitch, p | mm | 41.4 |
| Height, H | mm | 57 |
| Outside diameter, D1 | mm | 50 |
| Key slot | mm | 4x8x57 |
Features of the 1317192C1 Sprocket for Case-IH Combine Grain Handling Parts
- High-quality construction for enhanced durability and longevity.
- Precision-engineered to ensure optimal performance in grain handling operations.
- Compatible with various Case-IH combine models for versatile applications.
- Easy installation, reducing downtime and improving efficiency.
Installation Steps for 1317192C1 Sprocket for Case-IH Combine Grain Handling Parts
Installing the 1317192C1 sprocket requires careful attention to detail. Follow these steps:
- Preparation: Ensure the combine is powered off and secured. Gather necessary tools.
- Remove the old sprocket: Loosen bolts and carefully detach the old sprocket from the shaft.
- Inspect the shaft: Check for wear or damage before installing the new sprocket.
- Install the new sprocket: Align the new sprocket on the shaft and tighten bolts to the manufacturer's specifications.
- Test the installation: Rotate the sprocket manually to ensure it operates smoothly.
Regular maintenance checks are recommended to ensure optimal performance.
Manufacturing Process of the 1317192C1 Sprocket for Case-IH Combine Grain Handling Parts
The manufacturing process of the 1317192C1 sprocket involves several key steps:
- Material Selection: High-quality steel is chosen for durability and strength.
- Machining: The steel is precisely cut and shaped using advanced CNC machines to achieve the required dimensions.
- Heat Treatment: The sprocket undergoes heat treatment to enhance its ha
