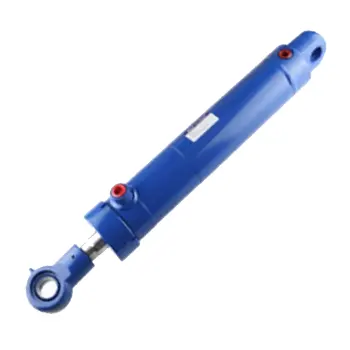

HSG Engineering Hydraulic Cylinder
HSG engineering hydraulic cylinder is a kind of double acting single piston rod hydraulic cylinder, which has the characteristics of compact structure, stable performance and strong bearing capacity. It is widely used in various engineering machinery, construction machinery, metallurgical machinery and other fields. HSG type engineering hydraulic cylinder models are mainly divided into HSGL series and HSGK series, which are suitable for external connection and internal connection application scenarios respectively. The specification parameters include cylinder diameter, rod diameter, stroke and working pressure, etc., which can be reasonably selected according to the actual needs of the equipment.
Engineering Hydraulic Cylinder Specifications
1. The speed ratio is the ratio of the effective area of the piston chamber to the effective area of the piston rod chamber.
2. The maximum stroke is, in principle, S=8D for speed ratio=1.33, S=10D for speed ratio=1.45, and S=12D for speed ratio=2.
| Model | Bore | Working Pressure | Withstand Voltage | Temperature Range |
| GBC | φ40-250 | 16MPa | 24MPa | -10 - +60(โ) |
HSG engineering hydraulic cylinders are double-acting single piston-rod hydraulic cylinders. The installation method mostly adopts earring type. According to the connection of the cylinder head and cylinder body, there are three kinds of connection: external thread connection, internal key connection, and flange connection. Engineering hydraulic cylinders are mainly used in engineering machinery, heavy machinery, lifting machinery, mining machinery, and other hydraulic systems.
Front and Rear Earring Styles Available
Tail single earring installation is suitable for the piston rod end work process along the same plane of motion as curved motion. The piston rod will be along an actual plane of motion on both sides of the path of not more than 3° conditions or structural design needs of the single earring installation conditions; at this time, you can use the tail and rod end of the spherical bearing mounting but should pay attention to spherical bearing mounting allowed to withstand the pressure load.
Engineering Hydraulic Cylinder Features
- Precision Engineering: Our Engineering Hydraulic Cylinder is crafted with the utmost precision, ensuring consistent performance and reliability in demanding industrial applications.
- Diverse Configurations: We offer a wide range of cylinder configurations, including single-acting, double-acting, telescopic, and custom options, allowing you to choose the perfect solution for your specific requirements.
- Robust Construction: These hydraulic cylinders are constructed using durable materials such as high-strength steel, which provides exceptional resistance to wear, corrosion, and heavy loads.
- Seamless Operation: With advanced hydraulic technology, our cylinders provide smooth and precise movement, reducing friction and minimizing energy consumption.
- Customization: Our Engineering Hydraulic Cylinders can be tailored to meet your exact specifications, including bore size, stroke length, mounting options, and more.
Advantages of Engineering Hydraulic Cylinder
- Improved Productivity: Our cylinders enhance machine efficiency and productivity, reducing downtime and maintenance costs.
- Longevity: Thanks to their robust construction, our cylinders have a longer service life, ensuring a solid return on investment.
- Versatility: These cylinders are suitable for various industries, including construction, agriculture, mining, and manufacturing, making them highly versatile.
- Expertise and Support: Our team of engineers and technical experts are ready to assist you in selecting the right cylinder for your application, ensuring optimal performance.
Production Process Flow of GBC Engineering Hydraulic Cylinder
Engineering Hydraulic Cylinder Application
Most of this engineering hydraulic cylinder is used in the hydraulic system of engineering machinery, heavy machinery, lifting machinery, and mining machinery, but not limited to the above. The working pressure is 16Mpa.
When the cylinder force is relatively large (such as 20 tons), the stroke is relatively long (such as 2 meters), and the tie rod type cylinder is not suitable for use because of the limitations of the screw rod force, you can choose engineering cylinders to replace.
Because of the engineering cylinder's higher pressure and the reason for the manufacturing process, the material cost and processing cost are higher than the tie rod type cylinder.
Why Choose GBC Engineering Hydraulic Cylinder?
- Quality Assurance: We have a stringent quality control process in place, ensuring that each Engineering Hydraulic Cylinder meets or exceeds industry standards.
- Competitive Pricing: Our products are competitively priced, offering exceptional value without compromising on quality.
- Prompt Delivery: We understand the importance of timely delivery, and we work diligently to ensure your orders are fulfilled promptly and efficiently.
- Customer-Centric Approach: Our customer service team is dedicated to providing personalized support, addressing your inquiries and concerns promptly.
- Global Presence: We have a strong global presence, allowing us to serve customers worldwide, backed by a network of distributors and service centers.
Feel free to contact us now!
Additional information
| Edited by | Sylvia |
|---|
HSG engineering hydraulic cylinder is a kind of double acting single piston rod hydraulic cylinder, which has the characteristics of compact structure, stable performance and strong bearing capacity. It is widely used in various engineering machinery, construction machinery, metallurgical machinery and other fields. HSG type engineering hydraulic cylinder models are mainly divided into HSGL series and HSGK series, which are suitable for external connection and internal connection application scenarios respectively. The specification parameters include cylinder diameter, rod diameter, stroke and working pressure, etc., which can be reasonably selected according to the actual needs of the equipment.
