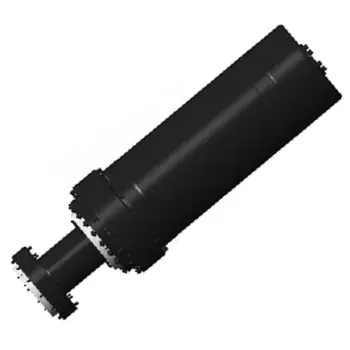

Side Cylinder for Press Machine
The side cylinder of the press mainly plays the role of supporting and guiding the movement of the piston rod in the press. It is usually used in conjunction with the master cylinder to ensure that the piston rod can maintain stable linear motion during the pressing process. The precision and wear resistance of the side cylinder of the press are of great significance to ensure the pressing accuracy and service life of the press.
Details of Slide Cylinder for Press Machine
| Slide Cylinder | |
| Features | Provides thrust for the press alongside the master cylinder |
| Specification | Plunger 420mm-1000mm Stroke≤4500mm |
| Thrust force | Maximum 24.7MN (Plunger 1000mm/pressure 31.5MPa) |
Side Cylinder for Press Machine Introduction
A side cylinder for a press machine functions as a hydraulic cylinder mounted on the side of the press frame. It applies force to the workpiece from the side, as opposed to from above or below, making it suitable for various applications, including:
- Forming: Side cylinders aid in forming sheet metal into intricate shapes, such as vehicle body panels or aircraft fuselages.
- Stamping: These cylinders are employed to stamp parts from sheet metal, including washers, nuts, and bolts.
- Forging: Side cylinders are utilized to forge metal components, such as crankshafts and connecting rods.
- Extrusion: They can also extrude metal parts like pipes and tubes.
Features of Slide Cylinder for Press Machine
A slide cylinder, also referred to as a slide or ram, is an essential element in press machines, especially in metalworking and manufacturing. Its features are crucial for the efficiency and accuracy of these machines. Key features of a slide cylinder for press machines include:
- Adjustable Stroke Length: These cylinders offer adjustable stroke lengths, allowing operators to customize movement according to task requirements, essential for various materials and applications.
- High Precision: Slide cylinders are designed for precise and repeatable movements, achieving tight tolerances to ensure fabricated workpieces meet desired specifications.
- Variable Speed Control: The ability to control the slide's movement speed aids in managing different workpiece materials and shapes, optimizing production efficiency.
- Force and Pressure Management: Engineered to deliver controlled force and pressure, these cylinders can be adjusted to apply necessary force without damaging materials or machinery.
- Safety Features: Modern slide cylinders include safety features such as overload protection and emergency stop mechanisms to prevent accidents and safeguard operators and equipment.
- Durability: Built for industrial environments, slide cylinders are made from robust materials and undergo rigorous quality control to ensure longevity and reliability.
- Compatibility: Designed to be compatible with various press machine types, slide cylinders are versatile components suitable for diverse manufacturing processes.
Hydraulic Press Cylinders Manufacturer - Ever-power Group
At Ever-power Group, we pride ourselves on delivering high-quality hydraulic cylinders that cater to a diverse range of industrial applications. Our hydraulic press cylinders are engineered for precision and reliability, ensuring optimal performance in demanding environments. We understand the unique requirements of our clients, which is why we offer customized solutions, including non-standard cylinders with a diameter of D360MM and a stroke length of L6000MM. Our Australian sales agent, GBC, is dedicated to providing local support and expertise to our customers, making it easier to access our exceptional products. We encourage clients to bring their designs or samples to us for bespoke cylinder solutions that meet their specific needs. With a commitment to excellence, Ever-power Group is your trusted partner for hydraulic technology.
Additional information
| Edited by | Sylvia |
|---|
The side cylinder of the press mainly plays the role of supporting and guiding the movement of the piston rod in the press. It is usually used in conjunction with the master cylinder to ensure that the piston rod can maintain stable linear motion during the pressing process. The precision and wear resistance of the side cylinder of the press are of great significance to ensure the pressing accuracy and service life of the press.
Hydraulic Press Cylinder Reviews
Isla Moreno – Process Engineer
These hydraulic press cylinders have been part of our extrusion line for five months. They push 200-bar pressure consistently, and the rod extension aligns perfectly with our dies. The seals hold up under high temps—around 60°C—which was a problem with our last brand. We had to tweak the flow rate initially to avoid jerky starts, but now it’s smooth. The supplier’s tech support walked us through it over the phone. They’re a good fit for continuous use.
