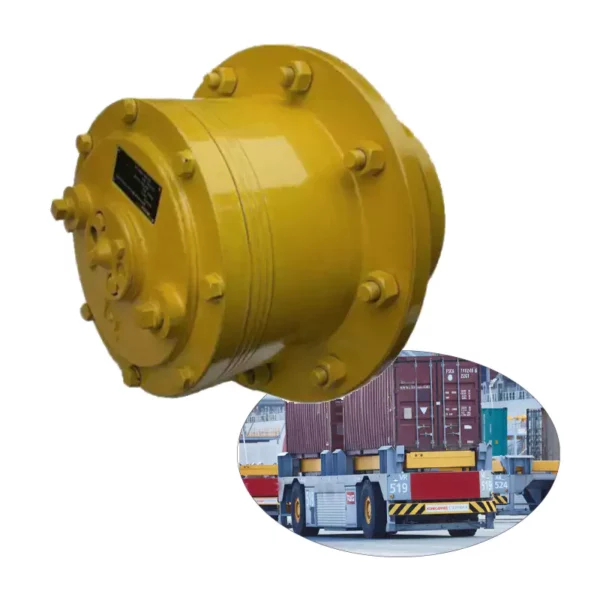

Wheel Drive Planetary Gearbox Reducer for Automated Guided Vehicles, Agvs
The Wheel Drive Planetary Gearbox Reducer is designed for Automated Guided Vehicles (AGVs), providing efficient power transmission and torque reduction. This essential component enables AGVs to navigate smoothly and accurately in various environments, enhancing their performance in material handling and automation tasks.
Wheel Drive Planetary Gearbox Reducer for Automated Guided Vehicles, Agvs
The Wheel Drive Planetary Gearbox Reducer is specifically designed for optimal performance in automated guided vehicles (AGVs), ensuring precise control and efficiency in movement. Its compact design and high torque output make it an ideal choice for enhancing the operational capabilities of AGVs in various environments.
Specifications
- Gear Ratio: 10:1 to 100:1
- Input Speed: Up to 5000 RPM
- Torque Capacity: Up to 500 Nm
- Operating Temperature: -20°C to 80°C
- Weight: 5 kg
- Material: High-strength aluminum alloy
| Specification | Details |
|---|---|
| Output torque range | 1000-60000 N.m |
| Gear ratios | i=5.3-142 |
| Support | The gearbox has rotating housing flanges to fit wheel |
| Applicable motors | Axial piston hydraulic motors, hydraulic orbit motors or others |
| Hydraulic motor options | Pressure relief valve, overcenter valve |
| Bearing | Robust bearing system absorbing the forces exerted by the ring gear |
| Brake | Hydraulically released parking brake |
| Others | EP600L Series wheel drives with manual disconnect application |
| Load capacity | Large radial and axial load capacity due to the use of strong tapered roller bearings |
| Oil seal protection | Reliable oil seal protection, designed according to our field experience |
| Mounting flanges | Universal and SAE input direct mounting flanges |
| Direct mounting | The units are designed for their direct mounting into the wheel rims |
| Interchangeability | Technical data and installation dimension of EP600L Series gearbox are same as those of Rexroth GFT…W Series and Bonfiglioli 600 Series, so these three can be used interchangeably |
| Track drives Type | Max. torque N.m | Range of ratios (i) | Max. Input speed (rpm) | Braking torque (N.m) |
| EP601 L1A | 1750 | 5.77 | 1000 | 450-600 |
| EP603 L2A | 4000 | 19-23-32-40 | 3000 | 210 |
| EP603 L2B | 4000 | 19-23-32-40 | 3000 | 210 |
| EP602 L2 | 5000 | 12.4-25.8 | 3000 | - |
| EP605 L2 | 7000 | 22-27-30-42-53 | 3000 | 220-310 |
| EP606 L2, L3 | 12000 | 30-35-43-68-79 | 3000 | 300-800 |
| EP607 L2, L3 | 1 |
