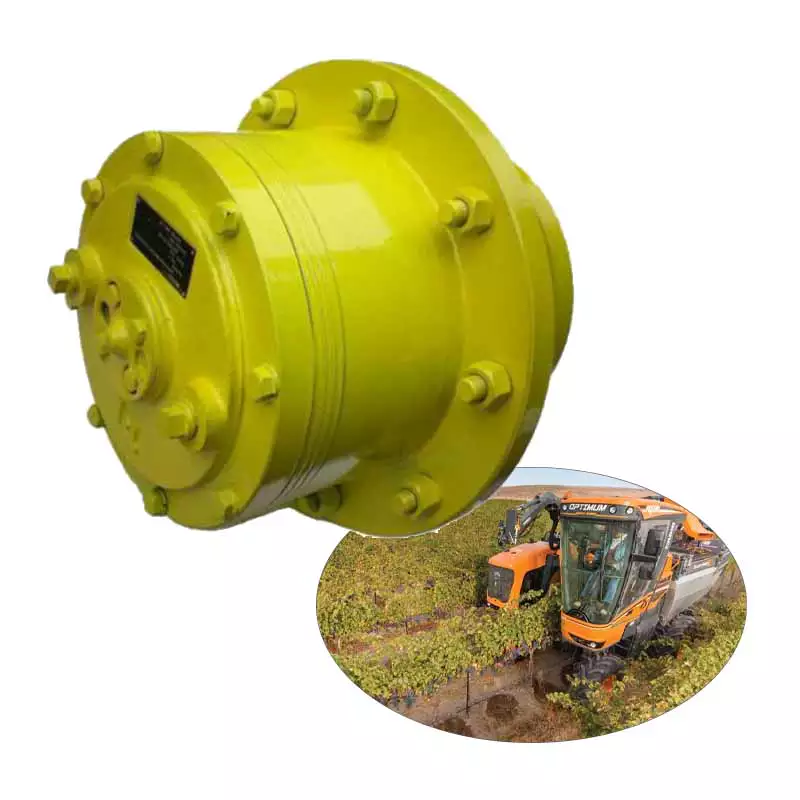

Wheel Drive Planetary Gearbox Reducer for Grape Harvester
The Wheel Drive Planetary Gearbox Reducer for Grape Harvester is a robust mechanical component designed to enhance the efficiency of grape harvesting machines. By reducing the speed and increasing the torque, it ensures optimal power transmission, enabling the harvester to navigate vineyards effectively and perform the harvesting process with precision and reliability.
Wheel Drive Planetary Gearbox Reducer for Grape Harvester
The Wheel Drive Planetary Gearbox Reducer is designed specifically for grape harvesters, ensuring optimal torque and efficiency during operation. Its robust construction and compact design enhance durability, making it an essential component for reliable agricultural machinery.
Specifications
| Specification | Details |
|---|---|
| Output torque range | 1000-60000 N.m |
| Gear ratios | i=5.3-142 |
| Support | The gearbox has rotating housing flanges to fit wheel |
| Applicable motors | Axial piston hydraulic motors, hydraulic orbit motors or others |
| Hydraulic motor options | Pressure relief valve, overcenter valve |
| Bearing | Robust bearing system absorbing the forces exerted by the ring gear |
| Brake | Hydraulically released parking brake |
| Others | EP600L Series wheel drives with manual disconnect application |
| Load capacity | Large radial and axial load capacity due to the use of strong tapered roller bearings |
| Oil seal protection | Reliable oil seal protection, designed according to our field experience |
| Mounting flanges | Universal and SAE input direct mounting flanges |
| Direct mounting | The units are designed for their direct mounting into the wheel rims |
| Interchangeability | Technical data and installation dimension of EP600L Series gearbox are same as those of Rexroth GFT…W Series and Bonfiglioli 600 Series, so these three can be used interchangeably |
| Track drives Type | Max. torque N.m | Range of ratios (i) | Max. Input speed (rpm) | Braking torque (N.m) |
| EP601 L1A | 1750 | 5.77 | 1000 | 450-600 |
| EP603 L2A | 4000 | 19-23-32-40 | 3000 | 210 |
| EP603 L2B | 4000 | 19-23-32-40 | 3000 | 210 |
| EP602 L2 | 5000 | 12.4-25.8 | 3000 | - |
| EP605 L2 | 7000 | 22-27-30-42-53 | 3000 | 220-310 |
| EP606 L2, L3 | 12000 | 30-35-43-68-79 | 3000 | 300-800 |
| EP607 L2, L3 | 17000 | 33-75-108 | 3000 | 300-600 |
| EP609 L2, L3 | 23000 | 33-142 | 3000 | 300-600 |
| EP610 L2, L3 | 30000 | 20-111 | 3000 | 300-800 |
| EP611 L2, L3 | 36000 | 41-47 | 3000 | 300-800 |
| EP613 L3 | 45000 | 108 | 3000 | 300-800 |
| EP615 L3 | 60000 | 108 | 3000 | 300-1000 |
Features and Advantages of Wheel Drive Planetary Gearbox Reducer for Grape Harvester
High Reduction Ratio: Achieves low-speed, high-torque output, making it suitable for heavy-duty applications.
Compact Integrated Design: Saves space by allowing direct installation on the wheel hub, reducing the complexity of the drive chain.
Load Distribution: Multi-planet gear design distributes stress, enhancing durability and reliability.
Efficient Transmission: Minimizes energy loss, improving overall system efficiency and performance.
Modularity and Customization: Gear ratios and sizes can be adjusted based on load and speed requirements, providing flexibility.
Advantages:
- Reliability: Suitable for harsh environments, such as outdoor machinery.
- Easy Maintenance: Compact structure allows for straightforward disassembly and servicing.
- Low Noise and Smooth Operation: Multi-tooth engagement reduces vibration, ensuring quiet and stable performance.
Selection Considerations for Wheel Drive Planetary Gearbox Reducer for Grape Harvester
When selecting a Wheel Drive Planetary Gearbox Reducer for your grape harvester, it's crucial to consider several factors. Firstly, identify the load type—static or dynamic—as this will impact the gearbox's performance and durability. Additionally, evaluate the working environment, including temperature, humidity, and dust levels, to ensure the gearbox can withstand harsh conditions. Lastly, consider the installation method, whether flange connection or shaft output, to ensure compatibility with your equipment. These considerations are vital for optimal efficiency and longevity of the reducer.
Why Choose Our Wheel Drive Planetary Gearbox Reducer for Grape Harvester
Choosing our Wheel Drive Planetary Gearbox Reducer means investing in a tailored solution that meets your specific needs. We offer customized services, designing gear ratios and installation methods based on client requirements. Our products are manufactured with high precision, ensuring low tolerances and extended service life. We provide comprehensive technical support, including selection guidance and after-sales service, simplifying your drive system while enhancing overall performance and reliability. Trust our gearbox reducer to optimize your grape harvesting equipment for maximum efficiency and durability.
Maintenance Tips for Wheel Drive Planetary Gearbox Reducer for Grape Harvester
To ensure optimal performance of the Wheel Drive Planetary Gearbox Reducer, follow these maintenance tips:
- Regularly check and change the lubricant to prevent overheating and wear.
- Inspect the seals and gaskets for leaks to avoid contamination.
- Clean the gearbox housing to prevent debris accumulation.
- Periodically check for unusual noises or vibrations indicating potential issues.
- Ensure proper alignment and tightening of all mounting hardware.
Wheel Drive Planetary Gearbox Supplier
GBC is the Australian sales agent for the Ever-power Group, specializing in high-quality planetary gearboxes. Our Wheel Drive Planetary Gearbox Reducer for Grape Harvesters is designed to provide efficient power transmission and reliability, ideal for the unique demands of agricultural machinery. We offer a range of products tailored to meet the specific needs of our clients, ensuring optimal performance in various applications.
We encourage all customers to customize and purchase our state-of-the-art gearboxes to enhance their operations. With our commitment to quality and customer satisfaction, GBC is your trusted partner in the industry.
