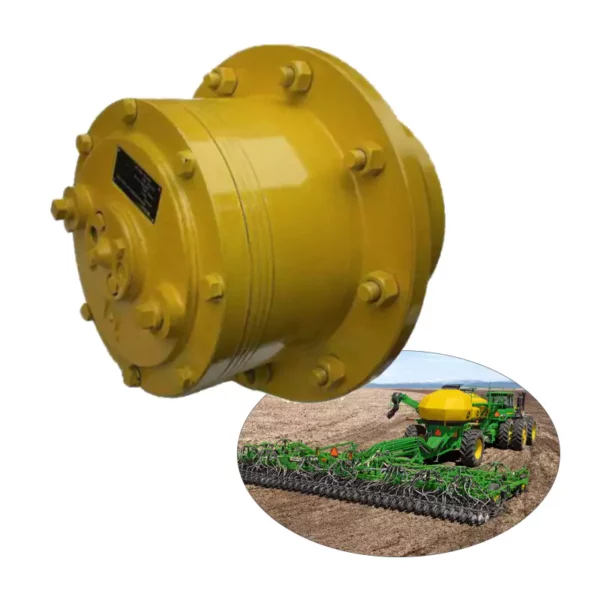

Wheel Drive Planetary Gearbox Reducer for Seeder Planter
The Wheel Drive Planetary Gearbox Reducer for Seeder Planter is an essential component designed to enhance the efficiency of seed planting machinery. It reduces the rotational speed while increasing torque, allowing for precise seed placement and improved soil penetration, ensuring optimal planting performance in agricultural applications.
Wheel Drive Planetary Gearbox Reducer for Seeder Planter
The Wheel Drive Planetary Gearbox Reducer is designed to enhance the efficiency of seeder planters by providing high torque output in a compact design. Its advanced planetary gearing system ensures smooth operation and durability, making it an essential component for precision planting.
Specifications
- Gear Ratio: [Insert Gear Ratio]
- Power Input: [Insert Power Input]
- Output Torque: [Insert Output Torque]
- Weight: [Insert Weight]
- Dimensions: [Insert Dimensions]
| Specification | Details |
|---|---|
| Output torque range | 1000-60000 N.m |
| Gear ratios | i=5.3-142 |
| Support | The gearbox has rotating housing flanges to fit wheel |
| Applicable motors | Axial piston hydraulic motors, hydraulic orbit motors or others |
| Hydraulic motor options | Pressure relief valve, overcenter valve |
| Bearing | Robust bearing system absorbing the forces exerted by the ring gear |
| Brake | Hydraulically released parking brake |
| Others | EP600L Series wheel drives with manual disconnect application |
| Load capacity | Large radial and axial load capacity due to the use of strong tapered roller bearings |
| Oil seal protection | Reliable oil seal protection, designed according to our field experience |
| Mounting flanges | Universal and SAE input direct mounting flanges |
| Direct mounting | The units are designed for their direct mounting into the wheel rims |
| Interchangeability | Technical data and installation dimension of EP600L Series gearbox are same as those of Rexroth GFT…W Series and Bonfiglioli 600 Series, so these three can be used interchangeably |
| Track drives Type | Max. torque N.m | Range of ratios (i) | Max. Input speed (rpm) | Braking torque (N.m) |
| EP601 L1A | 1750 | 5.77 | 1000 | 450-600 |
| EP603 L2A | 4000 | 19-23-32-40 | 3000 | 210 |
| EP603 L2B | 4000 | 19-23-32-40 | 3000 | 210 |
| EP602 L2 | 5000 | 12.4-25.8 | 3000 | - |
| EP605 L2 | 7000 | 22-27-30-42-53 | 3000 | 220-310 |
| EP606 L2, L3 | 12000 | 30-35-43-68-79 | 3000 | 300-800 |
| EP607 L2, L3 | 17000 | 33-75-108 | 3000 | 300-600 |
| EP609 L2, L3 | 23000 | 33-142 | 3000 | 300-600 |
| EP610 L2, L3 | 30000 | 20-111 | 3000 | 300-800 |
| EP611 L2, L3 | 36000 | 41-47 | 3000 | 300-800 |
| EP613 L3 | 45000 | 108 | 3000 | 300-800 |
| EP615 L3 | 60000 | 108 | 3000 | 300-1000 |
Features and Advantages of Wheel Drive Planetary Gearbox Reducer for Seeder Planter
High Reduction Ratio: Achieves low-speed, high-torque output, making it suitable for heavy-duty applications.
Compact Integrated Design: Saves space by allowing direct installation in the wheel hub, reducing the complexity of the transmission chain.
Load Distribution: Multi-planet gear design distributes stress, enhancing durability.
Efficient Transmission: Minimizes energy loss, improving the overall system efficiency.
Modularity and Customization: Gear ratios and sizes can be adjusted based on load and speed requirements.
Advantages:
Reliability: Suitable for harsh environments, such as outdoor machinery.
Easy Maintenance: Compact structure allows for straightforward disassembly.
Low Noise and Stability: Multi-tooth engagement reduces vibration, ensuring smoother operation.
Selection
When selecting a Wheel Drive Planetary Gearbox Reducer for a Seeder Planter, it is crucial to consider several factors. First, identify the load type, whether static or dynamic, as this will impact performance and durability. Assess the working environment, including temperature range, humidity levels, and exposure to dust, as these conditions can affect the gearbox's efficiency. Additionally, determine the installation method required, such as flange connection or shaft output, to ensure compatibility with your machinery, thereby enhancing operational reliability and longevity.
Why Choose Our Wheel Drive Planetary Gearbox Reducer for Seeder Planter
Choosing our Wheel Drive Planetary Gearbox Reducer ensures tailored solutions to meet your specific needs, with customized gear ratios and installation designs. Our high-quality manufacturing process involves precision machining, guaranteeing low tolerances and extended lifespan. We also provide comprehensive technical support, including selection guidance and after-sales service, to enhance user experience. By reducing the complexity of the drive system, our gearbox improves the overall performance and reliability of your equipment, making it an ideal choice for modern seeder planters.
Maintenance Tips for Wheel Drive Planetary Gearbox Reducer for Seeder Planter
Maintaining your wheel drive planetary gearbox reducer is essential for optimal performance. Here are some key tips:
- Regularly check and change the lubricant to prevent overheating.
- Inspect for any wear or damage in the gears and seals.
- Keep the unit clean and free from debris to ensure efficient operation.
- Lubricate moving parts as recommended by the manufacturer.
- Monitor for unusual noises or vibrations that may indicate issues.
Wheel Drive Planetary Gearbox Supplier
GBC is the Australian sales agent for Ever-power Group, a leading manufacturer in the field of gearbox solutions. Our Wheel Drive Planetary Gearbox Reducer for Seeder Planter is engineered for optimum performance, ensuring that agricultural machinery operates smoothly and efficiently. These gearboxes are designed to handle high torque and provide excellent durability, making them ideal for various seeding and planting applications.
We pride ourselves on offering customized solutions tailored to the specific needs of our clients, ensuring that you get the best performance from your equipment. Our professional team is ready to assist you in selecting the right gearbox for your requirements.
We encourage all customers to reach out for tailored solutions and to make a purchase that will enhance your operational efficiency. Invest in quality with GBC today!
