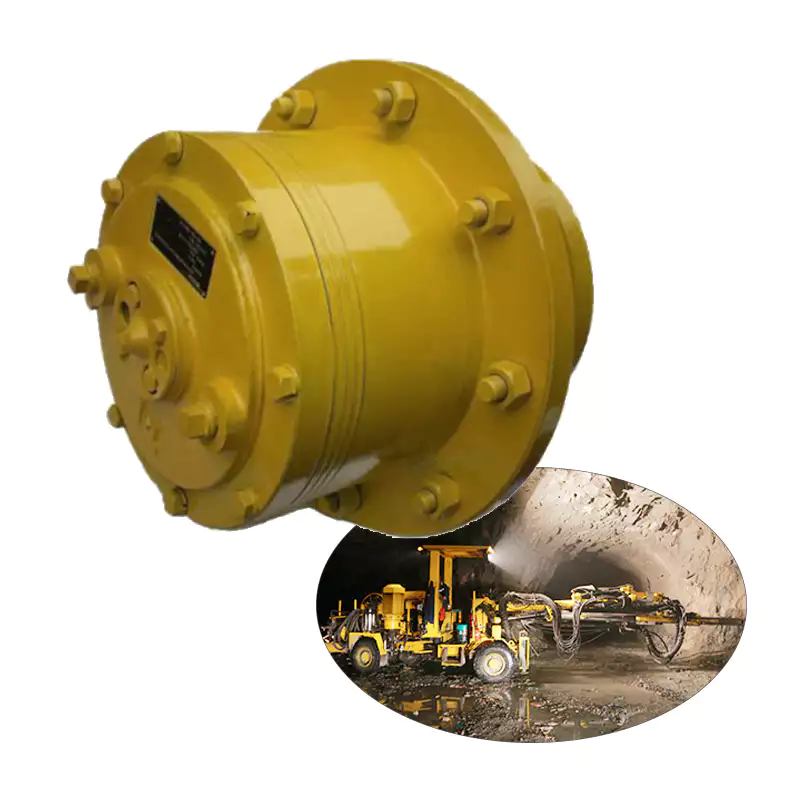

Wheel Drive Planetary Gearbox Reducer for Underground Drilling Jumbos
The Wheel Drive Planetary Gearbox Reducer is designed for underground drilling jumbos, providing efficient torque transmission and reducing motor speed to enhance performance. This robust gearbox ensures optimal power delivery, enabling precise drilling operations in challenging subterranean environments, thus improving productivity and operational reliability.
Wheel Drive Planetary Gearbox Reducer for Underground Drilling Jumbos
The Wheel Drive Planetary Gearbox Reducer is designed specifically for underground drilling jumbos, offering enhanced torque and efficiency. Its compact design and robust construction ensure reliable performance in the harshest mining environments.
Specifications
| Specification | Details |
|---|---|
| Output torque range | 1000-60000 N.m |
| Gear ratios | i=5.3-142 |
| Support | The gearbox has rotating housing flanges to fit wheel |
| Applicable motors | Axial piston hydraulic motors, hydraulic orbit motors or others |
| Hydraulic motor options | Pressure relief valve, overcenter valve |
| Bearing | Robust bearing system absorbing the forces exerted by the ring gear |
| Brake | Hydraulically released parking brake |
| Others | EP600L Series wheel drives with manual disconnect application |
| Load capacity | Large radial and axial load capacity due to the use of strong tapered roller bearings |
| Oil seal protection | Reliable oil seal protection, designed according to our field experience |
| Mounting flanges | Universal and SAE input direct mounting flanges |
| Direct mounting | The units are designed for their direct mounting into the wheel rims |
| Interchangeability | Technical data and installation dimension of EP600L Series gearbox are same as those of Rexroth GFT…W Series and Bonfiglioli 600 Series, so these three can be used interchangeably |
| Track drives Type | Max. torque N.m | Range of ratios (i) | Max. Input speed (rpm) | Braking torque (N.m) |
| EP601 L1A | 1750 | 5.77 | 1000 | 450-600 |
| EP603 L2A | 4000 | 19-23-32-40 | 3000 | 210 |
| EP603 L2B | 4000 | 19-23-32-40 | 3000 | 210 |
| EP602 L2 | 5000 | 12.4-25.8 | 3000 | - |
| EP605 L2 | 7000 | 22-27-30-42-53 | 3000 | 220-310 |
| EP606 L2, L3 | 12000 | 30-35-43-68-79 | 3000 | 300-800 |
| EP607 L2, L3 | 17000 | 33-75-108 | 3000 | 300-600 |
| EP609 L2, L3 | 23000 | 33-142 | 3000 | 300-600 |
| EP610 L2, L3 | 30000 | 20-111 | 3000 | 300-800 |
| EP611 L2, L3 | 36000 | 41-47 | 3000 | 300-800 |
| EP613 L3 | 45000 | 108 | 3000 | 300-800 |
| EP615 L3 | 60000 | 108 | 3000 | 300-1000 |
Features and Advantages of Wheel Drive Planetary Gearbox Reducer for Underground Drilling Jumbos
High Reduction Ratio: Achieves low-speed, high-torque output, making it suitable for heavy-duty applications.
Compact Integrated Design: Saves space by allowing direct installation on the wheel hub, reducing the complexity of the drive chain.
Load Distribution: Multi-planet gear design shares stress, enhancing durability and reliability.
Efficient Transmission: Minimizes energy loss, improving overall system efficiency.
Modularity and Customization: Gear ratios and dimensions can be adjusted based on load and speed requirements.
Advantages:
- Reliability: Designed to withstand harsh environments, ideal for outdoor machinery.
- Easy Maintenance: Compact structure allows for easy disassembly and maintenance.
- Low Noise and Smooth Operation: Multi-tooth engagement reduces vibration for quieter operation.
Selection of Wheel Drive Planetary Gearbox Reducer for Underground Drilling Jumbos
When selecting a Wheel Drive Planetary Gearbox Reducer, it is crucial to consider several factors. First, assess the load type—whether it is static or dynamic—as this will influence the gearbox's design and performance. Additionally, the working environment plays a significant role; factors such as temperature, humidity, and dust levels must be taken into account to ensure reliability and longevity. Finally, the installation method, including flange connections or shaft outputs, should align with your operational requirements to facilitate optimal performance.
Why Choose Our Wheel Drive Planetary Gearbox Reducer for Underground Drilling Jumbos
Choosing our Wheel Drive Planetary Gearbox Reducer means opting for tailored solutions designed to meet your specific needs, including customized gear ratios and installation methods. Our high-quality manufacturing ensures precision machining, resulting in low tolerances and extended lifespan. We provide comprehensive technical support, including selection guidance and after-sales service, which simplifies the complexity of your drive system. This ultimately enhances the overall performance and reliability of your equipment, ensuring that your underground drilling operations run smoothly and efficiently.
Maintenance Tips for Wheel Drive Planetary Gearbox Reducer
To ensure optimal performance of your wheel drive planetary gearbox reducer for underground drilling jumbos, follow these maintenance tips:
- Regularly check and change the lubricant to prevent overheating and wear.
- Inspect seals and gaskets for leaks and replace them as needed.
- Clean the gearbox exterior to avoid dirt accumulation that can cause overheating.
- Monitor for unusual noises or vibrations, indicating potential issues.
Wheel Drive Planetary Gearbox Supplier
GBC is the Australian sales agent for Ever-power Group, specializing in high-quality gearboxes and drive systems. Our Wheel Drive Planetary Gearbox Reducer for Underground Drilling Jumbos is designed to enhance the efficiency and performance of your drilling operations. With robust construction and advanced engineering, our gearboxes offer superior torque and reliability, making them ideal for challenging underground environments.
We pride ourselves on providing tailored solutions and exceptional customer service. Whether you're looking for standard models or custom designs, our team is ready to assist you in finding the perfect gearbox for your needs. Don't miss the opportunity to boost your operations—contact us today to customize and purchase your Wheel Drive Planetary Gearbox!
