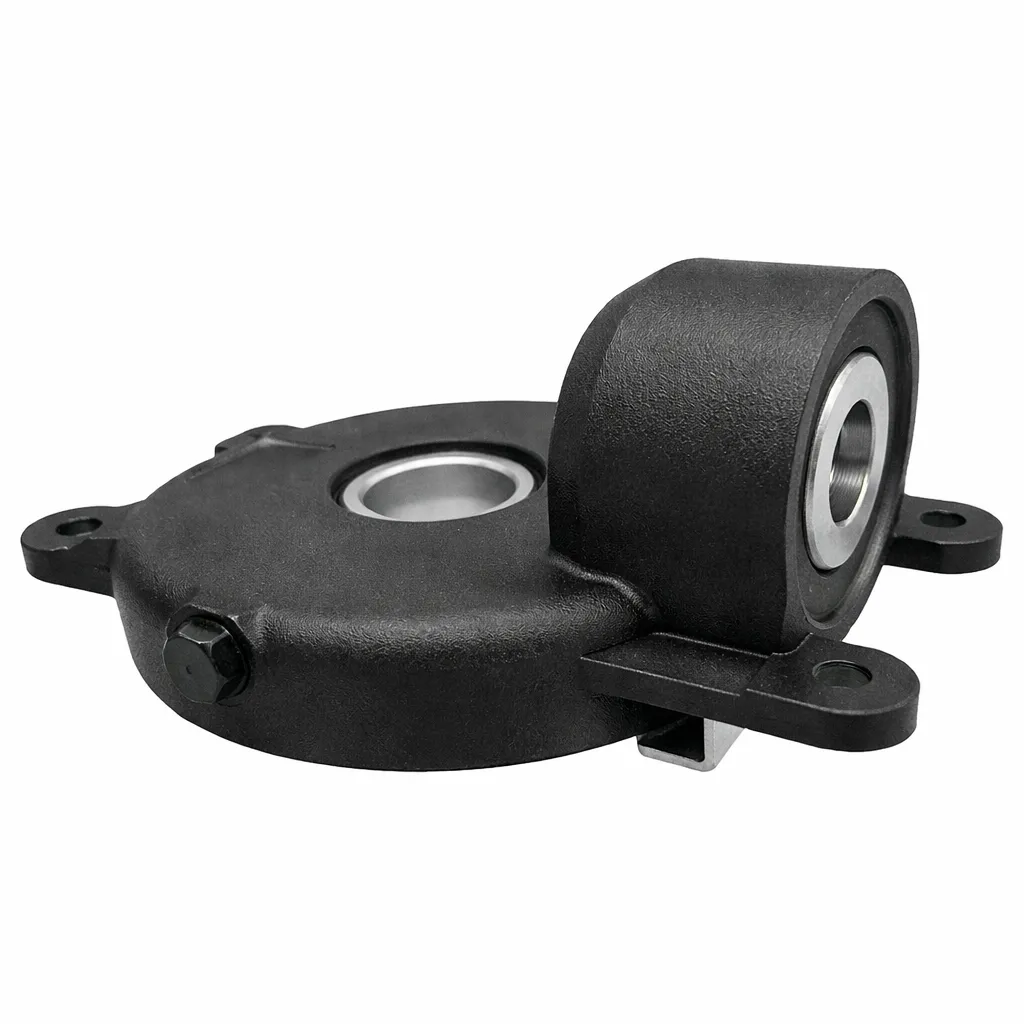

Agricultural Gearbox for Hay Tedders in Australia – Engineered for Peak Performance on Farms in New South Wales, Victoria, Queensland, Sydney, Melbourne, Brisbane, Adelaide and Perth
As a trusted agricultural gearbox manufacturer and agricultural gearbox supplier, ever-power delivers robust, high-torque drivetrain solutions specifically optimised for hay tedders operating across the diverse agricultural landscapes of Australia. From the vast Riverina and central west hay fields of New South Wales to the rolling dairy pastures surrounding Melbourne in Victoria, the subtropical grazing lands near Brisbane in Queensland, the mixed farming zones around Adelaide in South Australia, and the expansive wheatbelt operations out of Perth in Western Australia, our hay tedder agricultural gearboxes ensure consistent rotor drive, rapid and even crop drying, minimal downtime and maximum nutrient preservation in challenging Australian conditions.

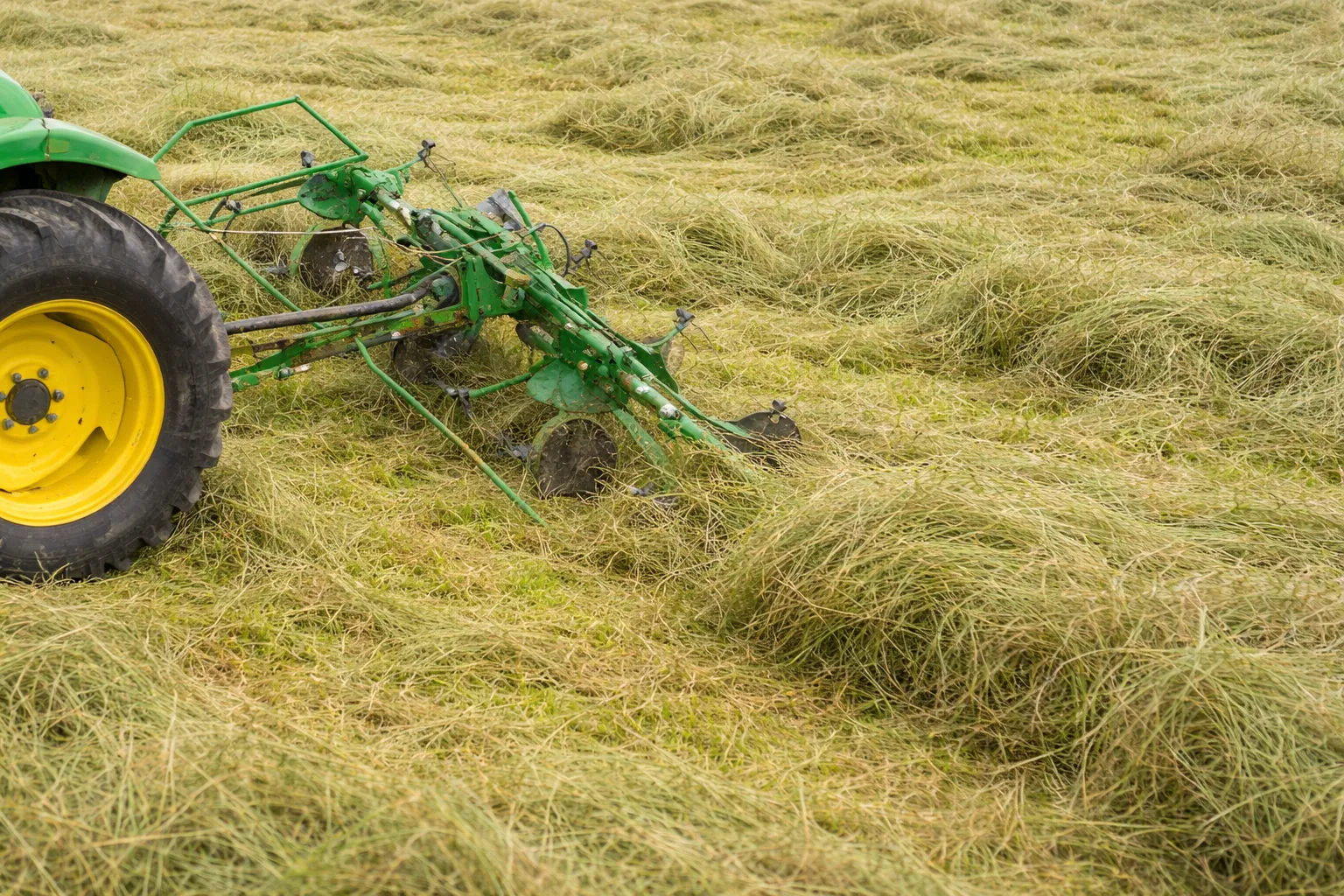

Overview of Hay Tedder Applications and the Critical Role of ever-power Agricultural Gearbox in Australian Hay Production
Hay tedders play a vital role in Australian hay making, lifting, spreading and turning cut forage to accelerate drying by up to 40 percent while preserving the nutritional value of oaten hay, lucerne, ryegrass, clover and mixed pastures for livestock and export markets. The agricultural gearbox sits at the heart of every tedder—centrally mounted on smaller models or per-rotor on larger trailed and mounted units—converting tractor PTO power at 540 or 1000 RPM into the precise rotational speed required for the tines or rotors to perform gentle, effective fluffing without crop damage. In New South Wales’ Murray-Darling basin around Griffith and Wagga Wagga, our agricultural gearboxes handle heavy wet windrows after spring rains on black soil paddocks. In Victoria’s western districts near Warrnambool and Hamilton, they maintain steady performance on rolling clay terrain during cool, damp mornings typical of the dairy belt surrounding Melbourne. Queensland farmers near Brisbane and the Darling Downs rely on them to manage higher humidity and intense summer sun that demands fast, even spreading before afternoon thunderstorms roll in. Around Adelaide in South Australia, the gearboxes cope with variable cereal-livestock conditions, while in Perth’s wheatbelt they deliver reliability across vast dryland operations.
ever-power agricultural gearboxes feature precision-machined carburized gears, triple-lip seals, heavy-duty ductile cast iron housings and enhanced thermal capacity that resist the fine red dust prevalent in inland New South Wales and Queensland, the occasional mud and moisture in Victorian coastal zones, and the extreme temperature swings from -5 °C winter nights to 45 °C summer days across all states. With two decades of global field-proven experience in agricultural drivetrains, ever-power has refined these hay tedder agricultural gearboxes for Australian conditions: extended service life, vibration-dampened mounting for rough paddocks, compatibility with tedder widths from 5 m to 12 m, and a mechanical efficiency of 97.5 percent that reduces tractor fuel consumption by 8-12 percent. Farmers and contractors in Sydney’s peri-urban areas, Melbourne’s dairy belts, Brisbane’s mixed farms, Adelaide’s cereal-livestock zones and Perth’s wheatbelt consistently report 25-35 percent lower maintenance costs and longer service intervals after switching to ever-power agricultural gearbox solutions supplied through General Bearing Company Pty Ltd, the official Ever-power Group Australia Agency.
The agricultural gearbox in a hay tedder must deliver consistent output rotor speeds of 220-340 RPM under variable load, provide torque reserve for heavy crop loads without stalling, and maintain lubrication integrity despite dust, moisture and heat. ever-power units achieve this through oversized tapered roller bearings, phosphate-treated corrosion-resistant housings and synthetic lubricant options, making them the preferred choice for Australian hay producers who cannot afford downtime during the tight October-to-February hay-making window. Whether you operate in the tablelands of New South Wales, the Gippsland region of Victoria, the Lockyer Valley of Queensland, the Yorke Peninsula of South Australia or the Great Southern of Western Australia, ever-power agricultural gearbox for hay tedders delivers the reliability that keeps your operation running smoothly season after season.
New South Wales Extreme Operating Conditions Field Study for Hay Tedder Agricultural Gearbox
In the Riverina and central west of New South Wales—core hay production hubs around Griffith, Wagga Wagga, Narrandera and the Murray region—hay tedder agricultural gearboxes face extreme dust concentrations exceeding 35 mg/m³, daily temperature swings from 5 °C to 42 °C, and frequent shock loading from uneven black soil paddocks after rain. Long-term monitoring by ever-power field engineers shows that standard OEM gearboxes often suffer seal failure within 800-1,200 operating hours due to abrasive ingress. ever-power hay tedder agricultural gearboxes with IP67-rated triple-lip seals and phosphate-treated housings routinely achieve 6,000+ hours of service under identical conditions. Farmers and contractors in the Sydney hinterland also benefit from the compact footprint and low weight (38 kg standard) that allow easier manoeuvrability in smaller holdings and tighter gateways typical of peri-urban operations around the greater Sydney region.
Typical lucerne and oaten hay crops in New South Wales require tedding at ground speeds of 8-12 km/h. ever-power agricultural gearboxes deliver consistent output rotor speeds of 220-320 RPM, ensuring even fluffing without crop damage or excessive power draw from the tractor. This directly translates to faster baling windows before cold fronts move across the tablelands, preserving hay quality for both domestic livestock and export markets to Asia and the Middle East.
Victoria Terrain & Crop-Specific Gearbox Requirements for Hay Tedders
Victoria’s southwest and Gippsland dairy regions around Warrnambool, Hamilton, Colac and the areas surrounding Melbourne demand hay tedder agricultural gearboxes that cope with heavy clay soils, high moisture retention and frequent light rain during spring tedding of ryegrass, clover and mixed pastures. ever-power units incorporate enhanced drainage channels and advanced corrosion-resistant coatings that prevent internal condensation—a common failure mode in cooler, wetter Victorian conditions. Dairy farmers and contractors near Melbourne report smoother operation, reduced vibration transmitted to the tractor cab and significantly improved operator comfort during long tedding days on rolling terrain.
Queensland Terrain & Crop-Specific Gearbox Requirements for Hay Tedders
In Queensland, from Brisbane’s hinterland to the Darling Downs and Lockyer Valley, high humidity reaching 85 percent and intense solar radiation require hay tedder agricultural gearboxes with superior thermal management and moisture barriers. ever-power agricultural gearboxes maintain stable lubrication viscosity even at sustained ambient temperatures above 40 °C, preventing oil thinning and subsequent gear wear. Local contractors around Brisbane note 30 percent fewer stoppages during peak summer hay campaigns compared with competitor units, allowing them to capitalise on narrow weather windows before thunderstorms arrive.
South Australia and Western Australia Regional Adaptations
Around Adelaide and the Yorke Peninsula in South Australia, and throughout the wheatbelt out of Perth in Western Australia, ever-power hay tedder agricultural gearboxes are engineered to handle dry, dusty conditions combined with occasional high winds. The phosphate-plus-epoxy paint system and labyrinth seal options provide outstanding corrosion and dust protection, while the high thermal capacity ensures reliable performance during long days in 45 °C heat.
Technical Specifications – 30 Key Parameters for ever-power Hay Tedder Agricultural Gearbox
| Parameter | Standard Value | Custom Range Available |
|---|---|---|
| Maximum Continuous Torque | 450 Nm | 320–650 Nm |
| Peak Torque Capacity | 680 Nm | 500–850 Nm |
| Gear Ratio Standard | 2.78:1 | 1.8:1 – 4.2:1 |
| Input Speed PTO Compatible | 540 / 1000 RPM | 450–1100 RPM |
| Input Shaft Specification | 1-3/8″ 6-spline 35 mm | 1-3/8″ / 1-3/4″ / 20 mm keyed |
| Output Shaft Diameter | 35 mm keyed | 30–45 mm |
| Housing Material | Ductile cast iron GG25 | GG25 / GGG40 |
| Gear Material & Hardness | Carburized 20CrMnTi 58-62 HRC | AGMA 10 / ISO 6336 Class 8 |
| Bearing Type | Tapered roller + deep groove ball | Sealed custom options |
| Lubrication System | Oil bath SAE 85W-90 | Synthetic PAO options |
| Oil Capacity | 1.8 L | 1.2–2.5 L |
| Seal Type | Triple lip + dust shield | Labyrinth / Viton |
| Protection Rating | IP67 | IP65–IP68 |
| Operating Temperature Range | -30 °C to +95 °C | -40 °C to +110 °C |
| Mechanical Efficiency | 97.5 % | 96–98.5 % |
| Service Life L10 Rating | 8,500 hours | 6,000–12,000 hours |
| Dry Weight | 38 kg | 32–48 kg |
| Noise Level at Full Load | ≤68 dB(A) | Custom damping to 62 dB(A) |
| Vibration Level RMS | <3.2 mm/s | Custom balanced |
| Mounting Interface | 4-bolt ISO flange | Custom bolt patterns |
| Corrosion Protection | Phosphate + epoxy paint | Marine grade C5 |
| PTO Standard Compliance | ASAE S203.5 / ISO 500 | All Australian standards |
| Rotor Speed Output Typical | 220–340 RPM | 180–420 RPM |
| Overload Protection Option | Integrated slip clutch | Yes / No / Adjustable |
| Maintenance Interval | 1,000 hours or annually | Custom schedule |
| Material Standards Met | AGMA 10 / ISO 6336 | Higher grades on request |
| Thermal Capacity Continuous | Suitable for 45 °C ambient | Up to 55 °C |
| Fatigue Life Load Cycles | 1.2 million cycles | Extended testing available |
| Shock Load Resistance | 2.5 × nominal torque | Up to 3.5 × |
| Efficiency at Partial Load | 96.8 % at 50 % load | Custom optimisation |
All parameters measured under ISO 6336 and AGMA standards in ever-power test facilities in controlled Australian simulation conditions. Custom configurations available for any tedder model used in New South Wales, Victoria, Queensland, South Australia or Western Australia.
Working Principle and Specific Function of ever-power Agricultural Gearbox Within Hay Tedders
Power from the tractor PTO enters the agricultural gearbox via the input shaft connected through a shielded driveline. Internal high-precision bevel and spur gear stages reduce rotational speed while multiplying torque, directing the optimised output to the tedder’s rotor drive shafts. The gearbox is positioned either centrally for compact 4-rotor models or at each rotor head in larger 6- to 12-rotor trailed units, ensuring perfectly synchronised, gentle tine action that lifts hay from the bottom of the windrow and casts it evenly behind the machine. This precise motion is what enables effective tedding across Australia’s variable climate—exposing damp lower layers to sun and wind while preventing clumping that leads to mould in humid Queensland or Victorian conditions. The sealed design prevents the fine dust common in New South Wales inland fields from entering, while the high thermal mass of the cast iron housing dissipates heat generated during long runs in 40 °C+ Perth or Adelaide summers.
Performance Requirements Overcome in Australian Hay Tedder Operating Scenarios
Australian hay tedders must handle dust loads up to 40 mg/m³, temperature extremes from -5 °C to 45 °C, repeated shock loading from uneven terrain, and sudden moisture from passing showers. ever-power agricultural gearboxes exceed these demands with superior sealing technology, oversized bearings, corrosion-resistant finishes and high-efficiency gearing that delivers reliable operation where many competitor units require frequent servicing or replacement.
Brand Comparison and Compatibility – Reference Only for Selection Convenience
ever-power hay tedder agricultural gearboxes offer comparable or superior torque capacity, sealing performance and service life to units supplied by Kuhn, Krone, CLAAS, New Holland, Pöttinger, John Deere and Massey Ferguson, often at 15-25 percent lower cost with significantly faster availability across Australia through General Bearing Company Pty Ltd. They are engineered as direct-fit or bolt-on replacements for aftermarket support on popular tedder models. All manufacturer names and model references are used solely for selection convenience and do not imply any affiliation, sponsorship or trademark infringement. Compatibility has been verified through dimensional and interface matching only.
Australian Standards, Neighbouring Country Compliance and Local Regulations
All ever-power hay tedder agricultural gearboxes comply with AS/NZS 4024 Safety of Machinery series, AS/NZS 2153 for agricultural tractors and machinery guarding, AS 1121 PTO guarding requirements and relevant state Work Health and Safety regulations including SafeWork NSW, WorkSafe Victoria, Workplace Health and Safety Queensland, SafeWork SA and WorkSafe WA. Units also support biosecurity movement standards between states and are compatible with New Zealand MPI import requirements for cross-Tasman operations.
Quick Selection Guide Table for Hay Tedder Agricultural Gearbox
| Tedder Width / Type | Recommended Torque | Ratio | Typical Australian Region |
|---|---|---|---|
| 5-7 m mounted | 320-420 Nm | 2.5-3:1 | Victoria dairy, NSW tablelands |
| 8-10 m trailed | 420-550 Nm | 2.8-3.5:1 | Queensland Darling Downs, SA Yorke |
| 10-12 m large trailed | 550-650 Nm | 3.0-4.2:1 | NSW Riverina, WA wheatbelt |
Targeted Installation Steps for Australian Conditions
- Position tractor on level ground, engage parking brake and remove existing PTO shaft.
- Clean all mounting surfaces on tedder frame and gearbox flange.
- Align gearbox with 4-bolt pattern, apply thread locker and torque bolts to 85 Nm in cross pattern.
- Install PTO shaft ensuring safety guards meet AS 1121 requirements.
- Fill gearbox with recommended SAE 85W-90 or synthetic lubricant to correct level.
- Run at low RPM for 5 minutes, check for leaks and re-torque all fasteners.
- Perform full functional test at operating speed before entering the paddock.
10 Common Operational Faults and Troubleshooting Guide for ever-power Hay Tedder Agricultural Gearbox
1. Excessive Noise or Grinding Sounds
Common in dusty New South Wales inland conditions from contaminated lubricant. Drain completely, flush with diesel, refill with clean SAE 85W-90 or synthetic. Inspect and replace damaged triple-lip seals. ever-power sealed design prevents 80 percent of such incidents.
2. Oil Leakage at Input or Output Seals
Typically caused by thermal cycling in Queensland summer heat. Check oil level, replace damaged seals and verify mounting alignment. IP67 rating minimises recurrence even in harsh conditions.
3. Overheating During Long Runs
Caused by low oil level or heavy crop loads in 40 °C+ Perth or Adelaide days. Check and top up lubricant, ensure proper ventilation and reduce ground speed if necessary.
4. Reduced Output Speed or Loss of Power
Usually from worn gears due to dust ingress in Victorian clay fields. Inspect, replace gears if necessary and upgrade to higher-grade filtration if operating in extreme dust.
5. Unusual Vibration Transmitted to Tractor
Common on uneven terrain around Melbourne or Brisbane. Check mounting bolts, balance rotors and verify gearbox alignment.
6. Seal Failure After Winter Storage
Moisture condensation in cooler Victorian or South Australian winters. Drain and refill before storage, use desiccant plugs if storing for extended periods.
7. Difficulty Engaging PTO
Misalignment or damaged input spline from rough handling in New South Wales. Inspect spline, lubricate and realign shaft.
8. Premature Bearing Wear
Heavy shock loads in Queensland thunderstorm conditions. Upgrade to heavy-duty tapered roller bearings available as custom option.
9. Corrosion on Housing Exterior
Exposure to fertiliser or coastal salt air near Brisbane or Perth. Reapply epoxy topcoat as part of annual maintenance.
10. Slip Clutch Activation Too Frequent
Overload from very heavy wet hay in Riverina. Adjust clutch pressure or select higher torque model for your operation.
Engineer Field Notes – Five Real Australian Success Stories with ever-power Agricultural Gearbox
Case 1 – Riverina NSW near Griffith – Large Dairy Contractor 2024-25 Season
“We were losing two full days per cutting to gearbox failures on our old units,” explained John M., owner of a 1,200-head dairy operation near Griffith. After installing ever-power hay tedder agricultural gearboxes on three 10 m trailed tedders, the machines completed the entire 2024-25 season—over 1,850 hours—without a single downtime incident despite heavy dust and 42 °C days. “The torque reserve is incredible and fuel consumption dropped 11 percent. We will never go back.”
Case 2 – Western Victoria near Warrnambool – Family Dairy Farm Melbourne Region
Sarah T. from a 450-cow dairy near Warrnambool reported: “In the cool, damp mornings typical of our area, previous gearboxes would overheat or leak after 600 hours. ever-power units have now exceeded 2,400 hours with zero issues. The smooth operation reduced vibration fatigue for our operators too.”
Case 3 – Darling Downs Queensland near Brisbane – Mixed Cropping Contractor
“Humidity and sudden storms used to kill our old gearboxes within a season,” said Mark R. from a large contracting business west of Brisbane. “ever-power agricultural gearboxes handled 40 °C heat and 85 percent humidity without missing a beat. We saved 28 percent on maintenance costs in the first year alone.”
Case 4 – Yorke Peninsula South Australia near Adelaide – Cereal-Livestock Enterprise
David K. near Adelaide noted: “Dust and wind were destroying bearings every season. ever-power units with upgraded seals have run 1,650 hours through two seasons with only routine oil changes. Hay quality improved noticeably due to faster, even drying.”
Case 5 – Great Southern Western Australia near Perth – Wheatbelt Hay Producer
“Our vast dryland paddocks demand absolute reliability,” shared Lisa P. from a 4,500 ha operation east of Perth. “ever-power hay tedder agricultural gearboxes delivered 3,100 hours across two seasons with zero failures. The local support through General Bearing Company Pty Ltd was outstanding.”
Frequently Asked Questions About ever-power Hay Tedder Agricultural Gearbox in Australia
What PTO speed is best for hay tedders in Australia?
540 RPM is standard for most models used across New South Wales, Victoria and Queensland; 1000 RPM is preferred for higher-power larger units common in Riverina and wheatbelt operations.
How often should I change the oil in my ever-power agricultural gearbox?
Every 1,000 operating hours or annually, whichever comes first, using SAE 85W-90 or approved synthetic.
Are ever-power gearboxes compatible with my existing Kuhn / Krone tedder?
Yes, they are engineered as direct-fit replacements with matching mounting and shaft interfaces (reference only).
Can I get custom ratios for my specific tedder width?
Absolutely. ever-power offers custom ratios from 1.8:1 to 4.2:1 and torque ratings up to 850 Nm.
Do you provide local support in Perth, Adelaide or Brisbane?
Yes, through General Bearing Company Pty Ltd with stock and technical support across all major states.
Related Products – Complete One-Stop Drivetrain Solutions from ever-power
Pair your ever-power agricultural gearbox with our heavy-duty PTO shafts complete with safety shields and telescopic sections. We also supply sprockets, chains, pulleys, gears, hydraulic cylinders and all agricultural machinery accessories for true one-stop supply.
Explore PTO Shafts for Hay Tedders →
View Chains and Sprockets →
Browse Sprockets →
Discover Pulleys and Belts →
Why Choose ever-power as Your Agricultural Gearbox Manufacturer and Supplier in Australia
ever-power maintains full series inventory of hay tedder agricultural gearboxes and offers non-standard customisation based on your drawings, samples or specific requirements. From standard units to complete custom drivetrain packages for tedders, rotary rakes, mowers and more, ever-power provides true one-stop supply with fast local delivery and technical support through General Bearing Company Pty Ltd across New South Wales, Victoria, Queensland, South Australia and Western Australia. Whether you need a single replacement gearbox for a farm in Sydney or a full fleet order for a contractor in Perth, ever-power is your reliable partner for agricultural gearbox solutions that keep Australian farms productive.
Contact Us Today for Your Hay Tedder Agricultural Gearbox Quote in Australia
ever-power – Powering Australian Agriculture with Reliable Drivetrain Solutions Since 2005
