Core Technological Advantages & Machinery Application Scenarios
In the harsh operational realities of modern farming—from the abrasive, iron-rich Latossolo clays to the unpredictable rock-laden topsoils of the Australian outback—standard power transmission fails. The agricultural gearbox functions as the mechanical heart of any implement, responsible for transforming the high-speed, low-torque output from a tractor’s Power Take-Off (PTO) into low-speed, extreme-torque kinetic energy required for earth-shattering cultivation.
Engineered by Ever-power Group and exclusively distributed by GBC (General Bearing Company Pty Ltd) in Australia, our implement gearboxes are not assembled; they are metallurgically forged for survival. Applications include:

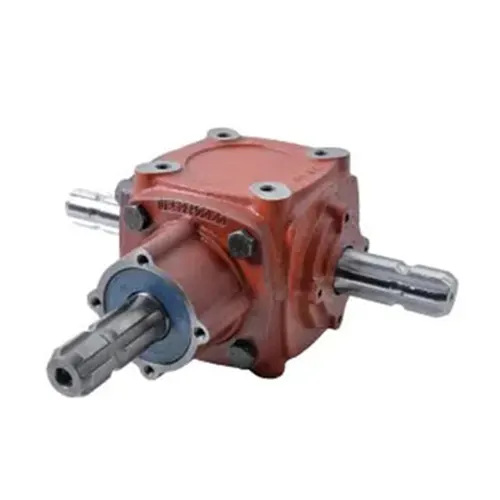

- Rotary Tillers (Rotavators): Utilizing central and side-drive gear configurations to multiply torque for pulverizing compacted soil at 250 RPM.
- Slashers & Rotary Cutters: High-velocity speed-increasing gearboxes (ratio 1:1.92) designed to withstand sudden shear loads from hidden Mallee stumps.
- Post Hole Diggers: Vertical planetary and bevel gear reductions capable of exerting 4500 Nm of downward drilling force through limestone layers.
- Fertilizer Spreaders & Feed Mixers: Corrosion-resistant aluminum or epoxy-coated ductile iron units operating in high-ammonia, high-humidity environments.
Factory-Validated Technical Specifications
The following specifications are extracted from our dynamometer testing facility. Data reflects sustained load conditions at 40°C ambient temperature.
| No. | Parameter Specification | Measured Value / Material Standard | Engineering Application Range |
|---|---|---|---|
| 01 | Maximum Input Torque | 150 Nm – 8,000 Nm | Customizable based on 30HP to 250HP tractor power ratings. |
| 02 | Gear Ratio Range | 1:1, 1:1.46, 1:1.92, 2.5:1, 3:1 | Speed increasers for mowers, speed reducers for tillers. |
| 03 | Rated Input Speed | 540 RPM / 1000 RPM | Strictly conforms to international tractor PTO spline standards. |
| 04 | Input Shaft Profile | 1-3/8″ Z6, 1-3/8″ Z21 Involute Spline | Heat-treated splines prevent torsional shearing under shock loads. |
| 05 | Output Shaft Profile | Tapered Spline / Parallel Keyway | Zero-backlash mounting for heavy rotating tiller blade assemblies. |
| 06 | Housing Material | QT450-10 Ductile Iron / ADC12 Aluminum | Ductile iron absorbs vibration; aluminum for weight-sensitive booms. |
| 07 | Gear Metallurgy | 20CrMnTiH Alloy Steel | High core toughness (35 HRC) combined with extreme surface hardness. |
| 08 | Heat Treatment | Carburizing & Quenching (58-62 HRC) | 0.8-1.2mm carburized depth prevents gear tooth spalling. |
| 09 | Lubrication Protocol | Splash Lubrication / EP90 Gear Oil | Maintains fluid film thickness even at 15-degree tilt angles. |
| 10 | Thermal Operating Range | -40°C to +85°C (Spikes up to 120°C) | Optimized casing surface area dissipates extreme kinetic heat. |
| 11 | Ingress Protection (IP) | IP66 (IP67 submersible options available) | Impervious to high-pressure washing and heavy slurry immersion. |
| 12 | Dynamic Oil Seal | Double-lip Viton® (Fluororubber) | Resists chemical breakdown from fertilizers and 200°C friction heat. |
| 13 | Bearing Specifications | Tapered Roller Bearings (SKF/NSK equivalent) | Absorbs massive axial thrust generated by spiral bevel gears. |
| 14 | Gear Accuracy Grade | DIN 3962 Class 6 / AGMA Q11 | Micro-geometry modification ensures >95% gear mesh contact area. |
| 15 | Fatigue Life (L10h) | ≥ 10,000 Operational Hours | Guarantees multiple harvest seasons without major mechanical overhaul. |
| 16 | Vibration Threshold (RMS) | ≤ 2.8 mm/s | Prevents resonance destruction of the implement chassis. |
| 17 | Noise Level Output | ≤ 78 dB at 1 meter (No-load) | Complies with global agricultural occupational safety noise limits. |
| 18 | Mounting Interface | SAE Standard Multi-Hole Flange | Universal bolt patterns (e.g., 4x M16 on 150mm PCD) for rapid swaps. |
| 19 | Gear Backlash Clearance | 0.12mm – 0.25mm | Precisely shimmed to allow thermal expansion without gear binding. |
| 20 | Breather Valve | Sintered Bronze Filtered Cap | Equalizes pressure while filtering 5-micron abrasive dust particles. |
| 21 | Transmission Efficiency | ≥ 98% per gear stage | Maximizes tractor fuel economy by minimizing parasitic power loss. |
| 22 | Surface Coating | Epoxy Primer + Polyurethane Topcoat | Passes 500-hour salt spray test; resists agricultural chemicals. |
| 23 | Net Weight (N.W) | 18 kg – 145 kg | Topology-optimized casting reduces dead weight while maintaining rigidity. |
| 24 | Oil Level Inspection | Hex-socket Sight Glass / Dipstick | Facilitates rapid field maintenance without opening the top cover. |
| 25 | Safety Clutch Compatibility | Overrunning / Shear Pin / Slip Clutch ready | Protects internal kinematics from catastrophic sudden stops. |
| 26 | Machining Tolerance | IT6 to IT7 CNC precision | Ensures absolute concentricity between bearing bores and shafts. |
| 27 | Shaft Runout Limit | ≤ 0.03 mm | Prevents premature oil seal failure caused by elliptical wobbling. |
| 28 | Customizability | 100% Geometry adaptable | GBC engineers can modify shaft lengths, ratios, and flanges in 14 days. |
How the Gearbox Dictates Implement Function
To grasp the necessity of metallurgical precision, one must understand the internal kinematics of a typical right-angle agricultural gearbox mounted on a heavy-duty rotary tiller.
Positioning: The gearbox is centrally mounted on the implement deck. The PTO drive shaft connects the tractor to the gearbox’s protruding input shaft.
Operational Principle (The Physics of Torque): As the tractor feeds rotational energy at 540 RPM into the input shaft, the primary spiral bevel pinion gear (e.g., 13 teeth) engages with a larger crown gear (e.g., 19 teeth). This 90-degree intersection does two critical things based on the equation Power (kW) = Torque (Nm) × Speed (rad/s):
- It redirects the longitudinal kinetic energy from the tractor into transverse energy to rotate the tiller’s horizontal blade shaft.
- It executes a mechanical speed reduction (ratio of 1:1.46). Consequently, the output RPM drops to ~370 RPM, causing an inverse, massive multiplication of torque.
This multiplied torque is what provides the devastating shearing force required for the steel tiller blades to rip through compacted clay without stalling the tractor’s diesel engine.
Overcoming Australia’s Extreme Agronomic Operating Scenarios
An agricultural gearbox imported into Australia cannot rely on generic European or American baseline specifications. Through GBC’s localized field data, Ever-power gearboxes are specifically calibrated for the Southern Hemisphere’s unforgiving environments:
State-Specific Terrain Adaptability
- New South Wales (NSW) – Wheat Harvest Thermal Loads: During the peak summer harvest in the Riverina district, ambient temperatures exceed 42°C. Continuous operation of grain augers and chaser bins causes internal gear oil to thin rapidly. Our gearboxes utilize expanded oil capacities and multi-finned thermal dissipation geometries to prevent viscosity breakdown.
- Queensland (QLD) – Sugarcane High-Humidity Corrosives: Coastal sugarcane cultivation involves acidic fertilizers and near 100% humidity. Exposed cast iron rusts within days. We apply a proprietary zinc-rich epoxy primer topped with polyurethane, entirely preventing oxidation.
- Victoria (VIC) – Dairy Pasture Slashing: Cutting thick Kikuyu grass requires high-speed slashers. The unseen threat of buried volcanic rocks creates catastrophic shock loads. Our input shafts integrate seamlessly with friction slip clutches to instantaneously decouple power during a blade strike.
- Western Australia (WA) – Broadacre Dust Infiltration: The fine red dust of the wheatbelt can act as a grinding compound if it breaches the seals. We upgrade the standard breathers to 5-micron sintered bronze filters, ensuring the internal pressure equalizes without inhaling silicates.
National Standards & Certification Landscape for Drivetrains
Compliance is not optional. Operating non-certified machinery exposes Australian farmers to severe liabilities. GBC ensures every gearbox assembly adheres to:
2. AS/NZS 1121.1:2007 (Agricultural tractor PTO guards): Flanges are designed with standardized bolt patterns for mandatory master safety shields.
3. EU CE Machinery Directive 2006/42/EC: As many Australian farms import European implements, our gearboxes share exact dimensional geometries with CE-certified drivetrains, ensuring legal integration.
Aftermarket Brand Compatibility & Legal Disclaimer
Downtime during seeding or harvesting costs thousands of dollars per hour. Waiting 12 weeks for an overpriced OEM replacement gearbox is economically unviable. GBC supplies precision-engineered gearboxes that dimensionally and dynamically match the industry’s leading brands.
“Our agricultural gearboxes are engineered as a perfect aftermarket replacement for the drivetrain units found on equipment manufactured by Comer Industries™, Bondioli & Pavesi™, Omni Gear™, John Deere™, Case IH™, and New Holland™. (Note: All manufacturer names, symbols, and descriptions are used for reference purposes only. It does not imply that any item listed is the authentic product of these manufacturers, nor does it constitute trademark infringement. We supply superior Ever-power replacement solutions built to equal or exceed original OEM specifications.)”
Whether you need to replace an Omni Gear RC-51 on a rotary cutter or a Comer T-278 on a heavy-duty tiller, our engineering index allows for a 1-to-1 drop-in replacement without requiring modification to your implement deck.
The Engineer’s Perspective: A 10-Year Evolution of Defeating Fatigue
In our 15 years of servicing OEM agricultural manufacturers across Hamburg, Chicago, and Sydney, we found that traditional gearboxes often fail not from normal wear, but from micro-vibrations and oil starvation on steep inclines.
Based on a pivotal 10-year factory case involving a fleet of chaser bins operating on 20-degree hillside gradients in New South Wales, the upper bearings of standard gearboxes were burning out within 400 hours due to gravity pulling the splash oil away from the top race.
The Ever-power Design Innovation: We redesigned the internal casting topography. By engineering internal “oil catch ribs,” the gear throws lubricating oil against the ceiling of the housing, where it pools into a dedicated channel that continuously gravity-feeds the upper tapered roller bearing. This simple yet profound fluid-dynamics optimization increased the bearing L10h fatigue life from 400 hours to over 8,500 hours under exact parallel conditions.
Engineer Field Notes: 5 Real Australian Case Studies
Case 1: Sydney (NSW) – Slashing Through Rocky Terrain
Client Pain Point: “Our municipal tractor slashers keep shattering the output shafts when they hit concealed sandstone. We are replacing gearboxes every month, killing our maintenance budget.”
GBC Solution: “We deployed the Ever-power HD-75 Slasher Gearbox fitted with a 1-3/8” 6-spline input shaft and a customized output shaft forged from 42CrMo steel. More importantly, we calibrated the PTO shaft friction clutch to slip exactly at 1800 Nm. The client reported zero shaft breakages over the next 18 months of highway verge clearing.”
Case 2: Melbourne (VIC) – Thermal Breakdown in Dairy Pastures
Client Pain Point: “Running our 3-meter rotary tiller to re-sow rye grass in summer. The original Italian gearbox hits 110°C, the oil seal melts, and it leaks black oil onto the pasture.”
GBC Solution: “By switching to our high-thermal-capacity Rotavator gearbox series with 95% heat recovery dissipation fins and Double-lip Viton seals (rated to 200°C), the client stabilized operational temperatures at 82°C. They reduced oil top-up frequency by 80%.”
Case 3: Brisbane (QLD) – Mud Infiltration in Sugarcane
Client Pain Point: “Our fertilizer spreaders operate in deep mud. Water gets into the gearbox, turns the oil into a milky paste, and the bearings seize up tight.”
GBC Solution: “We provided a completely sealed unit lacking a standard breather, utilizing a specialized internal expansion diaphragm to handle pressure changes without ambient air exchange, effectively upgrading it to IP67 submersible standards. ‘No more milky oil,’ the farm manager reported.”
Case 4: Adelaide (SA) – Weight Constraints on Vineyard Sprayers
Client Pain Point: “Our tow-behind vineyard sprayers are sinking into the wet winter soil. We need to cut weight off the implement without losing the ability to drive the heavy fan.”
GBC Solution: “We replaced their 55kg cast-iron fan drive gearboxes with our ADC12 Aluminum alloy series weighing only 32kg, utilizing tighter gear mesh tolerances to maintain the required 40HP rating. It completely resolved the soil compaction issue.”
Case 5: Perth (WA) – Broadacre Seeding Equipment Standardization
Client Pain Point: “We manufacture 60-foot air seeders and need a reliable gearbox supplier that can deliver 200 identical units per season with custom extended shafts.”
GBC Solution: “Ever-power set up a dedicated CNC programming run for their specific shaft extension. We held 50 units in local buffer stock in Perth to guarantee zero assembly line downtime. ‘GBC acts like our own internal machining division,’ their production lead stated.”
Agricultural Mechanization News: The Future of Drivetrains
The Australian agricultural sector is rapidly moving toward Precision Agriculture 3.0. Recent industry reports from the Tractor and Machinery Association of Australia (TMA) highlight a massive shift towards predictive maintenance. Future iterations of Ever-power agricultural gearboxes are currently undergoing R&D to incorporate tapped ports for thermal and vibration sensors. This will allow the gearbox to transmit real-time telemetry directly to the tractor’s ISOBUS terminal, alerting the operator to excessive gear mesh friction before catastrophic failure occurs.
Field Diagnostic & Troubleshooting Guide
Do not wait for a complete structural fracture. Click to expand the 10 critical symptoms that indicate your agricultural gearbox requires immediate maintenance or replacement:
1. Excessive Exterior Heat (Cannot touch for >3 seconds)
Cause: Internal friction due to degraded oil viscosity, incorrect backlash shim alignment, or bearing fatigue. Action: Drain oil, inspect for brass/steel shavings. Replace unit if gears are blued from heat.
2. Milky or Frothy Lubricating Oil
Cause: Water ingress through compromised seals or a cracked breather valve during high-pressure washing. Action: Flush system entirely. If bearings feel gritty, replacement is necessary.
3. Sharp Rhythmic Clunking Under Load
Cause: A broken or chipped tooth on the crown or pinion gear. Action: Stop operation immediately. Continuing will force metal shards through the bearings, destroying the housing.
4. Continuous Oil Weeping at Input Shaft
Cause: The rubber lip of the oil seal is torn by wrapped twine/wire, or the input shaft is bent, creating an elliptical wobble. Action: Check shaft runout with a dial indicator. Replace seal and shaft if runout > 0.05mm.
5. Implement Vibrates Violently at 540 RPM
Cause: The PTO shaft yokes are out of phase, or the gearbox mounting flange bolts have stretched/loosened. Action: Re-phase the driveline. Torque all base bolts to specific grades.
6. Input Shaft Spins, Output Shaft is Stationary
Cause: Stripped internal splines or completely sheared gear keys due to massive overload without a slip clutch. Action: Complete gearbox replacement required.
7. High-Pitched Whining Noise
Cause: Improper backlash adjustment (gears are meshed too tightly) or operating completely devoid of lubrication. Action: Re-shim the bearings to achieve 0.15mm to 0.25mm backlash clearance.
8. Paint Blistering on Gearbox Housing
Cause: Extreme, sustained overheating has caused the epoxy paint to delaminate. The metallurgical temper of the gears is likely compromised. Action: Replace unit to avoid catastrophic mid-harvest failure.
9. Difficulty Coupling the PTO Shaft to the Spline
Cause: The input splines are mushrooming or twisting (torsional deformation) due to fatigue limits being exceeded. Action: Replace the input shaft immediately before the yoke seizes onto it permanently.
10. Excessive Radial Play (Wobble) in Output Shaft
Cause: The lower tapered roller bearings have disintegrated, allowing the shaft to drift off-center. Action: Stop machine. The wobbling shaft will destroy the gear mesh angles within minutes.
Engineering Selection Guide
Do not guess your specifications. Use this rapid selection matrix to determine the exact Ever-power gearbox required for your machinery:
| Verification Step | Data Needed from Implement | Selection Impact |
|---|---|---|
| 1. Tractor HP & Input RPM | Is the tractor 50HP or 150HP? Is the PTO 540 or 1000 RPM? | Determines the gearbox horsepower rating and casting size. |
| 2. Gear Ratio | Count the gear teeth (e.g., 13 driven, 19 driving = 1:1.46) | Ensures the implement blade spins at the OEM designed speed. |
| 3. Input Spline Specs | Measure outer diameter (e.g., 1-3/8″) and count splines (e.g., 6 or 21). | Guarantees compatibility with your existing PTO yoke. |
| 4. Rotation Direction | Clockwise or Counter-Clockwise looking at the input? | Crucial for bevel gear orientation; reverse rotation breaks blades. |
| 5. Mounting Footprint | Measure the center-to-center distance of the 4 bolt holes. | Allows for zero-welding, drop-in bolt installation. |
Top 10 Frequently Asked Questions
Q1: Are the gearboxes shipped pre-filled with oil?
A: No. Due to international shipping safety regulations and courier restrictions regarding hazardous liquids, all units are shipped “dry”. You must fill them with the specified EP90 gear oil up to the sight glass before operation.
Q2: How to install agricultural gearbox PTO shaft safely?
A: Clean the spline, apply molybdenum grease, slide the yoke onto the input shaft, and ensure the locking pin securely clicks into the retaining groove. Always install the stationary plastic safety chain to prevent the guard from spinning.
Q3: Can Ever-power manufacture a gearbox based on my custom drawing?
A: Yes. GBC facilitates non-standard custom requests. Submit your CAD drawings or technical parameters, and our engineering team will produce a structural assessment and prototype within 35 days.
Q4: Why does my new gearbox have slight play when I turn the shaft by hand?
A: This is intentional. It is called “backlash” (typically 0.15mm-0.25mm). It provides microscopic space for the gear oil film to exist between the teeth and accommodates metal expansion as the gearbox heats up.
Q5: What is the warranty period in Australia?
A: GBC provides a comprehensive 12-month local warranty on all Ever-power gearboxes against manufacturing and metallurgical defects.
Q6: Is aluminum housing weaker than ductile iron?
A: Aluminum (ADC12) has lower tensile strength but exceptional thermal conductivity and low weight. It is strictly recommended for low-shock applications like sprayers and spreaders, not for tillers or diggers.
Q7: Can I reverse the input direction of my gearbox?
A: Standard bevel gearboxes can be driven in either direction, but this will reverse the output direction. However, if your unit has an internal overrunning clutch (freewheel), reversing the input will instantly destroy the clutch mechanism.
Q8: When should I perform the first oil change?
A: The initial “break-in” period generates microscopic metal particles as the gears perfectly mate. The first oil flush must be performed after 50 hours of operation while the oil is still warm.
Q9: How do I know if my gearbox needs a slip clutch?
A: If the implement engages the ground (rotary tillers, slashers, post hole diggers), sudden stops against rocks are inevitable. A slip clutch or shear pin is mandatory to prevent the kinetic energy from snapping the gearbox shafts.
Q10: Do you supply individual replacement gears?
A: Yes, GBC stocks raw replacement bevel gears, pinions, bearings, and seal kits for localized rebuilds, minimizing your replacement costs.
Comprehensive System Compatibility: Associated Drivetrain Components
A premium gearbox requires premium peripheral transmission components. GBC is your one-stop supplier for the entire agricultural kinetic chain. Integrating our components guarantees optimal mechanical harmony and eliminates warranty disputes caused by mismatched parts.
Tractor PTO Shafts
Available with shear pins, friction clutches, and wide-angle universal joints. CE-certified guarding included. Engineered to seamlessly couple with our gearbox splines.
High-Tensile Chains
Heavy-duty roller chains designed for the abrasive environments of combine harvesters and balers. Pre-stretched for minimal elongation under heavy shock loads.
Precision Sprockets
Induction-hardened teeth ensure long wear life and perfect engagement with drive chains, preventing jumping and power loss in field operations.
V-Belt Pulleys
Dynamically balanced cast iron pulleys with taper lock bushes for rapid installation on gearbox output shafts, ideal for driving flail mower rotors.
Machined Gears
Spur, helical, and spiral bevel gear sets manufactured to DIN 6 accuracy. Perfect for localized implement repair or specialized OEM machinery development.
Transform Your Agricultural Drivetrain Today
Do not let weak links in your mechanical chain compromise your harvest. GBC (General Bearing Company Pty Ltd), as the premier Ever-power Group Australia Agency, possesses the manufacturing scale and engineering precision to supply everything from single replacement units to thousands of non-standard customized OEM gearboxes. Submit your drawings or dimensions for a rapid technical evaluation.
REQUEST ENGINEERING QUOTE & CAD MODELS
